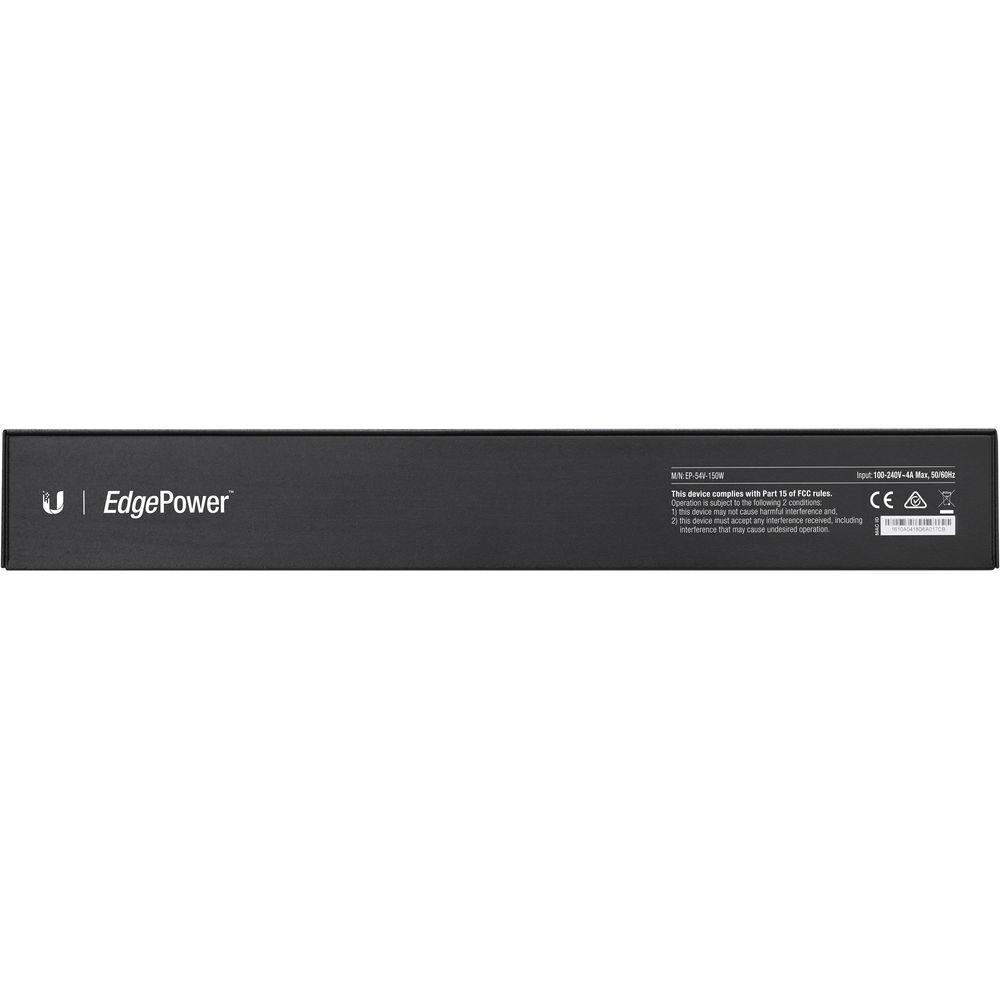

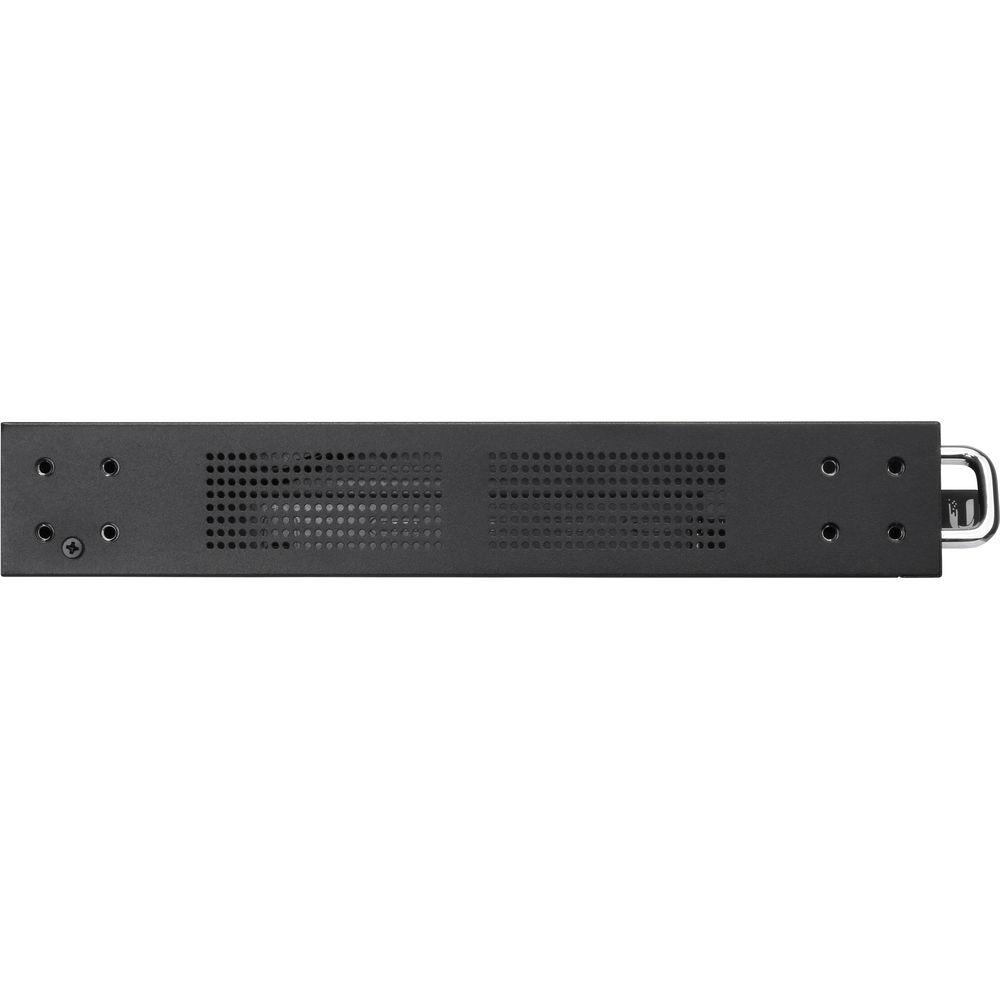

User Manual for Ubiquiti Networks Edgepower 150W Modular DC Power Supply Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks Edgepower 150W Modular DC
- Product category: Networking Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Networking Accessories
 |
User manual for the Ubiquiti Networks Edgepower 150W Modular DC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

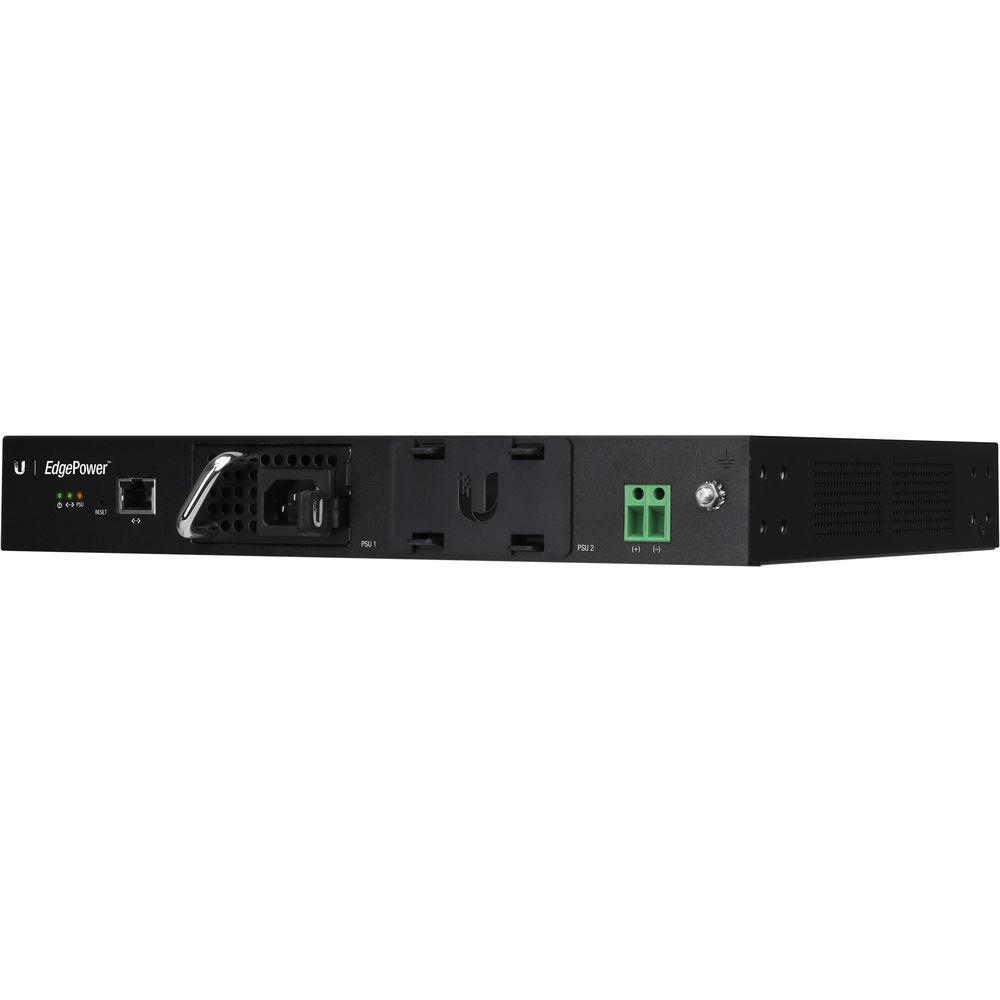

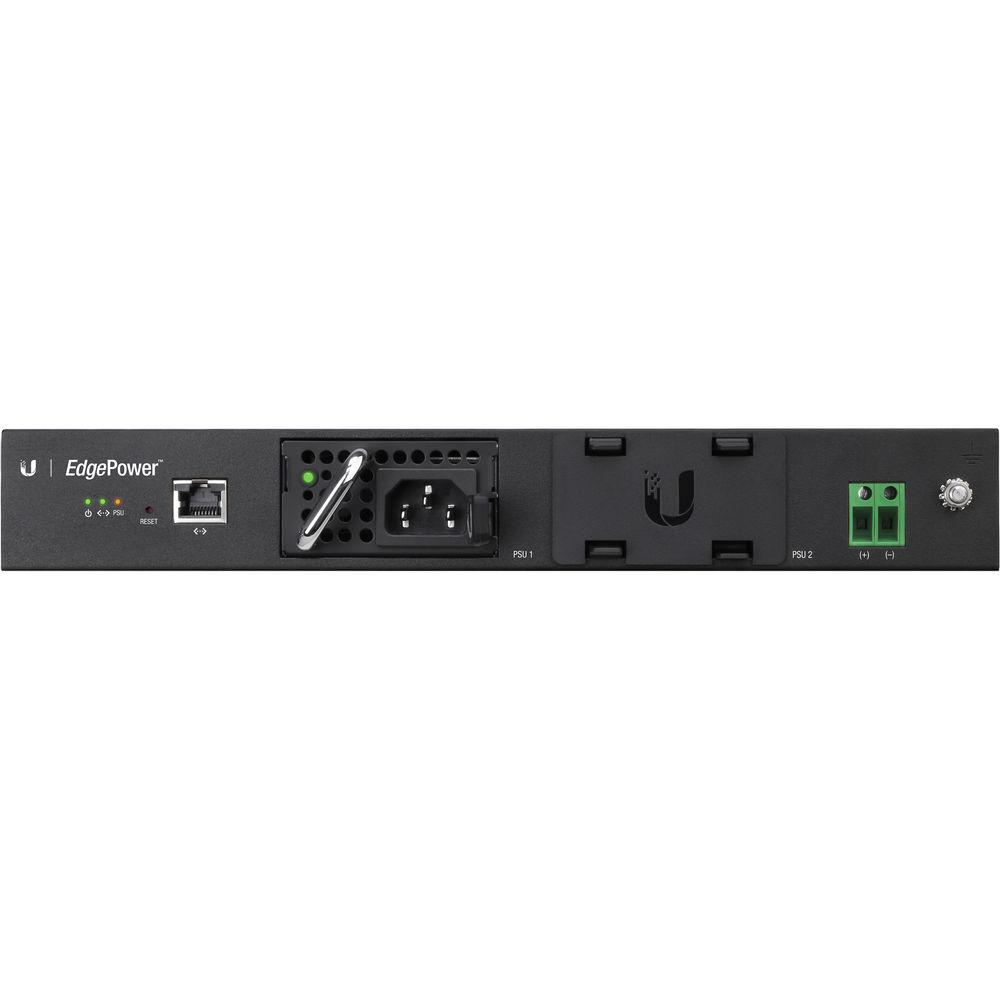

Product description With a flexible, modular design, the EdgePower 150W Modular DC Power Supply from Ubiquiti Networks offers 150 watts of power and can be expanded up to 300 watts using either an AC-DC or DC-DC module (sold separately). The secondary power module can also be configured to act as a backup PSU should the primary unit fail. Whether using both modules or just one, the EdgePower PSU can be connected to EdgePoint routers and switches and also provide power to attached PoE devices. Once configured, the intuitive user interface gives network administrators control over all features offered by this PSU along with remote management when it is connected to a LAN via the built-in Fast Ethernet port. - High Power
- The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
- Backup PSU
- The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
- Web UI
- Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.
The EdgePower may be connected to the LAN for remote monitoring and configuration. UPC: 810354023972 In the Box Ubiquiti Networks Edgepower 150W Modular DC Power Supply Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks Edgepower 150W Modular DC Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks EP-54V-150W Specs | Power Method | 100-240 VAC / 50-60 Hz, Universal Input | | Power Supply | 54 V, 150 W AC/DC
Model EP-54V-150W-AC
Installed in PSU 1 | | Maximum Power Output | 150 W (1 PSU module)
300 W (2 PSU modules @ 150 W each) | | LEDs | Power: System on/off
Ethernet: Management port link
PSU: PSU1+PSU2, PSU1/PSU2 | | Networking Interface | 1 x RJ-45 Fast Ethernet port | | Rack Mount | Yes, 1U high | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 10 to 90% RH | | ESD/EMP Protection | Air ± 24 kV; Contact ± 24 kV | | Dimensions | Without Mount Brackets: 11.890 x 11.300 x 1.675" / 299.80 x 286.90 x 42.55 mm | | Weight | 5.95 lb / 2.70 kg | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 15.8 x 12.7 x 3.1" |
