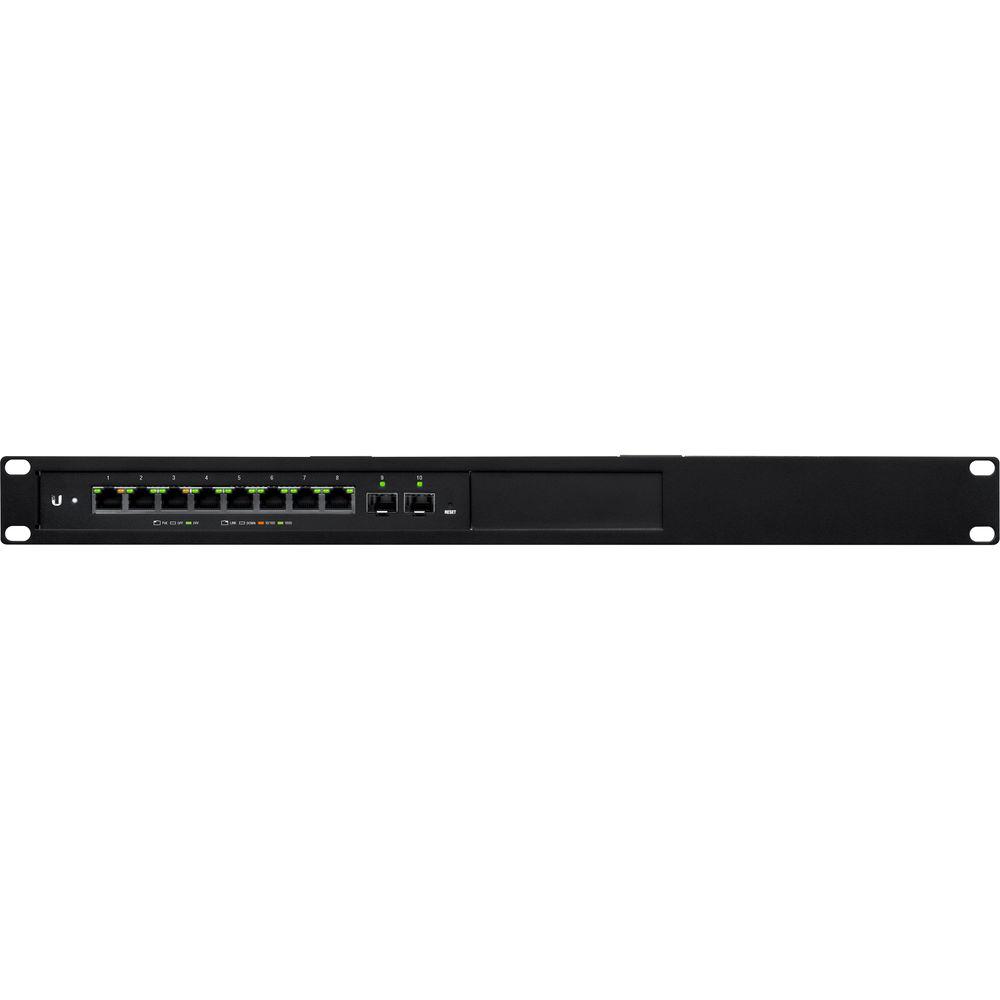

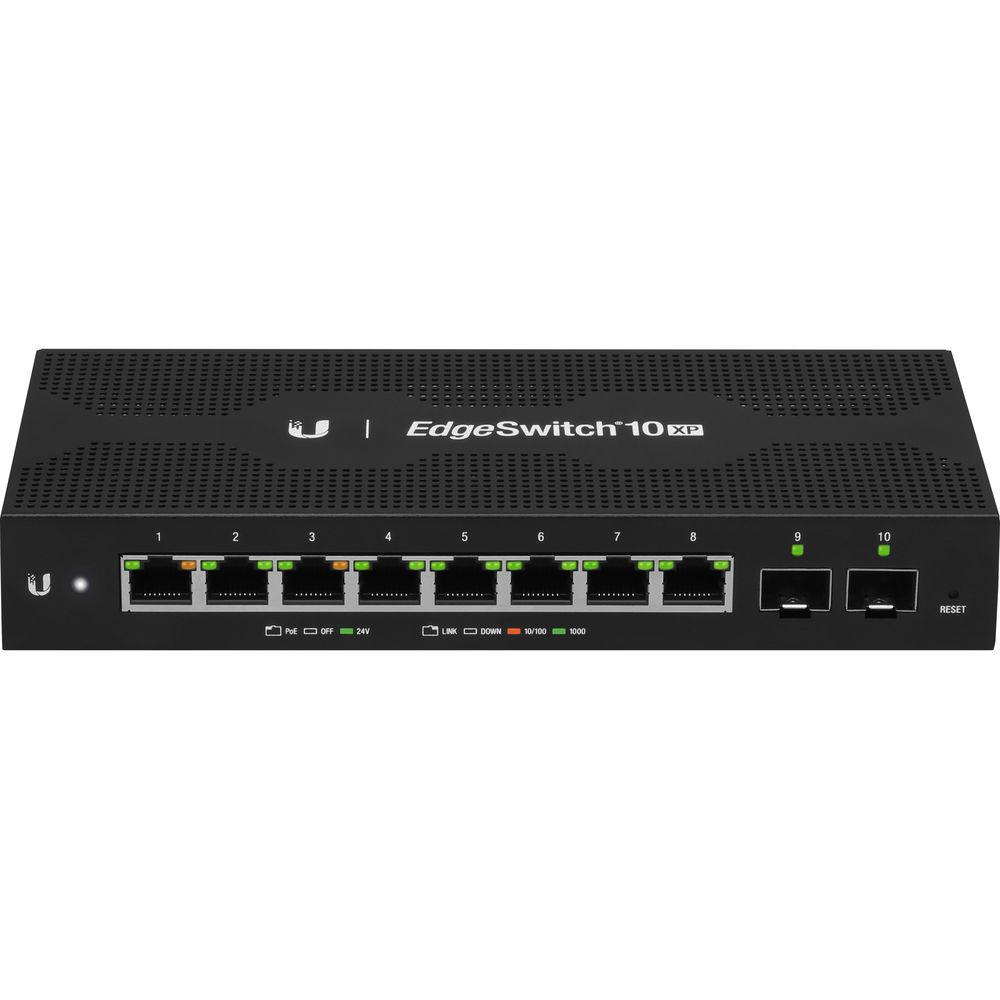

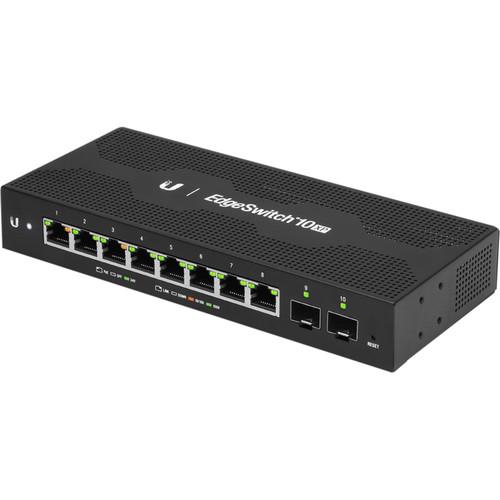

User Manual for Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit PoE Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

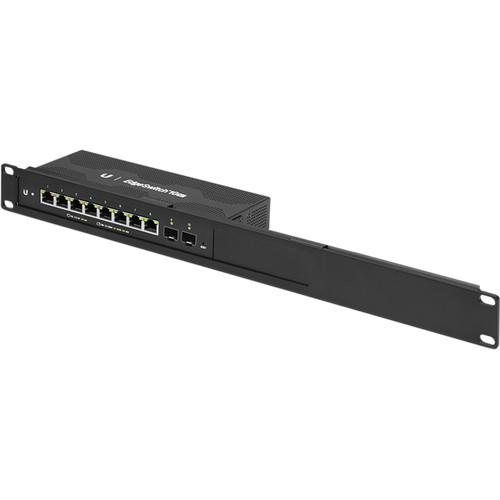

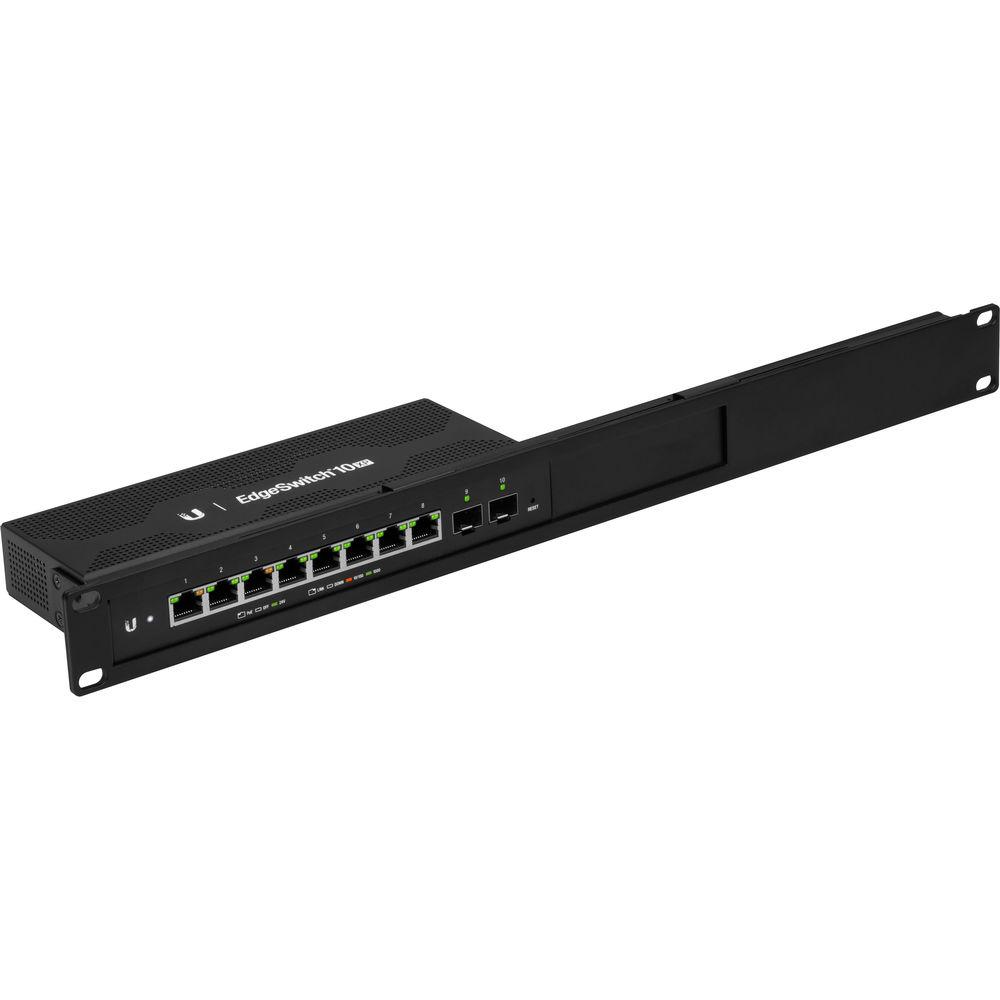

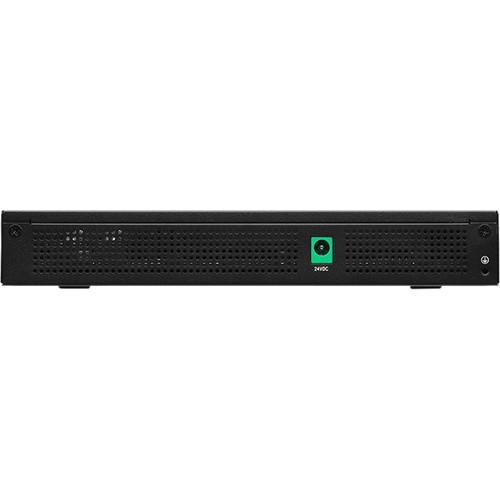

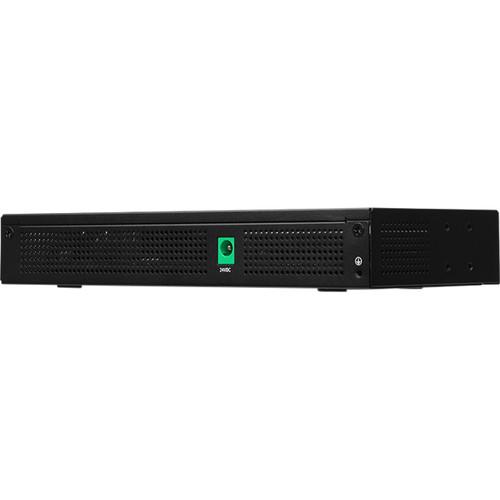

Product description An ideal foundation for a WISP (Wireless Internet Service Provider) deployment, the EdgeSwitch 10XP 10-Port Gigabit PoE Switch from Ubiquiti comes equipped with a pair of fiber-optic SPF ports and eight 10/100/1000 Ethernet ports. Each of the EdgeSwitch 10XP's Ethernet ports offers 15W of passive PoE output, good for powering antennas or other network devices. Manageable over a browser-based interface, the wall- or rack-mountable EdgeSwitch 10XP is designed to deliver up to 10 Gb/s of total non-blocking throughput, up to 20 Gb/s switching capacity, and a 14.88 Mpps forwarding rate. Powered by an external AC/DC adapter, the EdgeSwitch 10XP's DC jack supports battery backup via Ubiquiti's optional EdgePower PSU. - Optimized for WISP Deployments

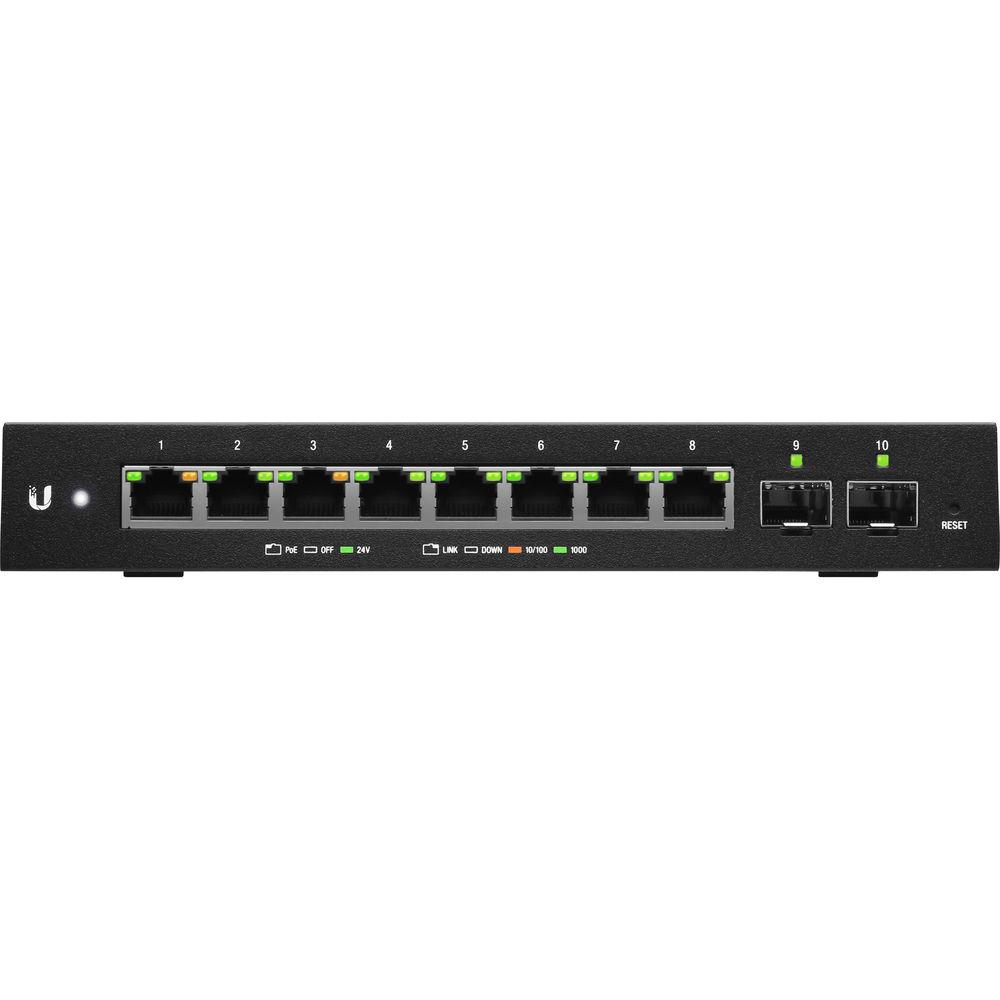

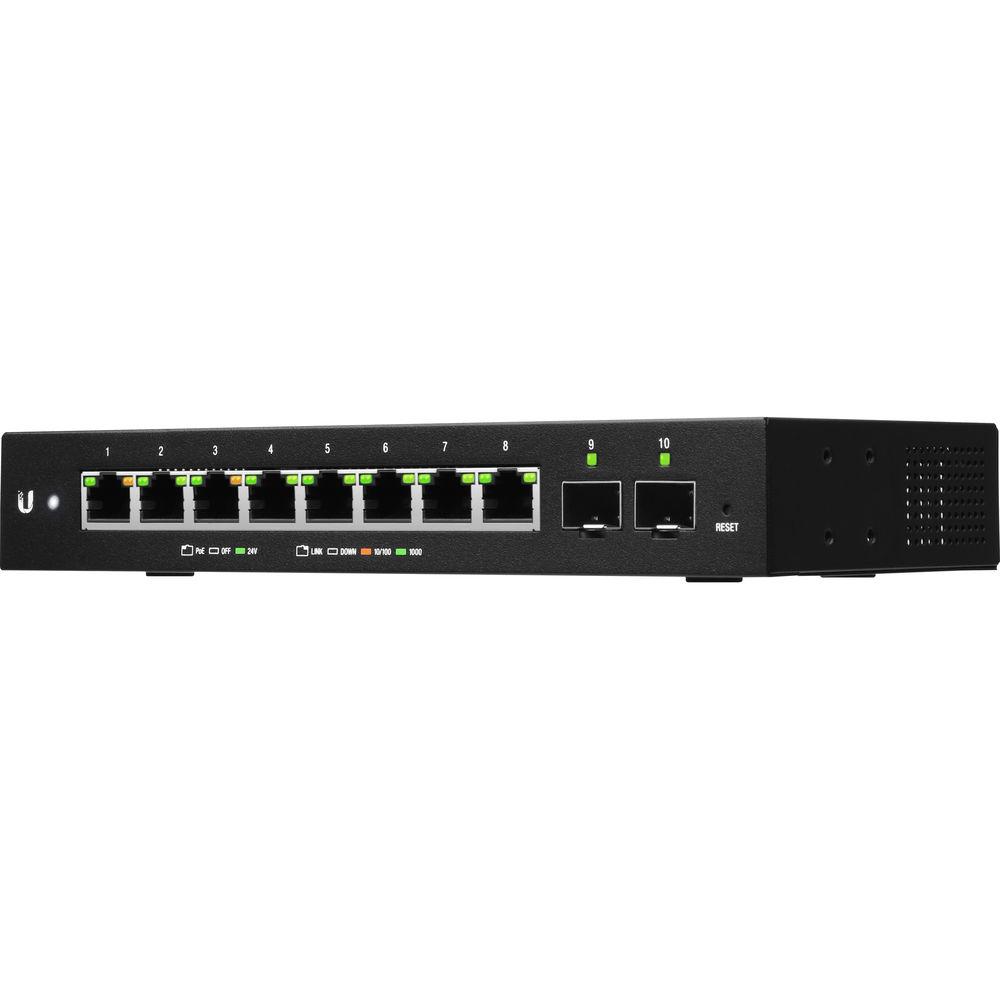

- The EdgeSwitch 10XP's eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity, making it ideal for WISP (Wireless Internet Service Provider) deployments.
- Switching Performance
- Boasting a total, non-blocking throughput of up to 10 Gb/s, the EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, as well as an extensive suite of Layer 2 switching features and protocols.
- Fiber Connectivity
- With its two fiber-optic SFP ports, the EdgeSwitch provides up to 1 Gb/s uplinks.
- PoE Support
- To simplify your infrastructure, the EdgeSwitch 10XP offers configurable 24V passive PoE on all RJ45 ports.
- Browser-Based Management
- Management is available via a browser-based configuration or the Ubiquiti Network Management System (UNMS), which is a comprehensive management controller. You can use a single control plane to manage registered EdgeMAX devices across multiple networks and sites.
- Comprehensive User Interface
- The EdgeSwitch Configuration Interface allows you to configure and monitor switch features in a graphical user interface. It offers intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
- Additional Features
-
- Port Monitoring
- Virtual Local Area Network (VLAN) Configuration
- Spanning Tree Protocol (STP, MSTP, and RSTP)
- Device Discovery Tool
- Jumbo Frame Support
- DHCP Snooping
- Port Isolation
- Ping Watchdog
UPC: 817882025195 In the Box Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit PoE Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks EdgeSwitch 10XP 10-Port Gigabit PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks EdgeSwitch 10XP Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
2 x 10/100/1000 Mb/s Gigabit SFP (Uplink) | | | | Security Features | DHCP Snooping | | | | Forwarding Rate | 14.88 Mpps | | Switching Bandwidth | 20 Gb/s | | | | Power Draw | 8.0 W | | DC Input Power | 24 VDC at 2.5 A | | PoE per Port | 15 W | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 5 to 95% | | Certifications | CE, FCC, IC, as per Manufacturer | | | | Indicator Lights | Link/Activity, Link/Activity/Speed, PoE, Status | | Dimensions | 8.15 x 3.54 x 1.22" / 207 x 90 x 31.1 mm | | Weight | 1.1 lb / 500 g | | | | Package Weight | 2.06 lb | | Box Dimensions (LxWxH) | 9.6 x 5.0 x 3.4" |
