Ubiquiti Networks EdgeSwitch 48 Lite 48-Port

Search your instruction manual in PDF to download

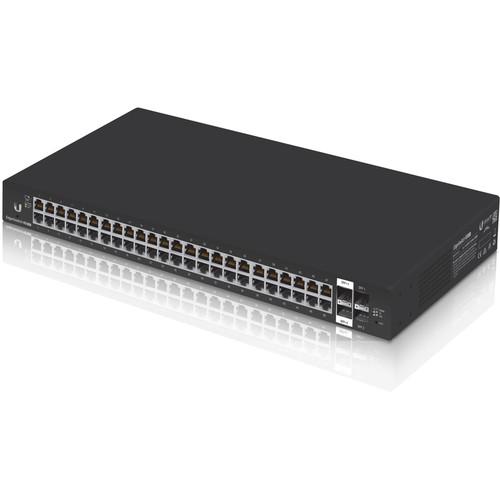

User Manual for Ubiquiti Networks EdgeSwitch 48 Lite 48-Port Managed Network Switch

Click to enlarge the picture
Ubiquiti Networks EdgeSwitch 48 Lite 48-Port Managed Network Switch Contents of the user manual for the Ubiquiti Networks EdgeSwitch 48 Lite 48-Port
  • Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
  • Brand: Ubiquiti Networks
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs

User manual for the Ubiquiti Networks EdgeSwitch 48 Lite 48-Port contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ubiquiti Networks product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!



Product description

The EdgeSwitch 48 Lite 48-Port Managed Network Switch from Ubiquiti Networks features 48 Gigabit Ethernet ports to create a high-density Ethernet network of systems and IP phones. Two SFP and two SFP+ ports are available to provide fiber connectivity for storage networks where enhanced data transfer rates are essential. For performance, this switch supports a switching capacity of 140 Gbps, ensuring it can process large amounts of data on all ports without packet loss. Aside from these features, it comes with QoS so you can prioritize latency-sensitive applications. Ubiquiti has also built in an EdgeSwitch Lite Configuration Interface that allows administrators to configure and monitor switch features in a graphical user interface.
    Switching Technology
  • The EdgeSwitch Lite is a fully managed, Gigabit switch, delivering robust performance and intelligent switching for growing networks. It offers an extensive suite of advanced Layer 2 switching features and protocols. Additionally, it provides Layer 3 routing capability.
    Switching Performance
  • The EdgeSwitch Lite offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, this 48-port model supports up to 70 Gbps.
    Fiber Connectivity
  • The EdgeSwitch Lite provides fiber connectivity options for your growing networks. It includes two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.
    Comprehensive User Interface
  • Designed for convenient management, the EdgeSwitch Lite Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry‑standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
    Functionality
  • The EdgeSwitch Lite uses an operating system that provides basic switching features and a variety of advanced features including:
    • MSTP/RSTP/STP
    • VLAN, Private VLAN, Voice VLAN
    • Link Aggregation
    • DHCP Snooping, IGMP Snooping
    • TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
    • DiffServ, CoS
    • Static Routing, Policy-Based Routing
UPC: 810354021862 In the Box Ubiquiti Networks EdgeSwitch 48 Lite 48-Port Managed Network Switch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ubiquiti Networks EdgeSwitch 48 Lite 48-Port Managed Network Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ubiquiti Networks ES-48-LITE Specs

    Ports 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
    2 x 10Gb Combo (Ethernet/SFP)
    2 x 10/100/1000 Mb/s Gigabit SFP
    1 x Ethernet (RJ45) (Console)
    Layer Services Supported Layer 3 Support
    Supported Protocols Auto-VoIP
    IPv6
    Port Mirroring
    Queuing Strict Priority, Weighted Round Robin (WRR)
    MAC Address Table Size 8K
    VLAN Groups 255
    Security Features Storm Control
    Access Control List 100
    RFC RFC 2021
    RFC 2030
    RFC 2819
    RFC 2865
    RFC 2866
    RFC 2868
    RFC 2869
    RFC 3579
    RFC 3580
    RFC 3164
    RFC 4541
    RFC 5171
    Supported IEEE Standards 802.1ab, 802.1ak, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3u, 802.3x
    Forwarding Rate 104.16 Mpps
    Switching Bandwidth 140 Gb/s
    70 Gb/s (Non-Blocking)
    Priority Queues 8
    Power Draw 56.00 W (Active)
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Operating Temperature 23 to 104°F / -5 to 40°C
    Operating Humidity 5 to 95%
    Indicator Lights Link/Activity/Speed
    Rack Form Factor 1 RU
    Dimensions 17.4 x 11.3 x 1.7" / 44.1 x 28.6 x 4.4 cm
    Weight 8 lb / 4 kg
    Package Weight 9.5 lb
    Box Dimensions (LxWxH) 21.0 x 13.0 x 3.0"
