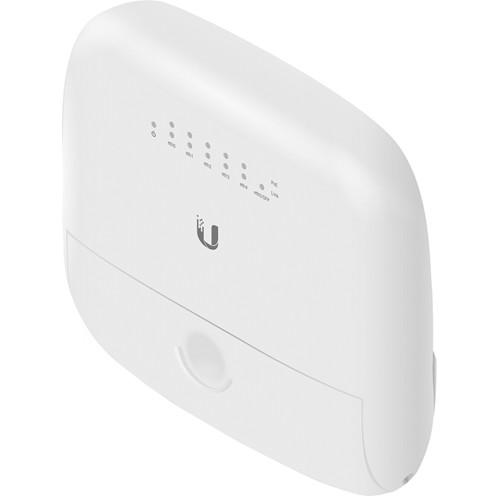

Product description The EP-R6 EdgePoint WISP Gigabit Router from Ubiquiti is designed to simplify your hardware by replacing the networking cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a polycarbonate shell with UV resistance and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-R6, you'll have access to a total of six ports: five 10/100/1000 RJ45 ports with 24V / 0.7A passive PoE, and one 1 Gbps SFP port. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network. - FiberProtect
- The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and to consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
- WISP Control
- Designed as a WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.
- All-in-One Design
- A single compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
- Advanced Routing Applications
- Powerful routing features such as link balancing provide redundancy and increased performance for outdoor wireless links.
- Versatile Power Options
- Powered by 24 VDC or by PoE, the EP-R6 can support 24 V passive PoE to power most Ubiquiti products.
- Intuitive User Interface
- The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
- Routing Configuration
- The EP-R6 offers robust features, including:
- VLAN interfaces for network segmentation
- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- Application identification with Deep Packet Inspection (DPI)
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Administrator and operator accounts
- Comprehensive IPv6 support
- Command-Line Interface (CLI) Configuration
- The CLI provides quick and flexible configuration by command line and features the following:
- For power users, configuration and monitoring of all advanced features
- Direct access to standard Linux tools and shell commands
- CLI access through the following
- SSH
- Telnet
- Graphical user interface
UPC: 810354024436 In the Box Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks EP-R6 EdgePoint WISP Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

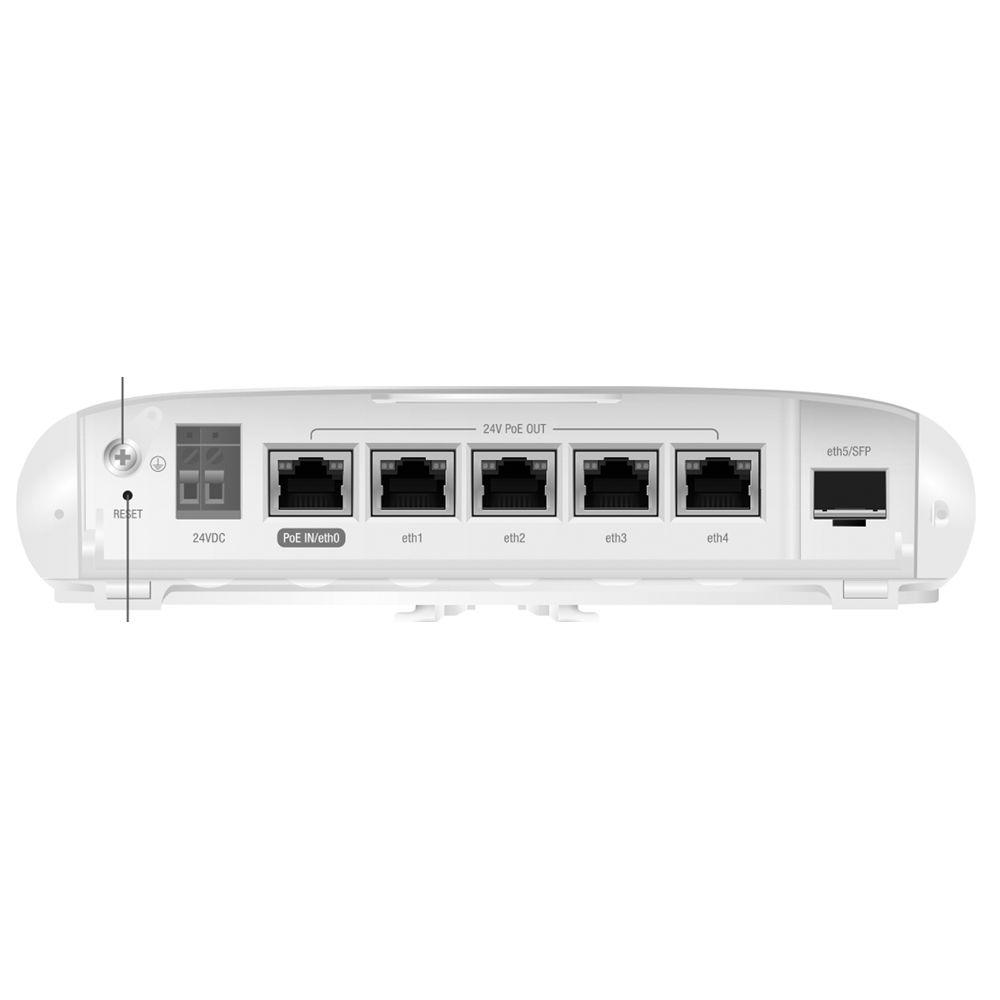

Technical parametersUbiquiti Networks EP-R6 Specs | Enclosure Material | Polycarbonate with UV Resistance | | Ports | Data Ports:
5 x 10/100/1000 RJ45 Ports

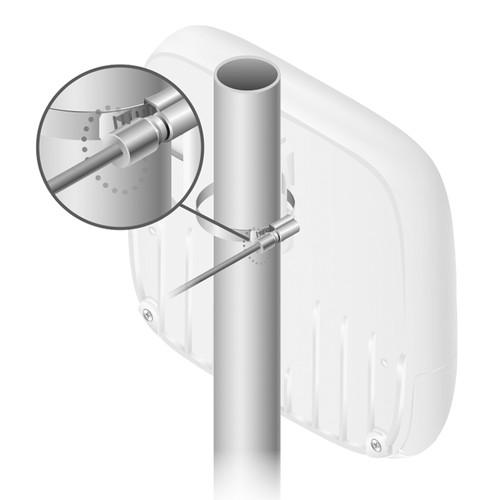

1 x 1 Gbps SFP Port | | Processor | Dual-Core 880 MHz, MIPS1004Kc | | System Memory | 256 MB DDR3 1600 MHz RAM | | Code Storage | 256 MB NAND | | Button | Reset | | Pole Mount | Yes | | | | Max Power Consumption | 7 W (Excludes PoE Output) | | Power Input | 1 x DC Terminal Block or
1 x RJ45 (eth0) | | Power Supply | Min. 24 V / 0.3 A (Excludes PoE Output Ports) | | DC Input | 24 V, 3 A | | Passive PoE | Input: 1 x 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
(Do NOT configure eth0 in PoE output mode if you are using a PoE input power source.) | | Passive PoE | Output: 5 x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4 | | Monitoring | 1 x DC Terminal Block, Input Power
1 x RJ45, eth0, Input Power | | Voltage Range | 26 to 16 VDC | | | | Operating Temperature | -40 to 149°F (-40 to 65°C) | | Operating Humidity | 10 to 90% Noncondensing | | | | Certifications | CE, FCC, IC | | Dimensions | 7.43 x 6.97 x 1.96" (188.6 x 177.1 x 49.8 mm ) | | Weight | 1.33 lbs (605 g) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.3 x 8.0 x 3.6" |
