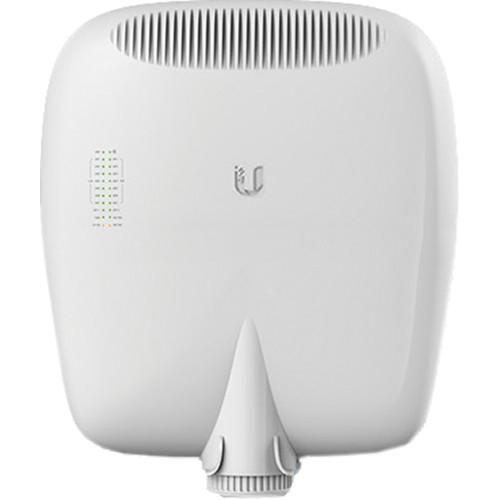

Product description The EP-R8 EdgePoint WISP Gigabit Router from Ubiquiti is designed to simplify your hardware by replacing the networking cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a die-cast aluminum alloy polycarbonate shell with UV resistance and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-R8, you'll have access to a total of eight ports: six 10/100/1000 RJ45 ports with 24V / 0.7A passive PoE, and two 10/100/1000 RJ45/SFP combo ports with 54V or 24V / 1.4A passive PoE. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network. - FiberProtect
- The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and to consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
- WISP Control

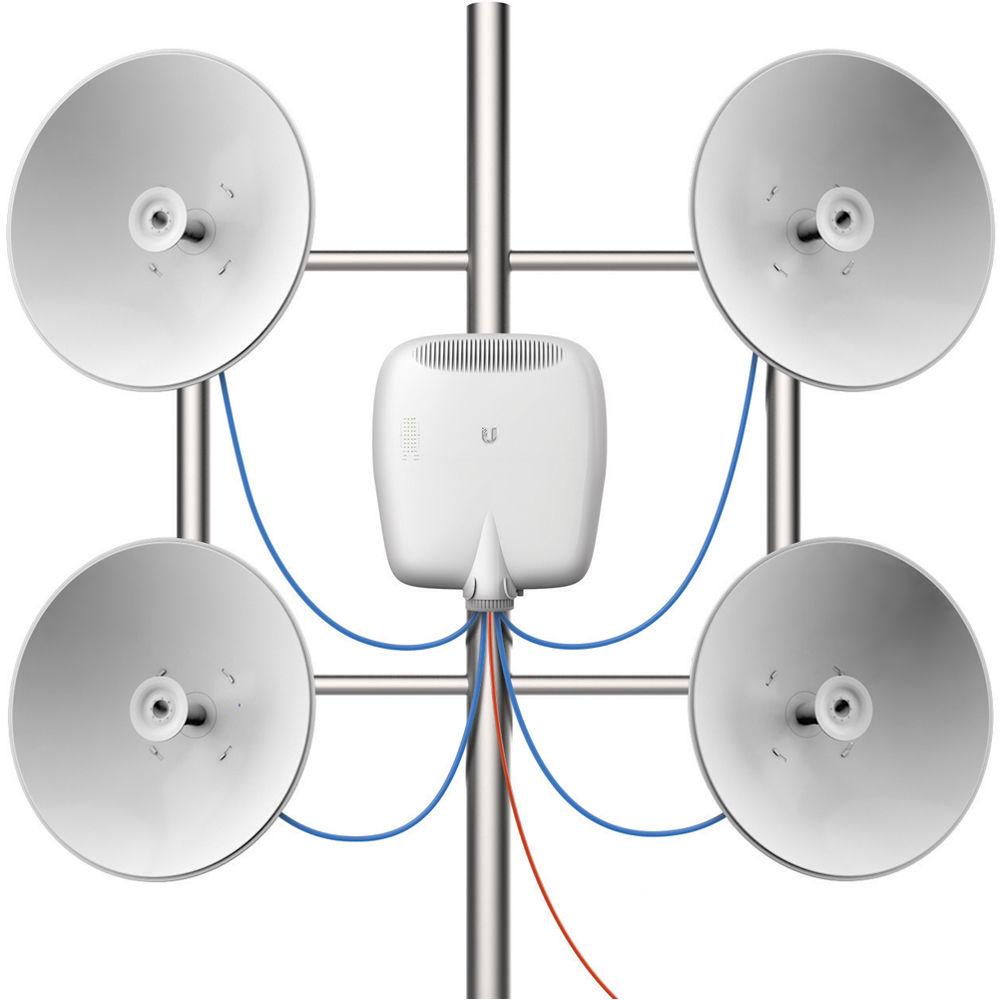

- Designed as a WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.
- All-in-One Design
- A single compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
- Advanced Routing Applications
- Powerful routing features such as link balancing provide redundancy and increased performance for outdoor wireless links.
- Versatile Power Options
- Powered by 54 VDC or by PoE, the EP-R8 can support 54 or 24 V passive PoE to power all Ubiquiti products, including airFiber and airMAX.
- Intuitive User Interface

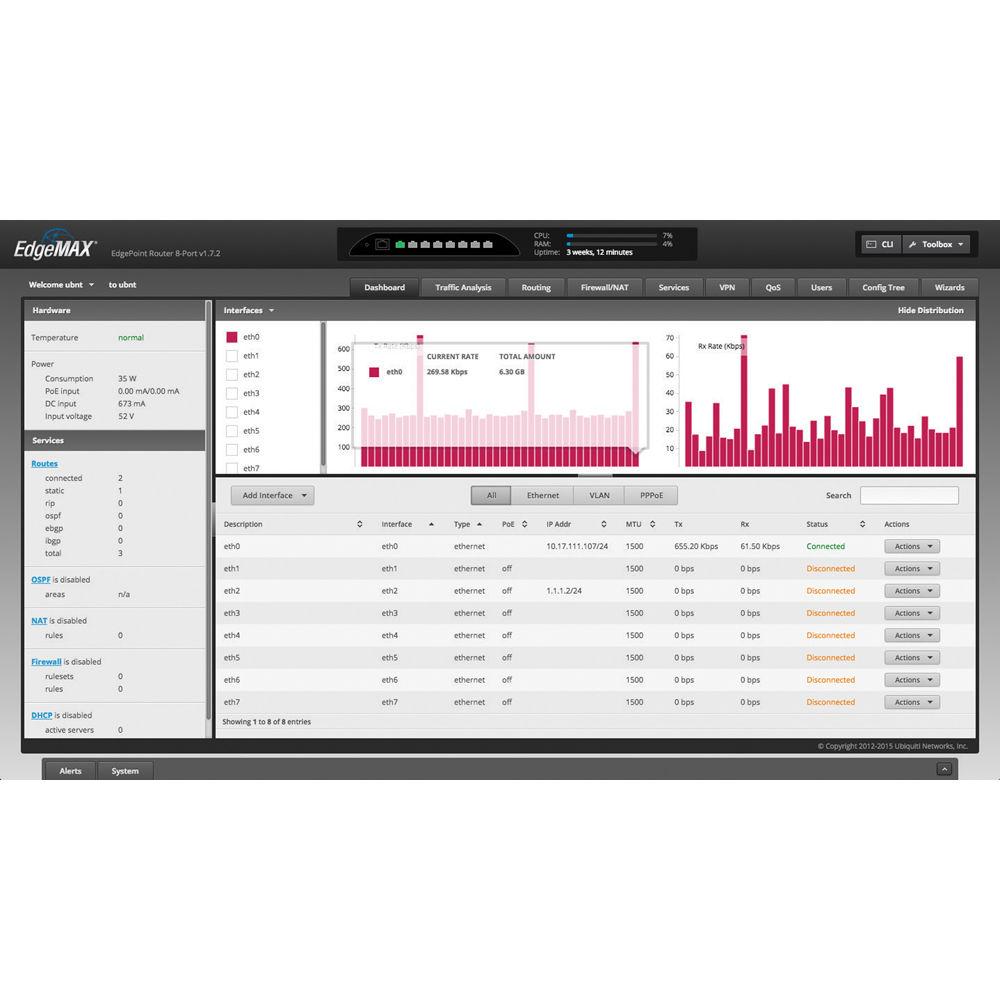

- The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
- Routing Configuration
- The EP-R8 offers robust features, including:
- VLAN interfaces for network segmentation

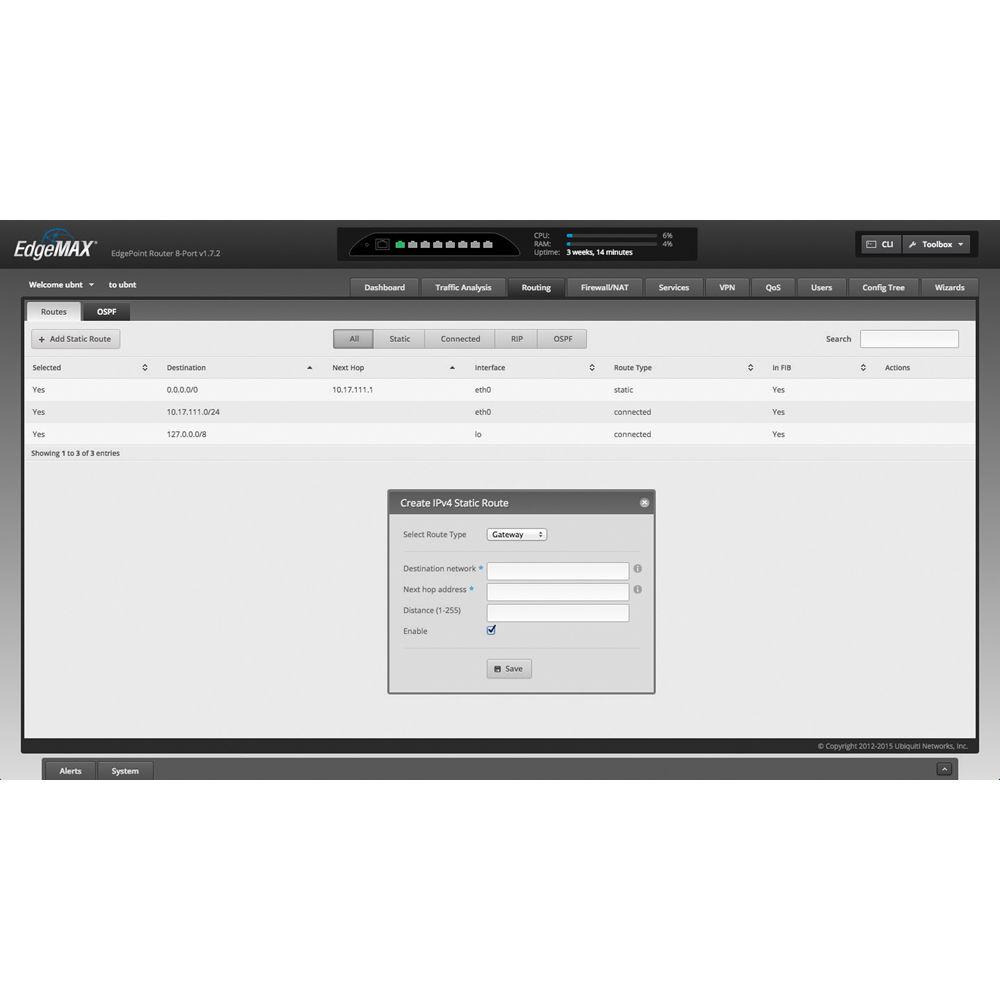

- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- Application identification with Deep Packet Inspection (DPI)
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Administrator and operator accounts
- Comprehensive IPv6 support
- Command-Line Interface (CLI) Configuration
- The CLI provides quick and flexible configuration by command line and features the following:
- For power users, configuration and monitoring of all advanced features
- Direct access to standard Linux tools and shell commands
- CLI access through the following
- Serial console port
- SSH
- Telnet
- Graphical user interface
UPC: 810354021985 In the Box Ubiquiti Networks EP-R8 EdgePoint WISP Gigabit Router Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks EP-R8 EdgePoint WISP Gigabit Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks EP-R8 Specs | Enclosure Material | Die-cast Aluminum Alloy and Polycarbonate with UV Resistance | | Ports | 1 x RJ45 Serial Port
1 x RJ 45 PoE In Port
Data Ports:
6 x 10/100/1000 RJ45 Ports
2 x 10 /100/1000 RJ45/SFP Combination Ports | | Processor | Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing | | System Memory | 2 GB DDR3 1600 MHz RAM | | Code Storage | 4 GB | | Button | Reset | | LEDs | System Power
eth0 Speed/Link/Activity
eth1 to eth7 Speed/Link/Activity, PoE
SFP Speed/Link/Activity | | Pole Mount | Yes | | Wall Mount | Yes | | | | Max Power Consumption | 40 W (Excludes PoE Output) | | Power Input | 1 x DC Terminal Block or
1 x RJ45 (PoE In and eth0) | | Power Supply | Min. 54 V / 0.8 A (Excludes PoE Output Power) | | DC Input | 54 VDC, 6 A | | Passive PoE | Input:
2 x 54 V / 1.5 A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In (PoE In is DC Only, No Data)
Output:
2 x 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2
5 x 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7 | | Monitoring | 1 x DC Terminal Block, Input Power
1 x RJ45, PoE In and eth0, Input Power | | Voltage Range | 56 to 42 VDC | | | | Operating Temperature | -40 to 149°F (-40 to 65°C) | | Operating Humidity | 10 to 90% Noncondensing | | | | Certifications | CE, FCC, IC | | Dimensions | With Wall-Mount: 12.86 x 15.07 x 4.15" (326.6 x 382.7 x 105.5 mm)
Without Wall-Mount: 12.86 x 15.07 x 3.50" (326.6 x 382.7 x 88.8 mm) | | Weight | With Wall-Mount: 8.38 lbs (3.8 kg)
Without Wall-Mount: 7.5 lbs (3.4 kg) | | | | Package Weight | 12.05 lb | | Box Dimensions (LxWxH) | 18.3 x 14.6 x 5.3" |
