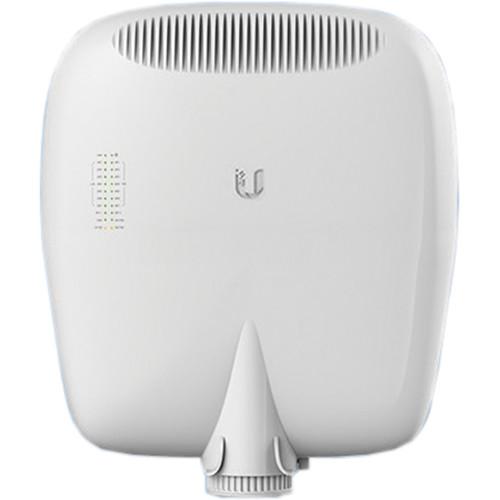

Product description The EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch from Ubiquiti is designed to simplify your hardware by replacing the network cabinet, which usually contains a patch panel, power rack, multiple PoE adapters, switch, router, modem, and more. It is encased in a die-cast aluminum alloy and polycarbonate shell with UV resistance, and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. With the EP-S16, you'll have access to a total of sixteen ports: two input or output ports with 54V or 24V / 1.4A passive PoE, two output ports with 54V or 24V / 1.4A passive PoE, and twelve PoE+ or 24V / 0.7A passive PoE output ports. Furthermore, use the EdgePoint software, accessible via a network port and a web browser, to monitor and manage your network. - FiberProtect
- The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and to consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

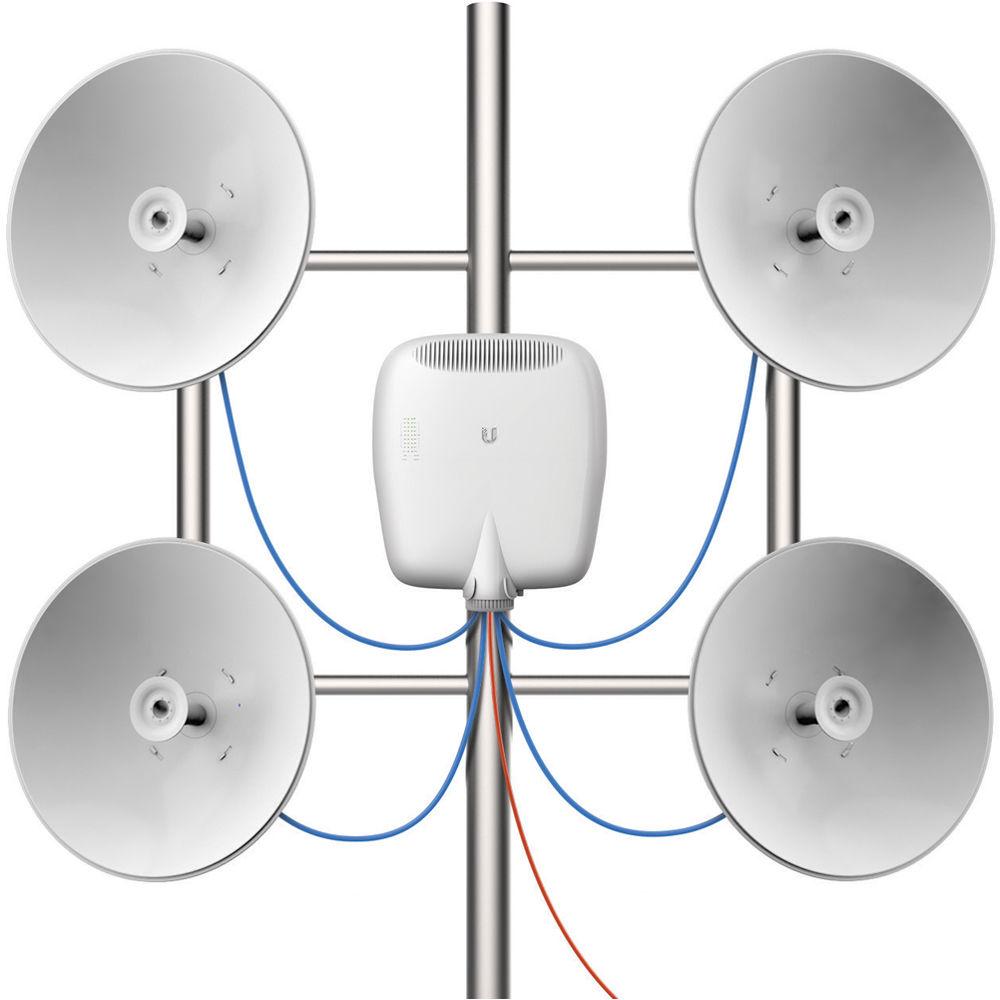

- WISP Control
- Designed as a WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.

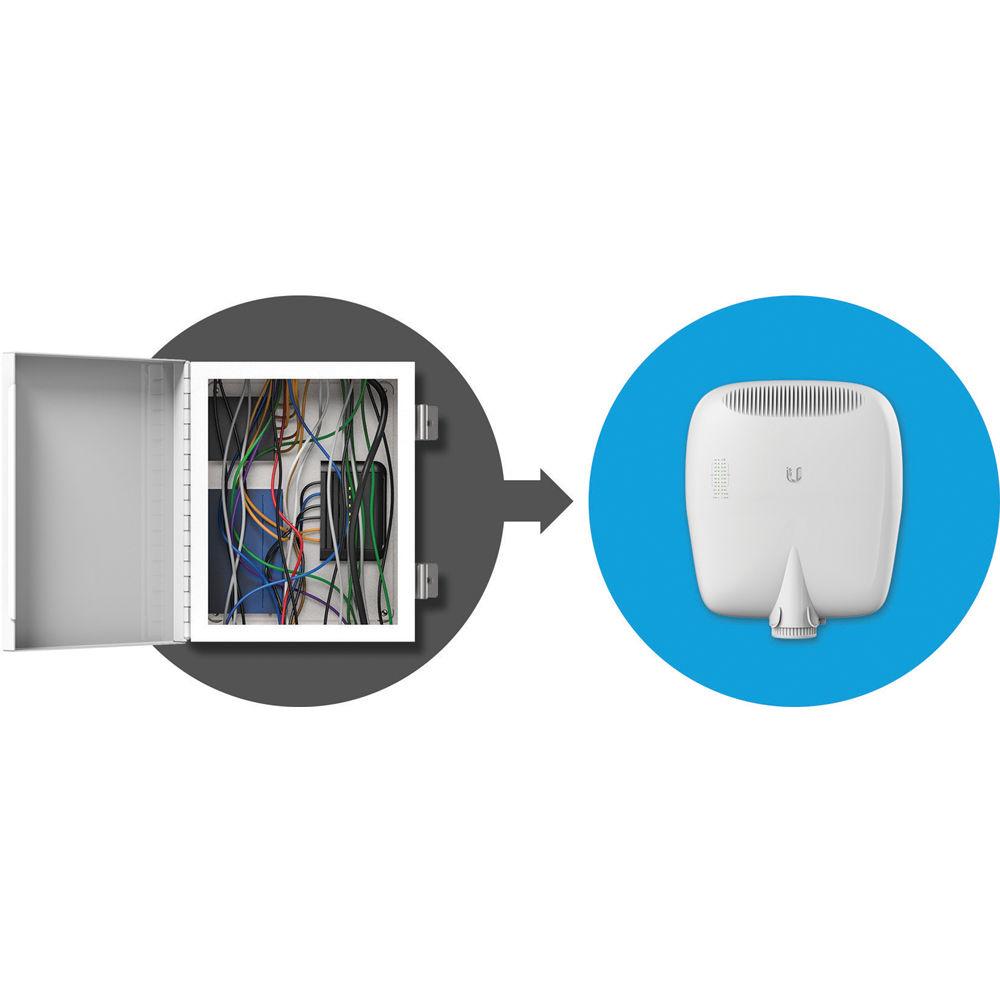

- All-in-One Design
- A single compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
- Advanced Routing Applications
- Powerful routing features such as link balancing provide redundancy and increased performance for outdoor wireless links.
- Versatile Power Options
- Powered by 54VDC or by PoE, the EP-S16 can support 54 or 24V passive PoE to power all Ubiquiti products, including airFiber and airMAX.
- Intuitive User Interface

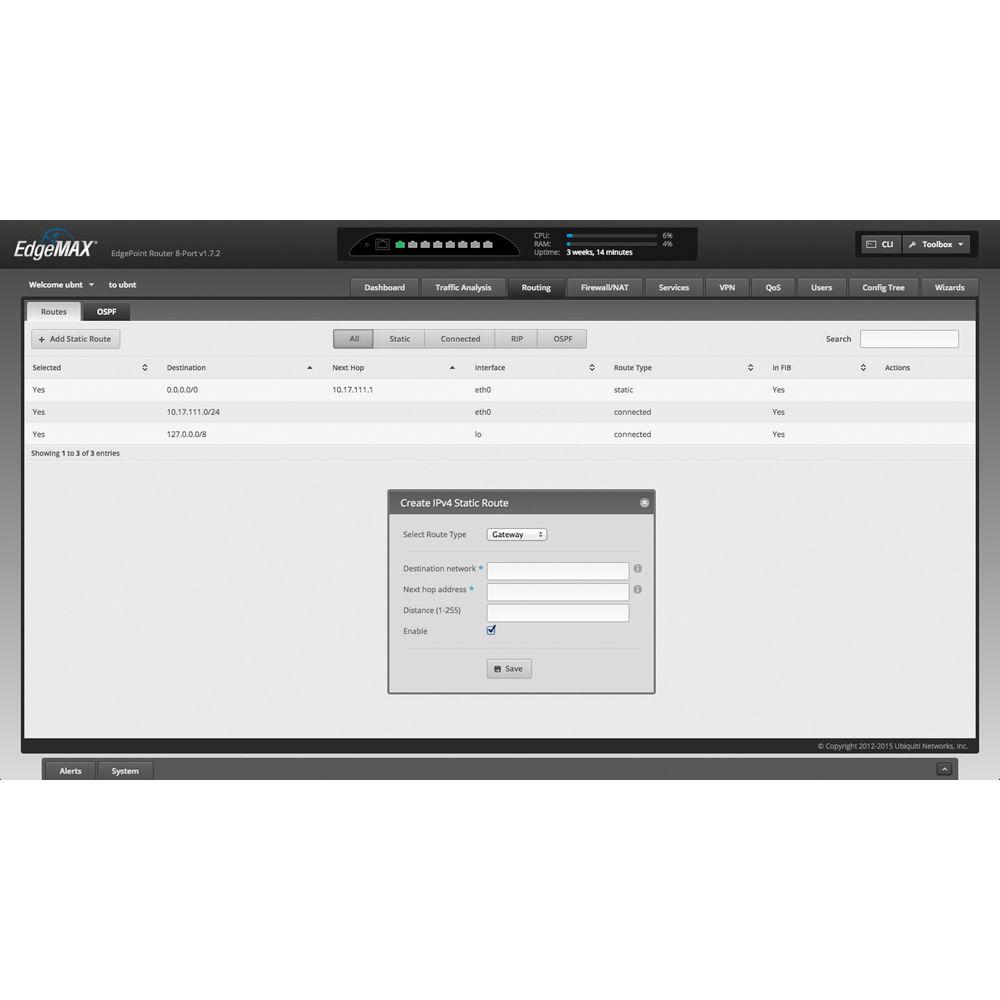

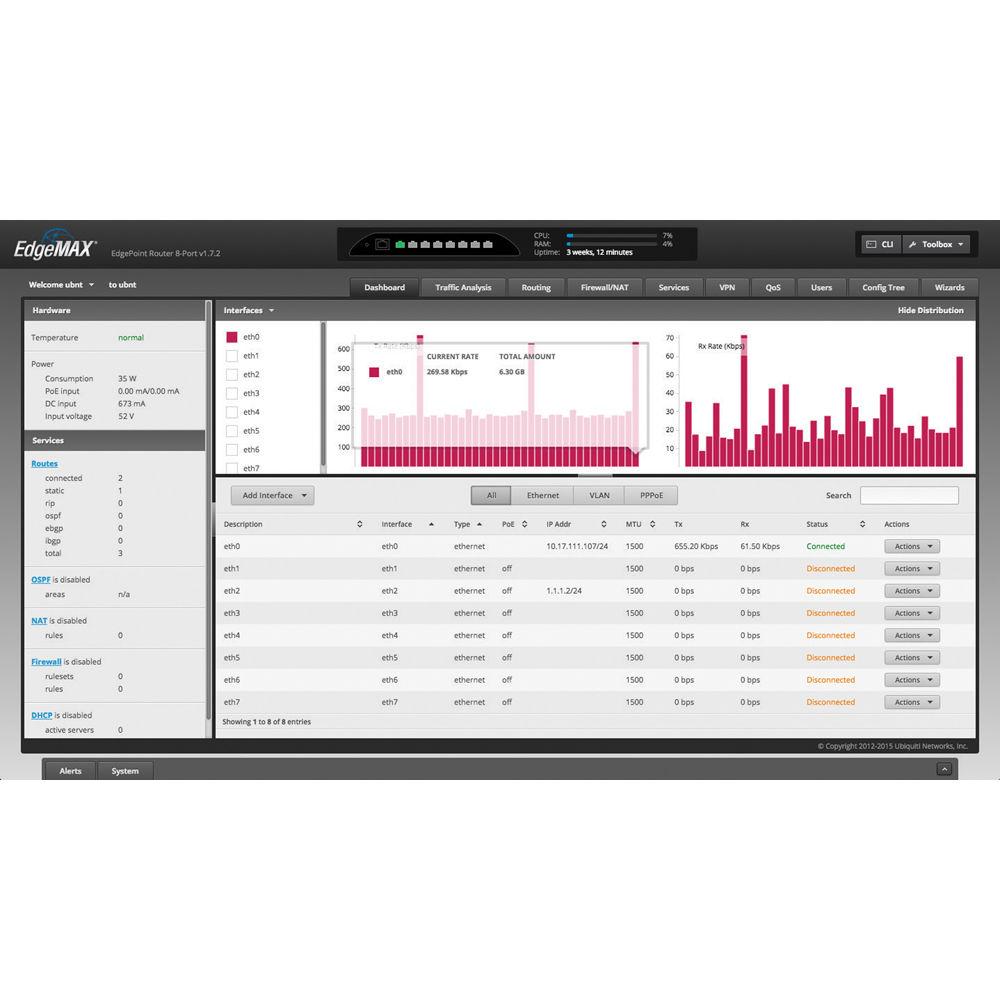

- The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
- Routing Configuration
- The EP-R6 offers robust features, including:
- VLAN interfaces for network segmentation
- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- Application identification with Deep Packet Inspection (DPI)
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Administrator and operator accounts
- Comprehensive IPv6 support
- Command-Line Interface (CLI) Configuration
- The CLI provides quick and flexible configuration by command line and features the following:
- For power users, configuration and monitoring of all advanced features
- Direct access to standard Linux tools and shell commands
- CLI access through the following
- SSH
- Telnet
- Graphical user interface
UPC: 810354024276 In the Box Ubiquiti Networks EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks EP-S16 Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10Gb SFP
1 x Ethernet (RJ45) (Console)
2 x Ethernet (RJ45) | | | | Flash Memory | 32 MB | | Processor | 400 MHz ARM Cortex A9 | | Memory | 256 MB | | | | Power Draw | 40.00 W (Active) | | DC Input Power | 54 VDC at 6 A | | | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 10 to 90% | | | | Material of Construction | Aluminum | | Indicator Lights | Link/Activity/Speed, PoE | | Dimensions | 15.1 x 12.9 x 4.2" / 38.3 x 32.7 x 10.6 cm | | Weight | 8 lb / 4 kg | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 18.4 x 14.6 x 5.1" |
