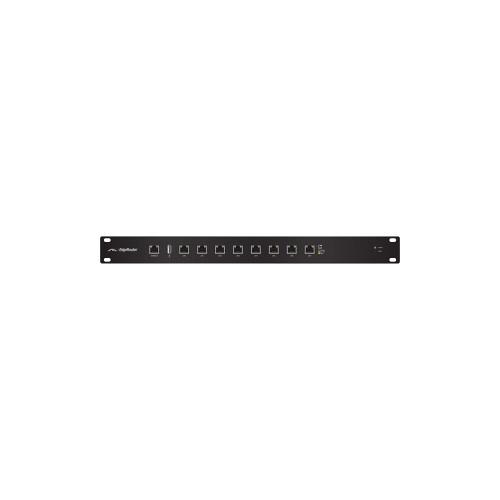

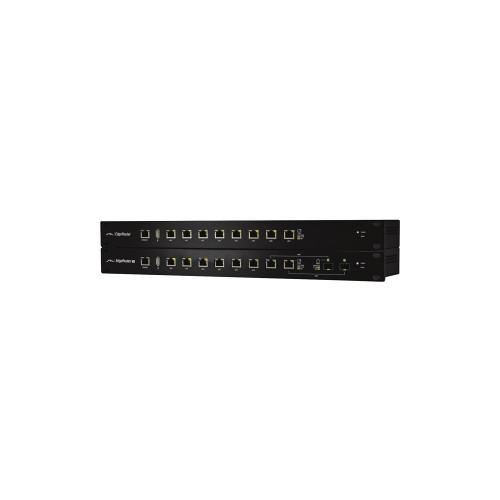

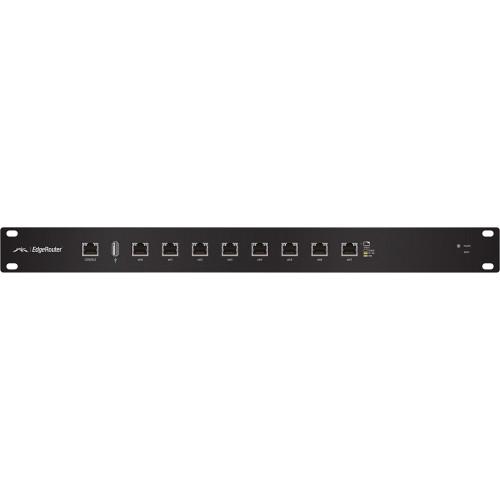

User Manual for Ubiquiti Networks ER-8 8-Port EdgeRouter with EdgeMAX Technology Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ER-8 8-Port EdgeRouter with
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
 |
User manual for the Ubiquiti Networks ER-8 8-Port EdgeRouter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The 8-port ER-8 EdgeRouter with EdgeMAX Technology from Ubiquiti Networks is capable of supporting numerous high-bandwidth clients in an enterprise environment. With the ability to support up to 2 million packets per second for 64-byte packets and 8 Gbps for 512 byte packets this switch is capable of transmitting data quickly and efficiently.
Managing this switch and the network it resides on is simple thanks to a variety of management tools including DHCP server capabilities, monitoring tools such as ping, trace, discover, and more; and the ability to setup and configure operator and admin user accounts. To secure the network Ubiquiti has implemented a variety of features including advanced firewall policies and groups as well as NAT rules for specific packet addressing.
Installation of this EdgeRouter is simple as it comes compatible with a standard rackmount design. Once installed, Ubiquiti offers intuitive management features including an easy to use interface complete with graphical menus that can be access through a web browser. Additional tools include support of OSPF, RIP, and BGP routing protocols, firewall policies, DHCP services, Quality of Service (QoS) support, and much more. - General
-
- Advanced security, monitoring, and management
- High-performance gigabit ports
- 8 gigabit routing ports
- 2 million packets per second for 64-byte packets
- 8 Gb/s for packets 512 bytes or larger in size
- Rack mountable
- Manage Your Network
-
- DHCP Server: Sets up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces, and easily control dynamic and static IP addressing for your network devices.
- Monitoring Tools: Conveniently tracks network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
- User Accounts: You can manage access to the EdgeRouter using unique administrator and operator accounts.
- Network Security
-
- Firewall Policies: Organizes the rules you apply in the order you specify.
- Firewall Groups: Applies the policies to groups filtered by IP address, network address, or port number.
- NAT Rules: The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.
- Direct Traffic Flow
-
- Interfaces: Each gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.
- Routing: You can configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
- Intuitive User Interface
- The ER-8 EdgeRouter provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The dashboard displays detailed statistics like IP information, MTU, transmitting and receiving speeds, and status for each physical and virtual interface.
- EdgeOS Features
- EdgeOS is an operating system loaded with features, including:
- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Comprehensive IPv6 support
- Choice of configuration methods: the graphical user interface to visualize the workings of your network or the Command Line Interface (CLI) to use advanced, command‑driven configuration
- Configuration by CLI
- The CLI provides quick and flexible configuration by command line and features the following:
- For power users, configuration and monitoring of all advanced features
- Direct access to standard Linux tools and shell commands
- CLI access through the serial console port, SSH, Telnet, and the graphical user interface
UPC: 810354020605 In the Box Ubiquiti Networks ER-8 8-Port EdgeRouter with EdgeMAX Technology Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ER-8 8-Port EdgeRouter with EdgeMAX Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks EdgeRouter Specs | | | Power Consumption | 35 W (max.) | | Power Method | Internal AC/DC Power Adapter, 60 W (24 V, 2.5 A) | | Power Supply | 110 to 240 VAC | | Button | Reset | | LED | Speed, Link, Activity | | Processor | Dual-Core 800 MHz, MIPS64 with hardware acceleration for packet processing | | System Memory | 2 GB DDR3 RAM | | On-Board Flash Storage | 4 GB | | | | Packet Size | 64 Bytes: 2,000,000 pps
512 Bytes or Larger: 8 Gb/s (line rate) | | | | Serial Console Port | 1 x RJ45 serial port | | Data Ports | 8 x 10/100/1000 Ethernet ports | | | | Certifications | CE, FCC, IC | | Rack Mount | Yes | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Operating Humidity | 10 to 90% non-condensing | | Dimensions | 19.1 x 6.5 x 1.7" (48.4 x 16.4 x 4.4 cm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 23.2 x 8.8 x 3.7" |
