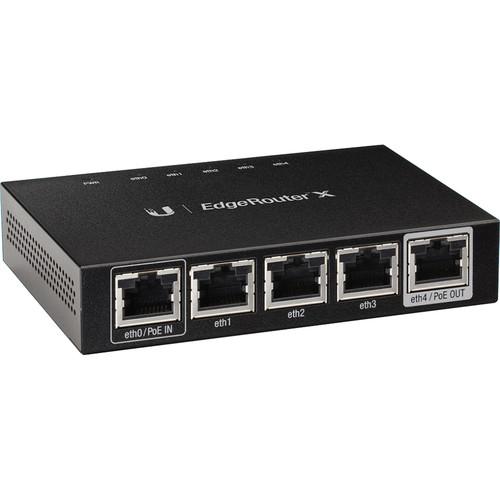

User Manual for Ubiquiti Networks ER-X EdgeRouter X Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ER-X EdgeRouter X
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
|
User manual for the Ubiquiti Networks ER-X EdgeRouter X contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Take advantage of fast Gigabit Ethernet data speeds with the ER-X EdgeRouter X from Ubiquiti Networks. This router comes equipped with a total of five Gigabit Ethernet ports: one data/PoE input port, three data ports, and one data/PoE passthrough port. Inside the router you will find a 880 MHz dual-core processor along with 256 MB of DDR3 RAM and 256 MB of NAND code storage.
The advanced hardware found inside this Ubiquiti Networks router allows you to leverage the power of PoE. Eliminate the need for power adapters and power the EdgeRouter X with 24 V passive PoE input. You can also utilize the PoE passthrough feature to power a single airMAX device. - PoE Versatility
- The EdgeRouter ER-X, can be powered by an external power adapter or 24 V passive PoE input. A passive PoE passthrough option is available to support a single airMAX device.
- Configuration Methods
- Powered by a proprietary and intuitive graphical interface, EdgeOS, this EdgeRouter X can easily be configured for the routing, security, and management features required to run your network efficiently. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
- Intuitive User Interface
- The EdgeRouter X provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.
The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface. - Edge Operating System
- EdgeOS is a sophisticated operating system with robust features, including:
• VLAN interfaces for network segmentation
• Static routes and support of routing protocols: OSPF, RIP, and BGP
• Firewall policies and NAT rules
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Administrator and operator accounts
• Comprehensive IPv6 support - Configuration by CLI
- The CLI provides quick and flexible configuration by command line and features the following:
• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands
• CLI access through the serial console port, SSH, Telnet, and the graphical user interface - EdgeRouter X
- • 5 x Gigabit RJ45 ports
• Passive PoE passthrough option
• Power via 24 V passive PoE or power adapter
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets
Please note, passive PoE passthrough option requires 24 V passive PoE or a 12 W minimum power adapter (not included) UPC: 810354021640 In the Box Ubiquiti Networks ER-X EdgeRouter X Power Adapter Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ER-X EdgeRouter X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks ER-X Specs | | | Ethernet Networking Interfaces | Data/PoE Input Port
1 x 10/100/1000 RJ45 port
Data Ports
3 x 10/100/1000 RJ45 ports
Data/PoE Passthrough Port
1 x 10/100/1000 RJ45 port | | PoE Switch | N/A | | PoE Out-Voltage Range | N/A | | Power Consumption | 5 W | | Power Input | 12 VDC, 0.5 A power adapter (included) or 24 V Passive PoE | | Power Supply | External AC/DC adapter | | Supported Voltage | 9 to 26 VDC | | Button | Reset | | LED | Power, Ethernet 0-4 | | Processor | Dual-core 880 MHz, MIPS1004Kc | | System Memory | 256 MB DDR3 RAM | | Code Storage | 256 MB NAND | | Certifications | CE, FCC, IC | | Wall-Mount | Yes | | ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Operating Humidity | 10 to 90% non-condensing | | | | Interface/Encapsulation | Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad) | | Addressing | Static IPv4/IPv6 addressing
DHCP/DHCPv6 | | Routing | Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy | | Security | ACL-Based Firewall
Zone-Based Firewall
NAT | | VPN | IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client | | Services | DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server | | QoS | FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing | | Management | Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging | | | | Dimensions | 4.33 x 2.95 x 0.87" / 110 x 75 x 22 mm | | Weight | 6.17 oz / 175 g | | | | Package Weight | 0.775 lb | | Box Dimensions (LxWxH) | 5.95 x 4.0 x 2.7" |
