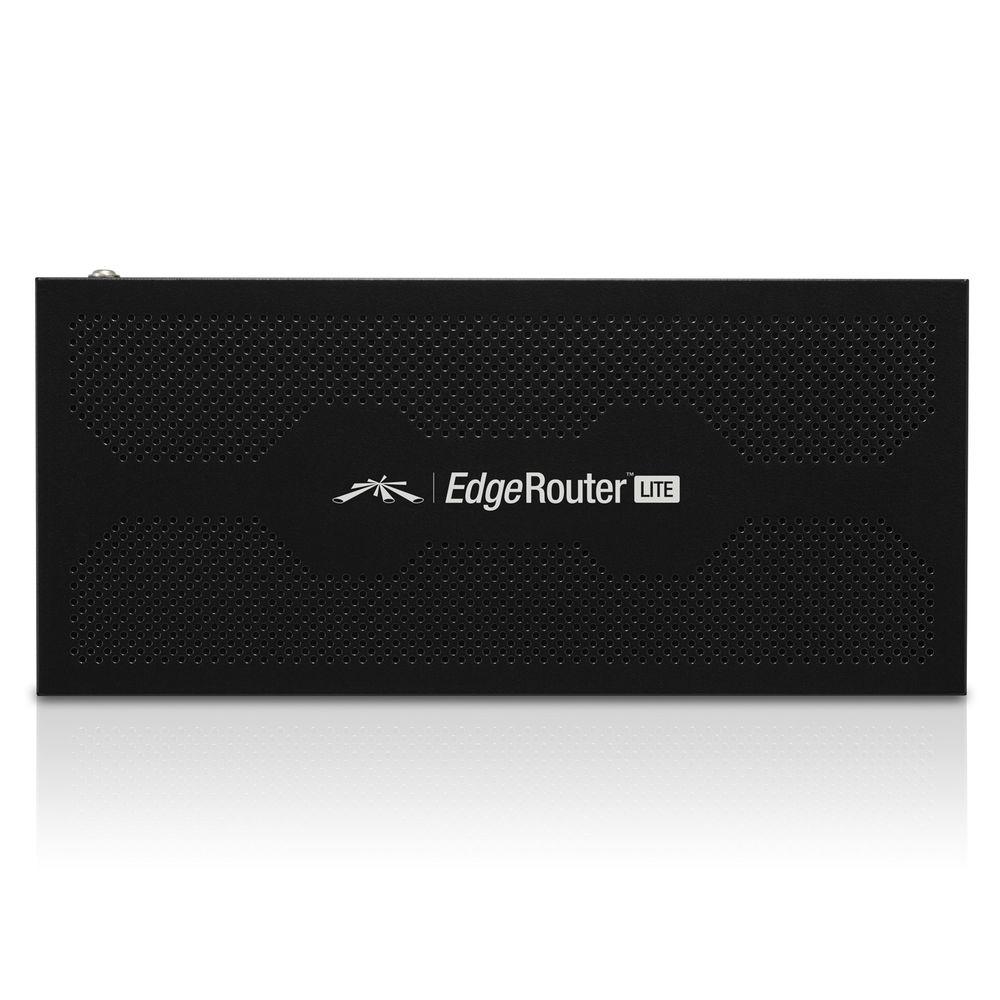

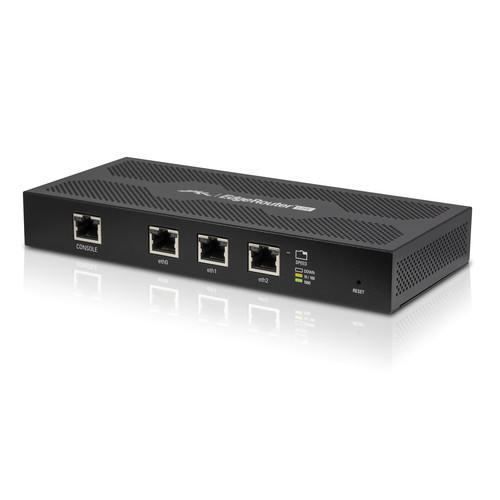

User Manual for Ubiquiti Networks ERLite-3 EdgeMax EdgeRouter Lite 3-Port Router Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ERLite-3 EdgeMax EdgeRouter Lite
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
 |
User manual for the Ubiquiti Networks ERLite-3 EdgeMax EdgeRouter Lite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The ERLite-3 EdgeMax EdgeRouter Lite 3-Port Router from Ubiquiti Networks is housed in a compact, fanless form factor. It operates quietly and delivers powerful routing, security, and management features you require to efficiently run a network. This EdgeRouter Lite provides a graphical user interface designed for convenient setup and control. Each of its Gigabit port functions as an independent interface. You can configure Virtual Local Area Network (VLAN) interfaces to meet network segmentation requirements. You can also configure static routes and dynamic routing protocols, to effectively manage the routes used by the EdgeRouter. - Intuitive User Interface
- The EdgeRouter Lite provides a graphical user interface designed for convenient setup and control. Accessed via a network port and Web browser, the user-friendly interface provides intuitive management with a virtual view of the ports displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface
- Configuration by CLI
- The CLI provides quick and flexible configuration by command line and features the following:
For power users, configuration, and monitoring of all advanced features
Direct access to standard Linux tools and shell commands
CLI access through the serial console port, SSH, Telnet, and the graphical user interface Direct Traffic Flow - Interfaces
- Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet the network segmentation requirements
- Routing
- Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter
Secure Your Network - Firewall Policies
- Organize the rules you apply in the order you specify
- Firewall Groups
- Apply policies to groups filtered by IP address, network address, or port number
- NAT Rules
- The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules
Manage Your Network - DHCP Server
- Set up multiple DHCP servers to assign IP ranges in different subnets on different interfaces. You can control dynamic and static IP addressing for your network devices
- Monitoring Tools
- Track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor
- User Accounts
- Manage access to the EdgeRouter Lite using unique administrator and operator accounts. With these capabilities and more, the EdgeRouter Lite provides the centralized control you need, to optimize the performance and reliability of your network
Other Features - EdgeOS
- EdgeOS is a sophisticated operating system loaded with robust features, including:
Static routes and support of routing protocols: OSPF, RIP, and BGP Firewall policies and NAT rules
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Comprehensive IPv6 support
Choice of Configuration Methods:
The graphical user interface to visualize the workings of networks or the Command Line Interface (CLI) to use advanced, command-driven configurations UPC: 810354020612 In the Box Ubiquiti Networks ERLite-3 EdgeMax EdgeRouter Lite 3-Port Router 12 VDC, 1A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ERLite-3 EdgeMax EdgeRouter Lite 3-Port Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks ERLite-3 Specs | | | Processor | Dual core 500 MHz, MIPS64 with hardware acceleration for packet processing | | System Memory | 512 MB DDR2 RAM | | On-Board Flash Storage | 2 GB | | Operating System | EdgeOS | | | | Interface/Encapsulation | Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad) | | Addressing | Static IPv4/IPv6 addressing
DHCP/DHCPv6 | | Routing | Static routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 support)
IGMP proxy | | Security | ACL-based firewall
Zone-based firewall
NAT | | VPN | IPSec site-to-site and remote access
OpenVPN site-to-site and remote access
PPTP remote access
L2TP remote access
PPTP client | | Services | DHCP/DHCPv6 server
DHCP/DHCPv6 relay
Dynamic DNS
DNS forwarding
VRRP
RADIUS client
Web caching | | Quality of Service (QoS) | FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing | | Management | Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT discovery protocol
Logging | | | | Packet Size | 64 Bytes: 1,000,000 pps

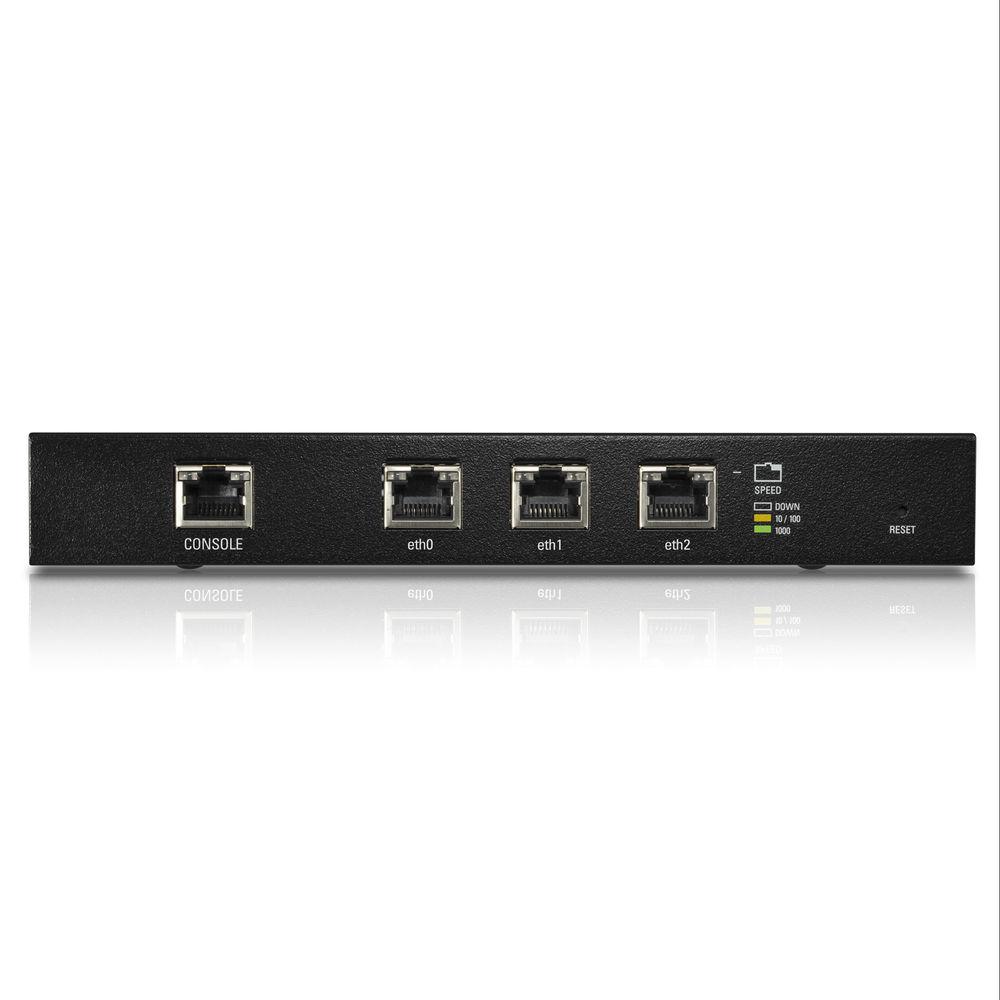

512 Bytes or Larger: 3 Gb/s (line rate) | | | | Serial Console Port | 1 x RJ-45 serial port | | Data Ports | 3 x 10/100/1000 Ethernet ports | | | | Serial Console Port | Power | | Data Ports | Speed
Link
Activity | | | | Power Input | 12 VDC, 1 A power adapter (included)
9 to 24 V (supported voltage range) | | | | Button | Reset | | Wall Mount | Yes | | Operating Temperature | 14 to 113°F (-10 to +45°C) | | Operating Humidity | 90% (non-condensing) | | Certifications | CE, FCC, IC | | Dimensions | 7.78 x 3.58 x 1.10" (197.52 x 91.00 x 28.00 mm) | | Weight | 10.2 oz (289.2 g) | | | | Package Weight | 1.555 lb | | Box Dimensions (LxWxH) | 9.55 x 5.2 x 2.95" |
