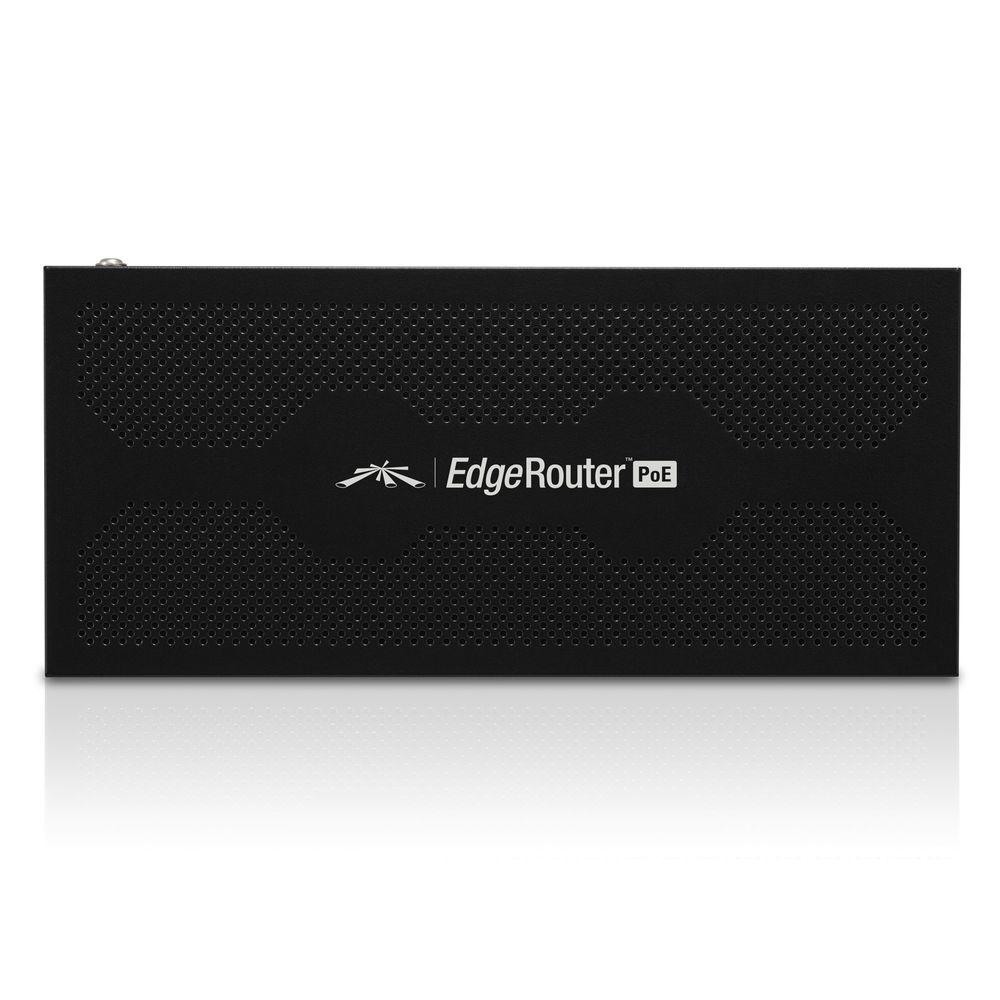

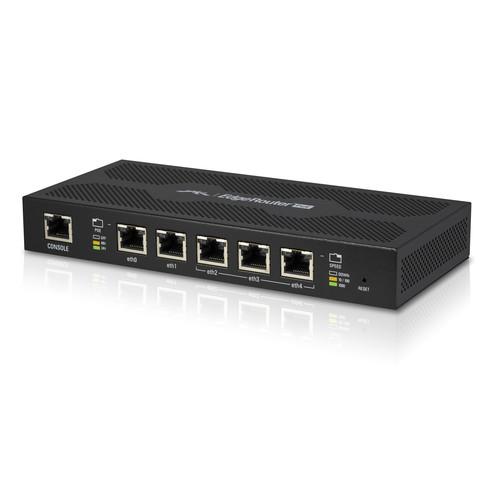

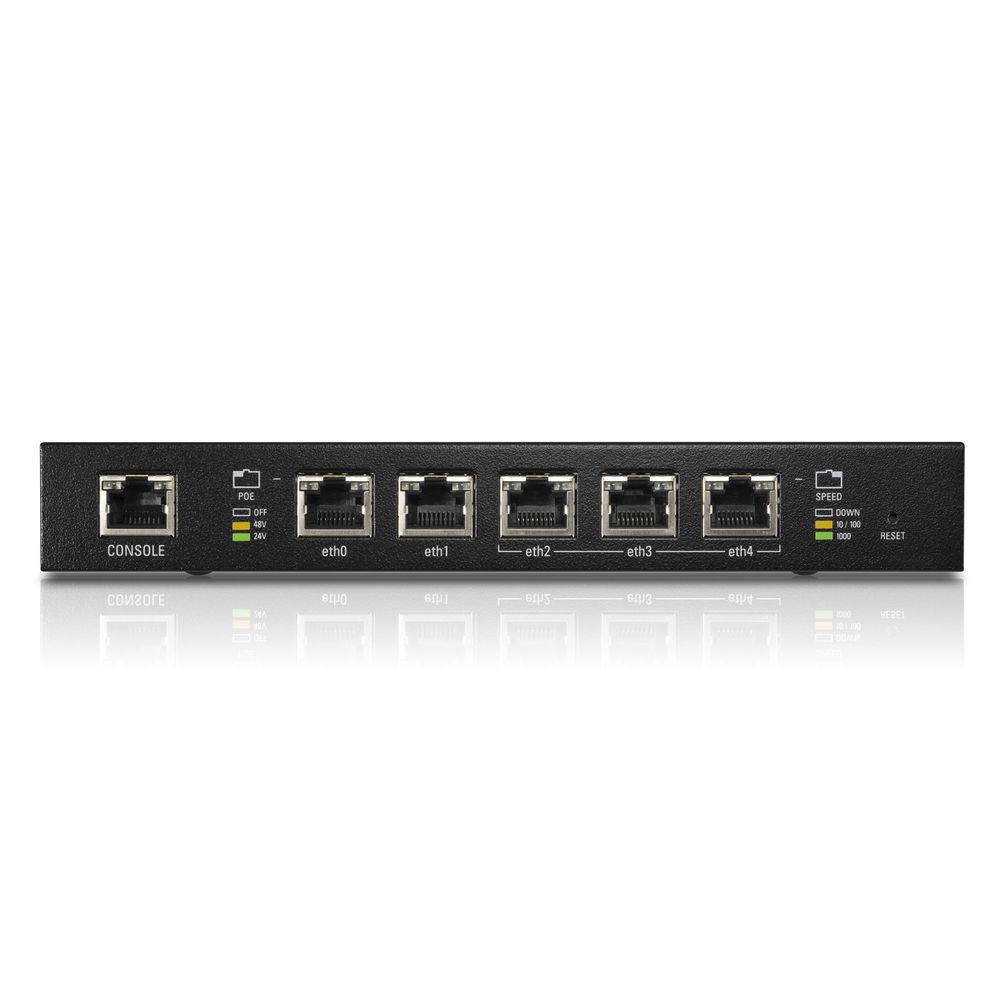

User Manual for Ubiquiti Networks ERPOE-5 EdgeRouter PoE 5-Port Advanced Network Router Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ERPOE-5 EdgeRouter PoE 5-Port
- Product category: Network Routers Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Routers
 |
User manual for the Ubiquiti Networks ERPOE-5 EdgeRouter PoE 5-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The ERPOE-5 EdgeRouter PoE 5-Port Advanced Network Router from Ubiquiti Networks combines reliability with enterprise-level features. Powered by a proprietary and intuitive graphical interface, and EdgeOS, the EdgeRouter can easily be configured for routing, security, and management features to efficiently run the network. For advanced network professionals, an integrated CLI is available for quick and direct access, using familiar commands. This router is capable of routing up to 1 million packets per second. - Intuitive User Interface
- The EdgeRouter provides a graphical user interface, which is designed for convenient setup and control. Accessed via a network port and Web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit/receive speeds, and status for each physical and virtual interface
- Configuration by CLI
- The CLI provides quick and flexible configuration by command line and features the following:
For power users, configuration and monitoring of all advanced features
Direct access to standard Linux tools and shell commands
CLI access through the serial console port, SSH, Telnet, and the graphical user interface Manage Your Network - DHCP Server
- Set up multiple DHCP servers to assign IP ranges in different subnets on different interfaces. You can control dynamic and static IP addressing for your network devices
- Monitoring Tools
- Track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor
- User Accounts
- Manage access to the EdgeRouter using unique administrator and operator accounts
Secure Your Network - Firewall Policies
- Organize the rules you apply in the order you specify
- Firewall Groups
- Apply the policies to groups filtered by IP address, network address, or port number
- NAT Rules
- The EdgeRouter changes packet addressing based on your customized source and destination NAT rules
Direct Traffic Flow - Interfaces
- Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation
- Routing
- Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter. With these capabilities and more, the EdgeRouter provides the centralized control you need to optimize the performance and reliability of your network
Operating System - EdgeOS
- EdgeOS is a sophisticated operating system loaded with features, including:
Static Routes and Support of Routing Protocols: OSPF, RIP, and BGP
Firewall policies and NAT rules
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Comprehensive IPv6 support
Choice of Configuration Methods:
Graphical user interface to visualize the workings of a network or the Command Line Interface (CLI) to use advanced, command-driven configuration UPC: 810354020629 In the Box Ubiquiti Networks ERPOE-5 EdgeRouter PoE 5-Port Advanced Network Router 48 VDC, 1.25A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ERPOE-5 EdgeRouter PoE 5-Port Advanced Network Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks ERPOE-5 Specs | | | Processor | Dual core 500 MHz, MIPS64 with hardware acceleration for packet processing | | System Memory | 512 MB DDR2 RAM | | On-Board Flash Storage | 2 GB | | Operating System | EdgeOS | | | | Serial Console Port | 1 x RJ-45 serial port | | Data Ports | 2 x 10/100/1000 Ethernet router ports
3 x 10/100/1000 Ethernet router/switch ports | | | | Interface/Encapsulation | Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad) | | Addressing | Static IPv4/IPv6 addressing
DHCP/DHCPv6 | | Routing | Static routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 support)
IGMP proxy | | Security | ACL-based firewall
Zone-based firewall
NAT | | VPN | IPSec site-to-site and remote access
OpenVPN site-to-site and remote access
PPTP remote access
L2TP remote access
PPTP client | | Services | DHCP/DHCPv6 server
DHCP/DHCPv6 relay
Dynamic DNS
DNS forwarding
VRRP
RADIUS client
Web caching
PPPoE server | | Quality of Service (QoS) | FIFO
Stochastic Fairness Queuing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing | | Management | Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT discovery protocol
Logging | | | | Packet Size | 64 Bytes 1,000,000 pps
512 Bytes or larger 3 Gb/s (line rate) | | | | Serial Console Port | Power | | Data Ports | PoE, speed/link/activity | | | | Data Ports | Off/24 V/48 V* *48 V available when using 48 VDC power adapter. Sold separately. | | | | Power Consumption | Maximum: 60 W | | Power | 24 VDC, 2.5 A power adapter (included) | | Power Input | 24 VDC input (Supported Range: 18 to 26 VDC) or
48 VDC input (Supported Range: 38 to 54 VDC) | | Power Connector Size | DC power jack
Inner Diameter: 2.1 mm
Outer Diameter 5.5 mm | | PoE with 24 VDC Power Adapter (Included) | PoE Out Voltage Range: 22 to 24 VDC
Maximum PoE Wattage Per Data Port: 12 W (24 V)
Maximum PoE Wattage Combined for All 5 Data Ports: 50 W
PoE Method: Passive | | | | Button | Reset | | Wall Mount | Yes | | Operating Temperature | 14 to 113°F (-10 to +45°C) | | Operating Humidity | 10 - 90% (non-condensing) | | Certifications | CE, FCC, IC | | Dimensions | 7.87 x 3.54 x 1.18" (19.98 x 8.99 x 2.99 cm) | | Weight | 12.7 oz (360.0 g) | | | | Package Weight | 2.02 lb | | Box Dimensions (LxWxH) | 9.55 x 5.35 x 3.45" |
