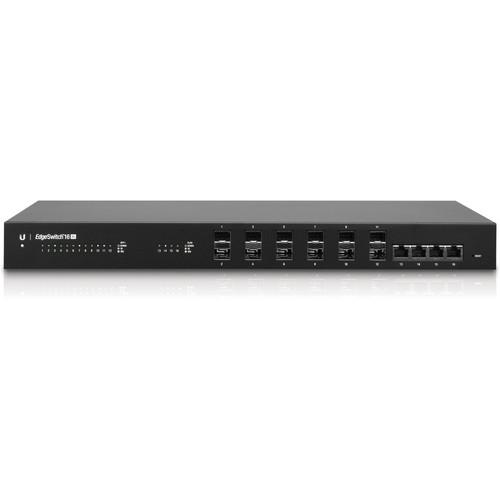

User Manual for Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
|
User manual for the Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description With 12 SFP+ ports and 4 10G RJ-45 ports, the ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch from Ubiquiti resides on Layer 2 of the network and also supports enhanced Layer 3 routing capabilities. The 12 SFP+ ports make it easy to attach additional switches to the network while the 10G RJ-45 ports allow for devices such as NAS storage arrays to be incorporated directly into the configuration making stored data accessible to multiple clients. Once configured, the EX-16-XG supports a non-blocking throughput of up to 160 Gbps, a 320 Gbps switching capacity, and a forwarding rate of up to 238.10 Mpps. Installation of the switch is simple thanks to the included rackmount brackets and with the DC input option the switch can be configured in redundant or stand-alone modes. - Advanced Switching Technologies
- Build and expand your network the with Ubiquiti Networks EdgeSwitch XG, part of the EdgeMAX line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. - Switching Performance
- The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps. - 10G High-Capacity Links
- The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch.
For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ-45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ-45 connectors. - Comprehensive User Interface
- Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH. - Powerful Functionality
- The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality UPC: 810354024528 In the Box Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch Rackmount Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks ES-16-XG Specs | | | Ports | 12 x 10Gb SFP
4 x 10Gb Ethernet (RJ45)
1 x Ethernet (RJ45) (Console) | | | | Layer Services Supported | Layer 3 Support | | Supported Protocols | Auto-VoIP
IPv6
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | MAC Address Table Size | 8K | | VLAN Groups | 255 | | | | Security Features | Storm Control | | Access Control List | 100 | | | | RFC | RFC 2021
RFC 2030
RFC 2819
RFC 2865
RFC 2866
RFC 2868
RFC 2869
RFC 3579
RFC 3580
RFC 3164 | | Supported IEEE Standards | 802.1ab, 802.1ak, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3an, 802.3u, 802.3x | | | | Forwarding Rate | 238.1 Mpps | | Switching Bandwidth | 320 Gb/s
160 Gb/s (Non-Blocking) | | Priority Queues | 8 | | | | Power Draw | 36.00 W (Active) | | DC Input Power | 16 to 25 VDC | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 5 to 95% | | | | Material of Construction | Steel | | Indicator Lights | Link/Activity/Speed | | Rack Form Factor | 1 RU | | Dimensions | 17.4 x 8.7 x 1.7" / 44.1 x 22.1 x 4.4 cm | | Weight | 6 lb / 3 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 21.4 x 10.5 x 2.9" |
