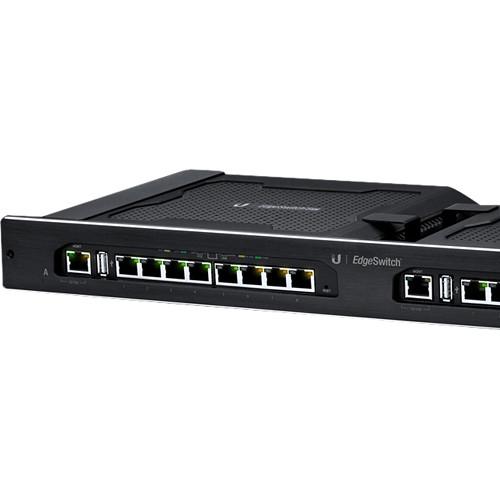

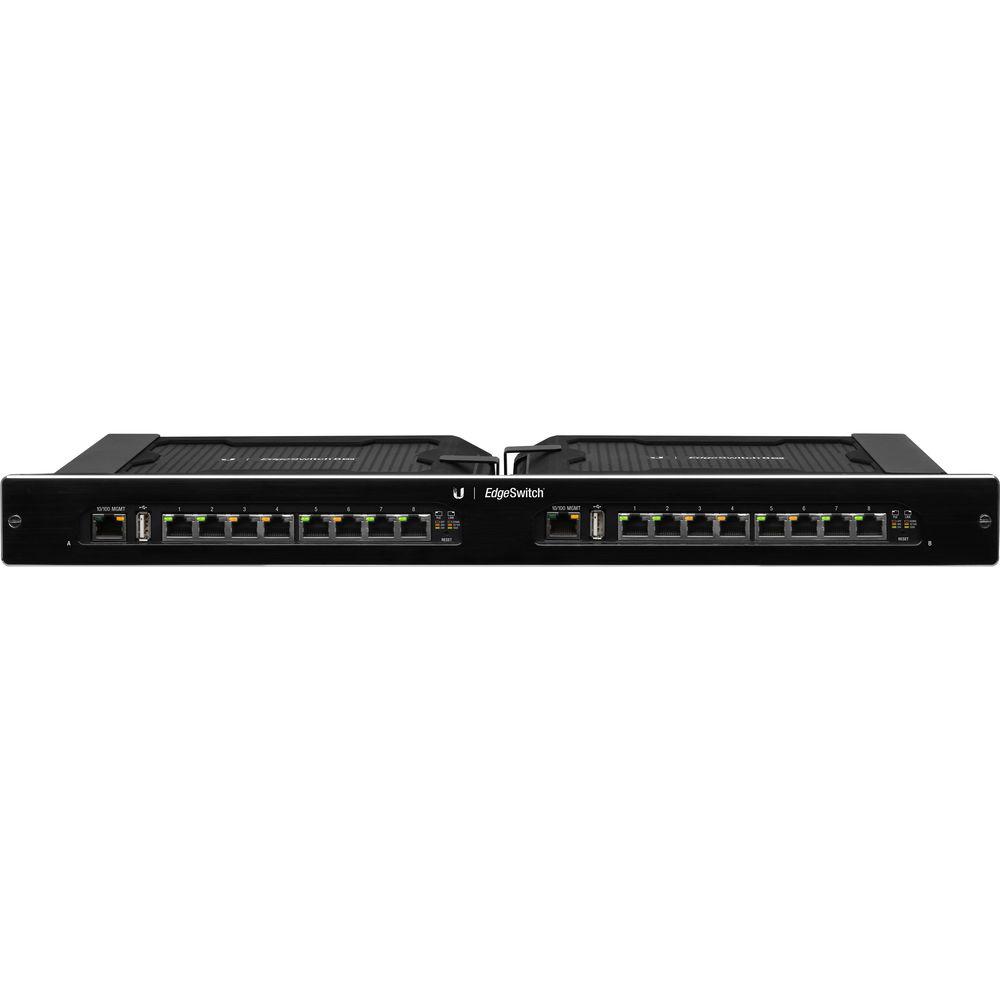

User Manual for Ubiquiti Networks ES-16XP EdgeSwitch XP 16-Port Advanced Gigabit PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ES-16XP EdgeSwitch XP 16-Port
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks ES-16XP EdgeSwitch XP 16-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description With the ES-16XP EdgeSwitch XP 16-Port Advanced Gigabit PoE Managed Switch from Ubiquiti Networks users benefit from passive PoE support and 16 ports of Gigabit Ethernet connectivity. With support for passive Power over Ethernet, IP phones, access points, and other PoE compatible devices can draw their power from the network eliminating the need for separate power sources. This Ubiquiti Networks switch features the EdgeSwitch XP configuration interface allowing PoE power to be administered on a per port basis. The ES-16XP supports 24V/48V passive PoE power along with a total power budget of up to 300W ensuring multiple connected devices have the necessary power to function properly.
This EdgeSwitch XP model features dual EdgeSwitch XP 8-port switches in a rackmountable, 1U form factor supporting up to 16 devices. - Simplify Your Deployment
- EdgeSwitch XP allows network architects to design clean, less cluttered deployments. It increases efficiency and reduces potential failure points resulting in quick installations and less maintenance and troubleshooting.
- Intuitive Configuration Interface
- EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and Web browser, the EdgeSwitch XP configuration interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
- Other Features
- EdgeSwitch XP is loaded with a variety of features, including:
Port monitoring
System connection and management services
Virtual Local Area Network (VLAN) configuration
Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
Jumbo frame support
Ping Watchdog
Configurable alerts UPC: 810354021602 In the Box Ubiquiti Networks ES-16XP EdgeSwitch XP 16-Port Advanced Gigabit PoE Managed Switch 2 x Power Cords 4 x #10-32 x 5/8" Phillips Screws 2 x M3x8 Flathead Screws 4 x #10-32 x 5/8" Cage Nuts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ES-16XP EdgeSwitch XP 16-Port Advanced Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks ES-16XP Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100 Mb/s Ethernet (RJ45) (Console)
2 x USB Type-A (Uplink) | | | | Flash Memory | 16 MB | | Processor | 400 MHz MIPS | | Memory | 128 MB | | | | Power Draw | 300.00 W (Active) | | AC Input Power | 110 to 230 VAC, 50 / 60 Hz | | PoE per Port | 11.5 to 23 W | | | | Operating Temperature | -13 to 131°F / -25 to 55°C | | Operating Humidity | 90% | | | | Indicator Lights | Link/Activity/Speed, PoE, Power/Link | | Dimensions | 18.9 x 7.3 x 1.8" / 48 x 18.6 x 4.5 cm | | Weight | 9 lb / 4 kg | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 27.0 x 9.8 x 3.5" |
