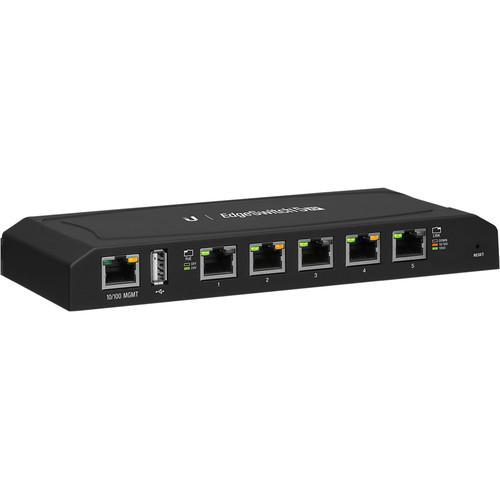

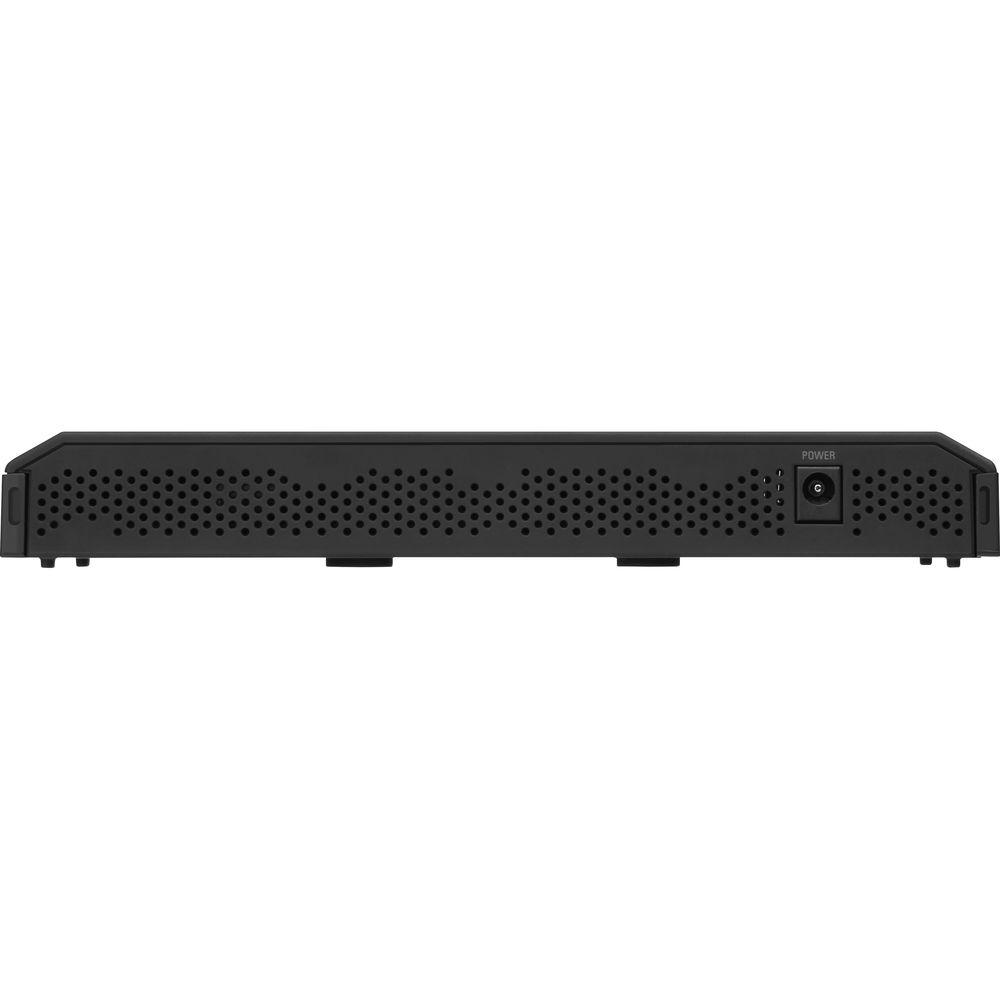

Product description The ES-5XP EdgeSwitch XP 5-Port Advanced Gigabit PoE Managed Switch from Ubiquiti Networks is a cost-effective, 5-port Gigabit switch with 24V PoE support. It delivers reliable passive PoE and fast 10/100/1000 Mb/s connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect the PoE devices, you need to enable PoE in the EdgeSwitch configuration interface. Each port can be individually configured to provide PoE, so that both PoE and non-PoE devices can be connected. - Simplify Deployment
- It allows network architects to design cleaner, less cluttered deployments. The EdgeSwitch XP deployments increase efficiency and reduce the potential failure points, resulting in faster installations and less maintenance and troubleshooting
- Intuitive Configuration Interface
- The EdgeSwitch XP provides a user-friendly configuration interface for efficient setup and control. Accessed via a secured management port and Web browser, the EdgeSwitch XP configuration interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
- Advanced Features
- Port monitoring
System connection and management services
Virtual Local Area Network (VLAN) configuration
Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
Jumbo frame support
Ping watchdog
Configurable alerts UPC: 810354020742 In the Box Ubiquiti Networks ES-5XP EdgeSwitch XP 5-Port Advanced Gigabit PoE Managed Switch 2 x M2.9 x 20 Screws 2 x M2.9 Anchors 24V, 2.5A Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ES-5XP EdgeSwitch XP 5-Port Advanced Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks TS-5-POE Specs | | | Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100 Mb/s Ethernet (RJ45) (Console)
1 x USB Type-A (Uplink) | | | | Flash Memory | 8 MB | | Processor | 400 MHz MIPS | | Memory | 64 MB | | | | Power Draw | 60.00 W (Active) | | DC Input Power | 24 VDC at 2.5 A | | PoE per Port | 11.5 W | | | | Operating Temperature | -13 to 131°F / -25 to 55°C | | Operating Humidity | 90% | | | | Dimensions | 7.7 x 3.4 x 1" / 19.7 x 8.8 x 2.7 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.635 lb | | Box Dimensions (LxWxH) | 8.8 x 4.75 x 3.25" |
