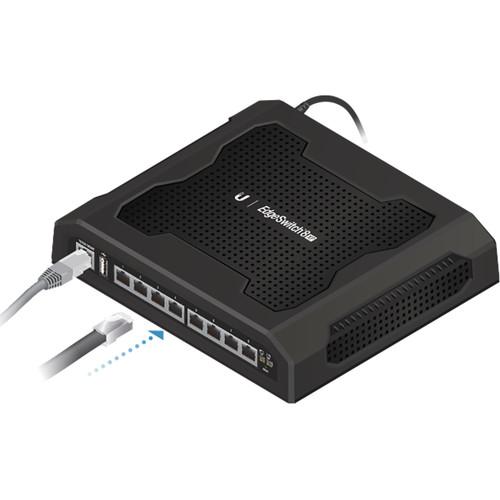

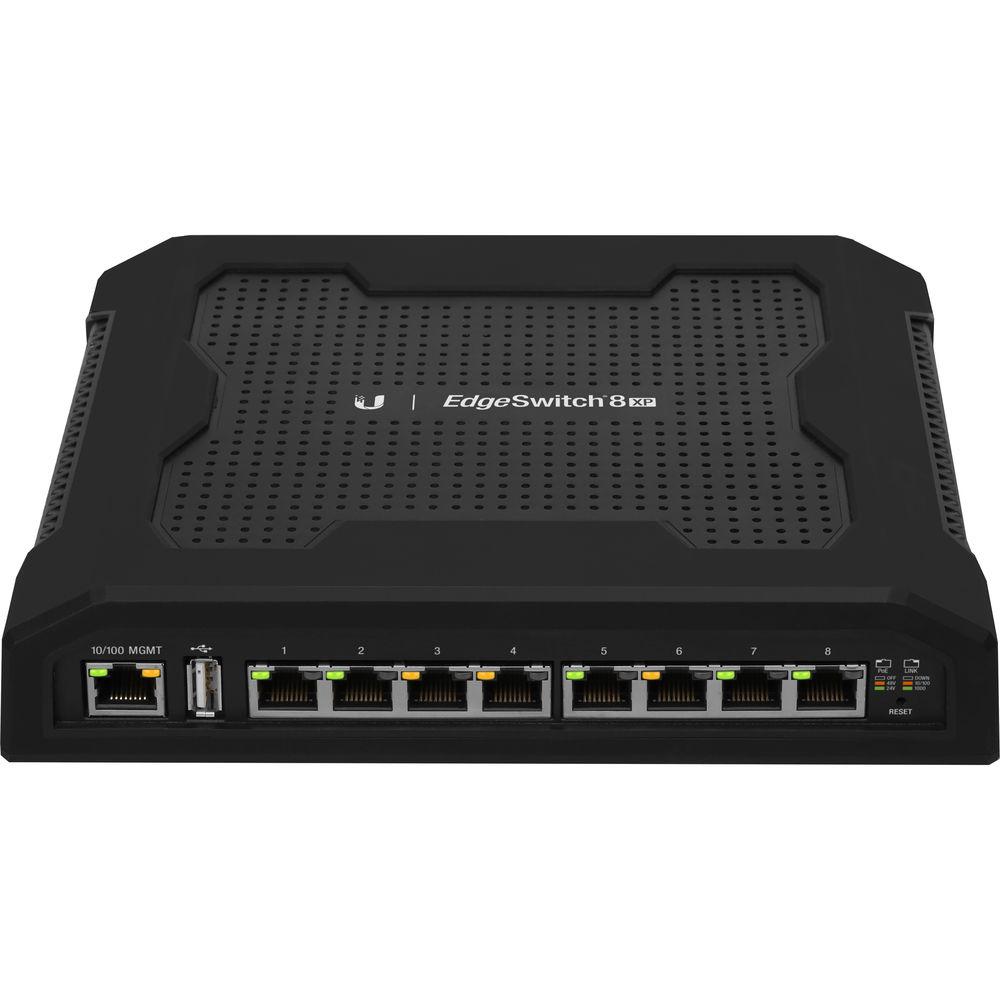

User Manual for Ubiquiti Networks ES-8XP EdgeSwitch XP 8-Port Advanced Gigabit PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ES-8XP EdgeSwitch XP 8-Port
- Product category: Network Switches, Bridges & Hubs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Network Switches, Bridges & Hubs
 |
User manual for the Ubiquiti Networks ES-8XP EdgeSwitch XP 8-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

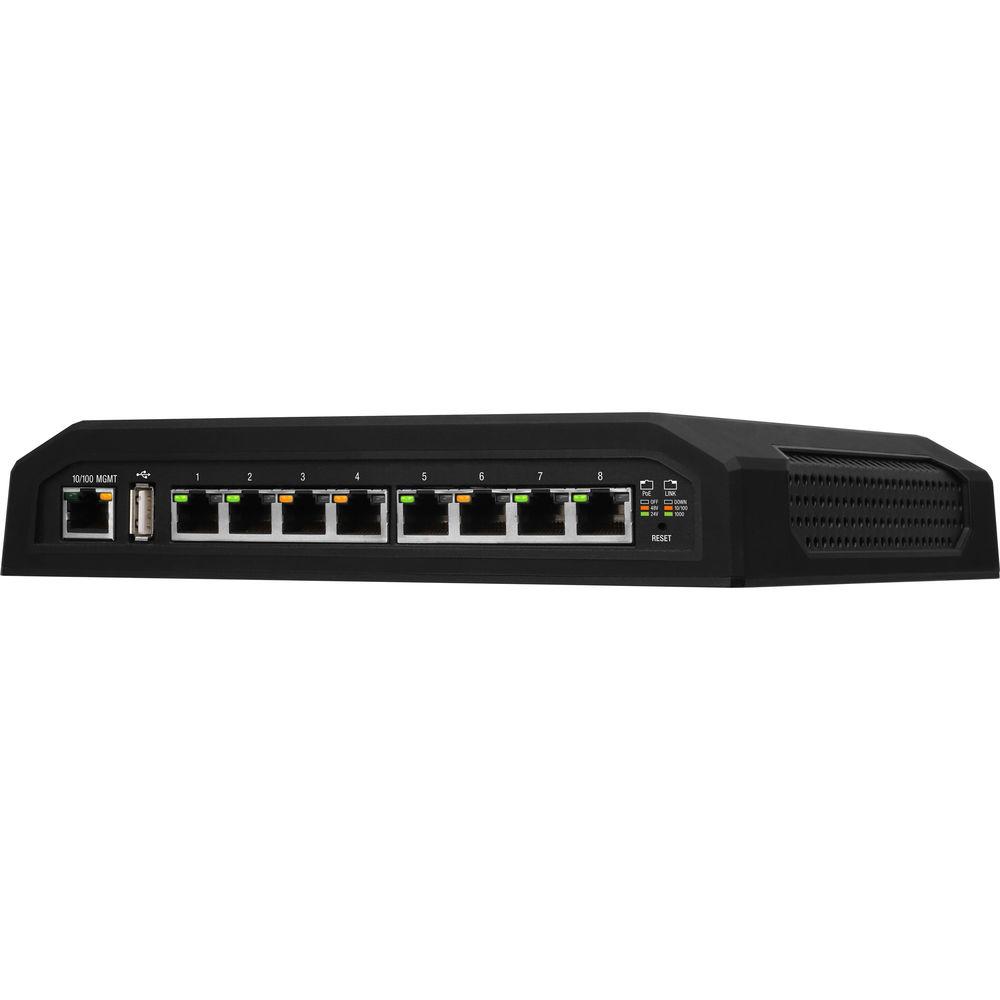

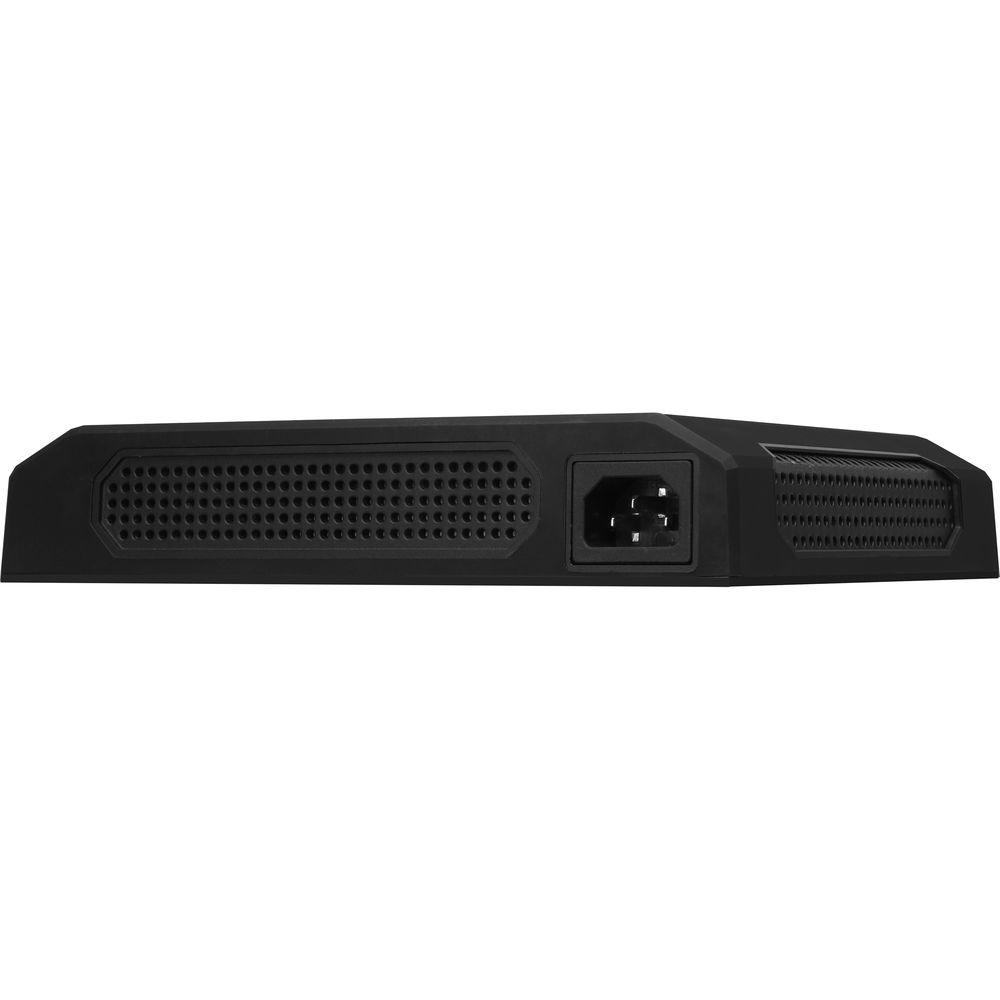

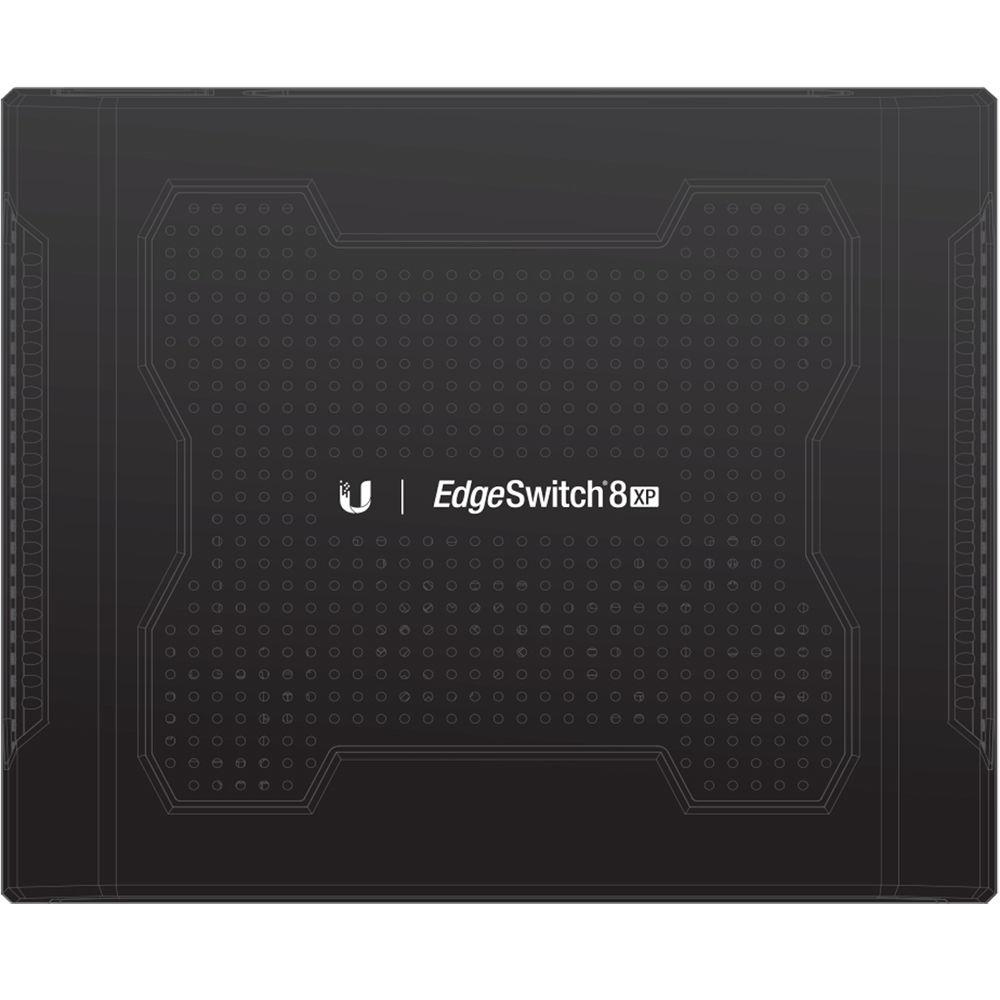

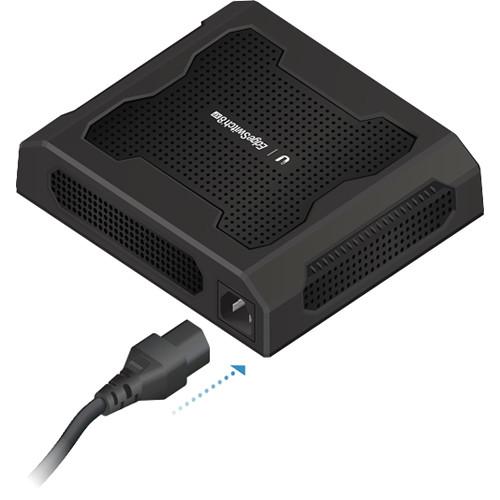

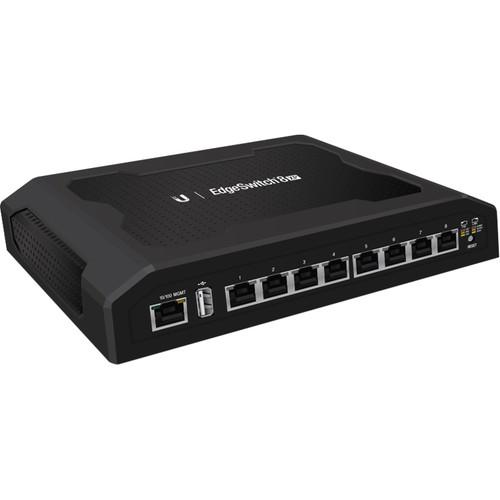

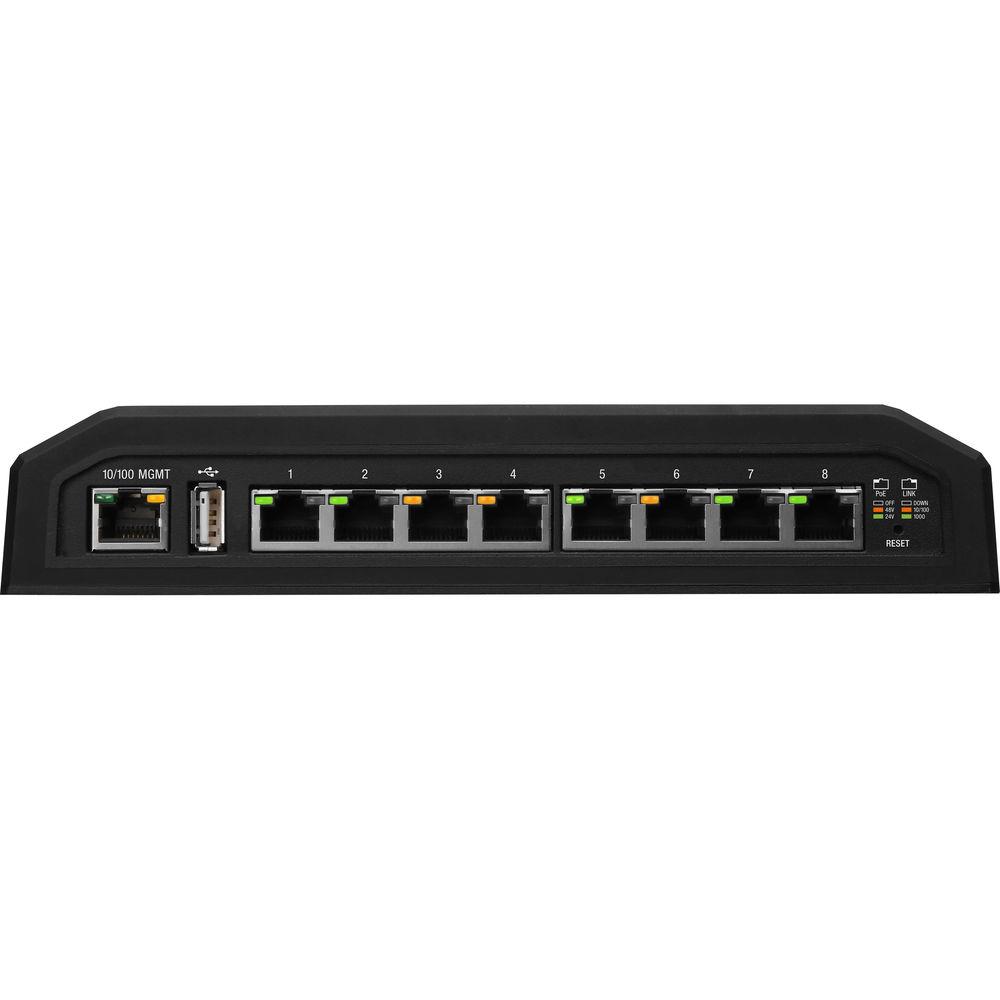

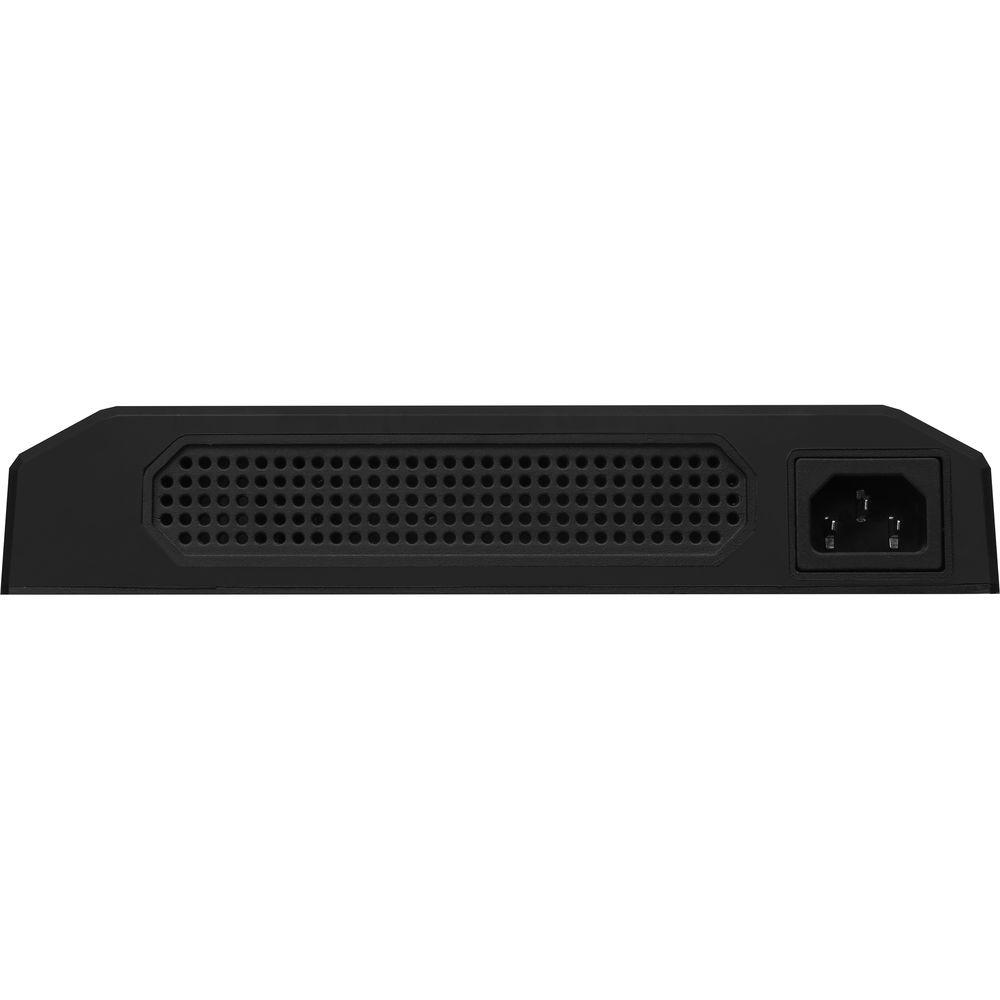

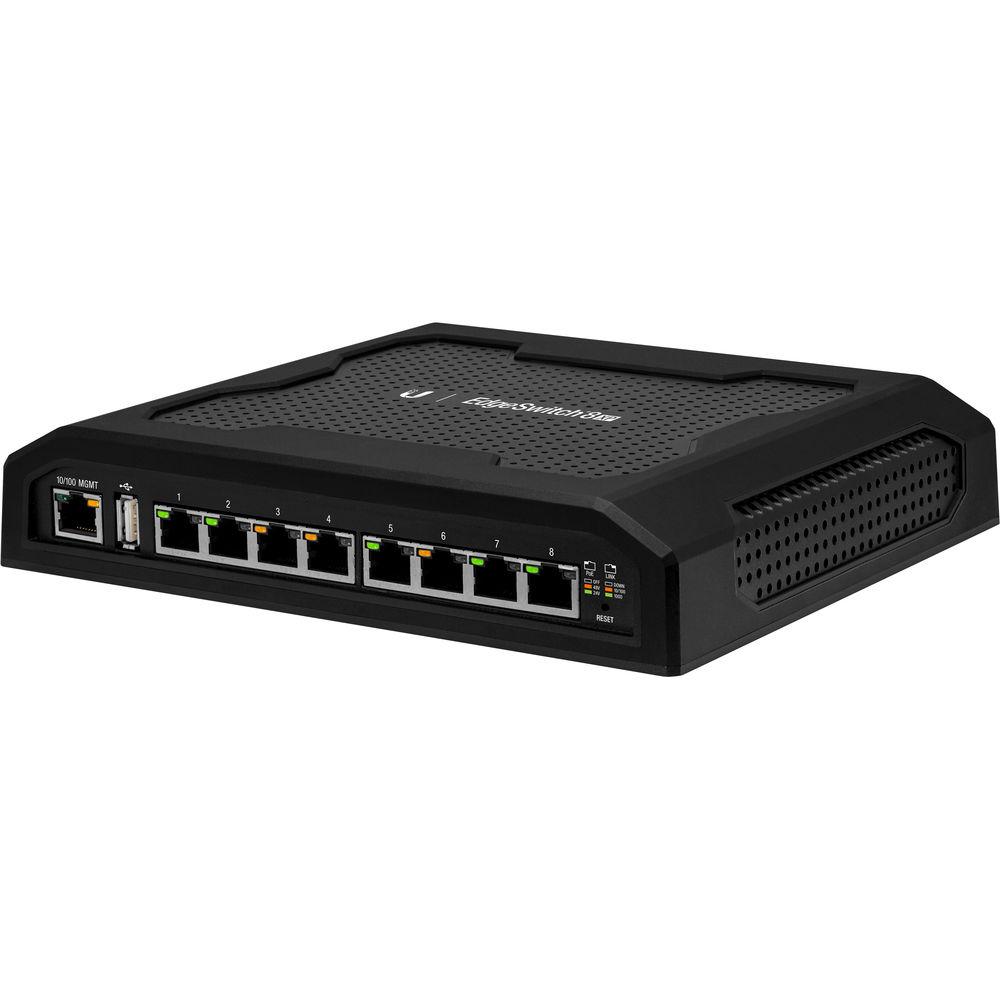

Product description The ES-8XP EdgeSwitch XP 8-Port Advanced Gigabit PoE Managed Switch from Ubiquiti Networks is an industrial-strength, 8-port Gigabit switch with 150W power capability for powering 24V or 48V devices. The output voltage is controlled by the software. It delivers reliable passive PoE and fast 10/100/1000 Mb/s connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect the PoE devices, you need to enable PoE in the EdgeSwitch XP configuration interface. Each port can be individually configured to provide PoE, so that both PoE and non-PoE devices can be connected. - Simplify Deployment
- It allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch XP can eliminate the need of eight PoE adapters, eight power cords, eight power outlets, and eight Ethernet patch cables. The EdgeSwitch XP deployments increase efficiency and reduce the potential failure points, resulting in faster installations and less maintenance and troubleshooting
- Intuitive Configuration Interface
- The EdgeSwitch XP PoE provides a user-friendly configuration interface for efficient setup and control. Accessed via a secured management port and Web browser, the EdgeSwitch XP configuration interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
- Design
- Tough full metal and rubber casing
- Advanced Features
- Port monitoring
System connection and management services
Virtual Local Area Network (VLAN) configuration
Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
Jumbo frame support
Ping watchdog
Configurable alerts UPC: 810354020759 In the Box Ubiquiti Networks ES-8XP EdgeSwitch XP 8-Port Advanced Gigabit PoE Managed Switch Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ES-8XP EdgeSwitch XP 8-Port Advanced Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks TS-8-PRO Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100 Mb/s Ethernet (RJ45) (Console)
1 x USB Type-A (Uplink) | | | | Flash Memory | 8 MB | | Processor | 400 MHz MIPS | | Memory | 64 MB | | | | Power Draw | 150.00 W (Active) | | AC Input Power | 110 to 230 VAC, 50 / 60 Hz | | PoE per Port | 11.5 to 23 W | | | | Operating Temperature | -13 to 131°F / -25 to 55°C | | Operating Humidity | 90% | | | | Dimensions | 8.2 x 7.2 x 1.6" / 21 x 18.5 x 4.1 cm | | Weight | 3 lb / 1 kg | | | | Package Weight | 3.645 lb | | Box Dimensions (LxWxH) | 10.05 x 9.85 x 2.75" |
