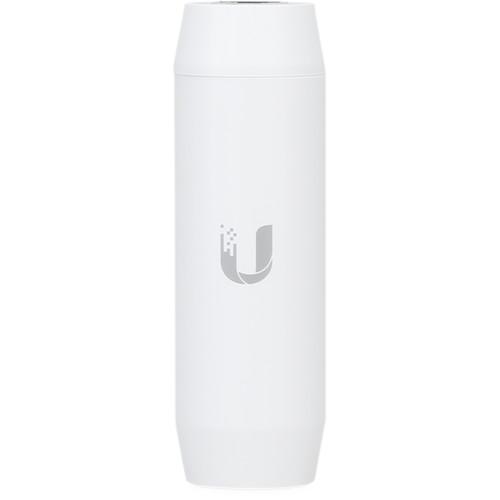

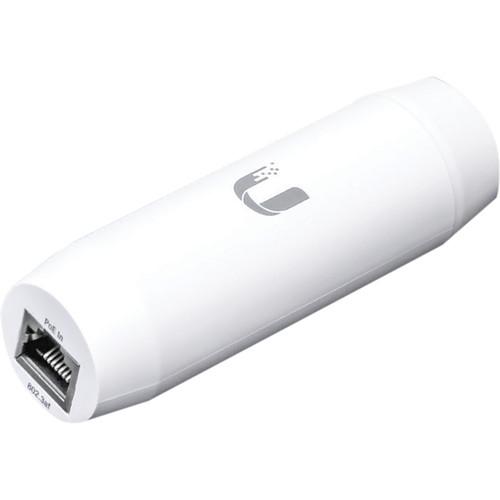

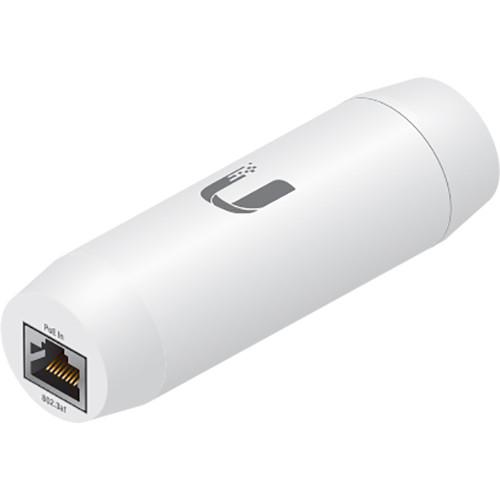

Product description With the INS-3AF-I-G Instant 802.3af Indoor Gigabit PoE Converter from Ubiquiti Networks, it is easy to convert a standard PoE-compatible device to accept devices using the 802.3af PoE network standard. In addition to 802.3af PoE support, this converter also supports Gigabit data transfer rates, features enhanced surge protection capabilities, and supports longer cable runs to both airMAX and UniFi devices. - Gigabit Ethernet
- The Instant 802.3af Gigabit PoE Converter works with 10/100/1000 Mbps ports to deliver high throughput speeds over its wired connection.
- PoE Switch Compatibility

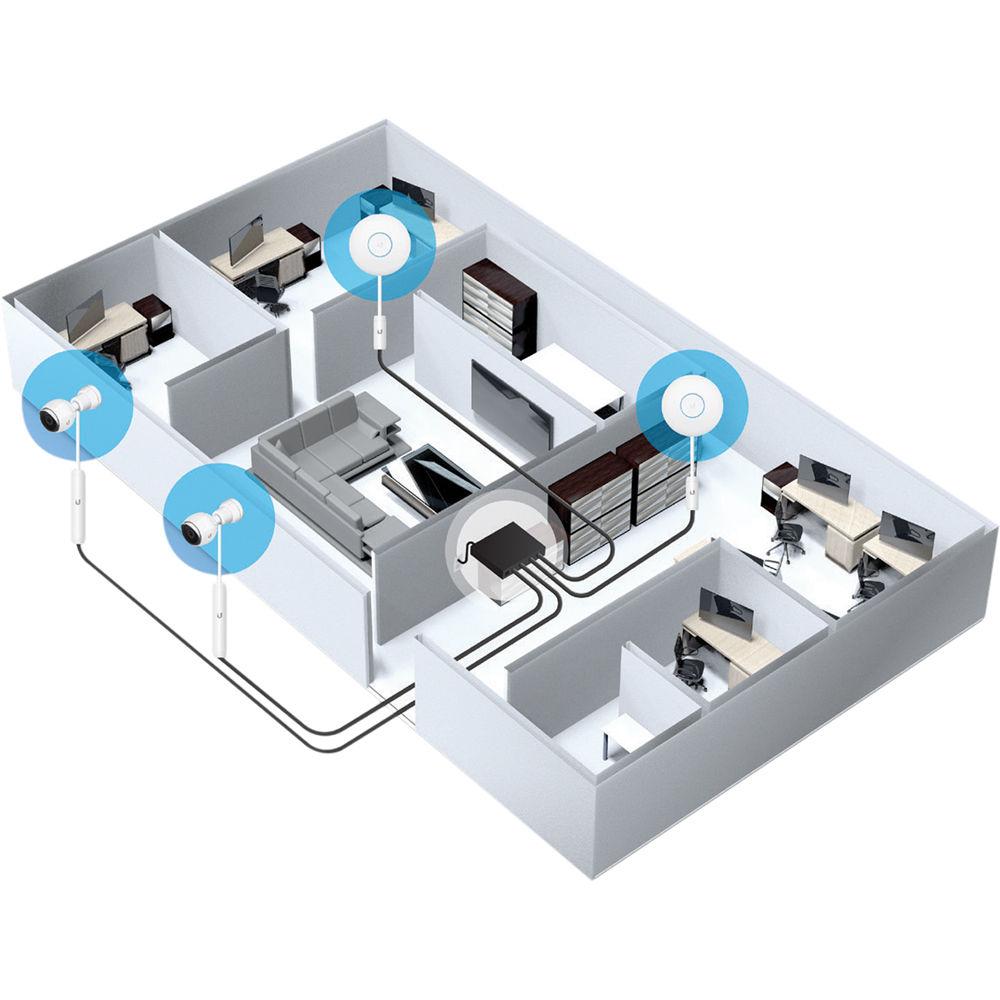

- The Instant 802.3af Gigabit PoE Converter integrates seamlessly with a variety of auto-sensing 802.3af PoE switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch.
For ease of power management, you can centralize the 802.3af switch and power source, and you can include a UPS (Uninterruptible Power Supply) as a backup. This way your network continues to run even during a temporary power outage. - Ubiquiti Compatibility
- The Instant 802.3af Gigabit PoE Converter is compatible with most Ubiquiti PoE devices using 100 Mbps or Gigabit Ethernet ports. Compatible products include airMAX and UniFi devices.
- Longer Cable Runs
- High voltage carries power more efficiently (using less current) than low voltage. The Instant 802.3af Gigabit PoE Converter enables longer cable runs due to a more efficient power delivery–so your products can get the power they require even when they are located far from the 802.3af switch.
- ESD / Surge Protection
- The Instant 802.3af Gigabit PoE Converter provides an additional ±15kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.
UPC: 810354024634 Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks INS-3AF-I-G Instant 802.3af Indoor Gigabit PoE Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

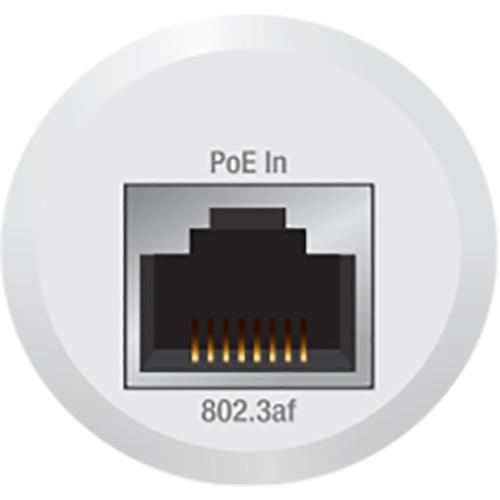

Technical parametersUbiquiti Networks INS-3AF-I-G Specs | Networking Interface | PoE In (802.3af)
1 x Gigabit RJ-45 port

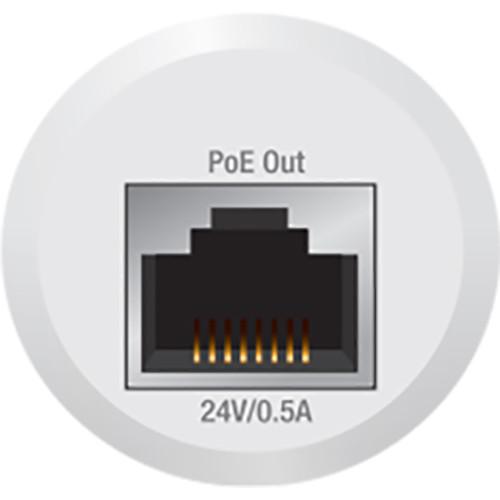

PoE Out (24 V Passive)
1 x Gigabit RJ45 port | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Power Input | 48 V, 802.3af | | Maximum Power Output | 24 V, 0.5 A | | Power Method | 24 V Passive PoE
(Pairs 4, 5+; 7, 8 Return) | | Surge Protection | Ethernet ESD / Surge Protection
±15 kV | | Dimensions | Ø 1.19 x 3.76" / Ø 30.26 x 95.5 mm | | Weight | 1.76 oz / 50 g | | | | Package Weight | 0.145 lb | | Box Dimensions (LxWxH) | 4.65 x 1.4 x 1.25" |
