User Manual for Ubiquiti Networks INS-3AF-O-G Instant 802.3af Outdoor Gigabit PoE Converter Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks INS-3AF-O-G Instant 802.3af Outdoor
- Product category: Power over Ethernet (PoE) Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Power over Ethernet (PoE)
 |
User manual for the Ubiquiti Networks INS-3AF-O-G Instant 802.3af Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

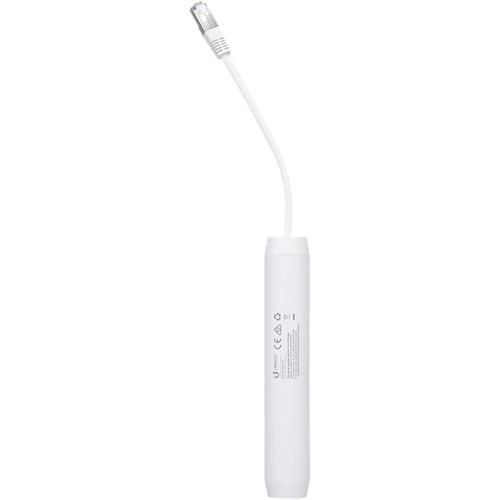

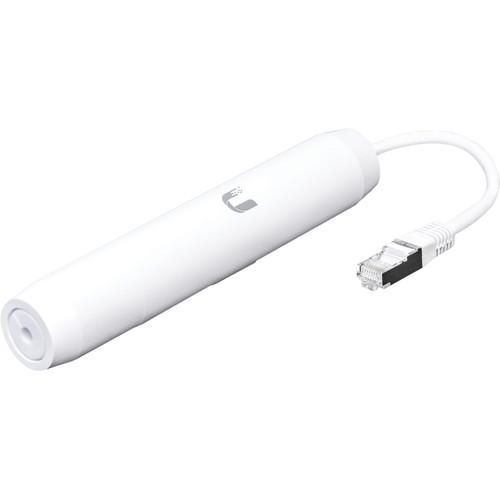

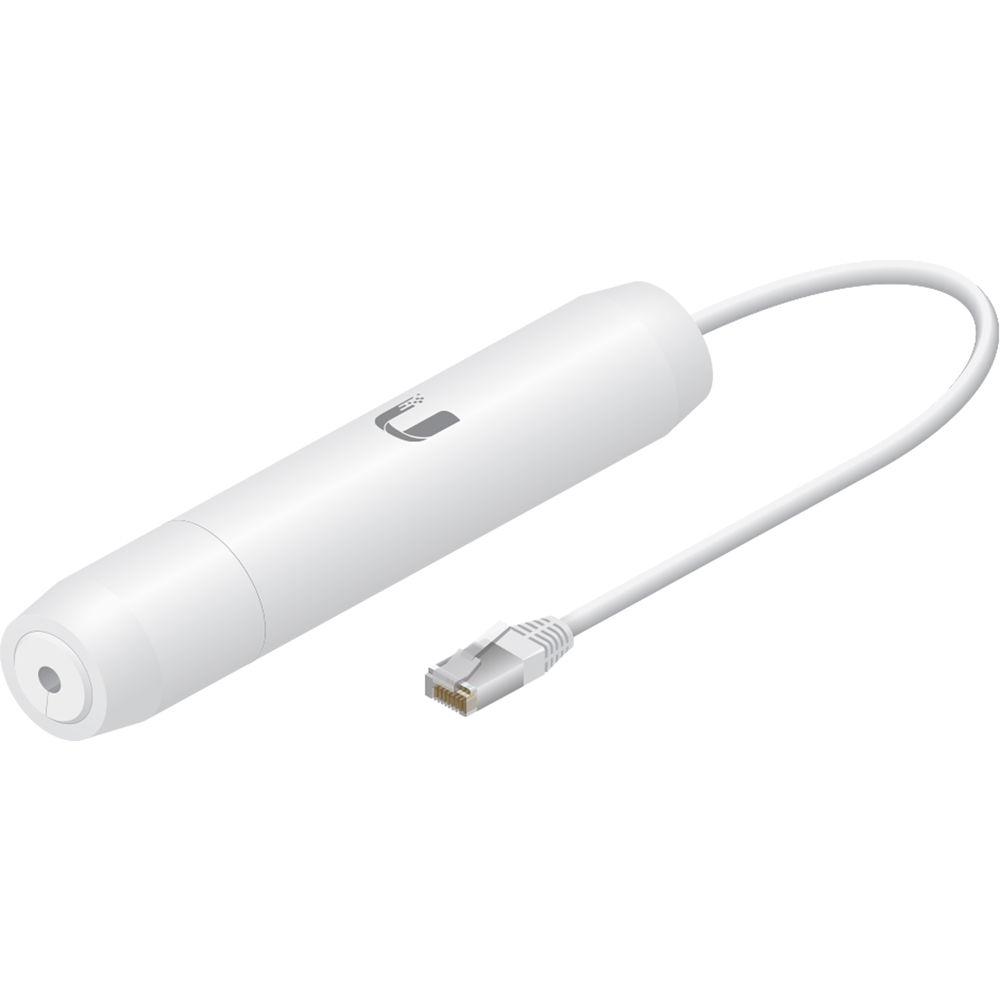

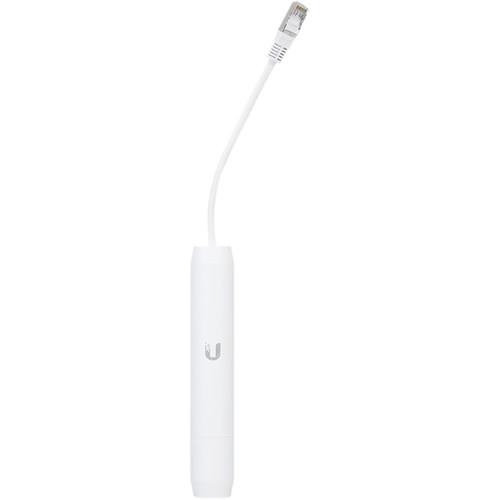

Product description With the INS-3AF-O-G Instant 802.3af Outdoor Gigabit PoE Converter from Ubiquiti Networks, it is easy to convert a standard PoE-compatible device to accept devices using the 802.3af PoE network standard. In addition to 802.3af PoE support, this converter also supports Gigabit data transfer rates, features enhanced surge protection capabilities, and supports longer cable runs to both airMAX and UniFi devices. - Gigabit Ethernet
- The Instant 802.3af Gigabit PoE Converter works with 10/100/1000 Mbps ports to deliver high throughput speeds over its wired connection.
- PoE Switch Compatibility
- The Instant 802.3af Gigabit PoE Converter integrates seamlessly with a variety of auto-sensing 802.3af PoE switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch.

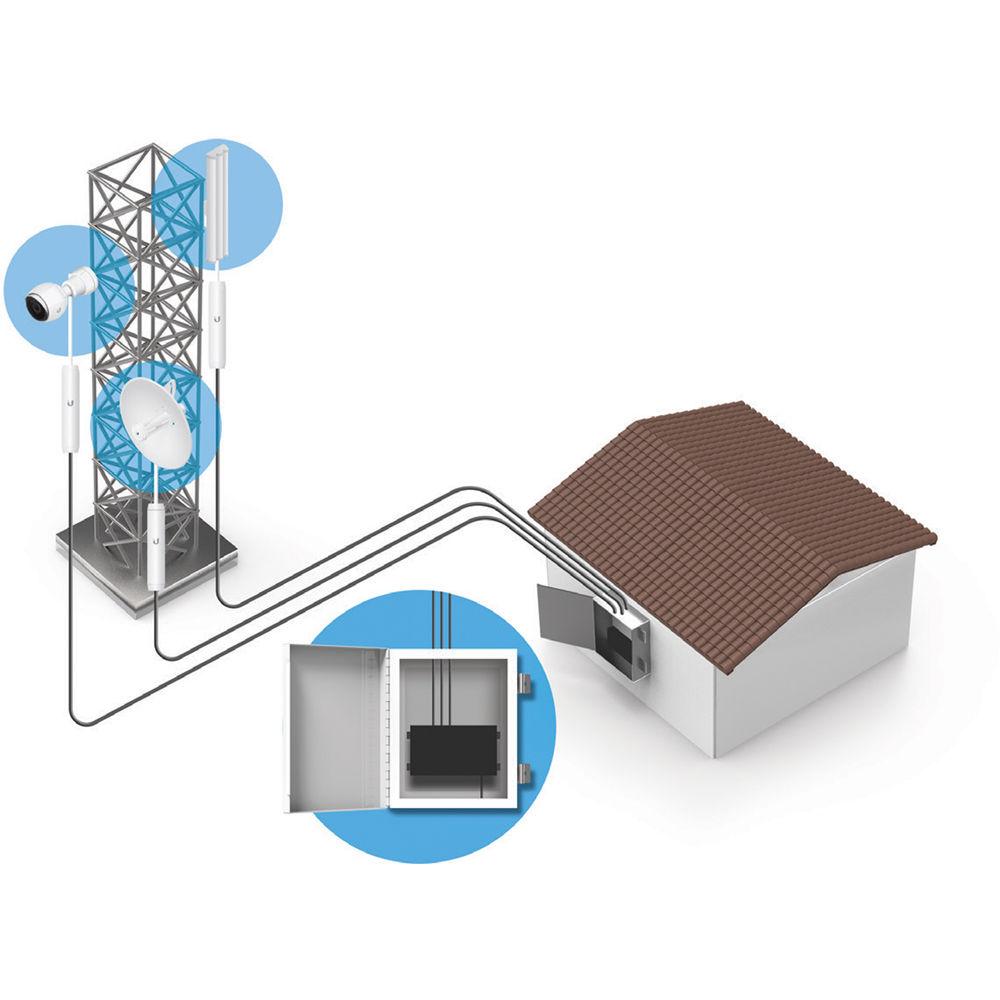

For ease of power management, you can centralize the 802.3af switch and power source, and you can include a UPS (Uninterruptible Power Supply) as a backup. This way your network continues to run even during a temporary power outage. - Ubiquiti Compatibility
- The Instant 802.3af Gigabit PoE Converter is compatible with most Ubiquiti PoE devices using 100 Mbps or Gigabit Ethernet ports. Compatible products include airMAX and UniFi devices.
- Longer Cable Runs
- High voltage carries power more efficiently (using less current) than low voltage. The Instant 802.3af Gigabit PoE Converter enables longer cable runs due to a more efficient power delivery–so your products can get the power they require even when they are located far from the 802.3af switch.
- ESD / Surge Protection
- The Instant 802.3af Gigabit PoE Converter provides an additional ±15kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.
UPC: 810354024641 Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks INS-3AF-O-G Instant 802.3af Outdoor Gigabit PoE Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

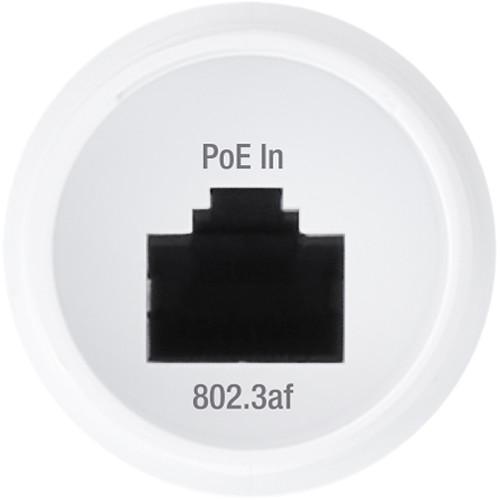

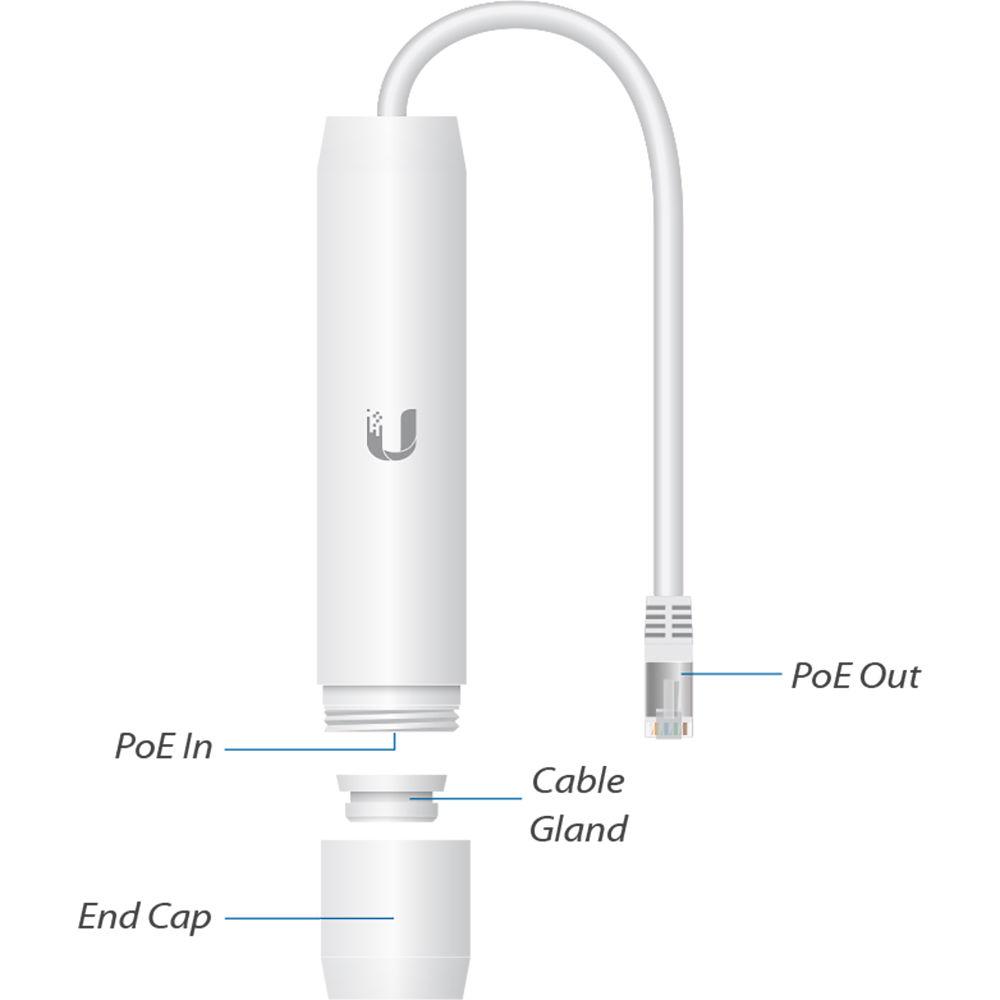

Technical parametersUbiquiti Networks INS-3AF-O-G Specs | Networking Interface | PoE In (802.3af)
1 x Gigabit RJ45 port
PoE Out (24 V Passive)
1 x Gigabit Ethernet cable | | Operating Temperature | -22 to 158°F / -30 to 70°C | | Power Input | 48 V, 802.3af | | Maximum Power Output | 24 V, 0.5 A | | Power Method | 24 V Passive PoE
(Pairs 4, 5+; 7, 8 Return) | | Surge Protection | Ethernet ESD / Surge Protection
±15 kV | | Dimensions | Ø 1.19 x 6.54" / Ø 30.2 x 166 mm
With RJ-45 Cable: Ø 1.19 x 14.43" / Ø 30.2 x 366.6 mm | | Weight | 3.17 oz / 90 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.9 x 2.0 x 1.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
