Product description Designed for point-to-multipoint configurations, the IsoStationAC Shielded airMAX ac Radio with Isolation Antenna from Ubiquiti Networks offers beamwidth increments designed for use in urban environments. The modular design of this radio and interchangeable horn antenna are designed for increased co-location performance without sacrificing gain.
The IsoStationAC comes equipped with a single Gigabit Ethernet networking interface and is pole-mountable for easy installation. Once installed, clients can take advantage of a 14 dBi gain, a 45° beamwidth, a 125 mph wind survivability rating, all backed by the MIPS 74 Kc processor and 64 MB DDR2 RAM to ensure optimal network performance. Software - airOS 8
- airOS 8 is the operating system for Ubiquiti airMAX ac products
Powerful Wireless Features • Access Point PtMP airMAX mixed mode • airMAX ac protocol support • Long-Range Point-to-Point (PtP) link mode • Selectable channel width • PtP: 10/20/30/40/50/60/80 MHz • PtMP: 10/20/30/40 MHz • Automatic channel selection • Transmit Power Control: Automatic/manual • Automatic distance selection (ACK timing) • Strong WPA2 security Usability Enhancements • airMagic channel selection tool • Dynamic configuration changes • Instant input validation • HTML5 technology • Optimization for mobile devices • Detailed device statistics • Comprehensive array of diagnostic tools, including RF diagnostics and airView spectrum analyzer Advanced RF Analytics airMAX ac devices feature a multi-radio architecture to power an RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you an advanced RF analytics engine Real-Time Reporting airOS 8 displays the following RF information: • Persistent RF Error Vector Magnitude (EVM) constellation diagrams • Signal, noise, and interference (SNI) diagrams • Carrier to interference-plus-noise ratio (CINR) histograms Spectral Analysis airView allows you to identify noise signatures and plan your networks to minimize noise interference airView performs the following functions: • Constantly monitors environmental noise • Collects energy data points in real time spectral views • Helps optimize channel selection, network design, and wireless performance airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys Mobile App - UNMS App
- The IsoStation AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device

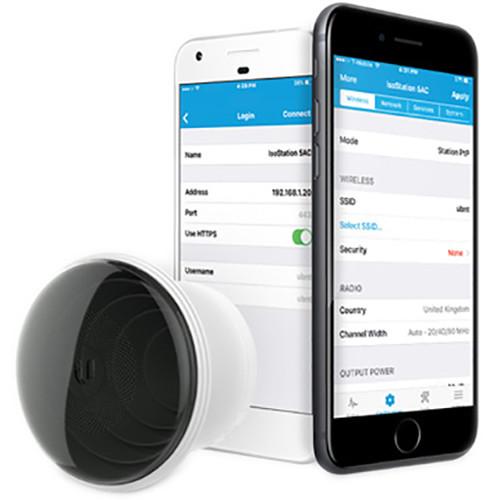

Accessing airOS via Wi-Fi The UNMS App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in Technology - airMAX ac
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class Intelligent QoS Priority assigned to voice/video for seamless streaming Scalability High capacity and scalability Long Distance Capable of high-speed, carrier-class links Enhanced Performance The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high-data rates and dense modulation used in airMAX ac technology Throughput Breakthrough airMAX ac supports high-data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mb/s real TCP/IP throughput - up to triple the throughput of standard airMAX products Hardware - Using airMAX ac technology, the IsoStation 5AC supports up to 450+ Mb/s real TCP/IP throughput. It also offers the following features:
• Interchangeable horn antennas for enhanced beam shaping • Horn feed comes directly from the radio input/output so connectors are eliminated • Single button release for ease of changing antennas • All metal, shielded radio base • Metal strap for quick pole-mounting - Horn Antenna Options

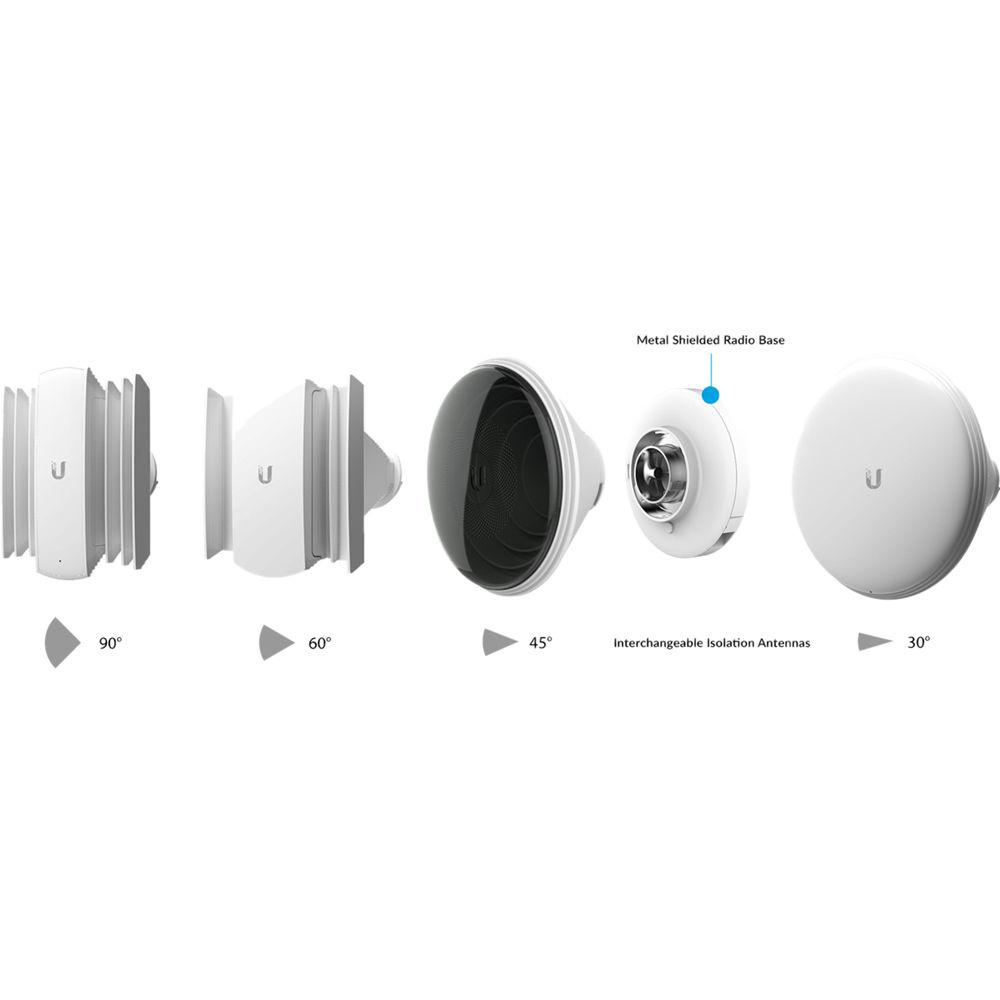

- The IsoStation 5AC comes with a 45° isolation antenna. Take advantage of three optional antennas with precise radiation angles for specific beam shaping, so you can customize the IsoStation 5AC for your specific installation requirements:
• 30° • 60° • 90° All horn antennas are optimized for co-location. The asymmetrical versions (60° and 90°) narrow the elevation pattern to increase gain where users need it UPC: 810354026799 In the Box Ubiquiti Networks IsoStationAC Shielded airMAX ac Radio with Isolation Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks IsoStationAC Shielded airMAX ac Radio with Isolation Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks IsoStation AC Specs Max Power Consumption | 8.5 W | Power Supply | 24 V, 0.5 A Gigabit PoE adapter | Power Method | Passive PoE (pairs 4, 5+; 7, 8 return) | Gain | 14 dBi | Beamwidth | 45° (default horn) | Networking Interface | 1 x 10/100/1000 Ethernet port | Processor | MIPS 74 Kc CPU | Memory | 64 MB DDR2 | LED | 1 x Power LED indicator | Mounting | Pole-Mount | Wind Loading | 8.09 lbf @ 125 mph / 36 N @ 200 km/h | Wind Survivability | 125 mph / 200 km/h | ESD/EMP Protection |
