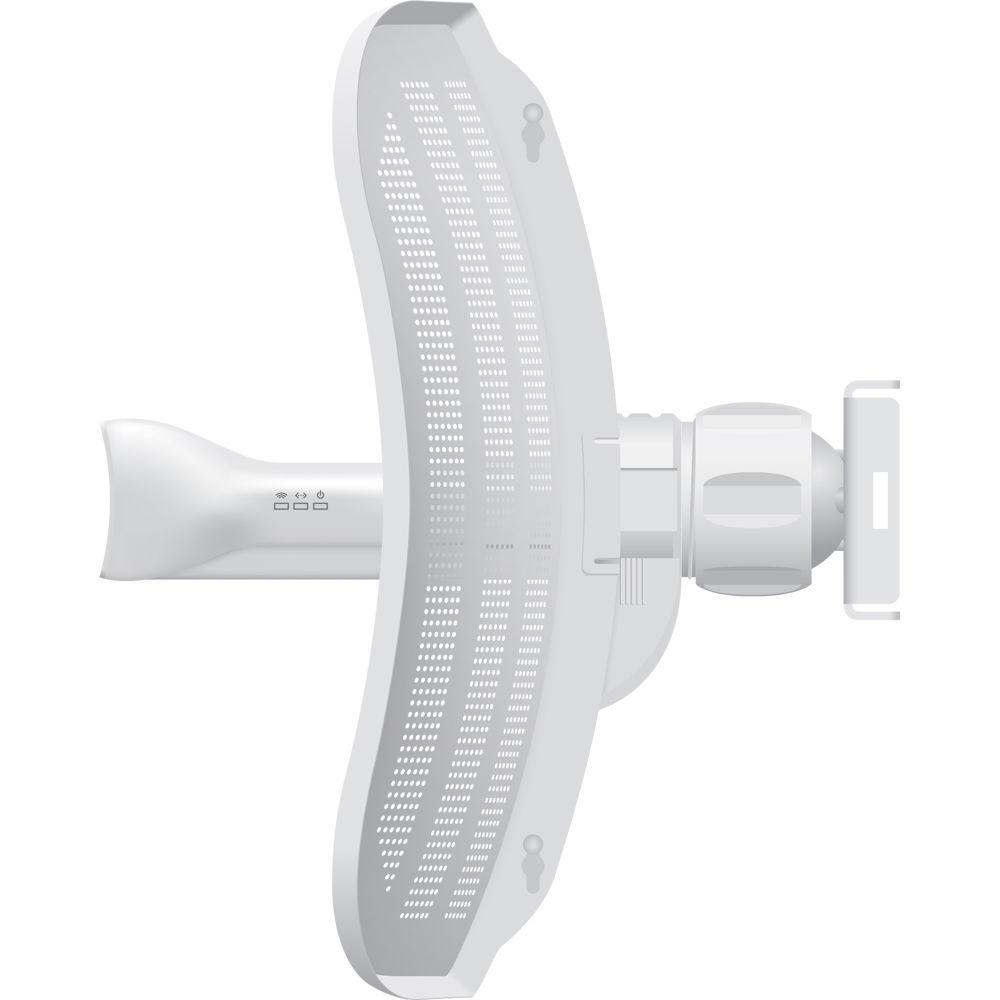

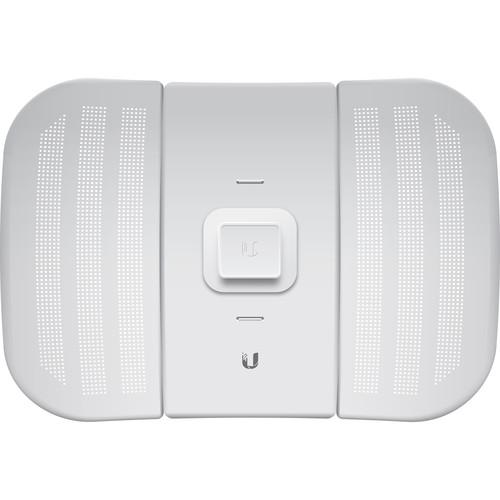

User Manual for Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks LBE-M5-23 LiteBeam M5 with
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
 |
User manual for the Ubiquiti Networks LBE-M5-23 LiteBeam M5 with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

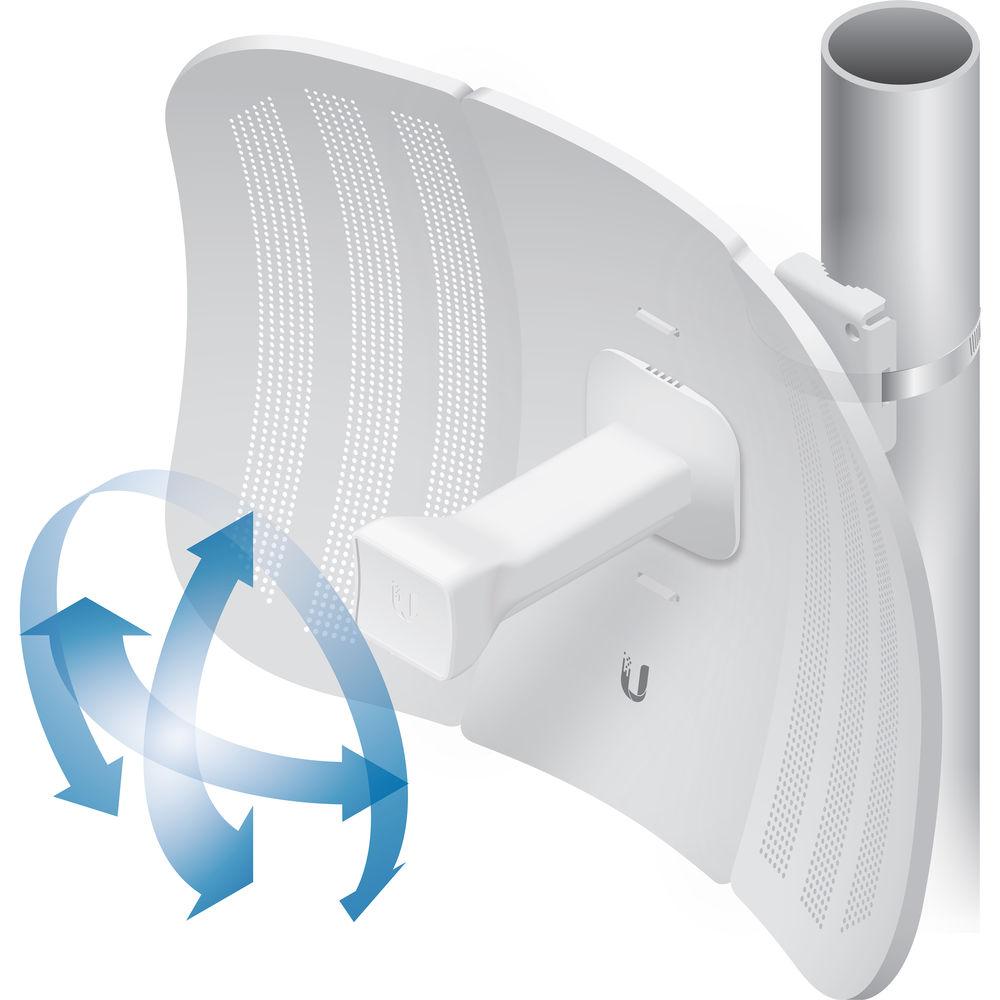

Product description Snap together the LBE-M5-23 LiteBeam M5 from Ubiquiti Networks and take advantage of longer range, higher performance, and 3 axis adjustment flexibility. Operating on the license free 5 GHz frequency you can take advantage of data transfer rates of up to 100+ Mbps at distances of up to 18+ mi (30+ km). Combine the improved distance with Ubiquiti Networks own airMAX technology and you benefit from increased airtime efficiency through the use of Time Division Multiple Access or TDMA technology. Additionally, airMAX technology offers intelligent QoS and improved scalability. - Integrated airMAX Technology
- Unlike standard Wi-Fi protocol, the Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency.
Intelligent QoS
Priority is given to voice/video for seamless access.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, 18+ mi (30+ km) links. - Quick, Snap-and-Lock Assembly
- The mechanical design makes assembling and disassembling the LBE-M5-23 - literally - a snap. No tools are required.
UPC: 810354021831 In the Box Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology Antenna Feed Center Reflector Panel 2 x Side Reflector Panels Feed Receiver Ball Joint Mount Metal Strap 25 V / 0.2 A PoE Adapter Power Cord Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks LBE-M5-23-US Specs | | | Wind Survivability | 125 mph / 200 km/h | | Wind Loading | 39.76 lbf @ 125 mph / 176.86 N @ 200 km/h | | Enclosure Characteristics | Outdoor UV stabilized plastic | | Mounting Kit | Pole mounting kit (included) | | Max Power Consumption | 4 W | | Power Supply | 24 V, 0.2 A PoE adapter (included) | | Power Method | Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return) | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 5 to 95% non-condensing | | Shock and Vibration | ETSI300-019-1.4 | | ETSI Specification | EN 302 326 DN2 | | | | Processor | MIPS 74K | | Memory | 64 MB | | Networking Interface | 1 x 10/100 Ethernet port | | | | Wireless Approvals | FCC, IC, CE | | RoHS Compliance | Yes | | | | Output Power | Output Power: 25 dBm
TX Power Specifications
Data Rate / Avg. TX / Tolerance
802.11a
6 - 24 Mbps 25 dBm ± 2 dB
36 Mbps 24 dBm ± 2 dB
48 Mbps 22 dBm ± 2 dB
54 Mbps 21 dBm ± 2 dB
802.11n/airMAX
MCS0 25 dBm ± 2 dB
MCS1 25 dBm ± 2 dB
MCS2 25 dBm ± 2 dB
MCS3 24 dBm ± 2 dB
MCS4 23 dBm ± 2 dB
MCS5 22 dBm ± 2 dB
MCS6 21 dBm ± 2 dB
MCS7 19 dBm ± 2 dB
RX Power Specifications
Data Rate / Sensitivity / Tolerance
802.11a
6 - 24 Mbps -94 dBm Min. ± 2 dB
36 Mbps -90 dBm ± 2 dB
48 Mbps -86 dBm ± 2 dB
54 Mbps -84 dBm ± 2 dB
802.11n/airMAX
MCS0 -97 dBm ± 2 dB
MCS1 -96 dBm ± 2 dB
MCS2 -93 dBm ± 2 dB
MCS3 -91 dBm ± 2 dB
MCS4 -87 dBm ± 2 dB
MCS5 -84 dBm ± 2 dB
MCS6 -78 dBm ± 2 dB
MCS7 -75 dBm ± 2 dB | | | | Operating Frequency | Worldwide: 5150 - 5875 MHz
USA: 5725 - 5850 MHz | | Output Power | 25 dBm | | Gain | 23 dBi | | Max VSWR | 1.5:1 | | | | Dimensions | 14.25 x 10.51 x 7.24" / 362 x 267 x 184 mm | | Weight | 24.11 oz / 750 g | | | | Package Weight | 2.61 lb | | Box Dimensions (LxWxH) | 11.7 x 5.45 x 4.5" |
