User Manual for Ubiquiti Networks LiteAP ac Access Point Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks LiteAP ac Access Point
- Product category: Wireless Access Points Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Access Points
 |
User manual for the Ubiquiti Networks LiteAP ac Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

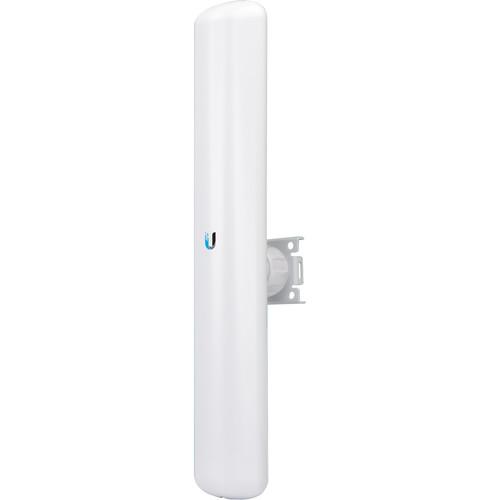

Product description Ideal for the deployment of long-distance outdoor broadband, the LiteAP ac Access Point from Ubiquity is a lightweight, pole-mountable access point that operates in the 5 GHz frequency band. Capable of long-distance wireless links in excess of 19 miles, the 16 dBi LiteAP ac employs Ubiquity's AirMAX TDMA protocol to boost performance and throughput, as well as to reduce latency. Equipped with a 10/100/1000 Mb/s Ethernet port, the 14.8-ounce access point comes with a pole-mounting kit and can be installed by hand. After initial setup over a web browser, the LiteAP ac can be configured using the UNMS (Ubiquity Network Management System) app for iOS and Android. - Integrated AirMAX Technology
- Unlike standard Wi-Fi protocol, the Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency.
- Intelligent QoS (Quality of Service)
- Priority is given to voice/video for seamless access.
- Long-Distance Connectivity
- Capable of high-speed links exceeding 19 miles.
- Full Adjustment Flexibility

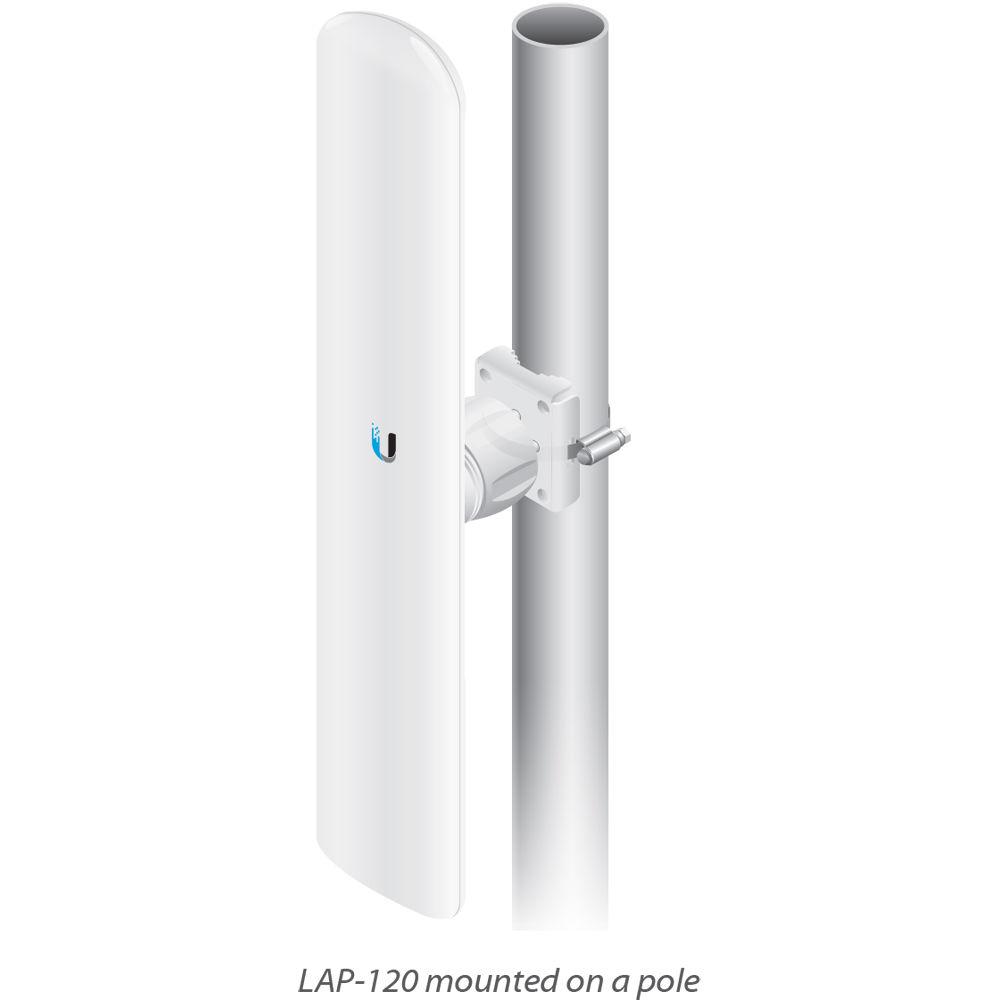

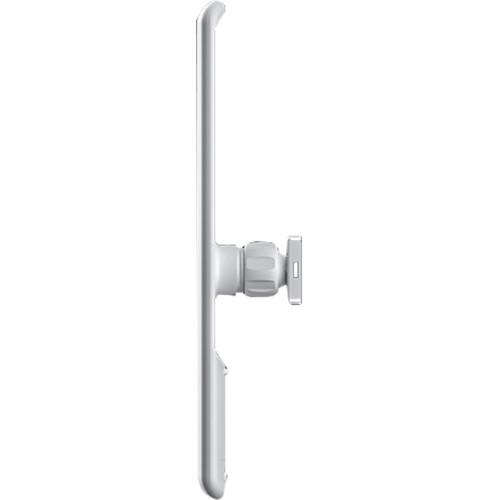

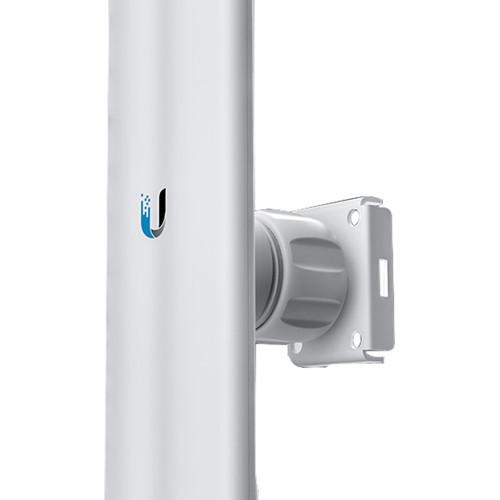

- The LiteAP ac features a unique ball-joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
- No-Tool Assembly

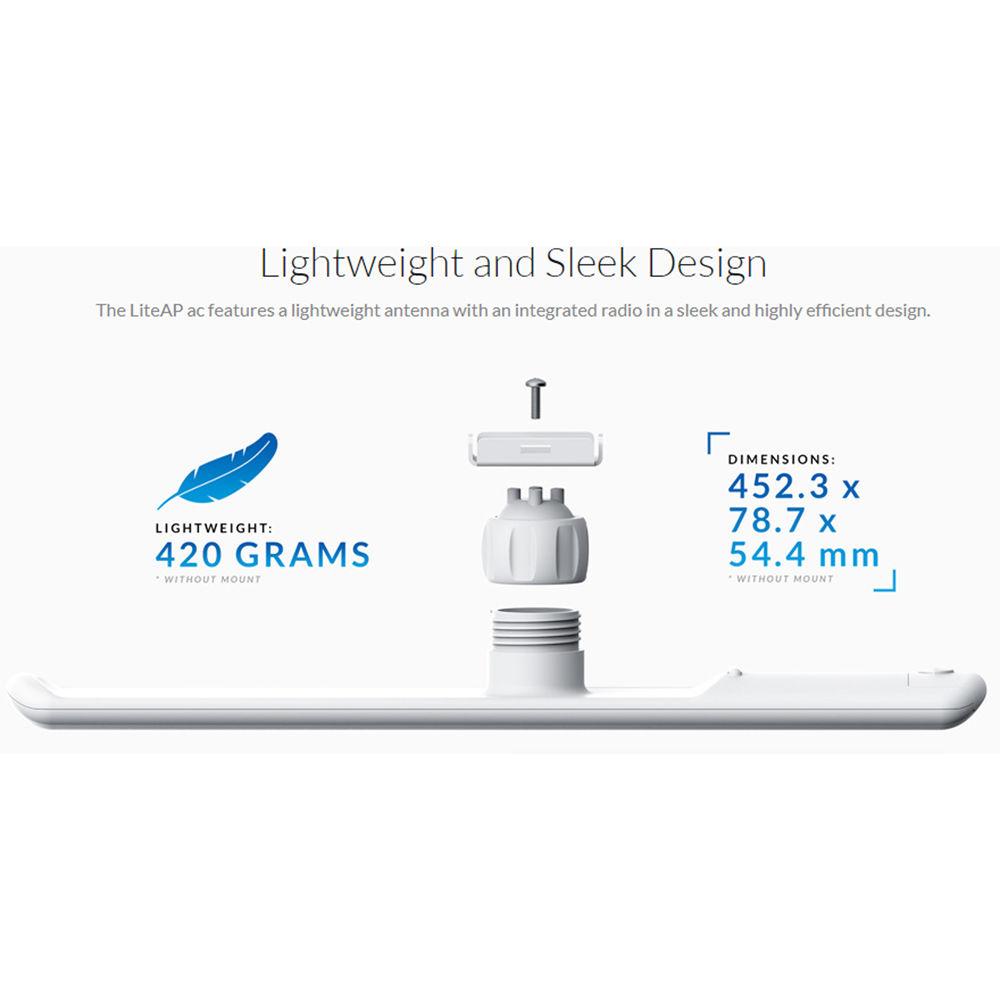

- Connect the ball-joint mount to the LiteAP ac by turning the lock nut clockwise by hand.
- UNMS App
- The LiteAP ac can be accessed using the UNMS (Ubiquiti Network Management System) app once the it has been set up on the same Wi-Fi network as your mobile device. (Original setup is performed through your browser.)
- Accessing airOS via Wi-Fi
- The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to configure and manage the LiteAP ac and offers various configuration options once you're connected or logged in.
UPC: 817882025522 In the Box Ubiquiti Networks LiteAP ac Access Point Pole Mounting Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks LiteAP ac Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks LiteAP Specs | | | Wireless Frequency Bands | 5 GHz | | MU-MIMO Support | 2 x 2 | | Antenna Gain | 16 dBi | | Transmit Power | 25 dBm | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | RAM | 64 MB | | Processor | 533 MHz Atheros MIPS 74Kc | | | | DC Input Power | 24 VDC at 0.5 A | | Power Consumption | <7 W | | | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 95% | | | | Dimensions | 17.81 x 3.1 x 2.14" / 452.3 x 78.7 x 54.4 mm | | Weight | 14.8 oz / 420 g | | | | Package Weight | 2.16 lb | | Box Dimensions (LxWxH) | 18.9 x 4.0 x 3.2" |
