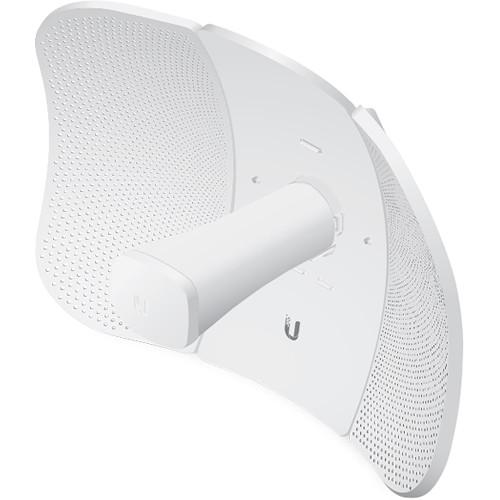

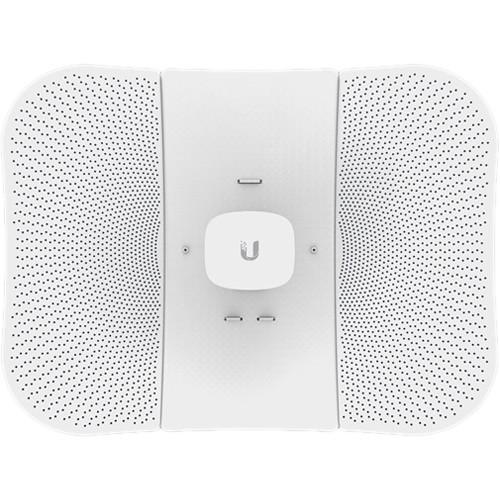

Product description With tighter beamwidth, the LiteBeam AC Gen2 Airmax ac CPE with Dedicated Management Radio from Ubiquiti Networks offers a more reliable long-distance point-to-point connection. This LiteBeam radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals. Setup is simple thanks to fully adjustable hardware allowing for adjustments to be made along both axes as well as a built-in bubble level to ensure the radio is mounted properly. - Improved Noise Immunity

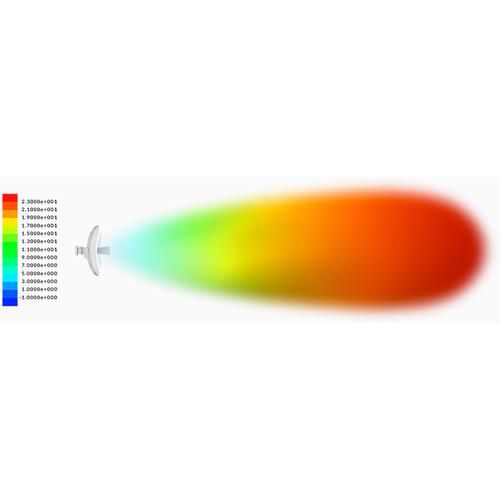

- The LiteBeam 5AC Gen2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

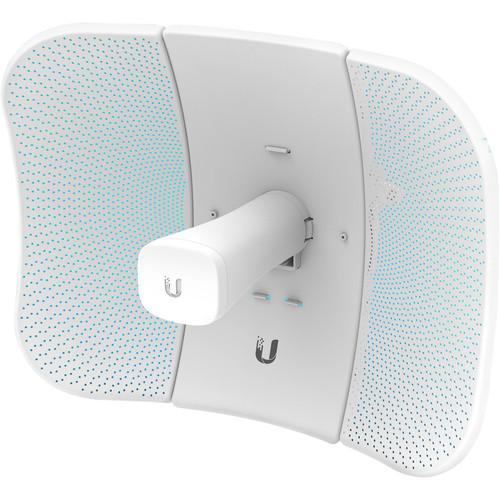

- Integrated Design
- Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen2 is versatile and cost-effective to deploy.
- Software
- Powerful Wireless Features

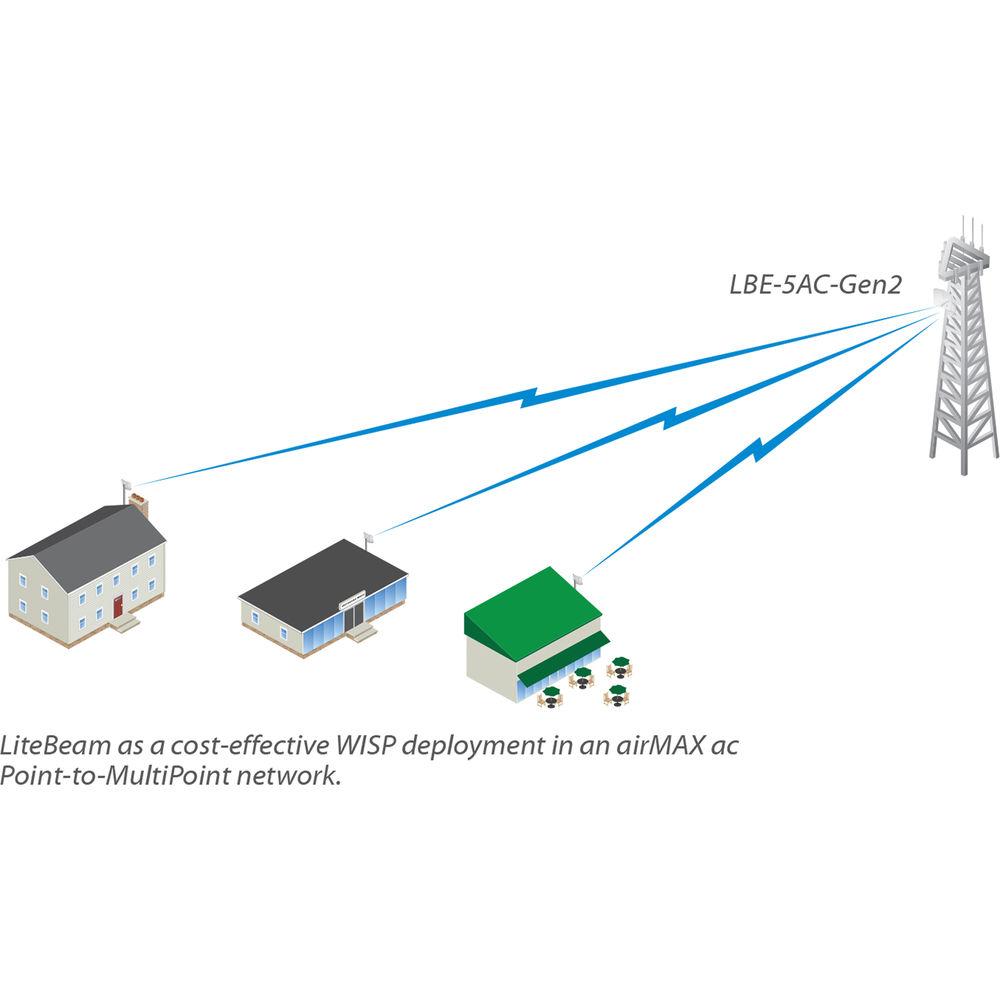

- Access Point PtMP airMAX Mixed Mode
- airMAX ac Protocol Support

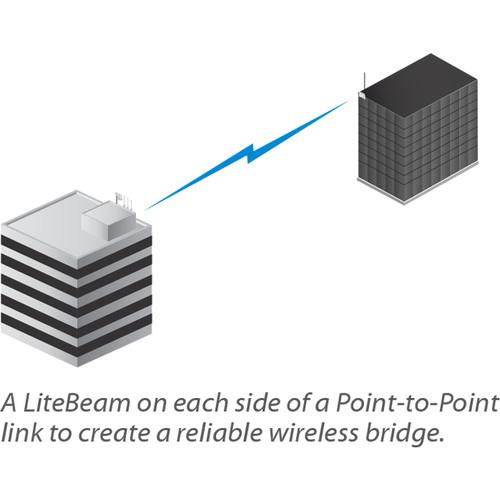

- Long-Range Point-to-Point (PtP) Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- Transmit Power Control: Automatic/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security
Usability Enhancements
- airMagic Channel Selection Tool
- Redesigned User Interface
- Dynamic Configuration Changes
- Instant Input Validation
- HTML5 Technology
- Optimization for Mobile Devices
- Detailed Device Statistics

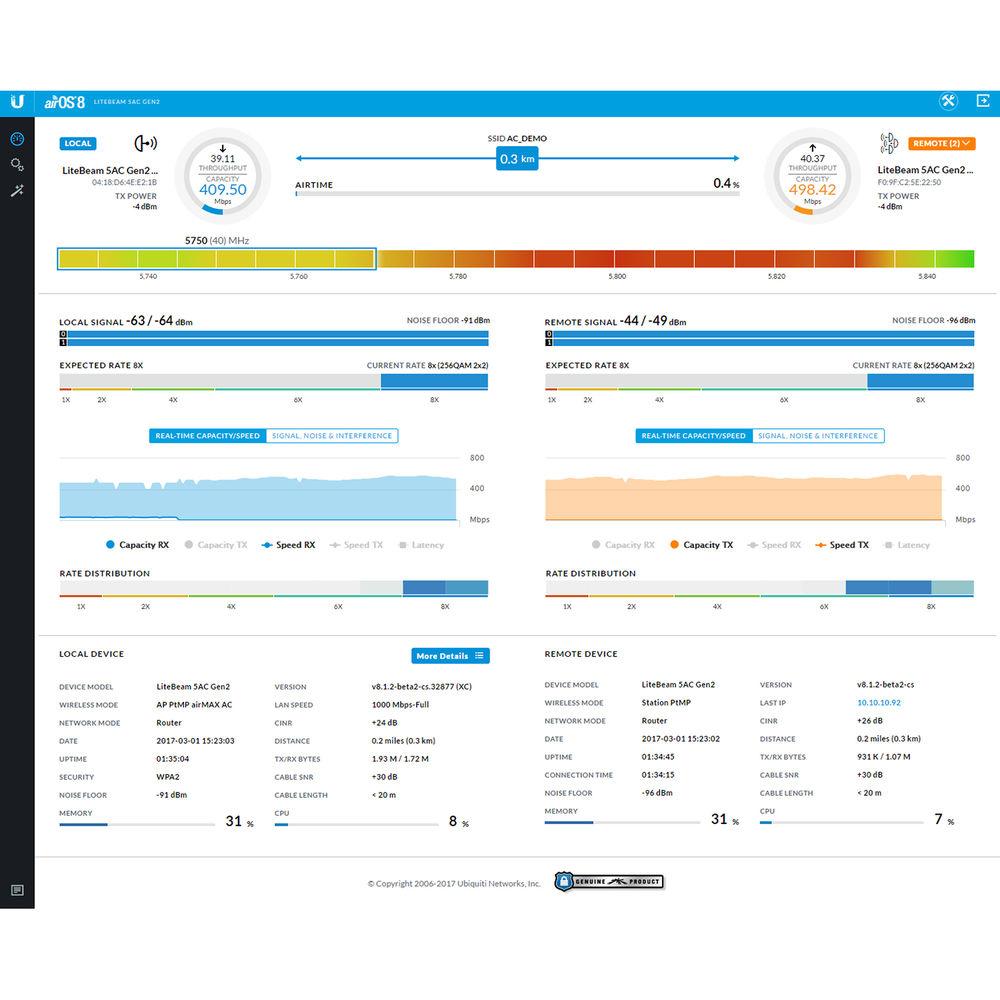

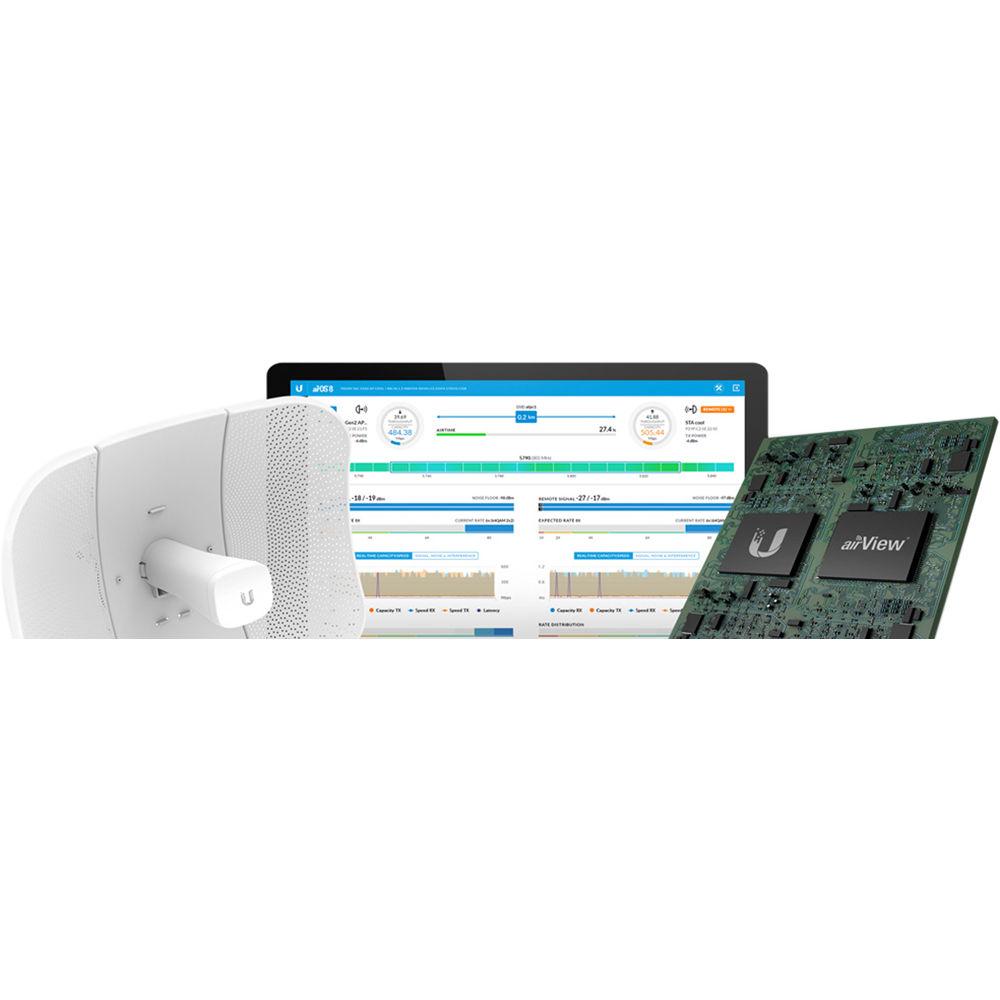

- Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer
- UMobile App
- Accessing airOS via Wi-Fi

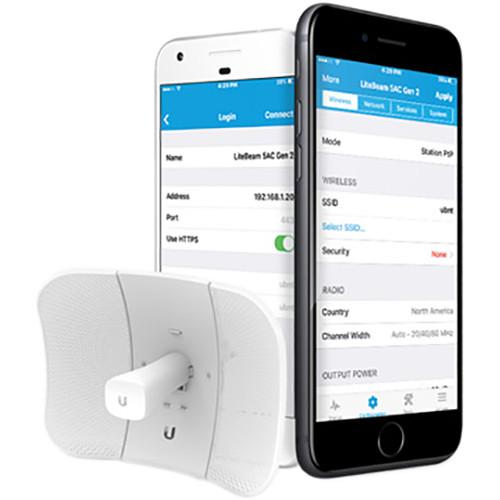

The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage the LiteBeam 5AC Gen2. It offers the following options once you're connected or logged in to the device:
- Check link status information or the basic configuration settings of the LiteBeam 5AC Gen2
- Change or update the existing configuration of the LiteBeam 5AC Gen2
- Access tools for initial installation and configuration of the LiteBeam 5AC Gen2
- Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the LiteBeam 5AC Gen2
- Hardware
- Full Adjustment Flexibility

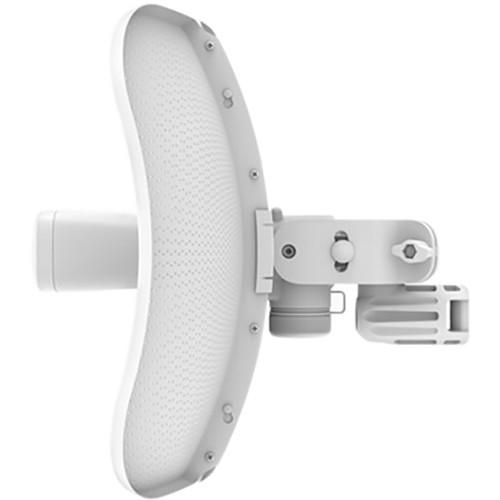

The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
Improved Mounting and Surge Protection
Featuring enhanced protection against power surges, the LiteBeam 5AC Gen2 offers a more robust mount with separate azimuth and elevation adjustments. UPC: 810354026294 In the Box Ubiquiti Networks LiteBeam AC Gen2 airMAX ac CPE with Dedicated Management Radio Antenna Feed Center Reflector Panel 2 x Side Reflector Panels Feed Receiver Azimuth Mount Elevation Mount Metal Strap Knob Kit Gigabit PoE (24 V, 0.3 A) with Mounting Bracket Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks LiteBeam AC Gen2 airMAX ac CPE with Dedicated Management Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AC Gen2 Specs | Power Supply | 24 V, 0.3 A Gigabit PoE adapter (included) | | Power Consumption | Maximum Power Consumption
7 W | | Power Method | Passive PoE (pairs 4, 5+; 7, 8 return) | | Voltage | 24 V ± 10% | | Operating Frequency | Worldwide
5150 - 5875 MHz
USA: U-NII-1
5150 - 5250 MHz
USA: U-NII-2A
5250 - 5350 MHz
USA: U-NII-2C
5470 - 5725 MHz
USA: U-NII-3
5725 - 5850 MHz | | Gain | 23 dBi | | Networking Interface | 1 x 10/100/1000 Ethernet port | | Processor | MIPS 74Kc | | Memory | 64 MB DDR2 | | LEDs | Power, Ethernet | | Channel Sizes | PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz | | Enclosure | Reflector (SGCC 0.6T)
Plastic: PC | | Mounting | Pole-mounting kit (included) | | Wind Loading | 61.8 lbf @ 125 mph (275 N @ 200 km/h) | | Wind Survivability | 125 mph (200 km/h) | | ESD/EMP Protection | ± 24 kV Contact / Air | | Temperature & Humidity | Operating Temperature
-40 to 158°F (-40 to 70°C)
Operating Humidity
5 to 95% Non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 14.09 x 10.71 x 10.73" (358 x 271.95 x 272.5 mm) | | Weight | Without Mount
1.76 lb (800 g)
With Mount
2.16 lb (980 g) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 12.2 x 6.7 x 4.9" |
