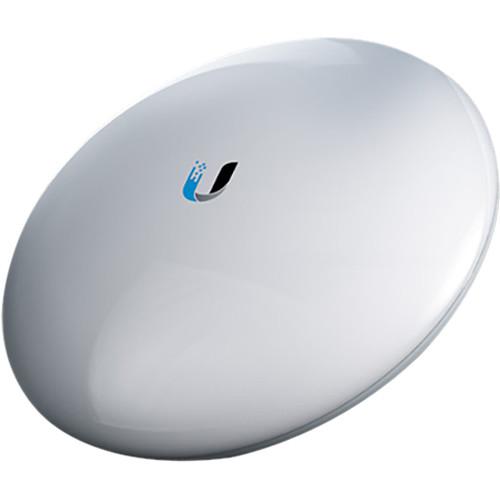

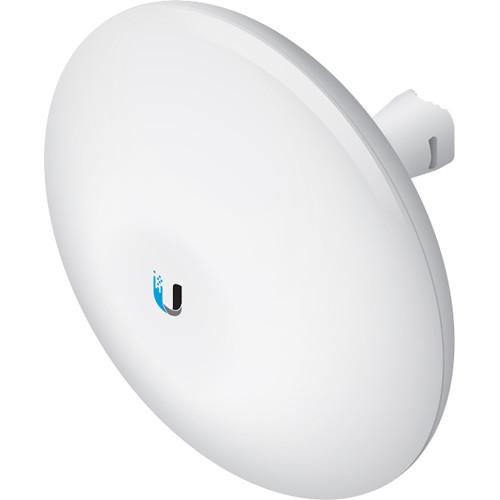

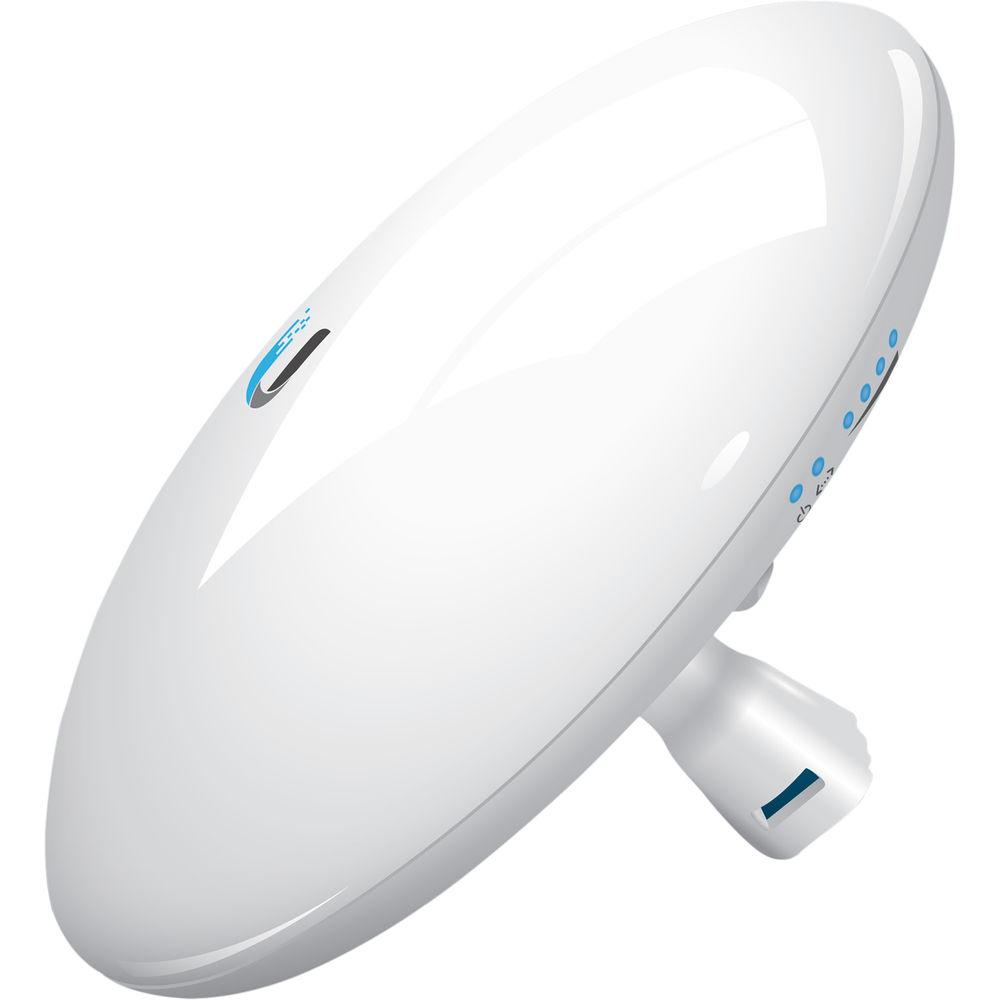

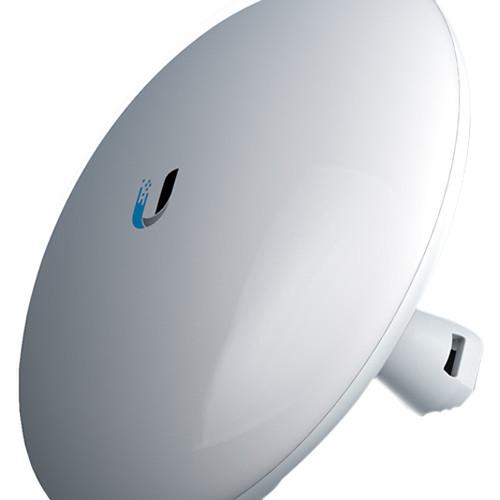

Product description Designed for use in point-to-point or point-to-multi-point long-range network configurations, the NanoBeam ac airMAX ac CPE with Dedicated Management Radio from Ubiquiti Networks features a gain of 13 dBi and a power output of 27 dBm. Installation is simple, thanks to the ,Gigabit networking interface and the included pole mount. Once installed, the NanoBeam ac can be managed via the Wi-Fi connection while the four signal-strength LED indicators help alert network admins to the status of the network.
The Ubiquiti Networks NanoBeam ac is compatible with Ubiquiti's own airOS 8 software featuring a plethora of wireless features including selectable channel width, automatic channel selection, transmit power control, and more. Usability enhancements include dynamic configuration changes, instant input validation, detailed device statistics, and more. If that's not enough, network administrators can also take advantage of advanced RF analytics, real-time reporting, and spectral analysis all available through airOS8. - Improved Noise Immunity
- The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
- Integrated Design
- The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of a small footprint. Providing high-performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
- airOS 8
- airOS 8 is the operating system for Ubiquiti airMAX ac products.
Powerful Wireless Features • Access Point PtMP airMAX Mixed Mode • airMAX ac Protocol Support • Long-Range Point-to-Point (PtP) Link Mode • Selectable Channel Width • PtP: 10/20/40 MHz • PtMP: 10/20/40 MHz • Automatic channel selection • Transmit Power Control: Automatic/Manual • Automatic distance selection (ACK Timing) • Strong WPA2 security Usability Enhancements • airMagic channel selection tool • Dynamic configuration changes • Instant input validation • HTML5 technology • Optimization for mobile devices • Detailed device statistics • Comprehensive array of diagnostic tools, including RF diagnostics and airView spectrum analyzer Advanced RF Analytics airMAX ac devices feature a multi-radio architecture to power an RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 2.4 GHz spectrum and every received symbol to provide you with advanced RF analytics. Real-Time Reporting airOS 8 displays the following RF information: • Persistent RF Error Vector Magnitude (EVM) constellation diagrams • Signal, noise, and interference (SNI) diagrams • Carrier to Interference-Plus-Noise Ratio (CINR) histograms Spectral Analysis airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions: • Constantly monitors environmental noise • Collects energy data points in real-time spectral views • Helps optimize channel selection, network design, and wireless performance airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys. - UNMS App
- The NanoBeam 2AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Accessing airOS via Wi-Fi The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure, and manage the NanoBeam 2AC and offers various configuration options once you're connected or logged in. - airMAX ac Technology
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS Priority assigned to voice/video for seamless streaming Scalability High capacity and scalability Long Distance Capable of high-speed, carrier-class links Enhanced Performance airMAX ac technology boosts the advantages of the proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. Throughput Breakthrough airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With the use of proprietary airMAX ac technology, 2.4 GHz airMAX ac products support up to 330+ Mb/s real TCP/IP throughput - more than double the throughput of standard airMAX products. - Hardware Overview
- The NanoBeam 2AC features airMAX ac technology and a dedicated Wi-Fi radio for management.

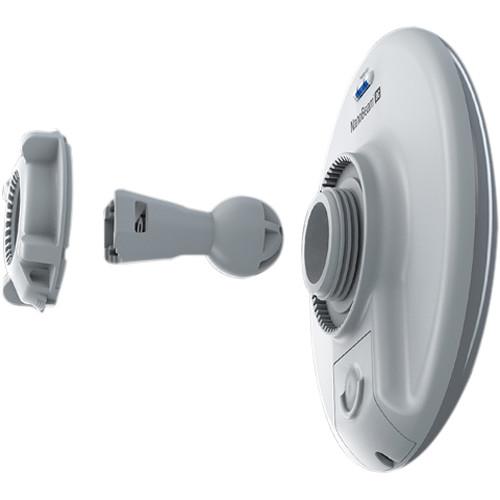

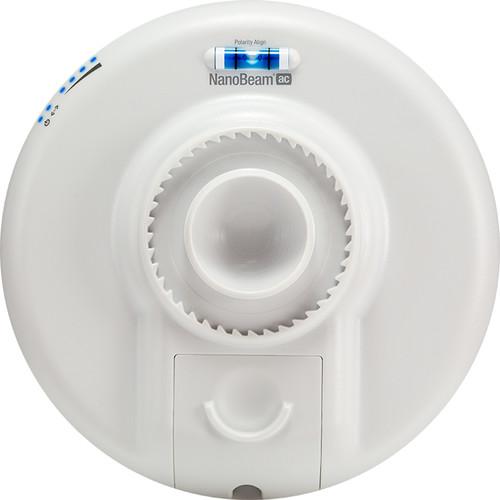

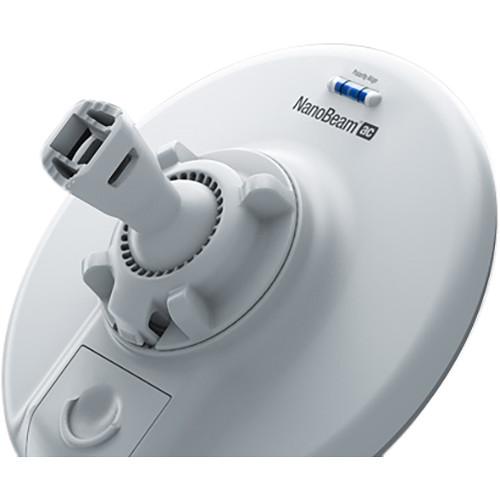

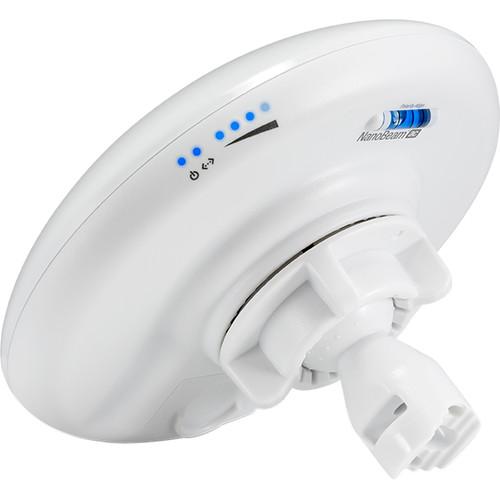

Ease of Installation • Quick Installation - No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. • Convenient Alignment - The NanoBeam 2AC pivots on its ball joint mount for easy aiming. Innovative Mechanical Design • Efficient Footprint - The radio and antenna are combined into a single body that takes up minimal space. The form factor features the highest gain for its size. • Aesthetics - The NanoBeam 2AC is small enough to blend discreetly into the background at a customer's location. • Versatile Mounting - The NanoBeam 2AC can be mounted in almost any position needed for line of sight. UPC: 810354023415 In the Box Ubiquiti Networks NanoBeam ac airMAX ac CPE with Dedicated Management Radio Ball Mount Joint Lock Ring Metal Strap Gigabit PoE with Mounting Bracket Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NanoBeam ac airMAX ac CPE with Dedicated Management Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks Nanobeam AC Specs Power Supply | 24 V, 0.5 A Gigabit PoE adapter (included) | Power Consumption | 7.5 W (max.) | Gain | 13 dBi | Networking Interface | 1 x Gigabit Ethernet port (Wi-Fi for management) | Processor | Atheros MIPS 74Kc, 533 MHz | Memory | 64 MB DDR2 | LEDs | 1 x Power 1 x Ethernet 4 x Signal strength | Signal Strength LEDs | Software adjustable to correspond to custom RSSI levels | Max VSWR | 1.5:1 | Channel Sizes | PTP Mode 10/20/40 MHz PtMP Mode 10/20/40 MHz | Polarization | Dual linear | Enclosure | Outdoor UV stabilized plastic | Mounting | Pole-mount (kit included), wall-mount | Wind Loading | 10.2 lbf @ 125 mph / 45.4 N @ 200 km/h | Wind Survivability | 125 mph / 200 km/h | ESD/EMP Protection | Air:
