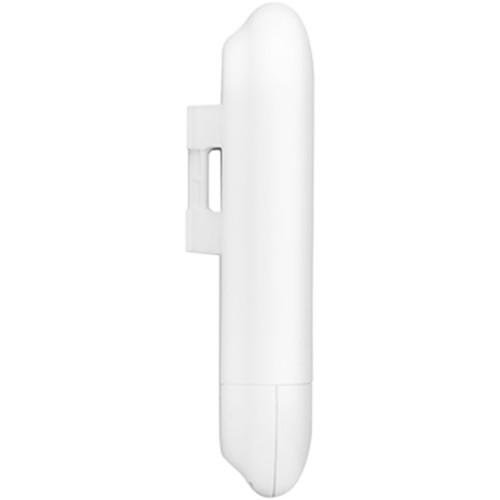

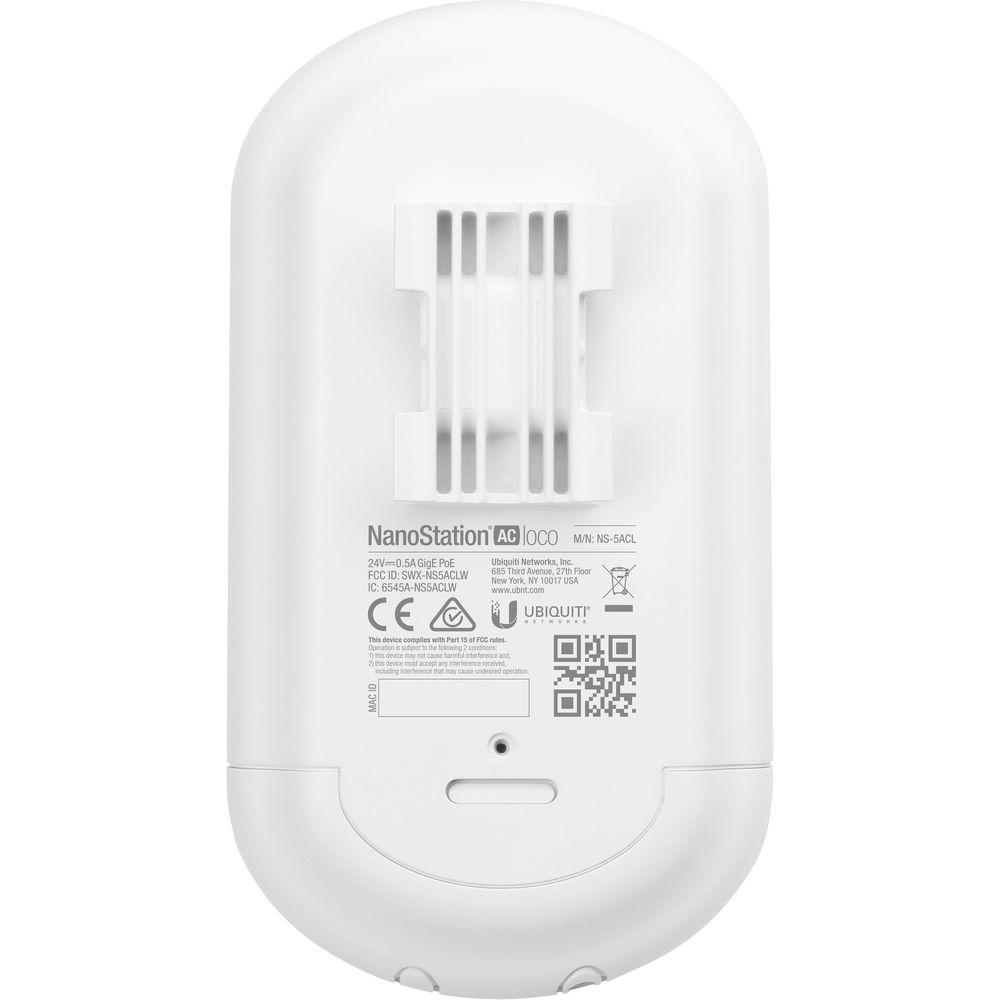

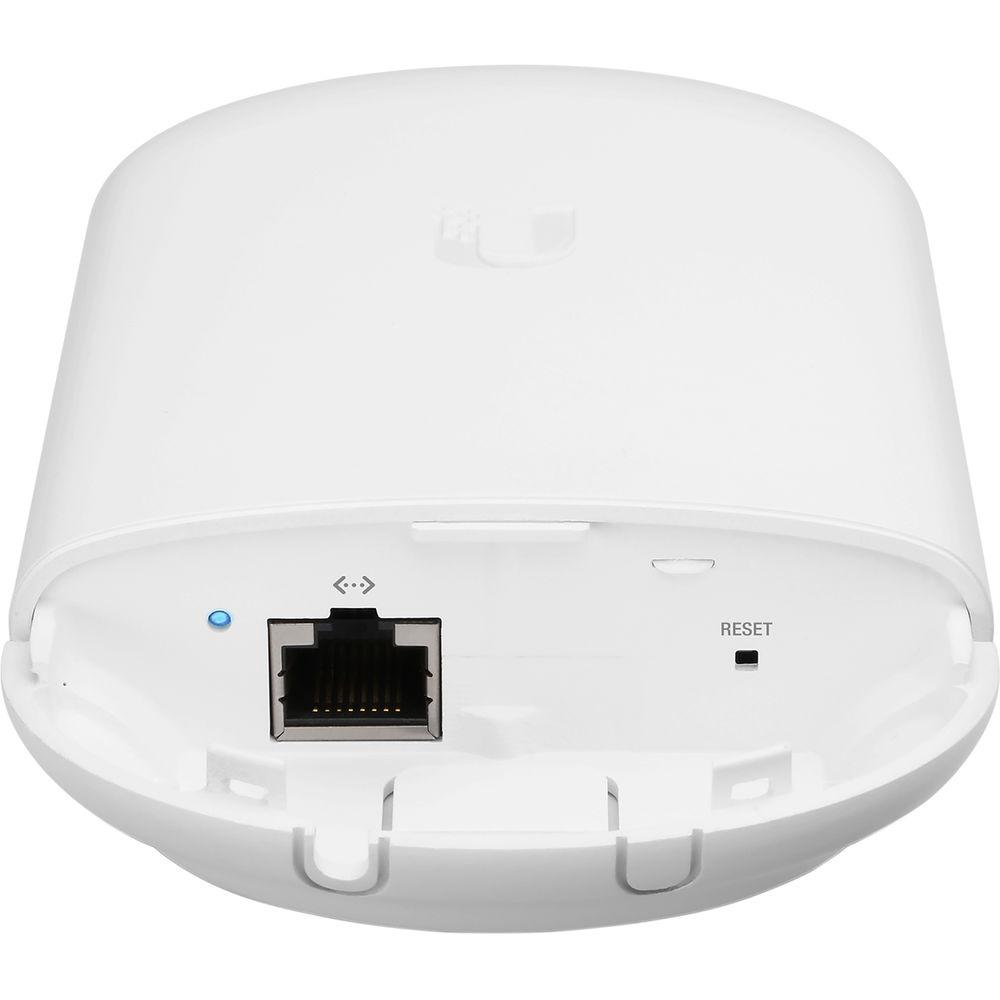

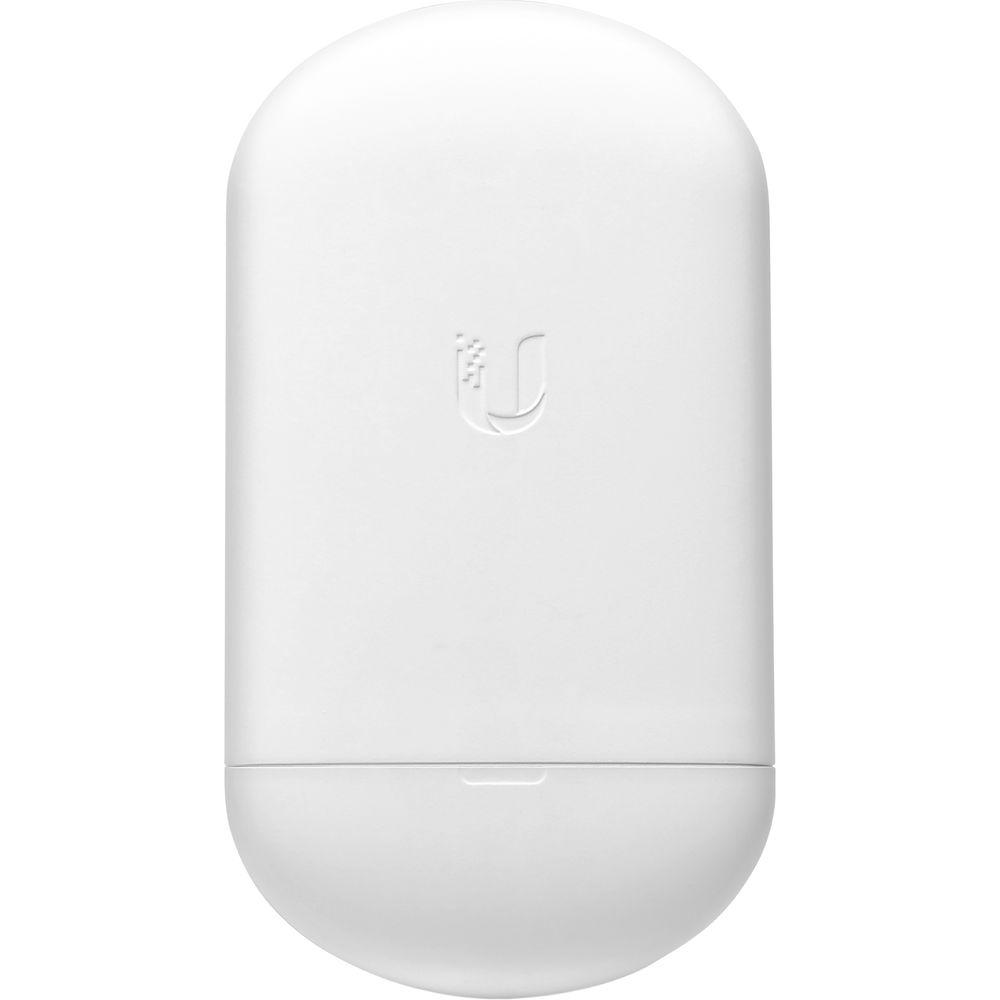

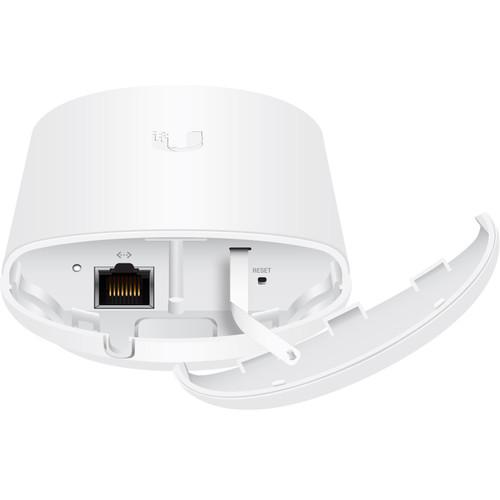

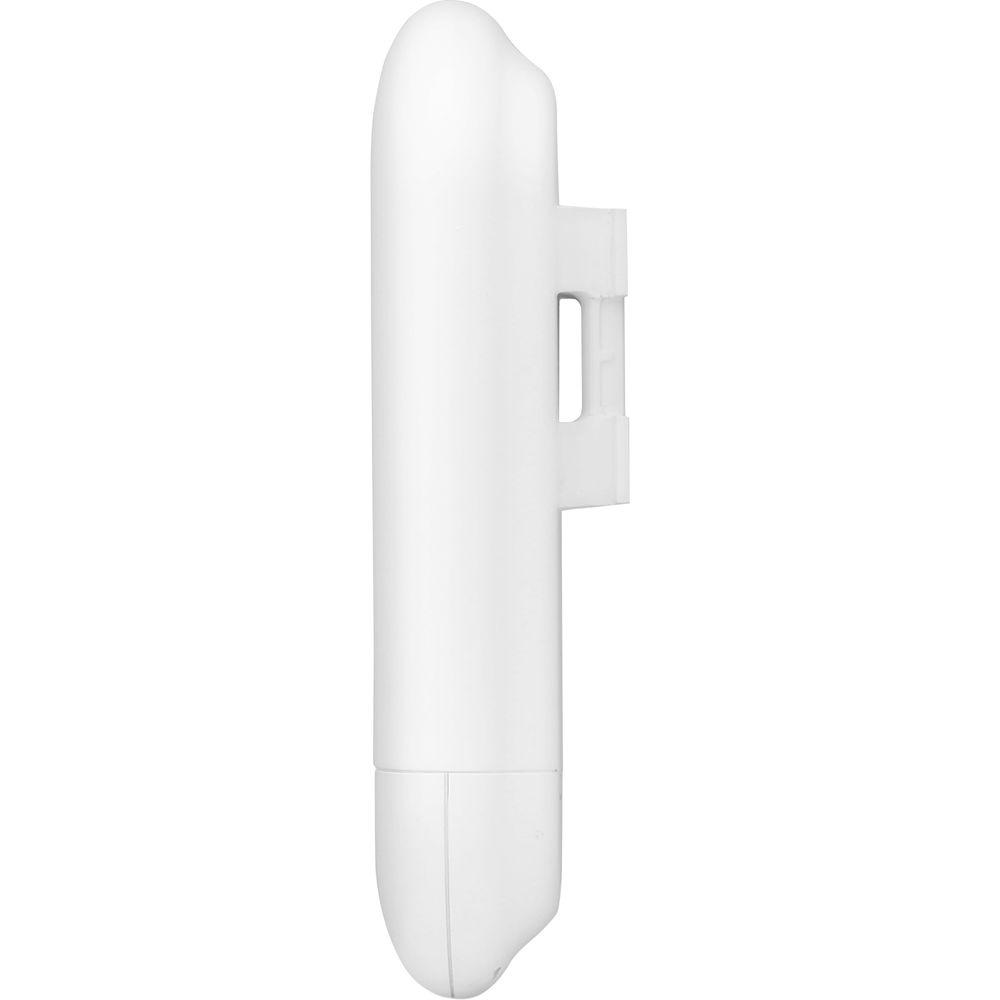

User Manual for Ubiquiti Networks NanoStation AC loco 5 GHz airMAX ac Radio Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks NanoStation AC loco 5
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
 |
User manual for the Ubiquiti Networks NanoStation AC loco 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Designed for deployment in a variety of environments in which point to multi-point communication is needed, the NanoStation AC loco 5 GHz airMAX ac Radio from Ubiquiti Networks offers enhanced connectivity options. This radio comes equipped with a Gigabit Ethernet networking interface and supports 10/20/30/40/50/60/80 MHz channel bandwidths. Installation is simple, thanks to the included pole-mount kit, while the outdoor UV stabilized plastic enclosure allows the airMAX ac radio to be installed in nearly any environment. Software - airOS 8
- airOS 8 is the operating system for Ubiquiti airMAX ac products
Powerful Wireless Features
• Access Point PtMP airMAX mixed mode
• airMAX ac protocol support
• Long-Range Point-to-Point (PtP) link mode
• Selectable channel width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic channel selection
• Transmit Power Control: Automatic/manual
• Automatic distance selection (ACK timing)
• Strong WPA2 security
Usability Enhancements
• airMagic channel selection tool
• Dynamic configuration changes
• Instant input validation
• HTML5 technology
• Optimization for mobile devices
• Detailed device statistics
• Comprehensive array of diagnostic tools, including RF diagnostics and airView spectrum analyzer
Advanced RF Analytics
airMAX ac devices feature a multi-radio architecture to power an RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you an advanced RF analytics engine.
Real-Time Reporting
airOS 8 displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, noise, and interference (SNI) diagrams
• Carrier to interference-plus-noise ratio (CINR) histograms
Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimize noise interference.
airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys. Mobile App - UMobile App
- The NanoStation AC loco integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Accessing airOS via Wi-Fi
The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in. Technology - airMAX ac
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS
Priority assigned to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links.
Enhanced Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mb/s real TCP/IP throughput - up to triple the throughput of standard airMAX products. Hardware - Versatile Mounting
- The NanoStation AC loco 5 GHz airMAX ac Radio is suitable for indoor and outdoor installations.
- Improved Surge Protection
- The NanoStation AC loco utilizes the latest ESD protection to help protect against power surges.
- Efficient Footprint
- The radio and antenna are combined into a single body that takes up minimal space.
- Quick Installation
- No fasteners are required for pole-mounting installation.
UPC: 817882024105 In the Box Ubiquiti Networks NanoStation AC loco 5 GHz airMAX ac Radio (5-Pack) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NanoStation AC loco 5 GHz airMAX ac Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks NanoStation 5AC Loco Specs | Max Power Consumption | 8.5 W | | Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) | | Gain | 13 dBi | | Networking Interface | 10/100/1000 Mb/s Ethernet port | | Channel Bandwidth | 10/20/30/40/50/60/80 MHz | | Processor | Atheros MIPS 74 Kc, 560 MHz | | Memory | 64 MB DDR2 | | Cross-Pol Isolation | 20 dB Minimum | | Max VSWR | 1.8:1 | | Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) | | Polarization | Dual linear | | Enclosure | Outdoor UV stabilized plastic | | LEDs | 1 x Power LED indicator | | Mounting | Pole-mount (kit included) | | Temperature & Humidity | Operating Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
5 to 95% non-condensing | | RoHS Compliance | Yes | | ESD/EMP Protection |
