User Manual for Ubiquiti Networks NanoStation5 Broadband Outdoor Wireless CPE Router Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks NanoStation5 Broadband Outdoor Wireless
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
|
User manual for the Ubiquiti Networks NanoStation5 Broadband Outdoor Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

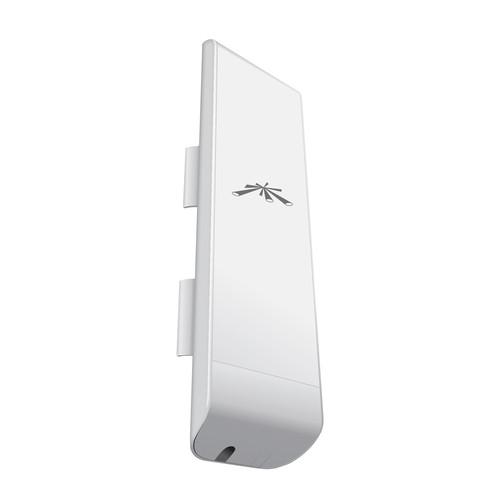

Product description The NanoStation5 Broadband Outdoor Wireless CPE Router from Ubiquiti Networksfeatures a broadband wireless CPE technology, hi-gain two antenna system, advanced radio architecture, and firmware technology allowing throughput, stability, and capacity performance. The NanoStation5 is a reliable solution for high performance and can work in extreme temperature and weather conditions. NanoStation5 utilizes Adaptive Antenna Polarity technology, which can statically or dynamically switch antenna polarities to optimize your connections. The AirOS is an intuitive, versatile Ubiquiti -firmware technology that is included with NanoStation5. It is designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables high-performance outdoor multi-point networking. UPC: 810354020247 In the Box Ubiquiti Networks NanoStation5 Broadband Outdoor Wireless CPE Router 2 x Plastic Straps 1 x PoE Injector 1 x AC Adapter Pole Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NanoStation5 Broadband Outdoor Wireless CPE Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks NSM5 Specs | | | Processor | Atheros AR2313 SOC, MIPS 4KC, 180 MHz | | Memory | 16 MB SDRAM, 4 MB flash | | Networking Interface | 10/100 BASE-TX (Cat5, RJ-45) Ethernet interface | | Range | Outdoor (BaseStation Antenna Dependent): Over 32,808' (10,000 m)
Using External Antenna (Optional): 32,8083' (10,0000 m) | | Throughput | 25 Mb/s+ TCP/IP | | | | TX Specification | Radio Operating Frequency: 5.475 to 5.825 GHz
802.11a OFDM
Data Rate: Average Power: Tolerance
6 Mb/s: 24 dBm: +/-1.5 dB
9 Mb/s: 24 dBm: +/-1.5 dB
12 Mb/s: 24 dBm: +/-1.5 dB
18 Mb/s: 24 dBm: +/-1.5 dB
24 Mb/s: 24 dBm: +/-1.5 dB
36 Mb/s: 22 dBm: +/-1.5 dB
48 Mb/s: 21 dBm: +/-1.5 dB
54 Mb/s: 19 dBm: +/-1.5 dB | | RX Specification | Radio Operating Frequency: 5.475 to 5.825 GHz
802.11a OFDM
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: +/-1.5 dB
9 Mb/s: -93 dBm: +/-1.5 dB
12 Mb/s: -91 dBm: +/-1.5 dB
18 Mb/s: -90 dBm: +/-1.5 dB
24 Mb/s: -86 dBm: +/-1.5 dB
36 Mb/s: -83 dBm: +/-1.5 dB
48 Mb/s: -77 dBm: +/-1.5 dB
54 Mb/s: -74 dBm: +/-1.5 dB | | | | Channel Width | 5/10/20/40 MHz | | | | Gain | Integrated 2 x 14 dBi dual polarity antennas | | Polarization | Multi-polarized | | Polarity | Adaptive vertical/horizontal | | Polarization Selection | Software controlled | | 3 dB Beamwidth Azimuth | 55° | | External Antennas | RP-SMA connector (optional) | | VSWR | 1.4:1.0 | | Front to Back Ratio | 30 dB+ | | 3 dB Beamwidth Elevation | 18° | | | | Power Supply | 12 V, 1 A (12 W) Power supply and injector included. | | Power Method | Passive Power over Ethernet (pairs 4, 5+, 7, 8 return) | | | | Operating Temperature | -4 to +158°F (-20 to +70°C) | | Operating Humidity | 5 to 95% (condensing) | | | | Compliance | RoHS | | Approvals | FCC Part 15.247, IC RS210, CE | | | | Shock and Vibration | ETSI300-019-1.4 | | Mounting | Pole mounting kit (included) | | LEDs | External status LEDs | | | | Enclosure Material | Outdoor UV stabalized plastic | | Dimensions (L x W x H) | 10.3 x 3.1 x 1.1" (26.4 x 8.0 x 3.0 cm) | | Weight | 14.1 oz (400.0 g) | | | | Package Weight | 1.39 lb | | Box Dimensions (LxWxH) | 11.7 x 3.75 x 3.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
inspiron 3470...
Film Scanner 8 mm + super 8 REELS MOVIE MAKER PRO...
HP 3630 deskjet printer/scanner...
Dell KB216 ITALIAN Slim Office Multimedia Keyboard BLACK.
...
Mistral MC2300R 25L Detachable Air Coller with Steriliser.
Thank you in advance for your assistance.
Sincerely,
Jonathan Chua...
|
|
