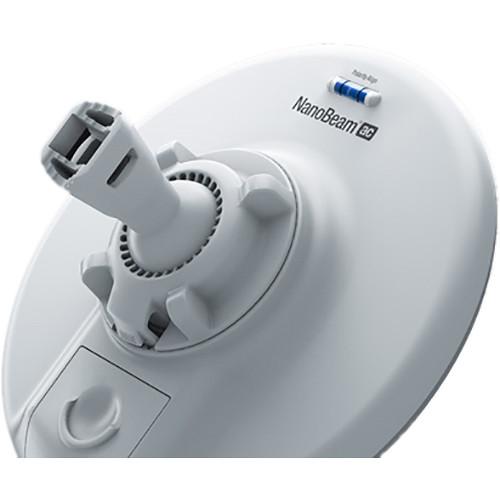

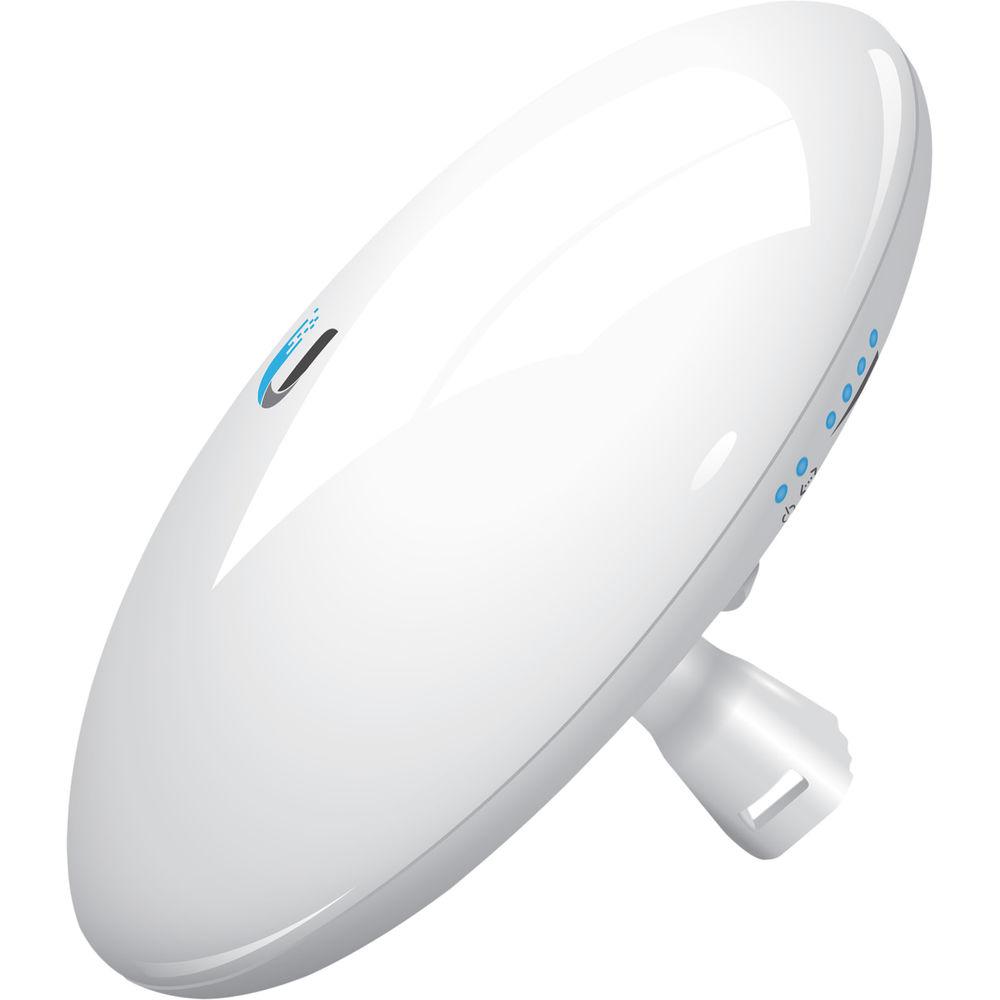

User Manual for Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management Radio Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
 |
User manual for the Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description With tighter beamwidth, the NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management Radio from Ubiquiti Networks offers a more reliable long-distance point-to-point connection. Boasting a maximum throughput up to 450 Mb/s, this NanoBeam radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals while offering up to 19 dBi gain. Setup is simple, as the NanoBeam can be mounted to a pole (kit included) or to the wall and aligned using its own 3-axis mount to ensure it is level. - Improved Noise Immunity
- The NanoBeam 5AC Gen2 directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 5AC Gen2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
- Integrated Design
- The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 5AC Gen2 gets maximum gain out of a small footprint.
- airOS 8 Software
- Powerful Wireless Features
• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security
Usability Enhancements
• airMagic Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer
Advanced RF Analytics
airMAX ac devices feature a multi-radio architecture to power an RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with advanced RF analytics.
Real-Time Reporting
airOS 8 displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, Noise, and Interference (SNI) diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms
Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level.
airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys. - UMobile App
- The NanoBeam 5AC Gen2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Accessing airOS via Wi-Fi
The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage the NanoBeam 5AC Gen2 and offers various configuration options once you're connected or logged in. - airMAX ac Technology
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS - Priority assigned to voice/video for seamless streaming.
Scalability - High capacity and scalability.
Long Distance - Capable of high-speed, carrier-class links.
Enhanced Performance
airMAX ac technology boosts the advantages of the proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Improved Throughput
airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products support up to 450+ Mbps real TCP/IP throughput - up to triple the throughput of standard airMAX products. - Hardware
- Ease of Installation

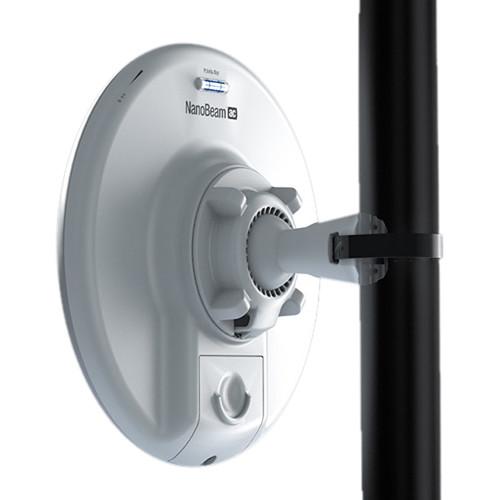

Quick Installation - No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.

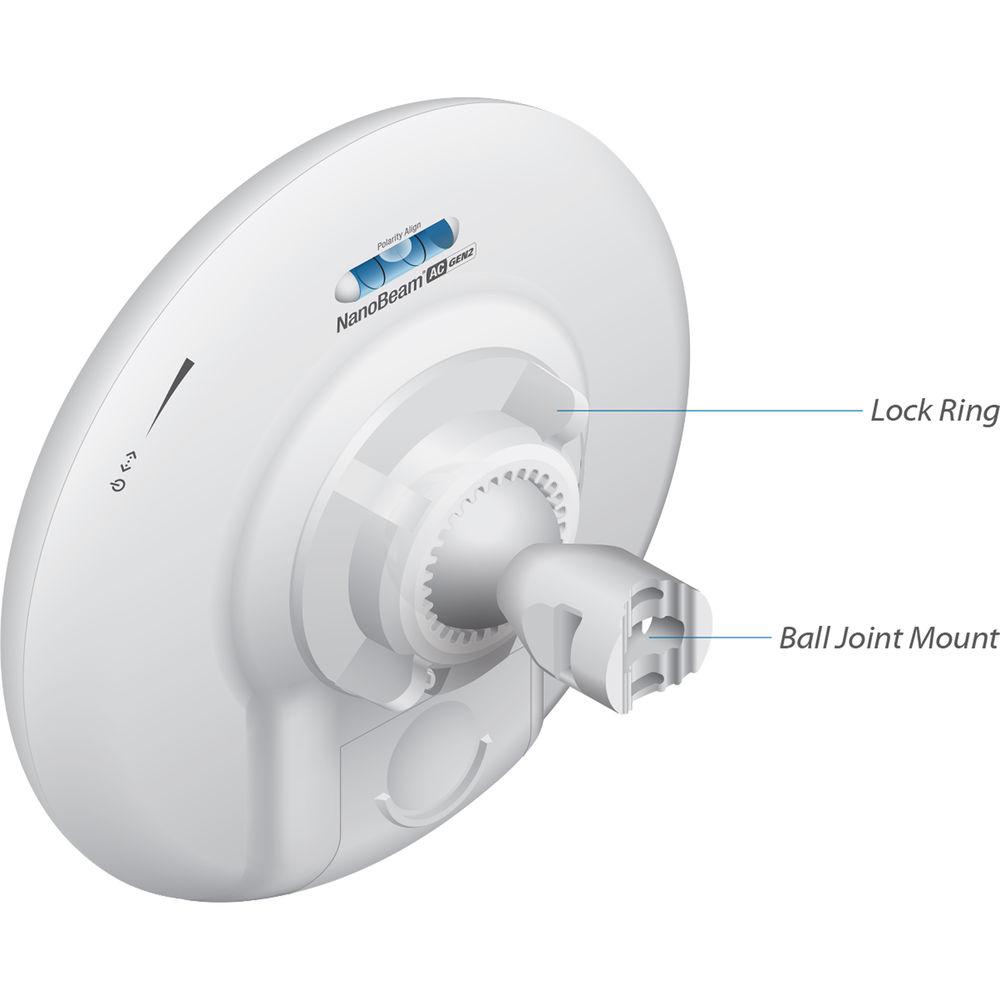

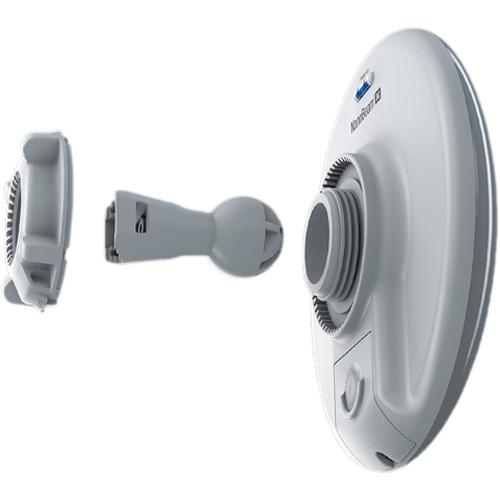

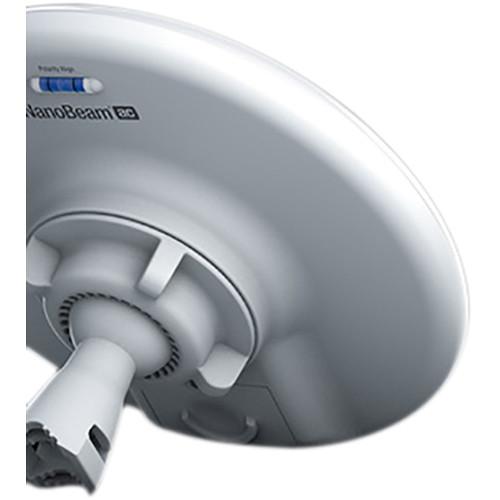

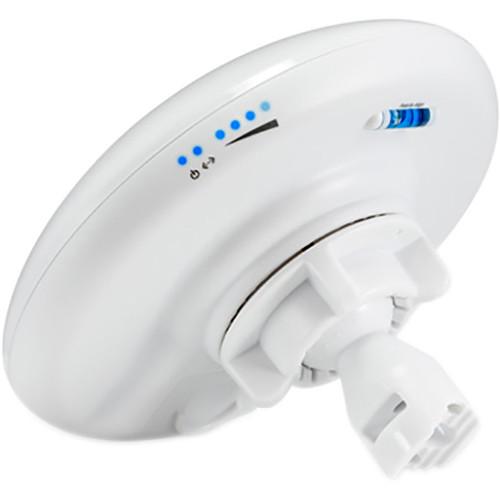

Convenient Alignment - The NanoBeam 5AC Gen2 pivots on its ball joint 3-axis mount for easy aiming.
Innovative Mechanical Design

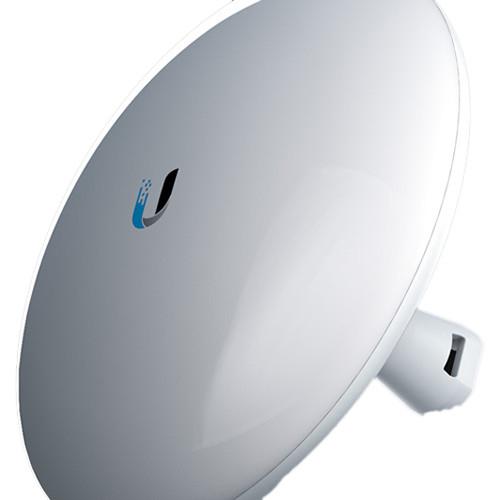

Efficient Footprint - The radio and antenna are combined into a single body that takes up minimal space. The form factor features the highest gain for its size.
Aesthetics - The NanoBeam 5AC Gen2 is small enough to blend discreetly into the background at a customer's location.
Versatile Mounting - The NanoBeam 5AC Gen2 can be mounted in almost any position needed for line of sight. UPC: 810354026324 In the Box Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management Radio Ball Joint Mount Lock Ring Metal Strip Gigabit PoE (24 V, 0.5 A) with Mounting Bracket Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks AC Gen2 Specs | Power Supply | 24 V, 0.5 A Gigabit PoE Adapter (Included) | | Throughput | 450+ Mb/s | | Power Consumption | 8.5 W | | Gain | 19 dBi | | Networking Interface | 2 x 10/100/1000 Ethernet Ports
Wi-Fi for Management | | Processor | Atheros MIPS 74Kc, 720 MHz | | Memory | 128 MB DDR2, 8 MB Flash | | LEDs | Power, Ethernet, (4) Signal Strength | | Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels | | Max VSWR | 1.5:1 | | Channel Sizes | PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz | | Polarization | Dual Linear | | Enclosure | Outdoor UV Stabilized Plastic | | Mounting | Pole-Mount (Kit Included)
Wall-Mount | | Wind Loading | 10.2 lbf @ 125 mph (45.4 N @ 200 km/h) | | Wind Survivability | 125 mph / 200 km/h | | ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | | Temperature & Humidity | Operating Temperature
-40 to 176°F / -40 to 80°C
Operating Humidity
5 to 95% Non-Condensing | | Certifications | CE, FCC, IC | | RoHS Compliance | Yes | | Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 | | Vibration Test | IEC 68-2-6 | | Temperature Shock Test | IEC 68-2-14 | | UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 | | Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 | | Operating Frequency | Worldwide
2412 - 2472 MHz
5150 - 5875 MHz
USA
2412 - 2462 MHz
USA: U-NII-1 - 5150 - 5250 MHz
USA: U-NII-2A - 5250 - 5350 MHz
USA: U-NII-2C - 5470 - 5725 MHz
USA: U-NII-3 - 5725 - 5850 MHz | | Dimensions | 7.44 x 7.44 x 4.92" / 189 x 189 x 125 mm | | Weight | 1.17 lb / 0.53 kg | | | | Package Weight | 2.455 lb | | Box Dimensions (LxWxH) | 9.5 x 8.85 x 3.75" |
