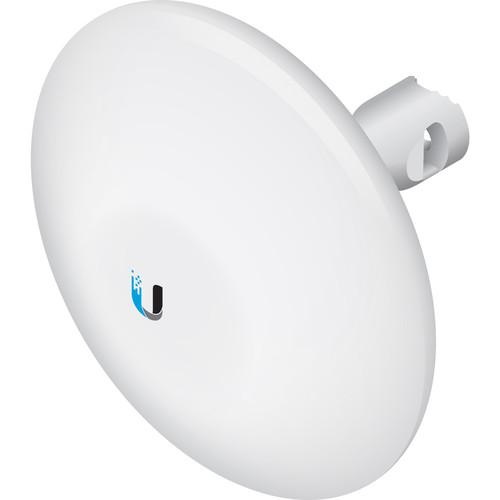

User Manual for Ubiquiti Networks NBE-M2-13 NanoBeam M 2.4GHz 13dBi High Performance airMAX Bridge Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks NBE-M2-13 NanoBeam M 2.4GHz
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
|
User manual for the Ubiquiti Networks NBE-M2-13 NanoBeam M 2.4GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Operating on the 2.4 GHz frequency, the NBE-M2-13 NanoBeam M 2.4 GHz 13dBi High Performance airMAX Bridge from Ubiquiti Networks is designed to offer enhanced wireless connectivity when used as a wireless client or in a point-to-point environment. This wireless bridge utilizes TDMA (time division multiple access) technology to ensure a stable and reliable connection that is capable of providing high speeds over long distances. In addition to TDMA support, the airMAX Bridge features intelligent QoS functionality to ensure high bandwidth tasks such as voice and video applications have the necessary network resources to operate smoothly.
Once installed, network administrators can take advantage of a variety of software applications to manage the network. With airOS it is possible to manage various aspects of the network itself from naming devices to MAC address permissions and much more. With airVIEW admins can utilize the included spectrum analyzer and see energy shown in real time and review a variety of reports. To provide an overall view of the entire network, airControl supports features including a network map, device status, the ability to mass upgrade firmware, and much more. - airMAX Technology
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability.
Intelligent QoS
Priority is given to voice/video for seamless streaming
Scalability
High capacity and scalability
Long Distance
Capable of high-speed, carrier-class links - airOS
- airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support - airView
- Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference
Waterfall
Aggregate energy over time for each frequency
Waveform
Aggregate energy collected
Real-time
Energy is shown in real time as a function of frequency
Recording
Automate airView to record and report results - airControl
- airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling - Innovative Mechanical Design
- All-in-one design
The NanoBeam provides both the radio and antenna in a small footprint
Quick and easy installation
No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting
Convenient alignment
The NanoBeam pivots on its ball joint for easy aiming - Compact Form Factor
- Efficient footprint
The radio and antenna are combined into a single body that takes up minimal space
Versatile mounting
The NanoBeam can be mounted in almost any position needed for line of sight
Aesthetics
The NanoBeam is small enough to blend discreetly into the background at a customer's location UPC: 810354021664 In the Box Ubiquiti Networks NBE-M2-13 NanoBeam M 2.4GHz 13dBi High Performance airMAX Bridge Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NBE-M2-13 NanoBeam M 2.4GHz 13dBi High Performance airMAX Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks NBE-M2-13-US Specs | Frequency | 2.4 GHz | | Gain | 13 dBi | | Processor | Atheros MIPS 74Kc, 560 MHz | | Memory | 64 MB DDR2, 16 MB Flash | | LED Indicators | LEDs
1 x Power
1 x LAN
4 x WAN
Signal Strength LEDs
Software-adjustable to correspond to custom RSSI levels | | Channel Sizes | 5/8/10/20/30/40 MHz | | Polarization | Dual linear | | Enclosure | Outdoor UV stabilized plastic | | Mounting | Pole-mount (kit included)
Wall-mount | | Wind Loading | 10.2 lbf @ 125 mph / 45.4 N @ 200 km/h | | Wind Survivability | 125 mph / 200 km/h | | ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | | Temperature & Humidity | Operating Temperature: -40 to 176°F / -40 to 80°C
Operating Humidity: 5 to 95% non-condensing | | Wireless Approvals | FCC, IC, CE | | RoHS Compliance | Yes | | Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 | | Vibration Test | IEC 68-2-6 | | Temperature Shock Test | IEC 68-2-14 | | UV Test | IEC at 104°F / 40°C 68-2-5
Equivalent: ETS 300 019-1-4 | | Wind-Driven Rain Test | ETS 300 019-1-4
Equivalent: MIL-STD-810 G Method 506.5 | | Dimensions | 7.44 x 7.44 x 4.92" / 189 x 189 x 125 mm | | Weight | 1.17 lb / 0.53 kg | | | | Package Weight | 2.28 lb | | Box Dimensions (LxWxH) | 9.4 x 8.7 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
