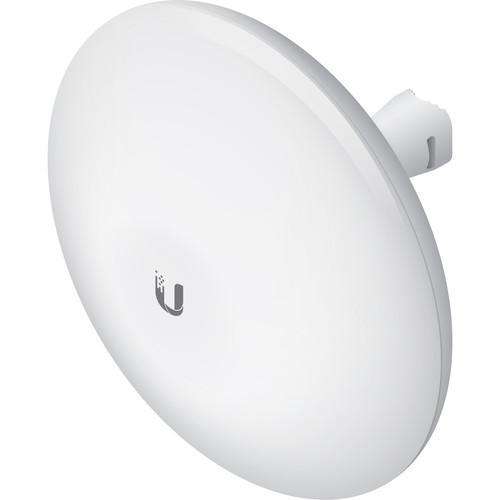

Product description The NBE-M5-19 5 GHz 19dBi High-Performance airMAX Bridge from Ubiquiti Networks directs RF energy in a tighter beamwidth. NanoBeam maximizes noise immunity by its uniform bandwidth. With focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area crowded with other RF signals of the same or similar frequency. The NBE-M5-19 combines the radio and antenna in an efficient and compact unit that gets maximum gain out of the smallest footprint. It features an innovative mechanical design and high speed processor for optimal performance at low cost. Technology - airMAX Technology
- Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS: Priority is given to voice/video for seamless streaming.
Scalability: High capacity and scalability.
Long Distance: Capable of high-speed, carrier-class links. Software - airOS
- airOS is a versatile, highly developed Ubiquiti firmware technology. It is an intuitive technology, designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi-point networking. NanoBeam uses airOS which provides additional advantages, including protocol support, Ubiquiti channelization, spectral width adjustment, ACK auto-timing, AAP technology, and multi-language support.
- airView
- Integrated airView provides advanced spectrum analyzer functionality such as waterfall, waveform, and real-time spectral views that allow operators to identify noise signatures, and plan their networks to minimize noise interference. Waterfall aggregates energy over time for each frequency. Waveform aggregates energy collected. Real-time feature shows energy in real time as a function of frequency. Recording automates airView to record and report results.
- airControl
- airControl is a powerful and intuitive web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, management of groups of devices, and task scheduling.
Hardware - All-in-One Design
- The NanoBeam provides both the radio and antenna in the smallest possible footprint.
- Quick Assembly
- No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
- Convenient Alignment
- The NanoBeam pivots on its ball joint for easy aiming.
- Efficient Footprint
- The radio and antenna are combined into a single body that takes up minimal space.
- Versatile Mounting
- The NanoBeam can be mounted in almost any position needed for line of sight.
- Aesthetics
- The NanoBeam is small enough to blend discreetly into the background at a customer's location.
UPC: 810354020186 In the Box Ubiquiti Networks NBE-M5-19 5 GHz 19dBi High-Performance airMAX Bridge 24 V PoE Power Adapter Pole-Mount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NBE-M5-19 5 GHz 19dBi High-Performance airMAX Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks NBE-M5-19-US Specs | | | Processor | Atheros MIPS 74Kc, 560 MHz | | Memory | 64 MB DDR2, 8 MB flash | | Networking Interface | 1 x 10/100 Ethernet port | | | | Power Supply | 24 V, 0.5 A PoE | | Power Method | Passive PoE (pairs 4, 5+ and 7, 8 return) | | Power Consumption | 8 W (maximum) | | TX Power Specifications | Output Power: 26 dBm
Modulation: 802.11a
Data Rate: Average TX: Tolerance
6 to 24 Mb/s: 26 dBm: ± 2 dB
36 Mb/s: 25 dBm: ± 2 dB
48 Mb/s: 24 dBm: ± 2 dB
54 Mb/s: 23 dBm: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: Average: TX Tolerance
MCS0: 26 dBm: ± 2 dB
MCS1: 25 dBm: ± 2 dB
MCS2: 25 dBm: ± 2 dB
MCS3: 25 dBm: ± 2 dB
MCS4: 24 dBm: ± 2 dB
MCS5: 23 dBm: ± 2 dB
MCS6: 23 dBm: ± 2 dB
MCS7: 23 dBm: ± 2 dB
MCS8: 26 dBm: ± 2 dB
MCS9: 25 dBm: ± 2 dB
MCS10: 25 dBm: ± 2 dB
MCS11: 25 dBm: ± 2 dB
MCS12: 24 dBm: ± 2 dB
MCS13: 23 dBm: ± 2 dB
MCS14: 23 dBm: ± 2 dB
MCS15: 23 dBm: ± 2 dB | | RX Power Specifications | Output Power: 26 dBm
Modulation: 802.11a
Data Rate: Sensitivity: Tolerance
6 to 24 Mb/s: -94 dBm minimum: ±2 dB
36 Mb/s: -80 dBm: ± 2 dB
48 Mb/s: -77 dBm: ± 2 dB
54 Mb/s: -75 dBm: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: Sensitivity: Tolerance
MCS0: -96 dBm: ± 2 dB
MCS1: -95 dBm: ± 2 dB
MCS2: -92 dBm: ± 2 dB
MCS3: -90 dBm: ± 2 dB
MCS4: -86 dBm: ± 2 dB
MCS5: -83 dBm: ± 2 dB
MCS6: -77 dBm: ± 2 dB
MCS7: -74 dBm: ± 2 dB
MCS8: -95 dBm: ± 2 dB
MCS9: -93 dBm: ± 2 dB
MCS10: -90 dBm: ± 2 dB
MCS11: -87 dBm: ± 2 dB
MCS12: -84 dBm: ± 2 dB
MCS13: -79 dBm: ± 2 dB
MCS14: -78 dBm: ± 2 dB
MCS15: -75 dBm: ± 2 dB | | | | Gain | 19 dBi | | VSWR | 1.5:1.0 | | Polarization | Dual linear | | Operating Frequency | 5725 to 5850 MHz | | Wind Loading | 45.4 N at 200 km/hour (10.2 lbf at 125 mph) | | Wind Survivability | 200 km/hour (125 mph) | | | | LEDs | 1 x Power
1 x LAN
4 x WLAN | | Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels | | | | Channel Sizes | 5/8/10/20/30/40 MHz | | | | Operating Temperature | -40 to +158°F (-40 to +70°C) | | Operating Humidity | 5 to 95% (non-condensing) | | | | Salt Fog Test | IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5 | | Vibration Test | IEC 68-2-6 | | Temperature Shock Test | IEC 68-2-14 | | UV Test | IEC 68-2-5 at 104°F (40°C)
Equivalent: E | | Wind-Driven Rain Test | ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5 | | | | Mounting | Pole-mount (kit included), wall-mount | | ESD/EMP Protection | Air: ± 24 kV
Contact: ± 24 kV | | | | Compliance | RoHS | | Approvals | FCC, IC, CE | | | | Enclosure | Outdoor UV stabilized plastic | | Dimensions | 7.44 x 7.44 x 4.92" / 189.00 x 189.00 x 125.00 mm | | Weight | 1.17 lb / 0.53 kg | | | | Package Weight | 2.265 lb | | Box Dimensions (LxWxH) | 9.4 x 8.7 x 3.6" |
