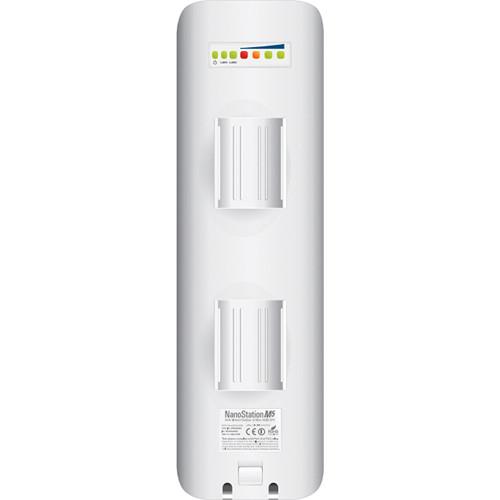

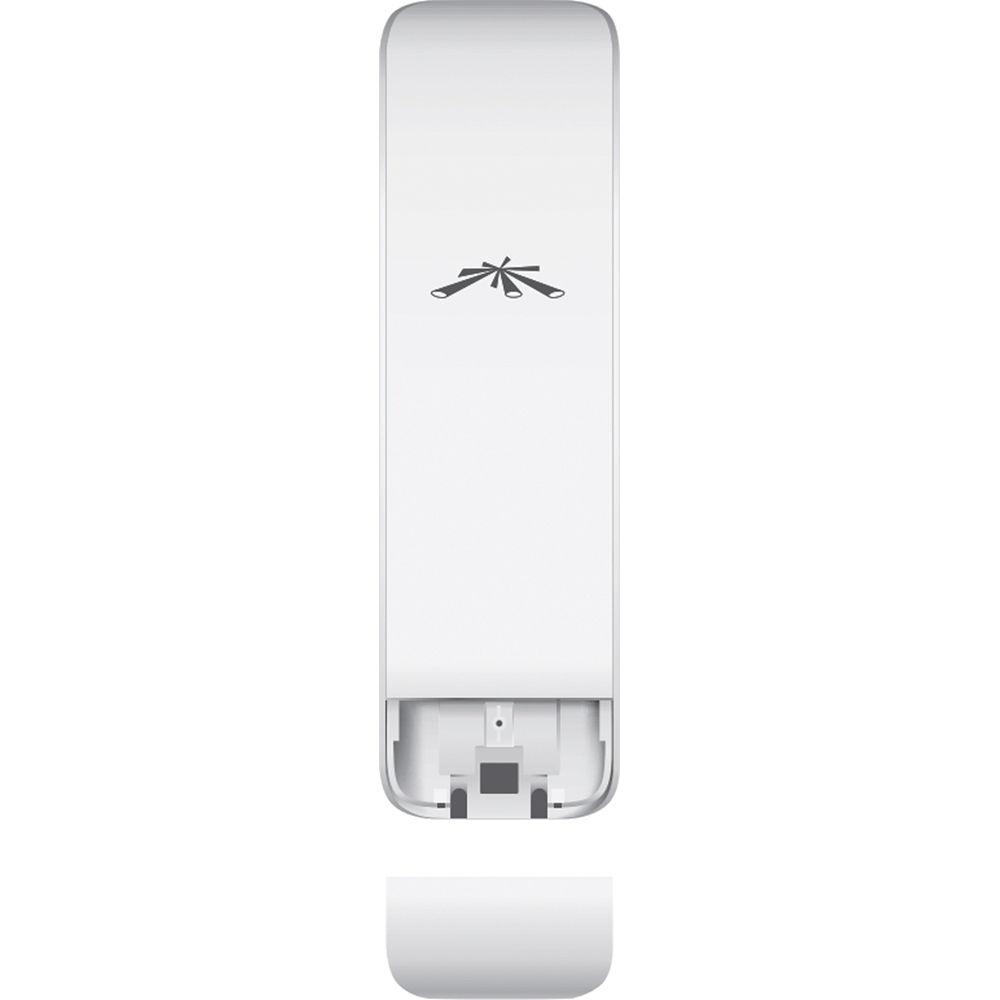

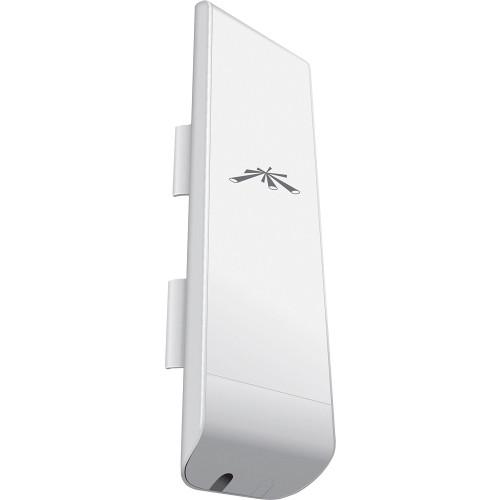

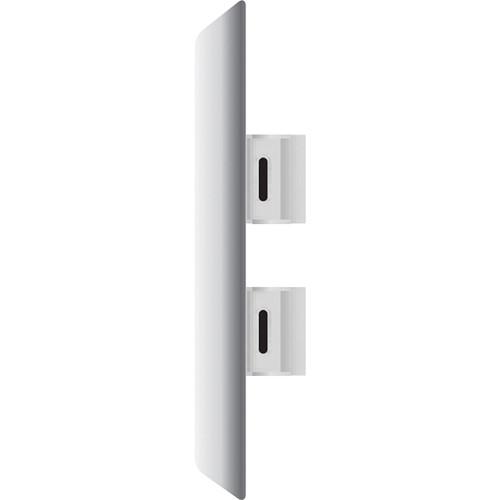

User Manual for Ubiquiti Networks NSM2 NanoStationM Indoor Outdoor airMAX CPE Router Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks NSM2 NanoStationM Indoor Outdoor
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
 |
User manual for the Ubiquiti Networks NSM2 NanoStationM Indoor Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Create wide area network connectivity with the NSM2 NanoStationM 400 MHz Indoor/Outdoor airMAX CPE Router from Ubiquiti Networks. This wireless access point features an enhanced 400 MHz Atheros processor along with 32MB of SDRAM and 8MB of flash memory. The single 10/100 BASE-TX Ethernet networking interface features passive Power over Ethernet compatibility and can easily be installed in a variety of locations using the included pole mounting kit. The enclosure of the NSM2 is comprised of outdoor UV stabilized plastic for enhanced durability including the ability to withstand temperatures ranging from -22°F to 167°F. Overview - airMAX Technology
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. - Intelligent QoS
- Priority is given to voice/video for seamless streaming.
- Dual Ethernet Connectivity
- The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
- Intelligent PoE
- Remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.
Software - airOS
- airOS is an intuitive, highly developed Ubiquiti firmware technology designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high‑performance, outdoor multi‑point networking.
- airView
- Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
- airControl
- airControl is an intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
UPC: 810354020230 In the Box Ubiquiti Networks NSM2 NanoStationM Indoor/Outdoor airMAX CPE Router Limited 1-Year Manufacturer Warranty Brochure PDF 274.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NSM2 NanoStationM Indoor Outdoor airMAX CPE Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks NanoStation M Specs | | | Model | NanoStationM | | Processor | Atheros MIPS 24KC, 400 MHz | | Memory | 32 MB SDRAM
8 MB Flash | | Networking Interface | 2 x 10/100 Ethernet ports | | | | Wireless Approvals | FCC Part 15.247, IC RS210, CE | | RoHS Compliance | Yes | | | | Power Supply (PoE) | 24 V / 0.5 A | | Max Power Consumption | 8 W | | Gain | 11 dBi | | Polarization | Dual linear | | Enclosure Characteristics | Outdoor UV stabilized plastic | | Mounting | Pole mounting kit included | | Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Operating Humidity | 5 to 95% condensing | | Shock and Vibration | ETSI300-019-1.4 | | | | Operating Frequency | Worldwide/USA: 2412-2462 | | Output Power | Output Power: 28 dBm
2.4 GHz TX Power Specifications
Data Rate/MCS / Avg. TX / Tolerance
11b/g
1-24 Mbps 28 dBm ± 2 dB
36 Mbps 26 dBm ± 2 dB
48 Mbps 25 dBm ± 2 dB
54 Mbps 24 dBm ± 2 dB
airMAX
MCS0 28 dBm ± 2 dB
MCS1 28 dBm ± 2 dB
MCS2 28 dBm ± 2 dB
MCS3 28 dBm ± 2 dB
MCS4 27 dBm ± 2 dB
MCS5 25 dBm ± 2 dB
MCS6 23 dBm ± 2 dB
MCS7 22 dBm ± 2 dB
MCS8 28 dBm ± 2 dB
MCS9 28 dBm ± 2 dB
MCS10 28 dBm ± 2 dB
MCS11 28 dBm ± 2 dB
MCS12 27 dBm ± 2 dB
MCS13 25 dBm ± 2 dB
MCS14 23 dBm ± 2 dB
MCS15 22 dBm ± 2 dB
2.4 GHz RX Power Specifications
Data Rate/MCS / Avg. TX / Tolerance
11b/g
1-24 Mbps -83 dBm ± 2 dB
36 Mbps -80 dBm ± 2 dB
48 Mbps -77 dBm ± 2 dB
54 Mbps -75 dBm ± 2 dB
airMAX
MCS0 -96 dBm ± 2 dB
MCS1 -95 dBm ± 2 dB
MCS2 -92 dBm ± 2 dB
MCS3 -90 dBm ± 2 dB
MCS4 -86 dBm ± 2 dB
MCS5 -83 dBm ± 2 dB
MCS6 -77 dBm ± 2 dB
MCS7 -74 dBm ± 2 dB
MCS8 -95 dBm ± 2 dB
MCS9 -93 dBm ± 2 dB
MCS10 -90 dBm ± 2 dB
MCS11 -87 dBm ± 2 dB
MCS12 -84 dBm ± 2 dB
MCS13 -79 dBm ± 2 dB
MCS14 -78 dBm ± 2 dB
MCS15 -75 dBm ± 2 dB | | | | Gain | 10.4-11.2 dBi | | Cross-pol Isolation | 23 dB Minimum | | Max VSWR | 1.6:1 | | Beamwidth | 55° (H-pol) / 53° (V-pol) / 27° (elevation) | | | | Dimensions | 11.57 x 1.22 x 3.15" / 294 x 31 x 80 mm | | Weight | 14.1 oz / 0.4 kg | | | | Package Weight | 1.455 lb | | Box Dimensions (LxWxH) | 11.7 x 3.75 x 3.25" |
