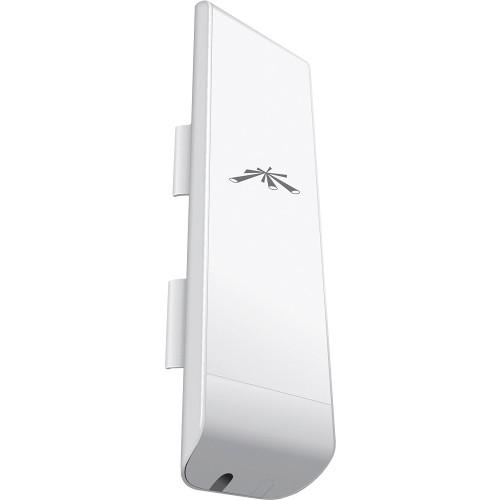

User Manual for Ubiquiti Networks NSM365 Nanostation Indoor Outdoor airMAX CPE Router Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks NSM365 Nanostation Indoor Outdoor
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
|
User manual for the Ubiquiti Networks NSM365 Nanostation Indoor Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description Create wide area network connectivity with the NSM365 Nanostation Indoor/Outdoor airMAX CPE Router from Ubiquiti Networks. This wireless access point features a 400 MHz Atheros processor along with 32MB of SDRAM and 8MB of flash memory. The dual 10/100 BASE-TX Ethernet networking interface features passive Power over Ethernet compatibility to two devices and can be installed in a variety of locations using the included pole mounting kit. The enclosure of the NSM365 is comprised of outdoor UV stabilized plastic for enhanced durability including the ability to withstand temperatures ranging from -22°F to 167°F. Overview - airMAX Technology
- Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. - Intelligent QoS
- Priority is given to voice/video for seamless streaming.
- Dual Ethernet Connectivity
- The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
- Intelligent PoE
- Remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.
Software - airOS
- airOS is an intuitive, highly developed Ubiquiti firmware technology designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high‑performance, outdoor multi‑point networking.
- airView
- Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
- airControl
- airControl is an intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
UPC: 810354021169 In the Box Ubiquiti Networks NSM365 Nanostation Indoor/Outdoor airMAX CPE Router PoE Adapter Power Cord 2 x Mounting Ties Pole Mounting Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks NSM365 Nanostation Indoor Outdoor airMAX CPE Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks NanoStation M Specs | | | Processor | Atheros MIPS 24KC, 400 MHz | | Memory | 32 MB SDRAM, 8 MB Flash | | Networking Interface | 2 x 10/100 BASE-TX (Cat5, RJ-45) Ethernet interface | | Range | 15+ km | | Throughput | 150+ Mb/s | | | | TX Specification | Radio Operating Frequency: 3650 to 3675 MHz
MCS Index: Average Power: Tolerance
MCS0: 25 dBm: ±2 dB
MCS1: 25 dBm: ±2 dB
MCS2: 25 dBm: ±2 dB
MCS3: 25 dBm: ±2 dB
MCS4: 24 dBm: ±2 dB
MCS5: 23 dBm: ±2 dB
MCS6: 22 dBm: ±2 dB
MCS7: 20 dBm: ±2 dB
MCS8: 25 dBm: ±2 dB
MCS9: 25 dBm: ±2 dB
MCS10: 25 dBm: ±2 dB
MCS11: 25 dBm: ±2 dB
MCS12: 24 dBm: ±2 dB
MCS13: 23 dBm: ±2 dB
MCS14: 22 dBm: ±2 dB
MCS15: 20 dBm: ±2 dB | | RX Specification | Radio Operating Frequency: 3650 to 3675 MHz
MCS Index: Sensitivity: Tolerance
MCS0: -94 dBm: ±2 dB
MCS1: -93 dBm: ±2 dB
MCS2: -90 dBm: ±2 dB
MCS3: -89 dBm: ±2 dB
MCS4: -86 dBm: ±2 dB
MCS5: -83 dBm: ±2 dB
MCS6: -77 dBm: ±2 dB
MCS7: -74 dBm: ±2 dB
MCS8: -93 dBm: ±2 dB
MCS9: -91 dBm: ±2 dB
MCS10: -89 dBm: ±2 dB
MCS11: -87 dBm: ±2 dB
MCS12: -84 dBm: ±2 dB
MCS13: -79 dBm: ±2 dB
MCS14: -78 dBm: ±2 dB
MCS15: -75 dBm: ±2 dB | | | | Polarization | Dual linear | | Gain | 12.2 to 13.7 dBi | | Cross-Pol Isolation | 28 dB minimum | | VSWR | 1.4:1.0 | | Beamwidth | 60° (H-pol) / 60° (V-pol) / 20° (Elevation) | | | | Power Supply | 24 V, 1 A (8 W) | | Power Method | Passive Power over Ethernet (pairs 4, 5+, 7, 8 return) | | | | Operating Temperature | -22 to 167°F / -30 to 75°C | | Operating Humidity | 5 to 95% (condensing) | | | | Compliance | RoHS | | Approvals | FCC Part 90Z | | | | Shock and Vibration | ETSI300-019-1.4 | | Mounting | Pole mounting kit (included) | | LEDs | External status LEDs | | | | Enclosure Material | Outdoor UV stabilized plastic | | Dimensions | 11.6 x 1.2 x 3.1" / 29.4 x 3.0 x 8.0 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.455 lb | | Box Dimensions (LxWxH) | 11.7 x 3.7 x 3.25" |
