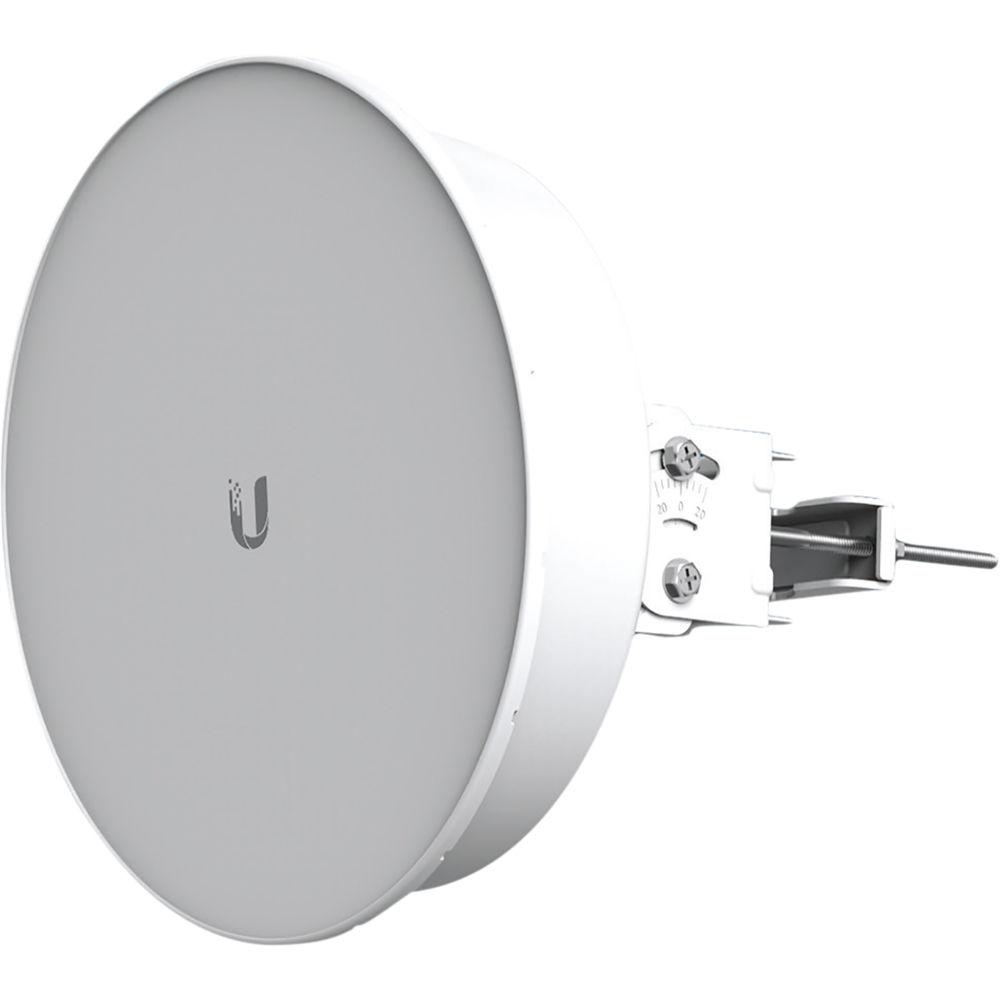

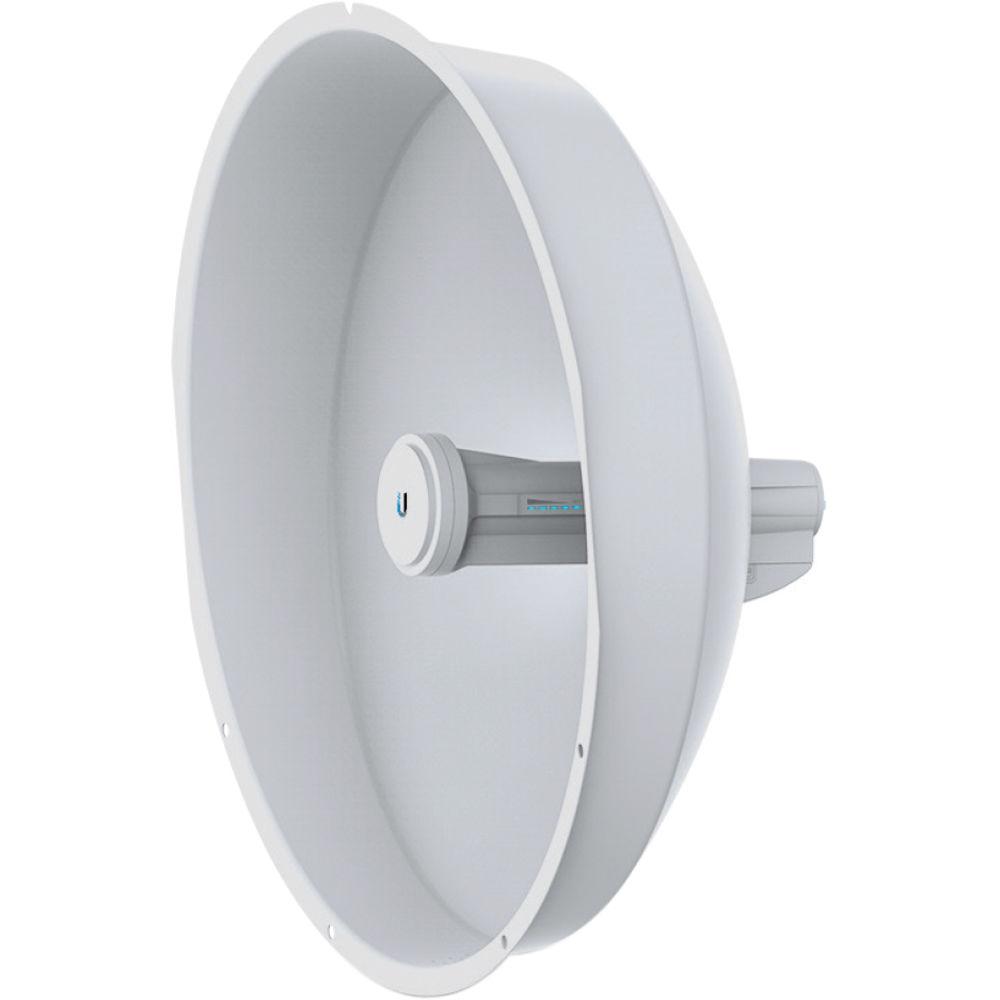

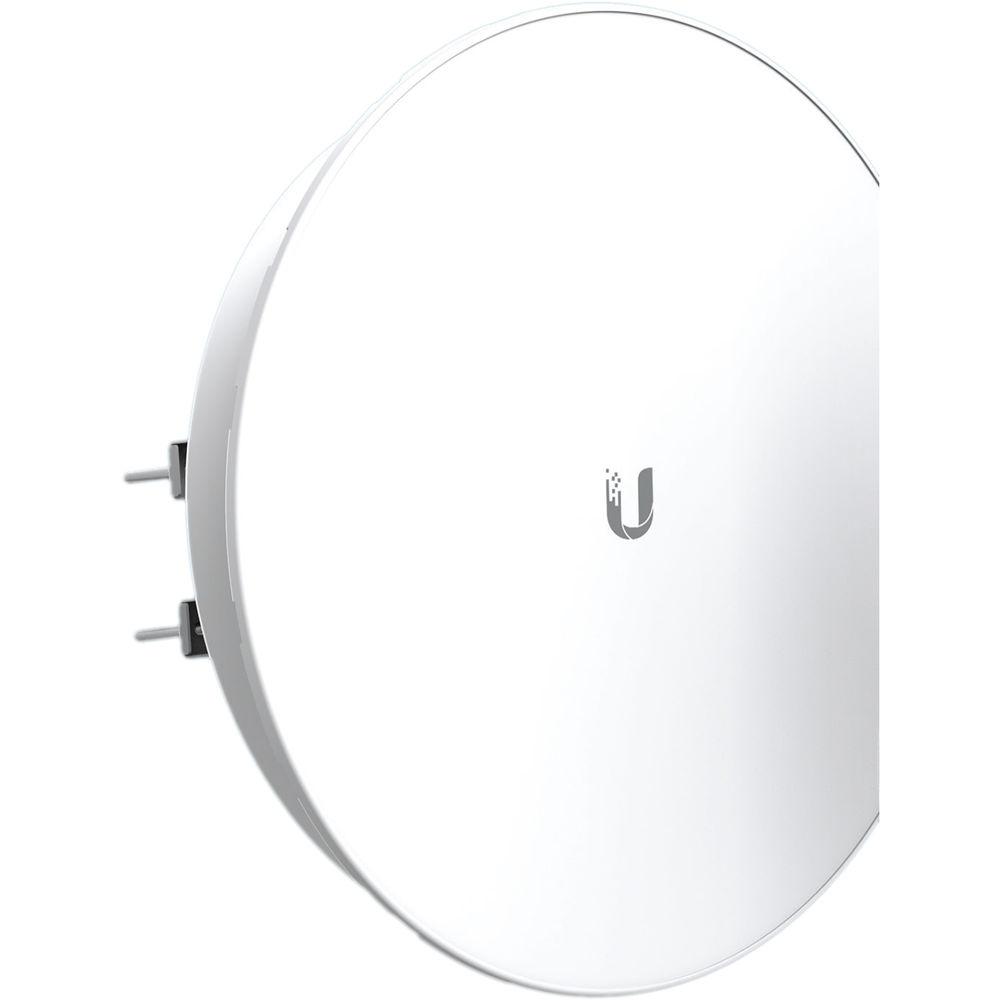

Product description With built-in support for RF isolation, the 5 GHz airMAX ac Bridge with RF Isolated Reflector from Ubiquiti Networks is designed to provide a tighter beam width signal directly to the signal's destination. Couple the tighter beam width with improved noise isolation and the recipient of the signal benefits from a stronger, more reliable network connection. Additionally, this airMAX ac Bridge also features Ubiquiti's own InnerFeed technology which combines the radio and the feedhorn of the antenna for easier installation while eliminating the need for a cable.
The 5 GHz airMAX Bridge features an innovative design complete with a metal plated interior rear housing, built-in mechanical tilt, and convenient installation. Once installed the rugged housing helps the airMAX Bridge to withstand the elements thanks to the outdoor UV stabilized plastic enclosure. Hardware - Improved Noise Immunity

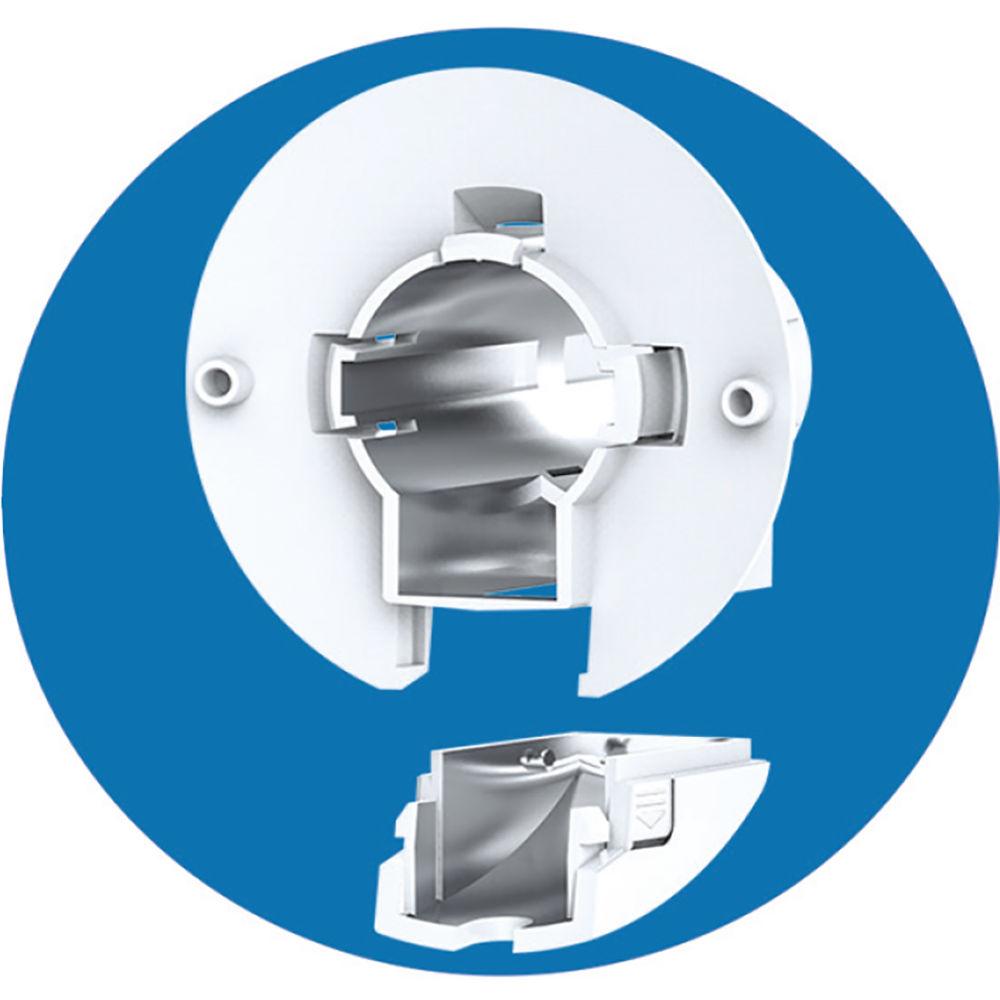

- The PowerBeam ac ISO directs RF energy in a tighter beam width, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.
- Integrated Radio Design
- Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
- Innovative Mechanical Design
- Metal-plated interior of rear housing
Enhances RF shielding

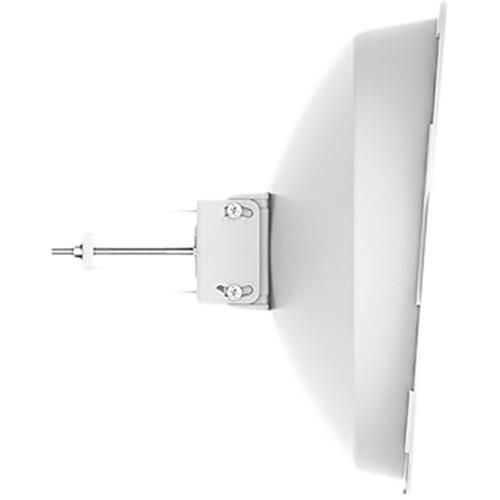

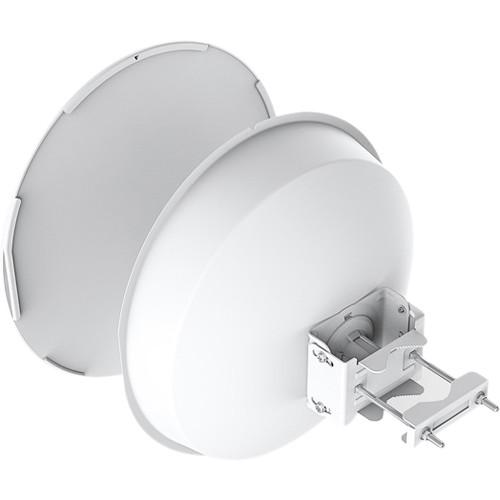

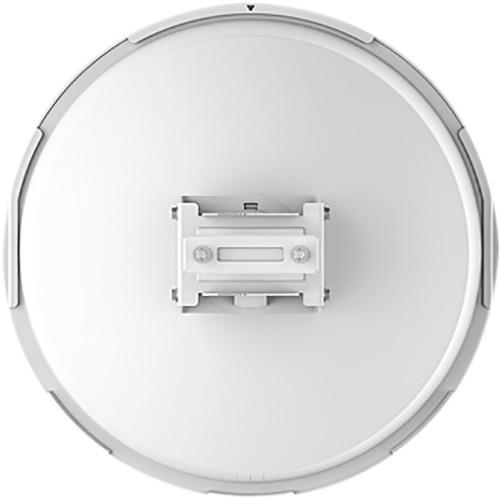

Built-in mechanical tilt
The mounting bracket offers ± 20° of tilt

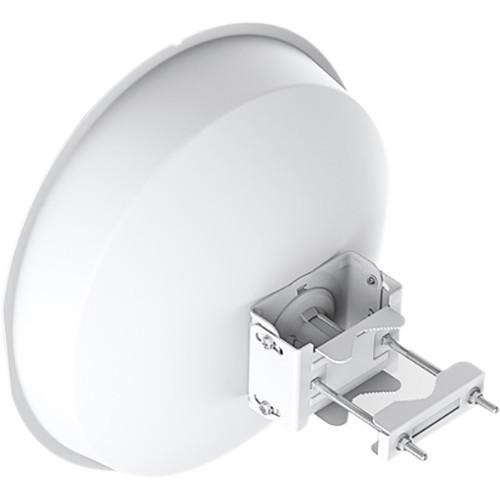

Convenient pole-mounting
Only a single wrench is needed to mount the PowerBeam ac ISO on a pole - Industrial-Strength Construction
- Fasteners
GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners
Dish and brackets
Made of galvanized steel that is powder-coated for superior corrosion resistance

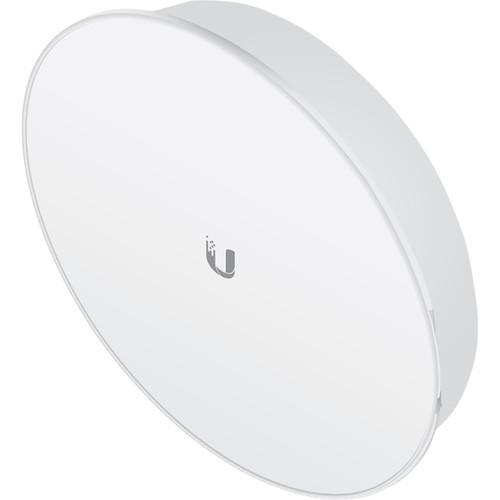

Protective Radome
Shields the radio from nature's harshest elements - RF Isolation
- The integrated isolator design spatially filters out interference, so the PowerBeam ac ISO delivers improved noise immunity in co-location deployments.
Software - airOS7 - Powerful Wireless Features
- • airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security - Usability Enhancements
- • Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including Ethernet Cabling Test, RF Diagnostics, and airView Spectrum Analyzer - Advanced RF Analytics
- AirMAX ac devices feature a multi-radio architecture to power the RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with comprehensive RF analytics.
Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer of airOS V7. - Real-Time Reporting
- The Main tab displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms
• Signal-to-Noise Ratio (SNR) time series plots - Spectral Analysis

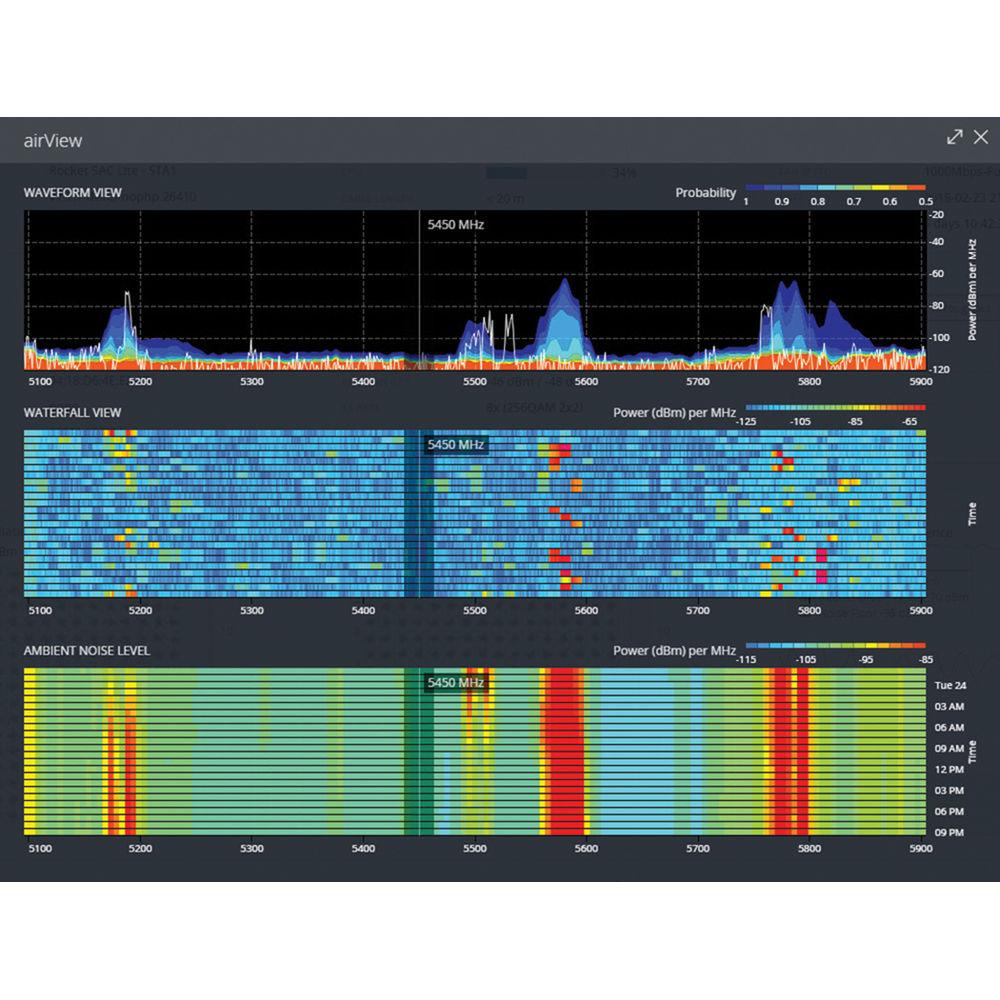

- AirView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data.
• Waterfall Aggregate energy collected for each frequency
• Waveform Aggregate energy collected
• Ambient Noise Level Background noise energy shown as a function of frequency
Available with a firmware upgrade to airOS v7.1, airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys Technology - Intelligent QoS
- Priority assigned to voice/video for seamless streaming
- Scalability
- High capacity and scalability
- Long Distance
- Capable of high-speed, carrier-class links
- Enhanced Performance
- AirMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology
- Improved Throughput
- AirMAX ac supports high data rates, which require dense modulation:
256QAM - a significant increase from 64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products support up to 450+ Mb/s real TCP/IP throughput - up to triple the throughput of standard airMAX products UPC: 810354023675 In the Box Ubiquiti Networks PBE-5AC-500-ISO-US 5 GHz airMAX ac Bridge with RF Isolated Reflector (2-Pack) Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks PBE-5AC-500-ISO-US 5 GHz airMAX ac Bridge with RF Isolated Reflector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks PBE-5AC-500-ISO-US Specs | Power Supply | 24 V, 0.5 A Gigabit PoE | | Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) | | Supported Voltage | 20-26 VDC | | Max Power Consumption | 8 W | | Operating Frequency | Worldwide
5150 - 5875 MHz
USA U-NII-1
5150 - 5250 MHz
USA U-NII-2A
5250 - 5350 MHz
USA U-NII-2C
5470 - 5725 MHz
USA U-NII-3
5725 - 5850 MHz | | Gain | 27 dBi | | Networking Interface | 1 x Gigabit Ethernet port | | Processor | Atheros MIPS 74Kc, 720 MHz | | Memory | 128 MB DDR2, 16 MB Flash | | LEDs | 1 x Power
1 x LAN
4 x WLAN | | Signal Strength LEDs | Software adjustable to correspond to custom RSSI levels | | Channel Sizes | PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz | | Max VSWR | 1.5:1 | | Built-In Mechanical Downtilt | ± 20° | | Polarization | Dual-linear | | Enclosure | Outdoor UV stabilized plastic | | Mounting | Pole-mount kit included | | Wind Survivability | 125 mph (200 km/h) | | ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV | | Temperature & Humidity | Operating Temperature
-40 to 158°F / -40 to 70°C
Operating Humidity
5 to 95% non-condensing | | Wireless Approvals | FCC, IC, CE | | RoHS Compliance | Yes | | Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 | | Vibration Test | IEC 68-2-6 | | Temperature Shock Test | IEC 68-2-14 | | UV Test | IEC 68-2-5 at 104°F / 40°C, Equivalent: ETS 300 019-1-4 | | Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 | | Dimensions | 22.20 x 22.20 x 12.13" / 564 x 564 x 308 mm | | Weight | 11.5 lb / 5.2 kg | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 26.2 x 23.6 x 11.3" |
