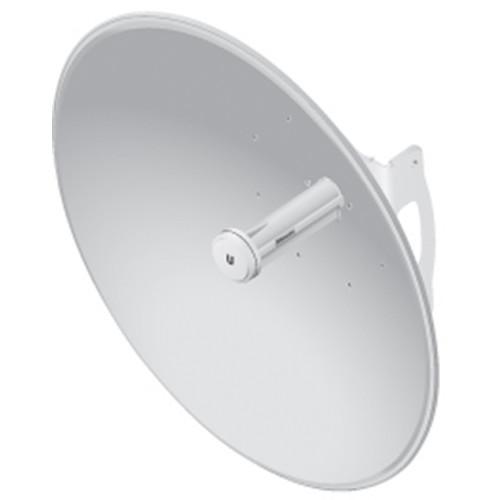

User Manual for Ubiquiti Networks PBE-M5-620 PowerBeam airMAX Bridge Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks PBE-M5-620 PowerBeam airMAX Bridge
- Product category: Wireless Bridges Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Bridges
|
User manual for the Ubiquiti Networks PBE-M5-620 PowerBeam airMAX Bridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description With an all-in-one design, the PBE-M5-620 PowerBeam airMAX Bridge from Ubiquiti Networks is an airMAX product meant to function as customer premises equipment (CPE). With a more concentrated, direct signal clients benefit from improved noise immunity to as this bridge is capable of filtering out much of the noise that can degrade the signal. With Ubiquiti's own inner feed design installation of the PowerBeam airMAX Bridge has been greatly simplified as there is no longer a need for any cabling. Once installed the included airMAX technology helps network administrators to manage and monitor the network. From intelligent QoS to scalability Ubiquiti has provided the tools necessary to create long range networks offering reliable wireless network access to a large number of clients. - Noise Immunity
- The PowerBeam directs RF energy in a tight beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, to improve noise immunity. This feature works in areas crowded with other RF signals of the same or similar frequency.
- Integrated Design
- Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam is versatile and cost-effective to deploy.
- airMAX Technology Included
- Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. With intelligent QoS, priority is given to voice/video for seamless streaming and is capable of high-speed, carrier-class links.
- airOS
- airOS is a highly developed, user-friendly Ubiquiti firmware technology. The firmware architecture enables high-performance and outdoor multi-point networking. It features protocol support, Ubiquiti channelization, spectral width adjustment, ACK auto-timing, AAP technology, and multi-language support.
- airView
- Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality. Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. With Waterfall you can aggregate energy over time for each frequency, Waveform aggregate energy collected, with real-time energy shown as a function of frequency, and you can also automate airView to record and report results with recording.
- airControl
- airControl is a powerful and intuitive, Web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, manage groups of devices, and task scheduling.
- Innovative Mechanical Design
- With built-in mechanical tilt, the mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt. The number of fasteners is reduced to simplify assembly. Tools are required only when the technician mounts the PowerBeam on the pole. The antenna feed can be detached with the push of a button.
- Corrosion Resistance
- Fasteners are GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners. Dish and brackets made of galvanized steel that is powder-coated for corrosion resistance.
UPC: 810354021916 In the Box Ubiquiti Networks PBE-M5-620 PowerBeam airMAX Bridge Pole-Mount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks PBE-M5-620 PowerBeam airMAX Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks PBE-M5-620-US Specs | | | Processor | Atheros MIPS 74 Kc, 560 MHz | | Memory | 64 MB DDR2, 8 MB flash | | Networking Interface | 1 x 10/100/1000 Ethernet port | | Operating Frequency | 5725 to 5850 MHz | | Data Transfer Rate | 150+ Mb/s | | Wind Loading | 872 N at 200 km/h (196 lbf at 125 mph) | | Reflector | Dish Reflector: 23.6" (620.0 mm) | | Wind Survivability | 200 km/h (125 mph) | | Channel Sizes | 5/8/10/20/30/40 MHz | | ESD/EMP Protection | Air: ± 24 kV
Contact: ± 24 kV | | Testing | Salt Fog: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
Vibration: IEC 68-2-6
Temperature Shock: IEC 68-2-14
UV: IEC 68-2-5 at 104°F (40°C), Equivalent: ETS 300 019-1-4
Wind-Driven Rain: ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 | | | | Gain | 29 dBi | | Maximum VSWR | 1.6:1 maximum | | | | Power Supply | 24 V, 0.5 A Gigabit PoE | | Power Method | Passive PoE (pairs 4, 5+; 7, 8 return) | | Power Consumption | 8.5 W maximum | | | | Polarization | Dual-linear | | Enclosure | Outdoor UV stabilized plastic | | Built-In Mechanical Downtilt | 15 to -15° | | LED Indicators | 1 x Power
1 x LAN
4 x WLAN | | Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels | | Wireless Approvals | FCC, IC, CE | | Temperature | Operating: -40 to +158°F (-40 to +70°C) | | Humidity | Operating: 5 to 95% (non-condensing) | | Compliances | RoHS | | Dimensions | 24.4 x 24.4 x 15.2" (62.0 x 62.0 x 38.6 cm) | | Weight | 14.1 lb (6.4 kg) | | | | Package Weight | 24.8 lb | | Box Dimensions (LxWxH) | 29.0 x 28.0 x 8.8" |
