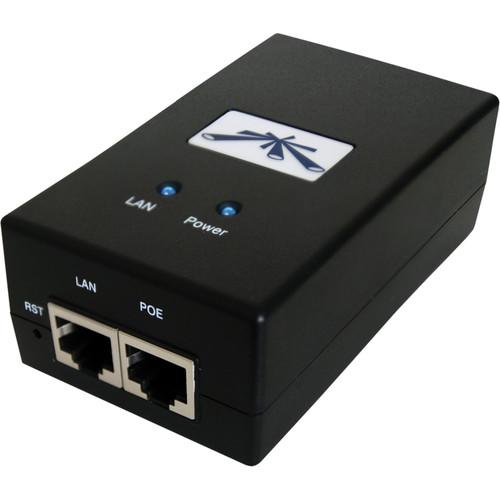

User Manual for Ubiquiti Networks POE-24-24W-G 24V PoE 1A Gigabit Adapter Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks POE-24-24W-G 24V PoE 1A
- Product category: Power over Ethernet (PoE) Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Power over Ethernet (PoE)
|
User manual for the Ubiquiti Networks POE-24-24W-G 24V PoE 1A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The POE-24-24W-G 24V PoE 1A Gigabit Adapter from Ubiquiti Networks has features like surge protection, clamping protection, maximum surge discharge, and peak pulse current to help protect your Ubiquiti PoE devices. It also includes an AC cable with earth ground. ESD attacks are the leading cause for device failures. You can effectively protect against ESD attacks using this grounded PoE adapter. This PoE adapter is compatible with most Ubiquiti PoE devices, including airFiber, airMAX, airVision, UniFi, and mFi. UPC: 810354023552 In the Box Ubiquiti Networks POE-24-24W-G 24V PoE 1A Gigabit Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks POE-24-24W-G 24V PoE 1A Gigabit Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks POE-24-24W-G Specs | Output Voltage | 24 VDC at 1.0A | | Ports | Gigabit LAN
PoE | | Remote Reset Capability | Yes | | Reset Button | Yes | | Indicators | Power | | Input Voltage | 90-260 VAC at 47-63 Hz | | Input Current | 0.6 A at 120 VAC
0.4 A at 240 VAC | | Inrush Current | <60 a peak at120 vac
<120 A Peak at 230 VAC | | Efficiency | 80+% | | Output Ripple | 1% (maximum) | | Switching Frequency | 65 kHz | | Line Regulation | ± 1% | | Load Regulation | ± 3% | | 4-Pair Powering | Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-) | | AC Connector | IEC-320 C6 | | Data In/PoE | RJ-45 shielded socket | | Surge Protection | Difference and common mode | | Clamping Protection | 11 V data, 60 V power | | Maximum Surge Discharge | 1500 A (8/20 µS) power | | Peak Pulse Current | 36 A (10/1000 µS) data | | Shunt Capacitance | <5 pf data | | Response Time | <1 nS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -22 to +158°F (-30 to +70°C) | | Operating Humidity | 35 to 95% (non-condensing) | | Compliance | IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B | | Dimensions | 3.47 x 2.24 x 1.30" / 8.81 x 5.69 x 3.30 cm | | Weight | 158.47 g (5.59 oz) | | | | Package Weight | 0.67 lb | | Box Dimensions (LxWxH) | 7.35 x 4.0 x 1.65" |
