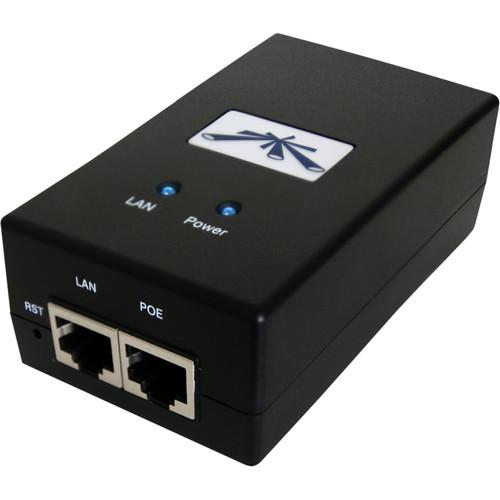

User Manual for Ubiquiti Networks POE-24-30W PoE Injector Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks POE-24-30W PoE Injector
- Product category: Power over Ethernet (PoE) Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Power over Ethernet (PoE)
|
User manual for the Ubiquiti Networks POE-24-30W PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The POE-24-30W PoE Injector from Ubiquiti Networks is designed for the company's airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Video / airVision products. This 24 VDC, 30 W adapter provides protection against surge, clamping, maximum surge discharge, and peak pulse current. - Protection
- Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground UPC: 810354023569 In the Box Ubiquiti Networks POE-24-30W PoE Injector (24 VDC, 30W) US Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks POE-24-30W PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks POE-24-30W Specs | Output Voltage | 24 VDC @ 1.25 A | | Input Voltage | 100 to 240 AC @ 50/60 Hz | | Input Current | 0.6 A @ 120 VAC
0.4 A @ 240 VAC | | Inrush Current | <60 a peak @ 120 vac
<120 A peak @ 230 VAC | | Efficiency | ± 83+% | | Output Ripple | 1% maximum | | Switching Frequency | 65 kHz | | Line Regulation | ±1% | | Load Regulation | ±3% | | 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) | | AC Connector | IEC-320 C6 | | Data In/PoE | RJ45 shielded socket | | Surge Protection | Difference and common mode | | Clamping Protection | Data: 11 V
Power: 60 V | | Peak Pulse Current | 36 A (10/1000 μs) data | | Shunt Capacitance | <5 pF data | | Response Time | <1 ns | | Compliance | IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -30 to 70°C / -22 to 158°C | | Operating Humidity | 35 to 95% non condensing | | Dimensions (L x W x H) | 3.70 x 2.36 x 1.30" / 94 x 60 x 33 mm | | Weight | 5.5 oz / 156 g | | | | Package Weight | 0.655 lb | | Box Dimensions (LxWxH) | 7.3 x 4.0 x 1.7" |
