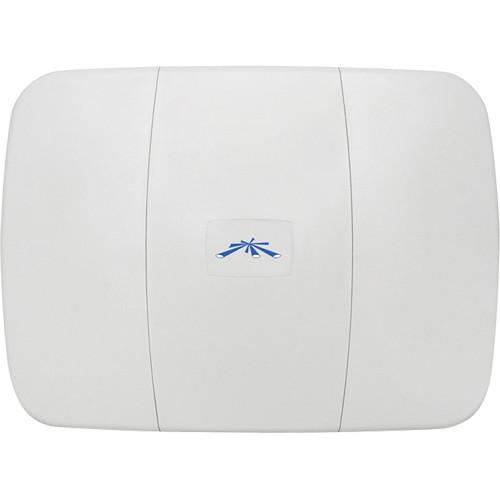

Product description The Power Station 5 Wireless Bridge from Ubiquiti has an Atheros AR2313 SOC, MIPS 4KC processor, 180 MHz and airOS software. It features 16MB SDRAM, 4MB flash memory, and 10/100 BASE-TX (Cat5, RJ-45) networking interface. The wireless access point offers 22 dBi (5400-5900 MHz) antenna gain. In the Box Ubiquiti Networks Power Station 5 Wireless Bridge Limited 1-Year Warranty Brochure PDF 120.5kbedrbbycradtrcaz Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks Power Station 5 Wireless Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks PS5-22V Specs | | | Processor | 180 MHz Atheros AR2313 SOC, MIPS 4KC | | Memory | 32 MB SDRAM, 8 MB flash | | Networking Interface | 1 x 10/100 BASE-TX (Cat5, RJ-45) Ethernet | | Adjustable Channel Size Support | 5/10/20/40 MHz | | Connectors | 2 x N-type external for external sector/omni/dish applications | | Software | AirOS | | | | Power Supply | 12V, 1A (12 W) supply and injector (included) | | Power Method | Passive Power over Ethernet (pairs 4, 5+; 7, 8 return) | | Power Consumption | Maximum: 6.5 W | | Operating Frequency | Radio: 5.475 to 5.825 GHz
TX Power Specifications
Modulation: 802.11g OFDM
Data Rate: Average TX: Tolerance
6 Mb/s: 26 dBm: ± 1.5 dB
9 Mb/s: 26 dBm: ± 1.5 dB
12 Mb/s: 26 dBm: ± 1.5 dB
18 Mb/s: 26 dBm: ± 1.5 dB
24 Mb/s: 26 dBm: ± 1.5 dB
36 Mb/s: 24 dBm: ± 1.5 dB
48 Mb/s: 23 dBm: ± 1.5 dB
54 Mb/s: 21 dBm: ± 1.5 dB
RX Power Specification
Modulation: 802.11g OFDM
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: ± 1.5 dB
9 Mb/s: -93 dBm: ± 1.5 dB
12 Mb/s: -91 dBm: ± 1.5 dB
18 Mb/s: -90 dBm: ± 1.5 dB
24 Mb/s: -86 dBm: ± 1.5 dB
36 Mb/s: -83 dBm: ± 1.5 dB
48 Mb/s: -77 dBm: ± 1.5 dB
54 Mb/s: -74 dBm: ± 1.5 dB | | | | Gain | 22 dBi | | Type | Outdoor, integrated vertical polarity panel | | Material | UV stabilized plastic | | VSWR | 1.4:1.0 | | Polarization | Vertical | | Front to Back Ratio | 30dB+ | | Operating Frequency | 5400 to 5900 MHz | | Impedance | 50 ohm | | Beamwidth | 3 dB: 6° | | Wind Survivability | 185 km/hour | | Range | Outdoor (BaseStation Antenna Dependent): Above 50 Km | | | | Operating Temperature | -40 to +185°F (-40 to +85°C) | | Operating Humidity | 5 to 95% (condensing) | | Shock and Vibration | ETSI300-019-1.4 | | | | Compliance | RoHS | | Approvals | FCC Part 15.247, IC RS210, CE | | | | Enclosure | Material: Die cast metal
Dimensions (L x W x H): 18.0 x 2.0 x 13.0" (45.7 x 5.1 x 33.0 cm) | | Weight | 6.7 lb (3.0 Kg) |
