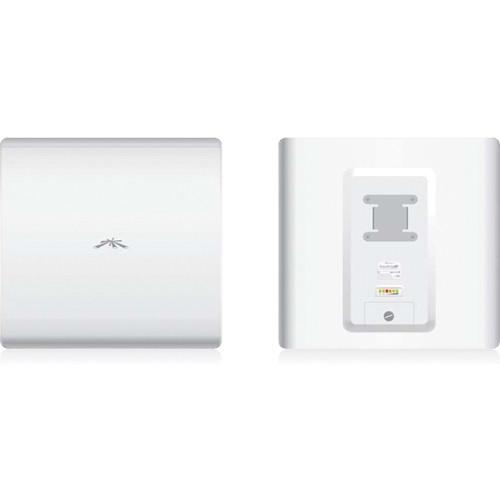

Product description The Ubiquiti Networks PowerBridge M365 AirMAX 3.65 GHz MIMO Bridge joins two networks together by creating a wireless connection up to 12 miles away. It sports a slim-profile panel antenna that offers a signal gain of 20 dBi and operates on the 3.65 GHz frequency. With Ubiquiti's airMAX technology, it supports the TDMA protocol so you may build a high-throughput network with low latency. In addition, an included mounting kit and PoE adapter allow you to mount the PowerBridge M365 on a pole quickly. - Slim-profile panel antenna that provides a wind-loading advantage and improved aesthetics over dish deployment
- Panel antenna design and dual-polarity performance make it suitable for point-to-point (PtP) bridging applications that require a compact form factor
- Features an all-in-one design for easy plug-and-play installation
- Supports TMDA airMAX protocol that enables scalability, high throughput, and low latency in unlicensed, multipoint networks
- Ubiquiti's versatile airOS firmware technology enables high-performance, outdoor multi-point networking
- airOS provides features such as custom wireless settings, bridge or routing configuration and system management services
- Integrated 20 dBi dual-polarity antenna
UPC: 810354021534 In the Box Ubiquiti Networks PowerBridge M365 AirMAX 3.65 GHz MIMO Bridge PoE Adapter (24V, 1A) Power Cord 2 x Pole Bracket 2 x Pole Clamp Mounting Hardware Limited 1-Year Warranty Brochure PDF 172kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks PowerBridge M365 AirMAX 3.65 GHz MIMO Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks PowerBridge M Specs | | | Processor | Atheros MIPS 24KC, 400 MHz | | Memory | 64 MB SDRAM, 8 MB flash | | Network Interface | 1 x 10/100 BASE-TX (CAT 5, RJ-45) Ethernet | | Power | Average Transmitting Power (±2 dB Tolerance)
25 dBm @ MCS0, MCS1, MCS2, MCS3, MCS8, MCS9, MCS10, and MCS11
24 dBm @ MCS4 and MCS12
23 dBm @ MCS5 and MCS13
22 dBm @ MCS6 and MCS14
20 dBm @ MCS7 and MCS15
Average Receiving Sensitivity (±2 dB Tolerance)
AirMax Standard:
-94 dBm @ MCS0
-93 dBm @ MCS1 and MCS8
-90 dBm @ MCS2
-89 dBm @ MCS3 and MCS10
-86 dBm @ MCS4
-83 dBm @ MCS5
-77 dBm @ MCS6
-74 dBm @ MCS7
-91 dBm @ MCS9
-87 dBm @ MCS11
-84 dBm @ MCS12
-79 dBm @ MCS13
-78 dBm @ MCS14
-75 dBm @ MCS15 | | Operating Frequency | 3650 to 3675 MHz | | Throughput | 150+ Mb/s | | | | Range | >12 mi (20+ km) | | Type | Integrated 20 dBi dual-polarity antenna | | Operating Range | 3.3 to 3.8 MHz | | Gain | 20 dBi | | Polarization | Dual linear | | Isolation | Cross Polarization: 28 dB (minimum) | | Max VSWR | 1.5:1 | | Beamwidth | H-Pol, V-Pol, and Elevation: 13.5° | | | | Approvals | FCC part 90 Y, RoHS | | Shock and Vibration | ETSI300-019-1.4 | | Power Supply | 24 V, 1 A surge protection integrated POE adapter (included) | | Power Consumption | 8 W | | Power Method | Passive PoE (pairs 4,5+; 7,8 return) | | Enclosure | Type: Outdoor UV stabilized plastic | | Mounting | Pole (mounting hardware included) | | Operating Temperature | -22 to 176°F (-30 to 80°C) | | Operating Humidity | 5 to 95% condensing | | Dimensions | 17.5 x 16.4 x 1.3" (44.5 x 41.6 x 3.4 cm) | | Weight | 8.42 lb (3.82 kg) | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 19.4 x 17.8 x 6.0" |
