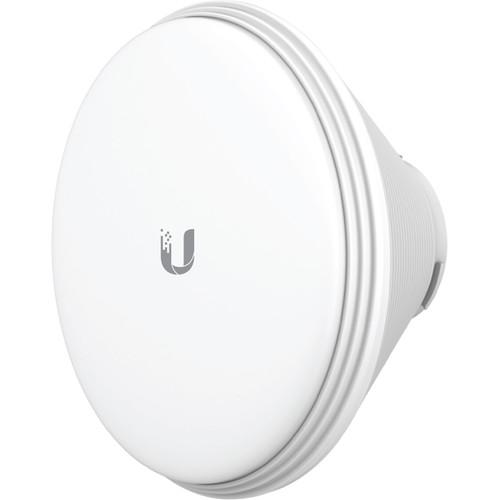

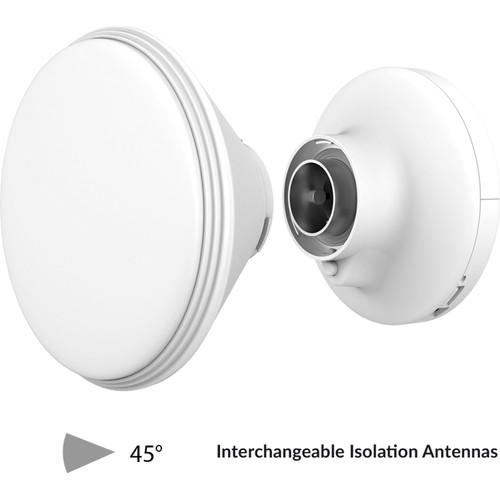

Product description Designed for use with PrismStation and IsoStation, the PRISMAP-5-45 airMAX ac Beamwidth Sector Isolation Antenna Horn from Ubiquiti Networks offers enhanced coverage with a wider beamwidth, enhanced antenna gain, and dual-linear polarization making it a viable networking solution for co-location configurations. Additionally, this antenna horn can be exchanged quickly and easily thanks to the built-in single button release. - Modular Design
- With flexible sectorization for optional antenna beamwidths, this PrismAP antenna is interchangeable and improves beam‑shaping for specific deployment and environmental needs. The PrismStation and IsoStation use horn antenna sectors designed for increased co-location performance without sacrificing gain.
- Scalability
- This symmetrical horn antenna offers enhanced scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
UPC: 817882022712 In the Box Ubiquiti Networks PRISMAP-5-45 airMAX ac Beamwidth Sector Isolation Antenna Horn Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks PRISMAP-5-45 airMAX ac Beamwidth Sector Isolation Antenna Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks PrismAP-5-30 Specs | Frequency Range | 5.15 - 5.85 GHz | | Gain | 15.5 dBi | | Beamwidth | HPOL Beamwidth: 45°
VPOL Beamwidth: 45°
Elevation Beamwidth: 45° | | Maximum VSWR | 1.7:1 | | Wind Survivability | 125 mph (200 km/h) | | Wind Loading | 12.6 lbf @ 125 mph (56 N @ 200 km/h) | | Polarization | Dual-linear | | Cross-Pol Isolation | 17 dB | | Dimensions | 6.9 x 7.2" / 175 x 184 mm | | Weight | 47.3 oz / 1.34 kg | | | | Package Weight | 1.81 lb | | Box Dimensions (LxWxH) | 8.3 x 7.95 x 4.9" |
