User Manual for Ubiquiti Networks PRISMAP-5-60 airMAX ac Beamwidth Sector Isolation Antenna Horn Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks PRISMAP-5-60 airMAX ac Beamwidth
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
 |
User manual for the Ubiquiti Networks PRISMAP-5-60 airMAX ac Beamwidth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

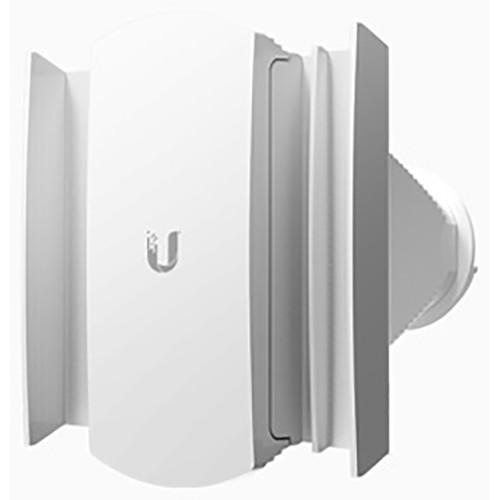

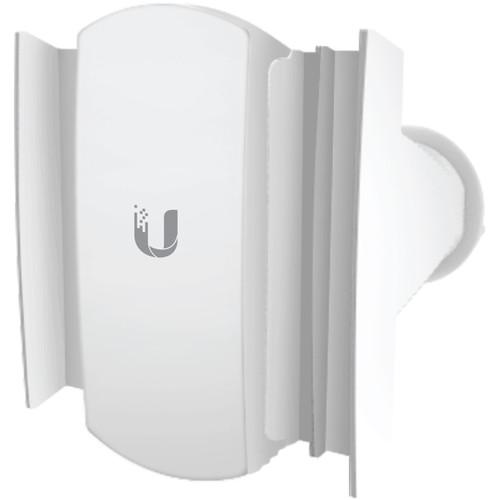

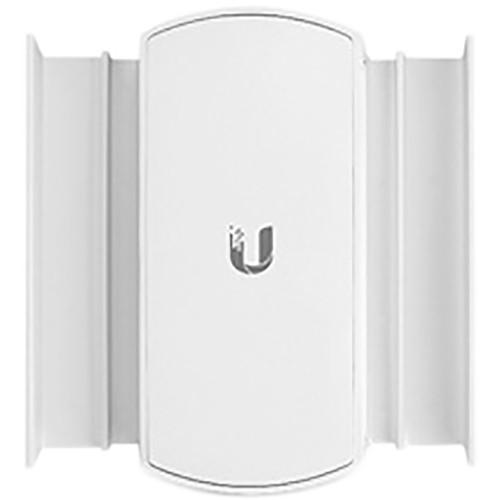

Product description Designed for use with PrismStation and IsoStation, the PRISMAP-5-60 airMAX ac Beamwidth Sector Isolation Antenna Horn from Ubiquiti Networks offers enhanced coverage with a wider beamwidth, enhanced antenna gain, and dual-linear polarization making it a viable networking solution for co-location configurations. Additionally, this antenna horn can be exchanged quickly and easily thanks to the built-in single button release. - Modular Design
- With flexible sectorization for optional antenna beamwidths, this PrismAP antenna is interchangeable and improves beam‑shaping for specific deployment and environmental needs. The PrismStation and IsoStation use horn antenna sectors designed for increased co-location performance without sacrificing gain.
- Enhanced Co-Location

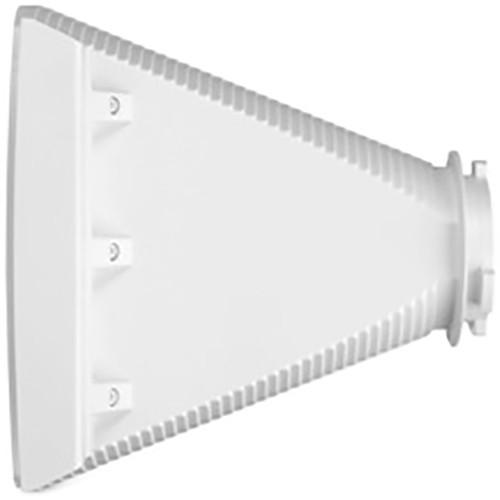

- This asymmetrical horn antenna has naturally attenuated side lobes and extremely low back radiation. It offers an improved front-to-back ratio along with low side lobe radiation. The asymmetrical horn antenna is ideal for cluster sector installations with high co-location requirements.
UPC: 817882020077 In the Box Ubiquiti Networks PRISMAP-5-60 airMAX ac Beamwidth Sector Isolation Antenna Horn Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks PRISMAP-5-60 airMAX ac Beamwidth Sector Isolation Antenna Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks PrismAP-5-60 Specs | Frequency Range | 5.15 - 5.85 GHz | | Gain | 16 dBi | | Beamwidth | HPOL Beamwidth: 60°
VPOL Beamwidth: 60°
Elevation Beamwidth: 30° | | Maximum VSWR | 2:1 | | Wind Survivability | 125 mph (200 km/h) | | Wind Loading | 11.2 lbf @ 125 mph (50 N @ 200 km/h) | | Polarization | Dual-linear | | Cross-Pol Isolation | 17 dB | | Dimensions | 6.40 x 6.82 x 6.73" / 161.6 x 173.3 x 170.9 mm | | Weight | 25.39 oz / 720 g | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 9.4 x 8.2 x 7.8" |
