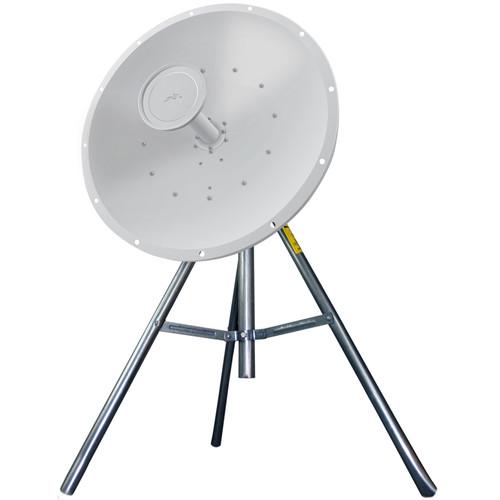

User Manual for Ubiquiti Networks RD-5G30-LW RocketDish AirMax 5.1 to 5.9 GHz Carrier Class 2x2 PtP Bridge Dish Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks RD-5G30-LW RocketDish AirMax 5.1
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks RD-5G30-LW RocketDish AirMax 5.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The pack of two 30 dBi RD-5G30-LW RocketDish AirMax 5.1 to 5.9 GHz Carrier Class 2x2 PtP Bridge Dish Antennas from Ubiquiti Networks helps create powerful 2x2 MIMO Point-to-Point (PtP) bridging and network backhaul applications when paired with a Rocket M BaseStation (available separately). RocketDish Antennas and Rocket M radios have been designed to seamlessly work together. Installing Rocket M on RocketDish requires no special tools — you simply snap it securely into place with the universal Rocket mount built into the antenna. You can pair RocketDish with Rocket M GPS to utilize Ubiquiti AirSync GPS Synchronization technology. AirSync enhances the hardware and software of Rocket M to use GPS signals for precision timing. RocketDish Antenna - Robust mechanical design for outdoor application use
- Plug-and-Play: Built-in Rocket mount so no tools are needed to install the Rocket BaseStation
- Extended depth of the dish reflector rejects noise interference in co-location deployments
- Design of the mounting bracket allows for ease of installation on a pole or tower
airMAX Technology - Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
- Eliminates hidden node collisions and maximizes airtime efficiency
- Provides scalability, high throughput, and low latency in unlicensed multipoint networks
- Intelligent QoS: Priority is given to voice/video for seamless streaming
- Supports high-speed, carrier-class links
- GPS Signal Reporting: Easily manage/monitor GPS satellite signals using AirOS software (not included)
UPC: 810354021954 In the Box Ubiquiti Networks RD-5G30-LW RocketDish AirMax 5.1 to 5.9 GHz Carrier Class 2x2 PtP Bridge Dish Antenna (30 dBi, 2-Pack) Universal Pole Mount Mounting Bracket Antenna Feed Lower Pole Bracket Upper Pole Bracket Support Arm Brace Protective Shroud 2 x Stabilizer Brackets 2 x Pole Clamps Weatherproof RF Connector Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks RD-5G30-LW RocketDish AirMax 5.1 to 5.9 GHz Carrier Class 2x2 PtP Bridge Dish Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks RD-5G30-LW Specs | Frequency Range | 5.1 to 5.9 GHz | | Gain | 30 dBi | | Hpol Beamwidth | 5.8° (3 dB) | | Vpol Beamwidth | 5.8° (3 dB) | | Front-to-Back Ratio | 30 dB | | Max VSWR | 1.6:1 | | Wind Survivability | 125 mph (200 kph) | | Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) | | Polarization | Dual linear | | Cross-pol Isolation | 35 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Dimensions | 25.6 x 25.6 x 15.2" (650 x 650 x 386 mm) exclude pole mount and Rocket (rocket sold separately) | | Weight | 16.3 lb (7.4 kg) includes pole mount and excludes Rocket (rocket sold separately) | | | | Package Weight | 43.8 lb | | Box Dimensions (LxWxH) | 28.0 x 28.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
