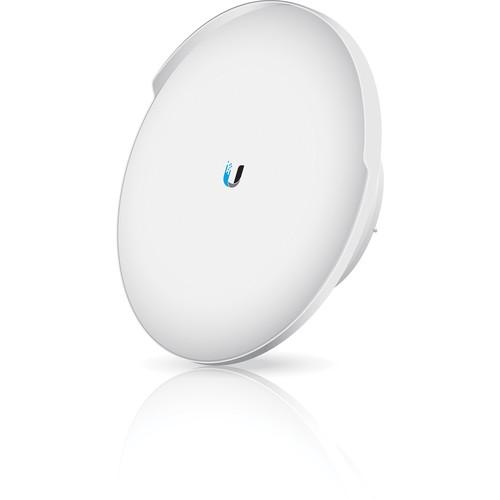

User Manual for Ubiquiti Networks RD-5G31-AC RocketDish airMAX Carrier Class 2x2 PtP Bridge Dish Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks RD-5G31-AC RocketDish airMAX Carrier
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks RD-5G31-AC RocketDish airMAX Carrier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The RD-5G31-AC RocketDish AirMAX 2x2 PtP Bridge Dish Antenna from Ubiquiti Networks provides a gain of 31 dBi for creating a high-speed, reliable Point-to-Point (PtP) bridge and networking backhaul when paired with an optional Rocket M5 or Rocket5ac BaseStation. Ubiquiti has improved the RD-5G31's F/B ratio and outfitted it with high isolation to create a better Signal-to-Noise Ratio (SNR), which allows the use of higher-order modulation to increase the maximum data rate. With an improved F/B ratio and lower sidelobes, interference from other transmitters in the area is lowered. In addition, the antenna operates under the 5 GHz frequency and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots.
Ubiquiti Networks has designed the RD-5G31-AC RocketDish for outdoor use and included brackets and fasteners so you can mount it to a pole. To withstand nature's harsh conditions, the dish and mounting bracket of the antenna are crafted with lightweight aluminum. For easy alignment of the dish, a bubble level is on board. Furthermore, the dish is protected with an included radome, and the cables and connectors are housed in a metal shroud. Design and Performance - High isolation and improved F/B ratio for better a Signal-to-Noise Ratio (SNR), which allows the use of higher-order modulation and maximum data rate
- The front-to-back ratio and low sidelobes reduce interference providing a 31dBi gain
- Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller
Hardware Features - Built-in Rocket base station mount eliminates the need for installation tools
- The aluminum mounting bracket is designed to securely mount and maintain the position of the dish during harsh outdoor conditions
- The bubble level allows for easy alignment
- The included radome protects the inner components, while the metal shroud safeguards the cables and connectors
- Construction materials resist corrosion and are designed to withstand harsh outdoor conditions
UPC: 810354021411 In the Box Ubiquiti Networks RD-5G31-AC RocketDish airMAX Carrier Class 2x2 PtP Bridge Dish Antenna Protective Radome Mounting Bracket Protective Shroud 2 x Pole Clamps 2 x Stabilizer Brackets 2 x Weatherproof RF Jumpers Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks RD-5G31-AC RocketDish airMAX Carrier Class 2x2 PtP Bridge Dish Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks RD-5G31-AC Specs | Frequency Range | 5.1 to 5.8 GHz | | Gain | 31 dBi | | Max VSWR | 1.4:1 | | Wind Survivability | 125 mph (200 km/h) | | Wind Loading | 231 lbf (1028 N) @ 125 mph (200 km/h) | | Polarization | Dual linear | | Cross-pol Isolation | 35 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Dimensions | 29.4 x 29.4 x 13.7" (74.8 x 74.8 x 34.9 cm)
Dimensions exclude pole mount and RocketM | | Weight | 16.8 lb (7.6 kg)
Weight includes pole mount and excludes RocketM | | Compatibility | RocketM5 and Rocket5ac | | | | Package Weight | 28.4 lb | | Box Dimensions (LxWxH) | 31.0 x 31.0 x 14.0" |
