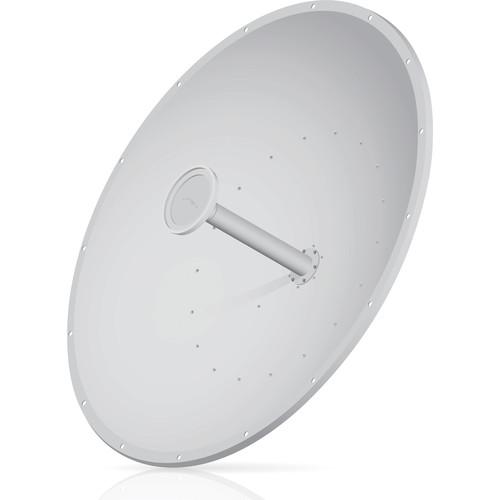

User Manual for Ubiquiti Networks RD-5G34 RocketDish AirMax 2x2 PtP Bridge Dish Antenna Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks RD-5G34 RocketDish AirMax 2x2
- Product category: Antennas & Accessories Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Antennas & Accessories
|
User manual for the Ubiquiti Networks RD-5G34 RocketDish AirMax 2x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The RD-5G34 RocketDish AirMax 2x2 PtP Bridge Dish Antenna from Ubiquiti Networks features a gain of 34 dBi that helps create a Point-to-Point (PtP) bridge for networking applications when paired with an optional Rocket M BaseStation. It delivers dual-polarity performance and operates in the 5 GHz frequency, which works well for long-distance links. Furthermore, it comes with a shroud, Rocket mount, and pole-mounting support. RocketDish Antenna - Robust mechanical design for outdoor application use
- Plug-and-Play: Built-in Rocket mount so no tools are needed to install the Rocket BaseStation
airMAX Technology - Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
- Eliminates hidden node collisions and maximizes airtime efficiency
- Provides scalability, high throughput, and low latency in unlicensed multipoint networks
- Intelligent QoS: Priority is given to voice/video for seamless streaming
- Supports high-speed, carrier-class links
GPS Synchronization (When Paired with Rocket M GPS) - Rocket M GPS units seamlessly integrate with AirMax RocketDish Antennas to enable you to utilize Ubiquiti AirSync GPS Synchronization technology
- AirSync technology enhances the hardware and software of Rocket M to use GPS signals for precision timing
- GPS Signal Reporting: Easily manage/monitor GPS satellite signals using AirOS software (not included)
- No Co-Location Interference: Synchronized transmission among Rocket M GPS-powered BaseStations (available separately) effectively eliminates co-location interference
- Channel Re-Use: Frequency reuse for increased scalability
UPC: 810354021299 In the Box Ubiquiti Networks RD-5G34 RocketDish AirMax 2x2 PtP Bridge Dish Antenna Universal Pole Mount Protective Shroud Rocket M Bracket Weatherproof RF Jumpers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks RD-5G34 RocketDish AirMax 2x2 PtP Bridge Dish Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks RD-5G34 Specs | Frequency Range | 5.1 to 5.8 GHz | | Gain | 34 dBi | | Hpol Beamwidth | 3° (3 dB) | | Vpol Beamwidth | 3° (3 dB) | | Front-to-Back Ratio | 42 dB | | Max VSWR | 1.4:1 | | Wind Loading | 400 lbf @ 125 mph | | Wind Survivability | 125 mph | | Polarization | Dual-linear | | Cross-pol Isolation | 35 dB minimum | | ETSI Specification | EN 302 326 DN2 | | Diameter | 41.3 x 41.3 x 16.6" (105 x 105 x 42.1 cm) | | Weight | 29.8 lb (13.5 kg) | | | | Package Weight | 46.5 lb | | Box Dimensions (LxWxH) | 44.0 x 44.0 x 9.5" |
