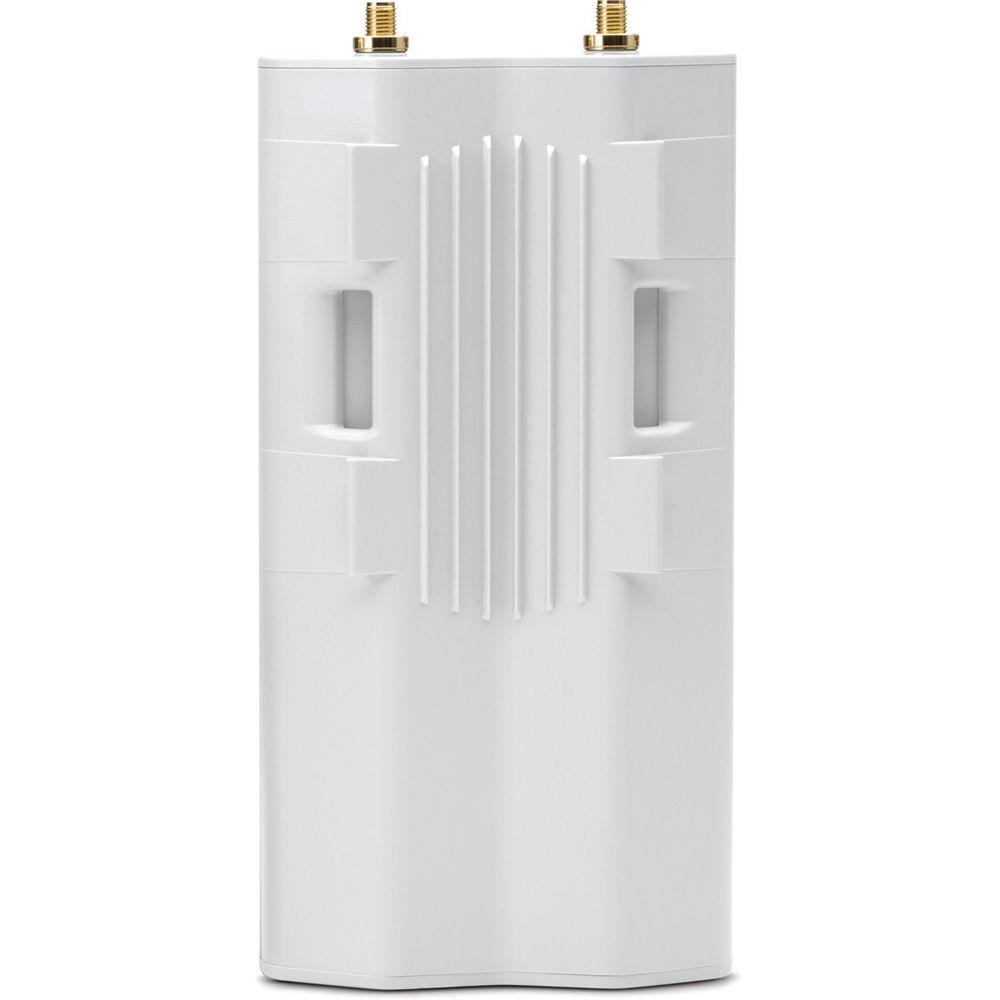

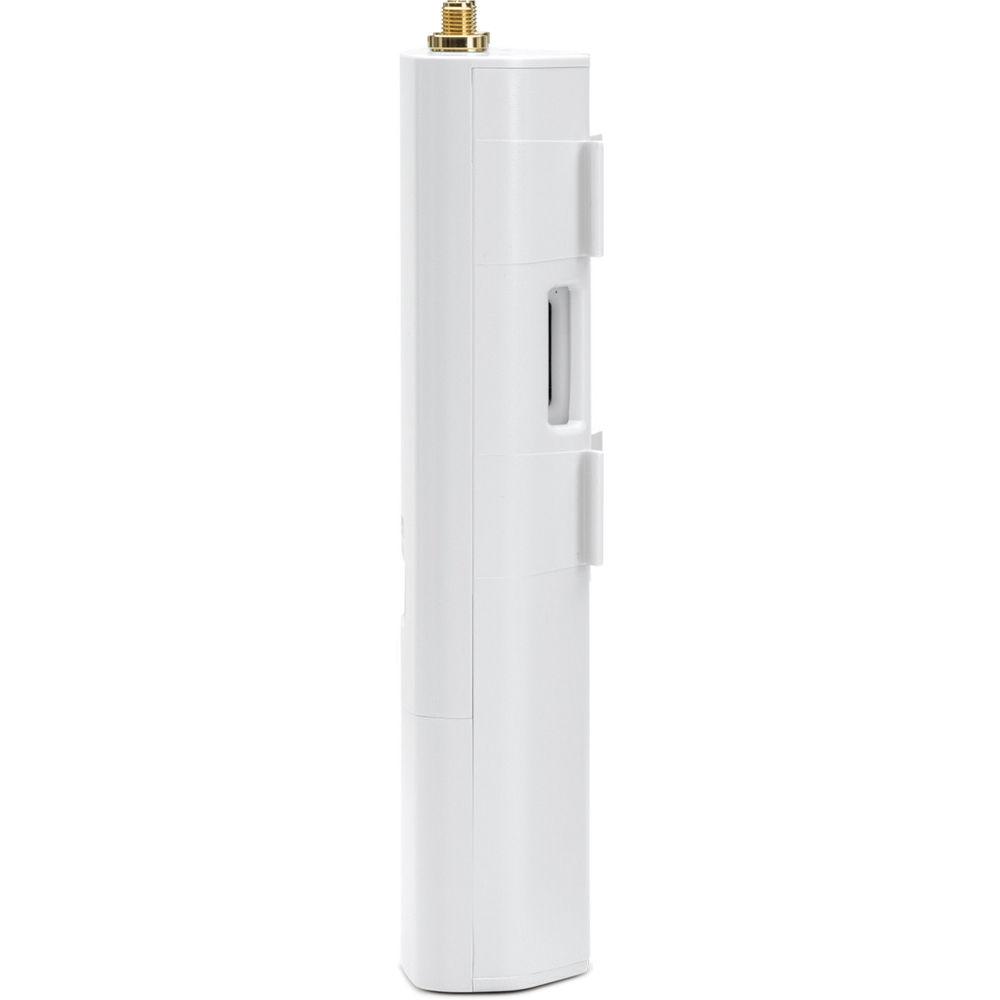

Product description The RocketM2 2.4 GHz 2x2 MIMO airMAX BaseStation from Ubiquiti Networks features a mix-and-match industrial design, that supports speeds of up to 150+ Mb/s real TCP/IP throughput. It is suitable for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications. You have the freedom to locate, deploy, and operate the Rocket in this unlicensed band. Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.The 2.4 GHz frequency band is free to use, however, it is crowded due to interference from other wireless devices. Also, there are only three non-overlapping, 20 MHz channels available for use. The Rocket enclosure is built to survive harsh environments and fits the Rocket mount built into every airMAX antenna. You can pair the rocket with the appropriate antenna for your PtP link or PtMP network. - Plug-and-Play Integration
- Rocket radios and airMAX antennas are designed to seamlessly work together. Every airMAX sector, RocketDish, Omni, or Yagi antenna has a built-in rocket mount, so installation requires no special tools. Snap the rockets securely into place and mount the antenna, then you have the optimal combination of Rocket radio and airMAX antenna for your PtP or PtMP application.
- airMAX Technology
- Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS: Priority is given to voice/video for seamless streaming.
Scalability: High capacity and scalability.
Long Distance: Capable of high-speed, carrier-class links. - airOS
- Built upon an intuitive user interface foundation, airOS 5 is an advanced operating system for Ubiquiti airMAX product. airOS provides additional advantages, including protocol support, long-range PtP link mode, automatic/manual transmit power control, automatic distance selection (ACK timing), device statistics, and diagnostic tools.
- airView
- Integrated airView provides advanced spectrum analyzer functionality such as waterfall, waveform, and real-time spectral views that allow operators to identify noise signatures, and plan their networks to minimize noise interference. Waterfall aggregates energy over time for each frequency. Waveform aggregates energy collected. Real-time feature shows energy in real time as a function of frequency. Recording automates airView to record and report results.
- airControl
- airControl is a powerful and intuitive, Web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, management of groups of devices, and task-scheduling.
UPC: 810354020278 In the Box Ubiquiti Networks RocketM2 2.4 GHz 2x2 MIMO airMAX BaseStation Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks RocketM2 2.4 GHz 2x2 MIMO airMAX BaseStation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks ROCKETM2-US Specs | | | Processor | MIPS 74Kc | | Memory | 128 MB SDRAM, 8 MB flash | | Networking Interface | 1 x 10/100 Mb/s | | RF Connections | 2 x RP-SMA (waterproof) | | LED Indicators | 1 x Power
1 x Ethernet
4 x Signal strength | | Power Consumption | 6.5 W (maximum) | | Power Supply | 24 V, 1.0 A PoE adapter | | Power Method | Passive PoE (pairs 4, 5+; 7, 8 return) | | ESD/EMP Protection | ± 24 KV air/contact | | Operating Frequency | 2402 - 2462 MHz | | Output Power | 28 dBm | | TX Power Specifications | Modulation: 802.11g
Data Rate: 1 - 24 Mb/s
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11g
Data Rate: 36 Mb/s
Average TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 802.11g
Data Rate: 48 Mb/s
Average TX: 25 dBm
Tolerance: ± 2 dB
Modulation: 802.11g
Data Rate: 54 Mb/s
Average TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS0
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS1
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS2
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS3
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS4
Average TX: 27 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS5
Average TX: 25 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS6
Average TX: 23 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS7
Average TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS8
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS9
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS10
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS11
Average TX: 28 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS12
Average TX: 27 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS13
Average TX: 25 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS14
Average TX: 23 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS15
Average TX: 22 dBm
Tolerance: ± 2 dB | | RX Power Specifications | Modulation: 802.11g
Data Rate: 1 - 24 Mb/s
Sensitivity: -97 dBm minimum
Tolerance: ± 2 dB
Modulation: 802.11g
Data Rate: 36 Mb/s
Sensitivity: -80 dBm
Tolerance: ± 2 dB
Modulation: 802.11g
Data Rate: 48 Mb/s
Sensitivity: -77 dBm
Tolerance: ± 2 dB
Modulation: 802.11g
Data Rate: 54 Mb/s
Sensitivity: -75 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS0
Sensitivity: -96 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS1
Sensitivity: -95 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS2
Sensitivity: -92 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS3
Sensitivity: -90 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS4
Sensitivity: -86 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS5
Sensitivity: -83 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS6
Sensitivity: -77 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS7
Sensitivity: -74 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS8
Sensitivity: -95 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS9
Sensitivity: -93 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS10
Sensitivity: -90 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS11
Sensitivity: -87 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS12
Sensitivity: -84 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS13
Sensitivity: -79 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS14
Sensitivity: -78 dBm
Tolerance: ± 2 dB
Modulation: 802.11n/airMAX
Data Rate: MCS15
Sensitivity: -75 dBm
Tolerance: ± 2 dB | | | | Modes | Access Point and station | | Services | Web server, SNMP, SSH server, telnet, ping watchdog, DHCP, NAT, bridging, and routing | | Utilities | Antenna alignment tool, discovery utility, site survey, ping, traceroute, and speed test | | Distance Adjustment | Dynamic ack and ack-less mode | | Power Adjustment Range | Software adjustable UI or CLI | | Security | WPA2 AES only | | QoS | Supports Packet Level Classification WMM and User Customer Level: High/medium/low | | Statistical Reporting | Up time, packet errors, data rates, wireless distance, Ethernet link rate | | Other | Remote reset support, software enabled/disabled, VLAN support, 64QAM, 5/8/10/20/30/40 MHz channel width support | | Special Features | airMAX mode, traffic shaping with burst support, discovery protocol, frequency band offset, and ack-less mode | | | | Wireless Approvals | FCC, IC, and CE | | RoHS compliance | Yes | | Enclosure Characteristics | Outdoor UV stabilized plastic | | Shock and Vibration | ETSI300-019-1.4 | | Operating Temperature | -22 to 167°F (-30 to 75°C) | | Operating Humidity | 5 to 95% (non-condensing) | | Dimensions | 6.30 x 3.15 x 1.18" (160.00 x 80.00 x 30.00 mm) | | Weight | 17.63 oz (500.00 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.3 x 5.0 x 3.2" |
