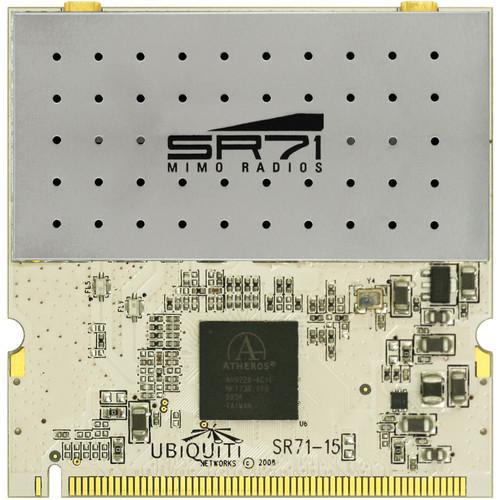

Product description The SR71-15 5 GHz 802.11n Radio Module from Ubiquiti Networks contains an Atheros AR9220 chipset with DFS support, and features 802.11a/n network compatibility while remaining backwards compatible with legacy 802.11a/b/g network standards. Installation is simple with a 32-bit mini-PCI type IIIA interface while two MMCX antenna ports support 2x2 MIMO operation. Once configured, you can initiate security protocols with 802.1i with AES-CCM and TKIP encryption, 802.1x, and 64/128/152-bit WEP encryption standards compatibility. In the Box Ubiquiti Networks SR71-15 5 GHz 802.11n Radio Module Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks SR71-15 5 GHz 802.11n Radio Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks SR71-15 Specs | | | Chipset | Atheros AR9220 with DFS SUPPORT | | Network Standards Compatibility | IEEE 802.11a/n | | Interface | 32-bit mini-PCI Type IIIA | | Operating Voltage | 3.3 VDC | | Antenna Connector | 2 x MMCX for 2x2 MIMO Operation | | Temperature Range | -40 to 185°F / -40 to 85°C | | Security | 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152-bit WEP | | Data Rates | Legacy 802.11a/b/g (1-54 Mbps)
802.11n (up to 300 Mbps) | | RoHS Compliance | Yes | | | | Wireless Approvals | FCC , Industry Canada, CE | | | | Operating Frequency | 5475-5825 MHz | | TX Power Specifications | 11a
DataRate Avg. TX Tolerance
1-24 Mbps 25 dBm +/-2 dB
36 Mbps 24 dBm +/-2 dB
48 Mbps 22 dBm +/-2 dB
54 Mbps 21 dBm +/-2 dB
5 GHz 11n HT20
DataRate Avg. TX Tolerance
MCS0 25 dBm +/-2 dB
MCS1 25 dBm +/-2 dB
MCS2 25 dBm +/-2 dB
MCS3 24 dBm +/-2 dB
MCS4 23 dBm +/-2 dB
MCS5 22 dBm +/-2 dB
MCS6 21 dBm +/-2 dB
MCS7 19 dBm +/-2 dB
MCS8 25 dBm +/-2 dB
MCS9 25 dBm +/-2 dB
MCS10 25 dBm +/-2 dB
MCS11 24 dBm +/-2 dB
MCS12 23 dBm +/-2 dB
MCS13 22 dBm +/-2 dB
MCS14 21 dBm +/-2 dB
MCS15 19 dBm +/-2 dB | | RX Specification | 11a
DataRate Sensitivity Tolerance
1-24 Mbps -97 dBm +/-3 dB
36 Mbps -90 dBm +/-3 dB
48 Mbps -86 dBm +/-3 dB
54 Mbps -84 dBm +/-3 dB
5 GHz 11n HT20
DataRate Sensitivity Tolerance
MCS0 -97 dBm +/-3 dB
MCS1 -96 dBm +/-3 dB
MCS2 -93 dBm +/-3 dB
MCS3 -91 dBm +/-3 dB
MCS4 -87 dBm +/-3 dB
MCS5 -84 dBm +/-3 dB
MCS6 -78 dBm +/-3 dB
MCS7 -75 dBm +/-3 dB
MCS8 -98 dBm +/-3 dB
MCS9 -97 dBm +/-3 dB
MCS10 -94 dBm +/-3 dB
MCS11 -92 dBm +/-3 dB
MCS12 -88 dBm +/-3 dB
MCS13 -85 dBm +/-3 dB
MCS14 -79 dBm +/-3 dB
MCS15 -76 dBm +/-3 dB | | | | Average Current Consumption | 6 Mbps
100% TX (using TX99 test tool): 1.30 A
Real-World (using iPerf long file transfer): 0.75 A
Idle: 0.25 A
MCSO, HT20
100% TX (using TX99 test tool): 1.30 A
Real-World (using iPerf long file transfer): 0.75 A
Idle: 0.25 A
MCS15, HT20
100% TX (using TX99 test tool): 0.70 A
Real-World (using iPerf long file transfer): 0.50 A
Idle: 0.25 A
MCS15, HT40
100% TX (using TX99 test tool): 0.70 A
Real-World (using iPerf long file transfer): 0.50 A
Idle: 0.25 A | | Range Performance | Indoor (antenna dependent): Up to 656 ft / 200 m
Outdoor (antenna dependent): Over 31 mi / 50 km | | | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
