User Manual for Ubiquiti Networks SR71-X High-Power 802.11n Express Card Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks SR71-X High-Power 802.11n Express
- Product category: Wireless Adapters & Cards Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Adapters & Cards
|
User manual for the Ubiquiti Networks SR71-X High-Power 802.11n Express contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

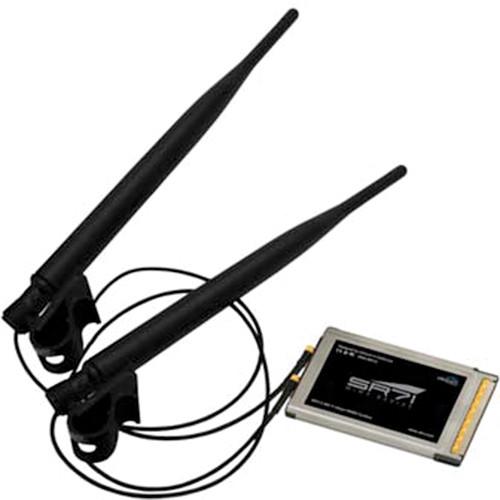

Product description The SR71-X High-Power 802.11n Express Card from Ubiquiti Networks provides power and speed for outdoor applications. It features the Atheros AR9280 with the DFS support chipset, and is equipped with two MMCX for 2x2 MIMO antenna ports. In the Box Ubiquiti Networks SR71-X High-Power 802.11n Express Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks SR71-X High-Power 802.11n Express Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks SR71X Specs | | | Wireless Chipset | Atheros AR9220 with DFS SUPPORT | | Radio Operation | IEEE 802.11a/b/g/n | | Interface | Express Card | | Antenna Ports | 2 x MMCX for 2x2 MIMO Operation | | Security | 802.11i with AES-CCM & TKIP Encryption
802.1x
64/128/152-bit WEP | | Data Rates | Legacy 802.11a/b/g (1-54 Mb/s)
802.11n (up to 300 Mb/s) | | Operation Voltage | 3.3 VDC | | Compliance | RoHS | | Temperature Range | -4 to 158°F (-20 to +70°C) | | | | 2.4 GHz TX Power Specifications | Modulation: 11b/g
Data Rate: 1- 24 Mb/s
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 11b/g
Data Rate: 36 Mb/s
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 11b/g
Data Rate: 48 Mb/s
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 11b/g
Data Rate: 54 Mb/s
Avg. TX: 20 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS0
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS1
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 2.4GHz 11n HT20
Data Rate: MCS2
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS3
Avg. TX: 25 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS4
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS5
Avg. TX: 23dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS6
Avg. TX: 21 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS7
Avg. TX: 19 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS8
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS9
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS10
Avg. TX: 26 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS11
Avg. TX: 25 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS12
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS13
Avg. TX: 23 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS14
Avg. TX: 21 dBm
Tolerance: ± 2 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS15
Avg. TX: 19 dBm
Tolerance: ± 2 dB | | 2.4 GHz RX Specification | Modulation: 11b/g
Data Rate: 1- 24 Mb/s
Sensitivity: -97 dBm
Tolerance: ± 3 dB
Modulation: 11b/g
Data Rate: 36 Mb/s
Sensitivity: -90 dBm
Tolerance: ± 3 dB
Modulation: 11b/g
Data Rate: 48 Mb/s
Sensitivity: -86 dBm
Tolerance: ± 3 dB
Modulation: 11b/g
Data Rate: 54 Mb/s
Sensitivity: -84 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS0
Sensitivity: -97 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS1
Sensitivity: -96 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS2
Sensitivity: -93 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS3
Sensitivity: -91 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS4
Sensitivity: -87 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS5
Sensitivity: -84 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS6
Sensitivity: -78 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS7
Sensitivity: -75 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS8
Sensitivity: -98 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS9
Sensitivity: -97 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS10
Sensitivity: -94 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS11
Sensitivity: -92 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS12
Sensitivity: -88 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS13
Sensitivity: -85 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS14
Sensitivity: -79 dBm
Tolerance: ± 3 dB
Modulation: 2.4 GHz 11n HT20
Data Rate: MCS15
Sensitivity: -76 dBm
Tolerance: ± 3 dB | | | | 5 GHz TX Power Specifications | Modulation: 11a
Data Rate: 1- 24 Mb/s
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 11a
Data Rate: 36 Mb/s
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 11a
Data Rate: 48 Mb/s
Avg. TX: 20 dBm
Tolerance: ± 2 dB
Modulation: 11a
Data Rate: 54 Mb/s
Avg. TX: 19 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS0
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS1
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS2
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS3
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS4
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS5
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS6
Avg. TX: 20 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS7
Avg. TX: 17 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS8
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS9
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS10
Avg. TX: 24 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS11
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS12
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS13
Avg. TX: 22 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS14
Avg. TX: 20 dBm
Tolerance: ± 2 dB
Modulation: 5 GHz 11n
Data Rate: MCS15
Avg. TX: 17 dBm
Tolerance: ± 2 dB | | 5 GHz RX Specifications | Modulation: 11a
Data Rate: 1- 24 Mb/s
Sensitivity: -96 dBm
Tolerance: ± 3 dB
Modulation: 11a
Data Rate: 36 Mb/s
Sensitivity: -95 dBm
Tolerance: ± 3 dB
Modulation: 11a
Data Rate: 48 Mb/s
Sensitivity: -94 dBm
Tolerance: ± 3 dB
Modulation: 11a
Data Rate: 54 Mb/s
Sensitivity: -91 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS0
Sensitivity: -97 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS1
Sensitivity: -96 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS2
Sensitivity: -93 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS3
Sensitivity: -91 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS4
Sensitivity: -87 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS5
Sensitivity: -84 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS6
Sensitivity: -78 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS7
Sensitivity: -75 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS8
Sensitivity: -98 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS9
Sensitivity: -97 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS10
Sensitivity: -94 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS11
Sensitivity: -92 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS12
Sensitivity: -88 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS13
Sensitivity: -85 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS14
Sensitivity: -79 dBm
Tolerance: ± 3 dB
Modulation: 5 GHz 11n
Data Rate: MCS15
Sensitivity: -76 dBm
Tolerance: ± 3 dB | | | | Current Consumption | Mode: 6 Mb/s: MCS0,HT20: MCS15,HT20: MCS15, HT40
100% TX (using TX99 test tool): 1.30A: 1.30 A: 0.70A: 0.70A
Real-World (using iPerf long file transfer): 0.75 A: 0.70A: 0.50A: 0.50A
Idle: 0.25A: 0.25A: 0.25A: 0:25A | | | | Indoor | Antenna Dependent: Up to 656.1' (200.0 m) | | Outdoor | Antenna Dependent: Over 31 miles (50 km) | | | | Wireless Modular Approvals | FCC, Industry Canada, CE (100 mW limited) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 8.1 x 3.7 x 1.2" |
