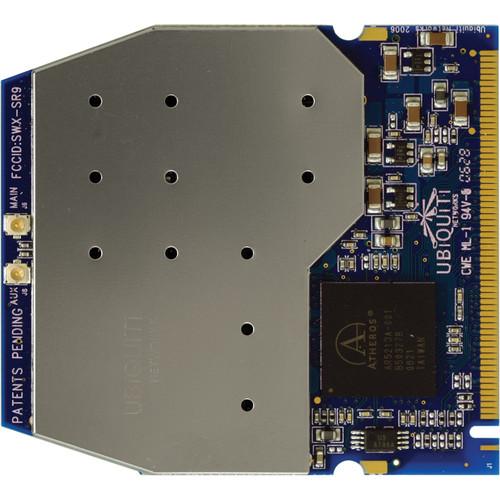

User Manual for Ubiquiti Networks SuperRange9 700mW Mini-PCI Adapter Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks SuperRange9 700mW Mini-PCI Adapter
- Product category: Wireless Adapters & Cards Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Adapters & Cards
|
User manual for the Ubiquiti Networks SuperRange9 700mW Mini-PCI Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The SuperRange9 700mW Mini-PCI Adapter from Ubiquiti Networks is a 900 MHz wireless solution which uses Ubiquiti's Frequency Freedom radio technology to seamlessly transform standard 802.11 silicon to non-standard and proprietary frequencies. The SuperRange9 features high-output power, and its receive sensitivity, combined with noise immunity performance, offers fast data rates and robust operation in the 902 to 928 MHz ISM band. It is compatible with MADWifi. In the Box Ubiquiti Networks SuperRange9 700mW Mini-PCI Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks SuperRange9 700mW Mini-PCI Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks SR9 Specs | | | Radio | Operation: Proprietary 900 MHz based on 802.11b/g CCK/OFDM | | Interface | 32-bit mini-PCI Type IIIA | | Antenna Ports | Dual u.fl Note: Primary only required; secondary optional for diversity | | Security | WPA, WPA2, AES-CCM, and TKIP Encryption
802.1x
64/128/152-bit WEP | | Data Rates | 1 to 11 Mb/s (802.11b)
6 to 54 Mb/s (802.11g) | | Voltage | 3.3 VDC | | Temperature Range | -4 to +158°F (-20 to +70°C) | | | | 900 MHz TX Specifications | Modulation: 802.11b
Data Rate: 1 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11b
Data Rate: 2 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11b
Data Rate: 5.5 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11b
Data Rate: 11 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 6 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 9 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 12 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 18 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 24 Mb/s
TX Power: 28 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 36 Mb/s
TX Power: 26 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 48 Mb/s
TX Power: 23 dBm
Tolerance: ± 1.5 dB
Modulation: 802.11g OFDM
Data Rate: 54 Mb/s
TX Power: 21 dBm
Tolerance: ± 1.5 dB | | 900 MHz RX Specifications | Modulation: 802.11b
Data Rate: 1 Mb/s
Sensitivity: -93 dBm
Tolerance: ± 2 dB
Modulation: 802.11b
Data Rate: 2 Mb/s
Sensitivity: -92 dBm
Tolerance: ± 2 dB
Modulation: 802.11b
Data Rate: 5.5 Mb/s
Sensitivity: -91 dBm
Tolerance: ± 2 dB
Modulation: 802.11b
Data Rate: 11 Mb/s
Sensitivity: -88 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 6 Mb/s
Sensitivity: -91 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 9 Mb/s
Sensitivity: -90 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 12 Mb/s
Sensitivity: -88 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 18 Mb/s
Sensitivity: -87 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 24 Mb/s
Sensitivity: -83 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 36 Mb/s
Sensitivity: -83 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 48 Mb/s
Sensitivity: -74 dBm
Tolerance: ± 2 dB
Modulation: 802.11g OFDM
Data Rate: 54 Mb/s
Sensitivity: -71 dBm
Tolerance: ± 2 dB | | | | 900 MHz TX Specifications | Modulation: 802.11b
Data Rate: 1 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11b
Data Rate: 2 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11b
Data Rate: 5.5 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11b
Data Rate: 11 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 6 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 9 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 12 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 18 Mb/s
TX Power: 28 dBm
Tolerance: ± 100 dB
Modulation: 802.11g OFDM
Data Rate: 24 Mb/s
Current: 1.2 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 36 Mb/s
Current: 1.1 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 48 Mb/s
Current: 1.0 A
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 54 Mb/s
Current: 0.85 A
Tolerance: ± 100 mA | | 900 MHz RX Specifications | Modulation: 802.11b
Data Rate: 1 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11b
Data Rate: 2 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11b
Data Rate: 5.5 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11b
Data Rate: 11 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 6 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 9 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 12 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 18 Mb/s
Current: 500 mA
Tolerance: ± 100 dB
Modulation: 802.11g OFDM
Data Rate: 24 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 36 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 48 Mb/s
Current: 500 mA
Tolerance: ± 100 mA
Modulation: 802.11g OFDM
Data Rate: 54 Mb/s
Current: 500 mA
Tolerance: ± 100 mA | | | | Channel Sizes | 907 MHz: 5/10 MHz
912 MHz: 5/10/20 MHz
917 MHz: 5/10 MHz
922 MHz: 5/10/20 MHz | | | | Indoor | Antenna dependent: Up to 100 m | | Outdoor | Antenna dependent: Over 1km | | | | Operating System | Supports Linux MADWIFI, WindowsXP, Windows2000 | | Advanced Mobility / QuickHandoff | WindowsXP/2000 Utility with enhanced mobility driver from Ubiquiti | | Cisco Support | CCX 4.0 Note: Supported Driver/Utility also available from Ubiquiti | | | | Wireless Modular Approvals | FCC and Industry Canada |
