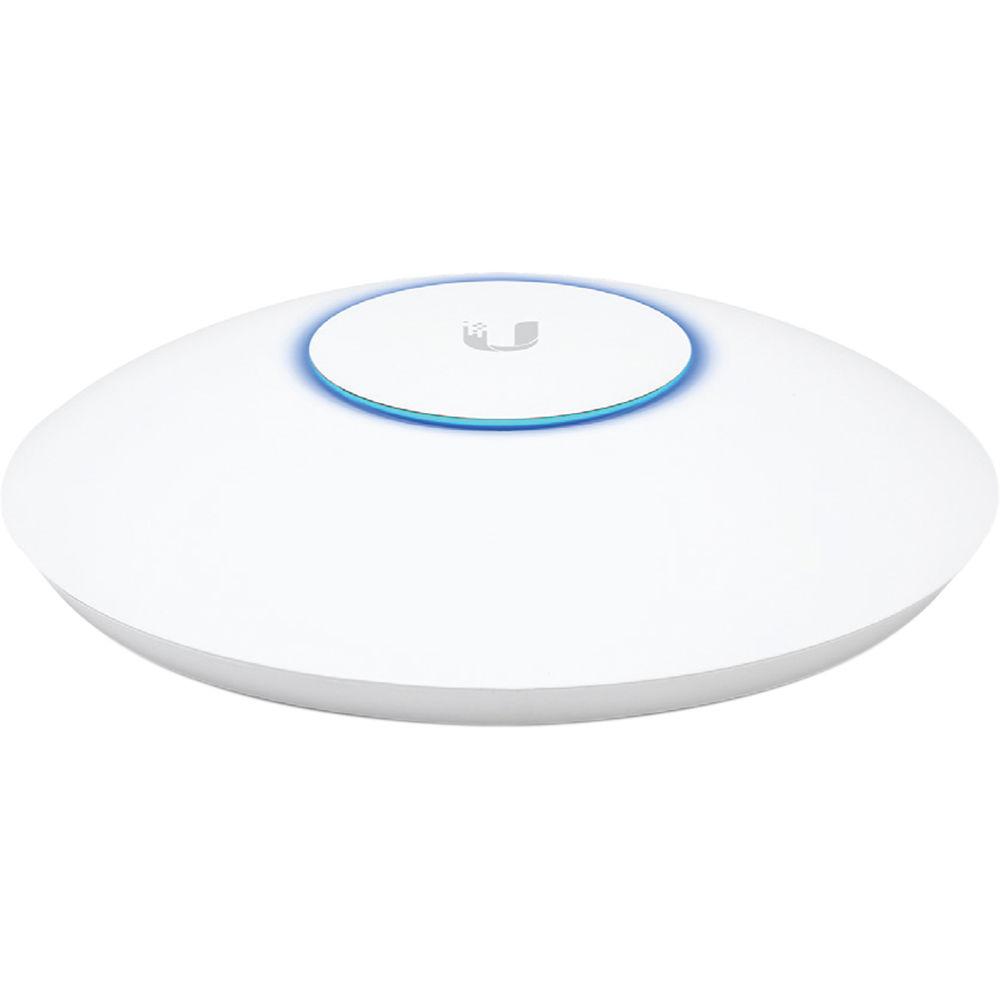

User Manual for Ubiquiti Networks UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UAP-AC-HD-US Wave 2 Enterprise
- Product category: Wireless Access Points Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Access Points
 |
User manual for the Ubiquiti Networks UAP-AC-HD-US Wave 2 Enterprise contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

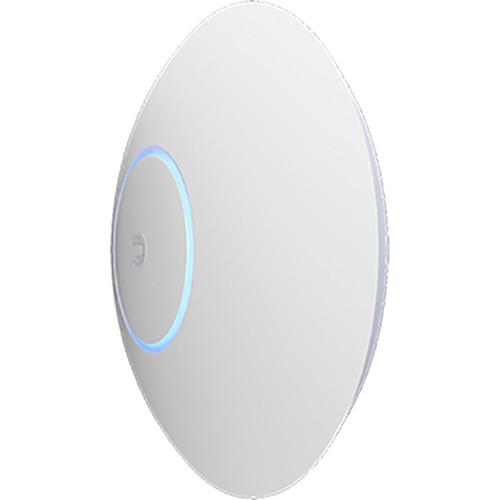

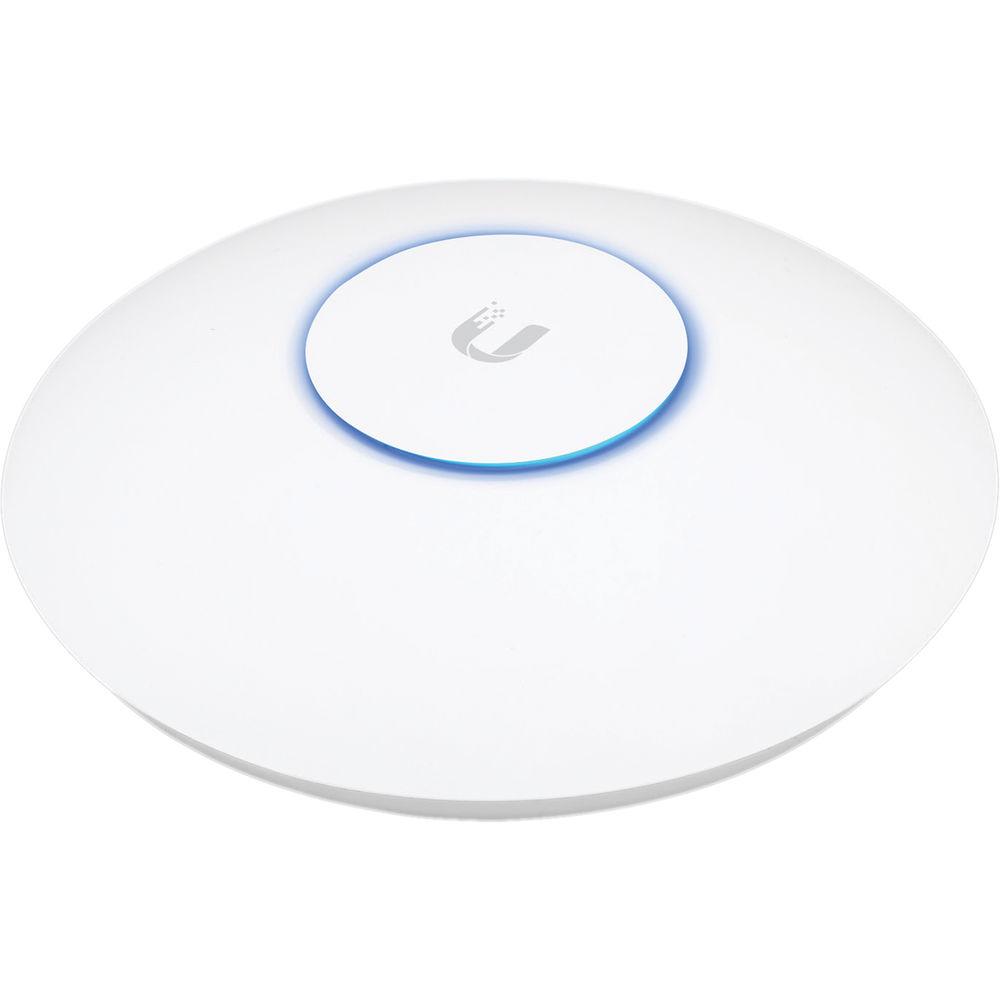

Product description The UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system. UniFi Controller - View Your RF Environment
- Use the RF environment functionality of the UniFi AC HD AP to detect and troubleshoot nearby interference, analyze radio frequencies, choose optimal AP placement, and configure settings.
- Power RF Performance
- Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
- Detailed Analytics
- Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
- Wireless Uplink
- Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
- Guest Portal/Hotspot Support
- Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards
• Built-in support for voucher-based authentication
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund
• Full customization and branding of Hotspot portal pages - Multi-Site Management
- A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
- WLAN Groups
- The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio. Each WLAN can be VLAN tagged. Dynamic VLAN tagging per Wi-Fi station (or RADIUS VLAN) is also supported.
802.11ac Technology - MU-MIMO
- Assuming the same conditions, a Wave 2 AP provides up to 75% improvement overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.
- 4x4 Spatial Streams
- At any single time, a Wave 2 AP can communicate with the following MU-MIMO clients:
• four 1x1 clients
• two 2x2 clients
• one 2x2 client and two 1x1 clients
• one 3x3 client and one 1x1 client
A 4x4 Wave 2 AP delivers up to 33% greater performance than a Wave 1 AP that is 3x3 in both radio bands. - Client Compatibility
- The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. Combining the performance increases from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi AC HD AP delivers up to 125% greater performance than a typical Wave 1 AP.
Hardware - Easy Mounting
- Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.

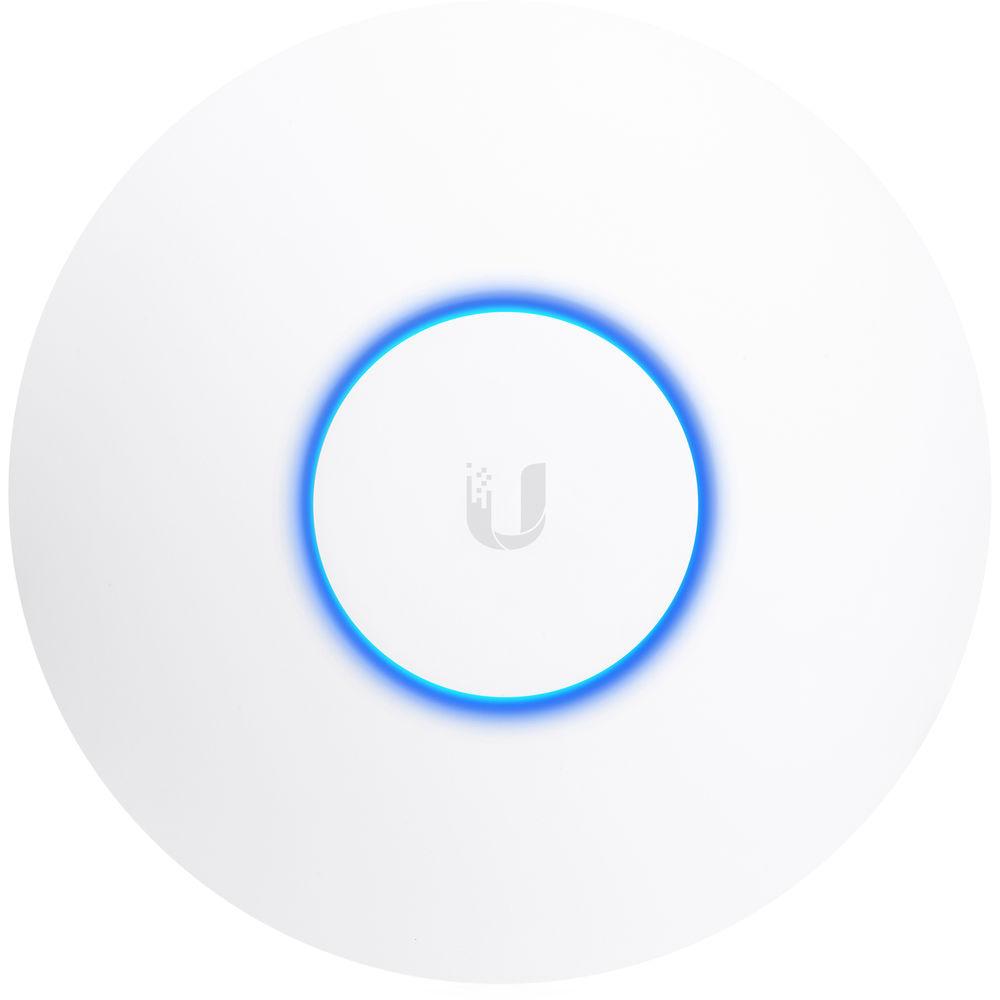

- LED
- Unique LED provisioning ring provides administrator location tracking and alerts for each device.

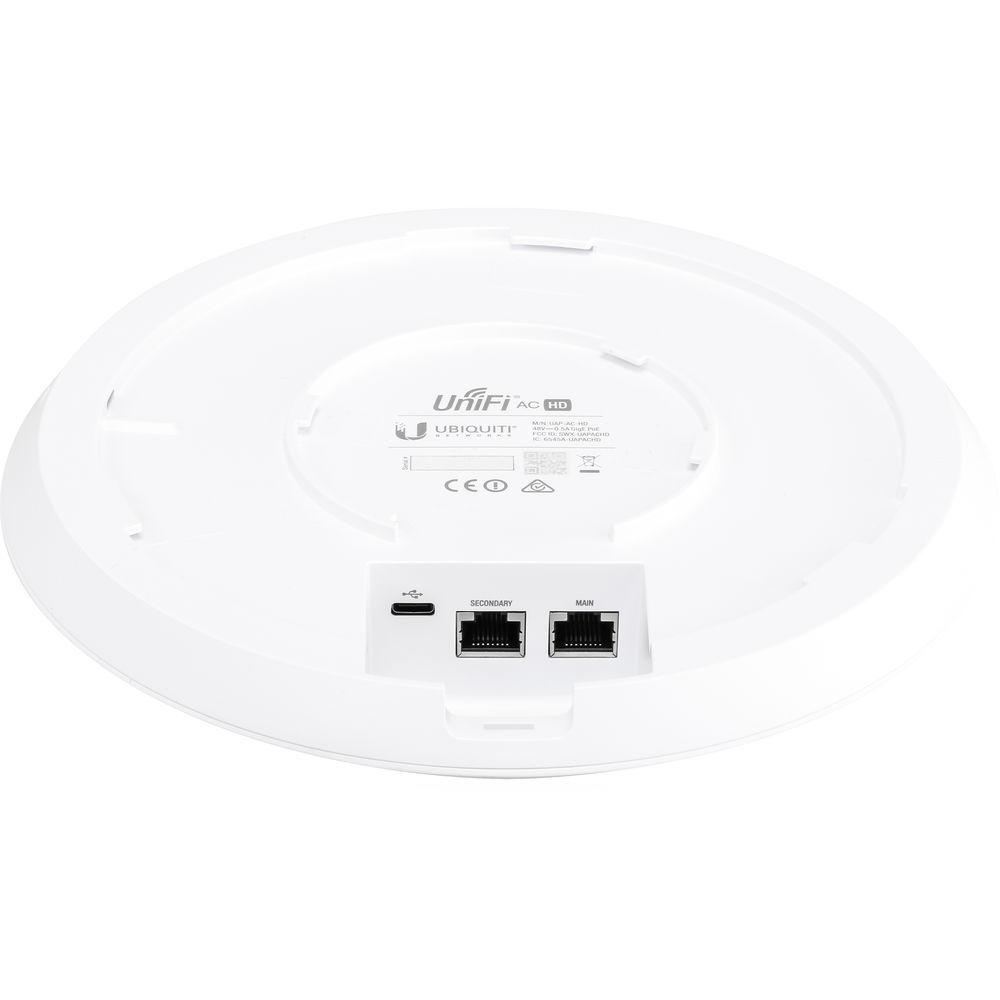

- Dual-Gigabit Ethernet
- Unique LED provisioning ring provides administrator location tracking and alerts for each device.
- Enhanced Processing Power
- The UniFi AC HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
- Power over Ethernet (PoE)
- Includes PoE functionality. Each single-pack includes a PoE adapter.
- PoE Standard
- The UniFi AC HD AP is compatible with an 802.3at PoE+ compliant switch.
UPC: 810354026140 In the Box Ubiquiti Networks UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point (5-Pack) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UAP-AC-HD-5-US Specs | | | Number of Antennas | 4 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Antenna Gain | 3 to 4 dBi | | Transmit Power | 6 to 25 dBm | | Supported Protocols | WMM | | | | Ports | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ | | | | Supported Clients | 500 | | Max SSIDs Supported | 4 | | Throughput | 2.4 GHz: 450 Mb/s
5 GHz: 1700 Mb/s | | | | Supported IEEE Standards | 802.3at | | | | Operating Temperature | 14 to 158°F / -10 to 70°C | | Operating Humidity | 5 to 95% | | | | Dimensions | 8.7 x 8.7 x 1.9" / 22 x 22 x 4.8 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 12.065 lb | | Box Dimensions (LxWxH) | 11.6 x 10.85 x 10.2" |
