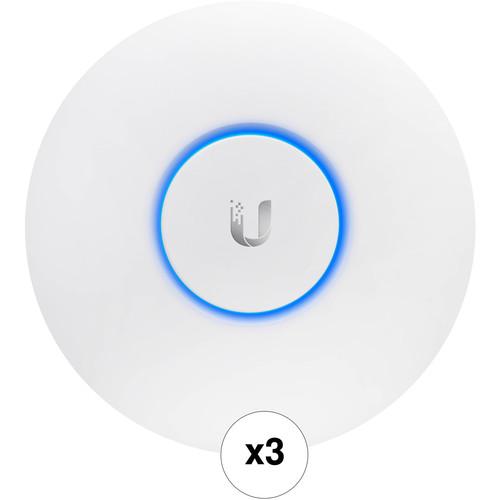

User Manual for Ubiquiti Networks UAP-AC-LITE UniFi Access Point Enterprise Wi-Fi System Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UAP-AC-LITE UniFi Access Point
- Product category: Wireless Access Points Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Wireless Access Points
|
User manual for the Ubiquiti Networks UAP-AC-LITE UniFi Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description This Kit features three Ubiquiti Networks UAP-AC-LITE UniFi Access Points from Ubiquiti Networks. These access points are part of the Ubiquiti UniFi Enterprise Wi-Fi System and support the 802.11ac Wi-Fi network standard along with support for both the 2.4 GHz and 5 GHz frequencies. - 3 x Ubiquiti Networks UAP-AC-LITE UniFi Access Point Enterprise Wi-Fi System The UAP-AC-LITE UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 867 Mb/s in the 5 GHz radio band, and up to 300 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 2 x 2 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware. The Wi-Fi system includes UniFi Controller software that can be installed on a Windows, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
UniFi AP - Save Money and Save Time
- The UniFi AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise Windows, Mac, or Linux machine, in a private cloud, or using a public cloud service.
- Wi-Fi 802.11ac MIMO Technology
- The 802.11ac MIMO Technology offers Gigabit speeds and range up to 400'.
- Intuitive UniFi Controller Software
- Install, configure, and manage all of the UniFi APs with the intuitive and user-friendly UniFi controller user interface.
- Expandable
- Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.
Controller - UniFi Controller
- Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
- Analytics
- You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
- Guest Portal/Hotspot Support
- Easy customization options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customization, and branding of hotspot portal pages.
- Multi-Site Management
- A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.
- WLAN Groups
- The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
- Maps
- Upload map images of your location for a visual representation of each wireless network.
- Statistics
- UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.
- Extend Your Coverage
- With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.
- Easy Mounting
- Sleek wall or ceiling mount design (all accessories included).
- Design
- It has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device. The unit can also be powered from the Ubiquiti TOUGHSwitch PoE PRO (sold separately).
UPC: 810354022012 In the Box - 3 x UAP-AC-LITE UniFi Access Point Enterprise Wi-Fi System seeadxzzbzdytcvb
- 24 V, 0.5 A PoE Gigabit Adapter
- Wall and Ceiling Mount Adapter Kit
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UAP-AC-LITE UniFi Access Point Enterprise Wi-Fi System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Ubiquiti Networks UAP-AC-LITE UniFi Access Point Enterprise Wi-Fi System
| | | Number of Antennas | 2 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Antenna Gain | 3 dBi | | Transmit Power | 20 dBm | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Wireless Security | WEP, WPA, AES, TKIP | | | | Supported Clients | 200 | | Throughput | 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s | | | | Supported IEEE Standards | 802.11i | | | | DC Input Power | 24 VDC at 0.5 A | | Power Consumption | 6.5 W | | | | Dimensions | 6.3 x 6.3 x 1.2" / 16 x 16 x 3.1 cm | | Weight | 0.4 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 8.1 x 7.9 x 3.5" |
