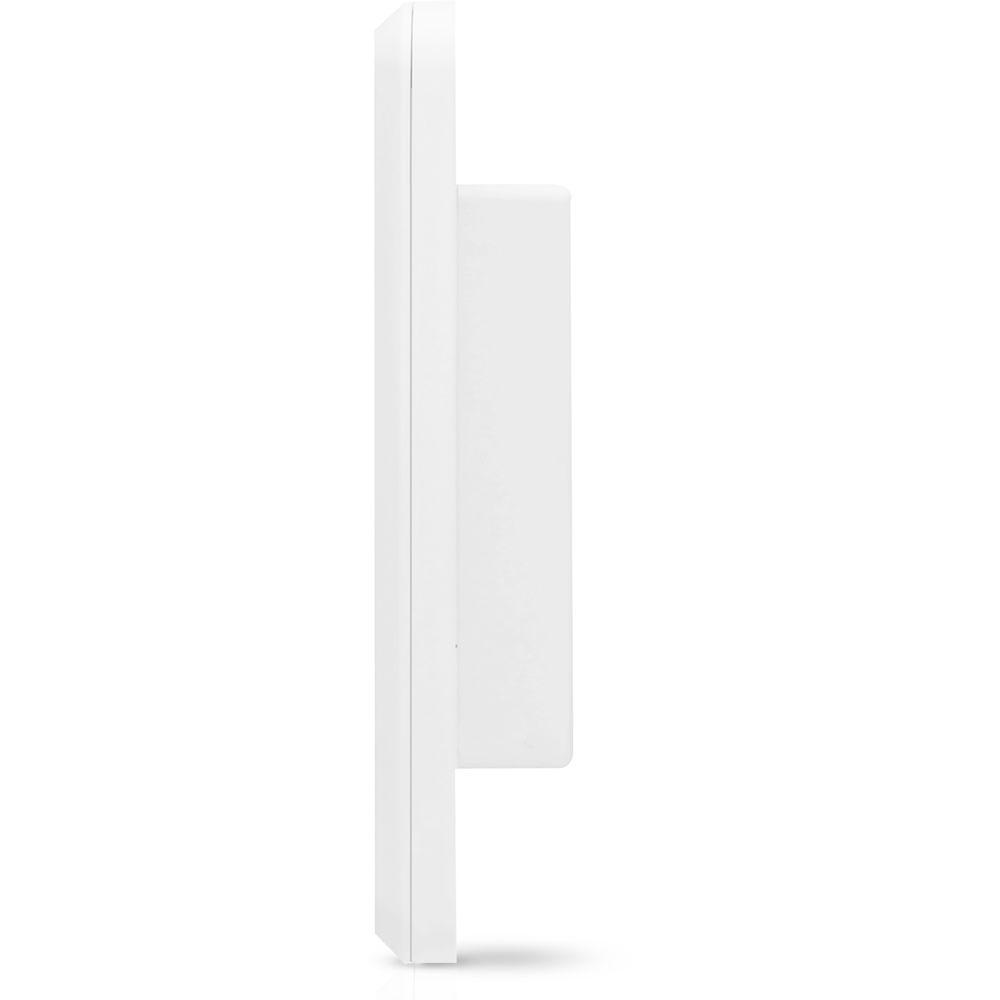

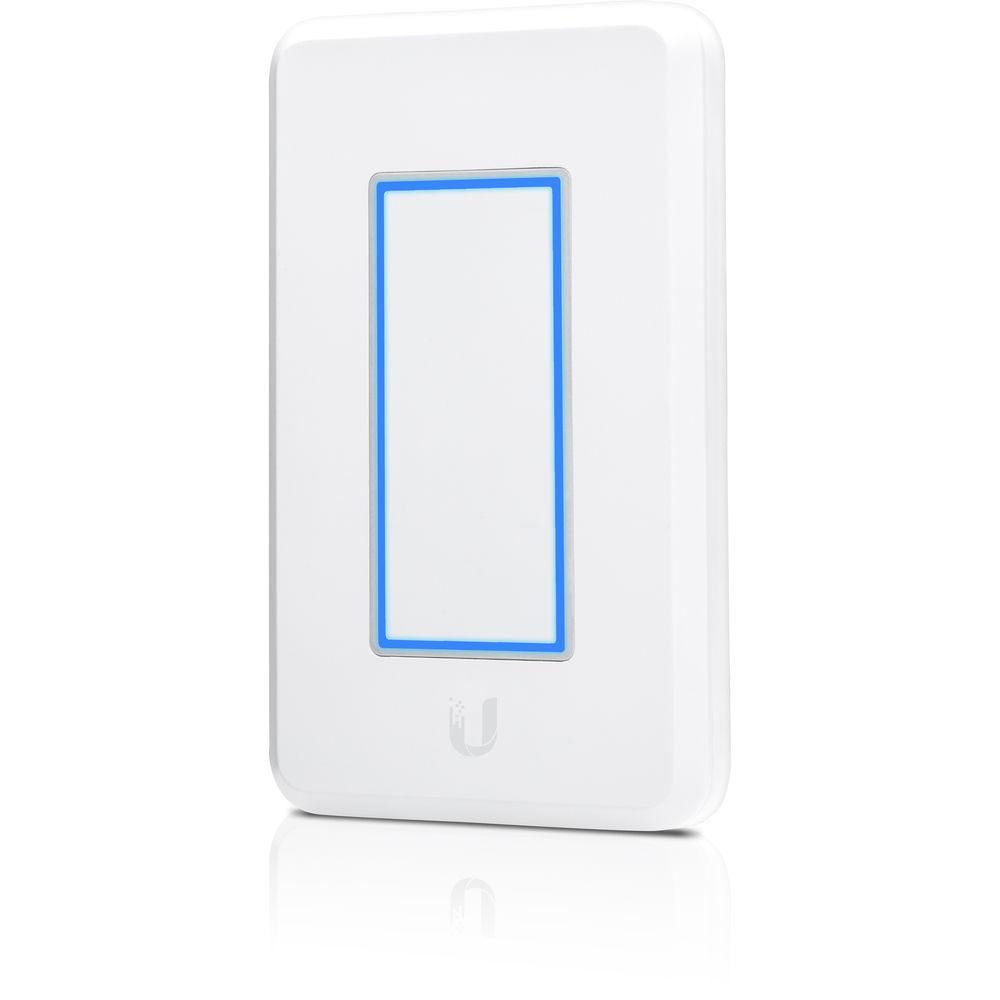

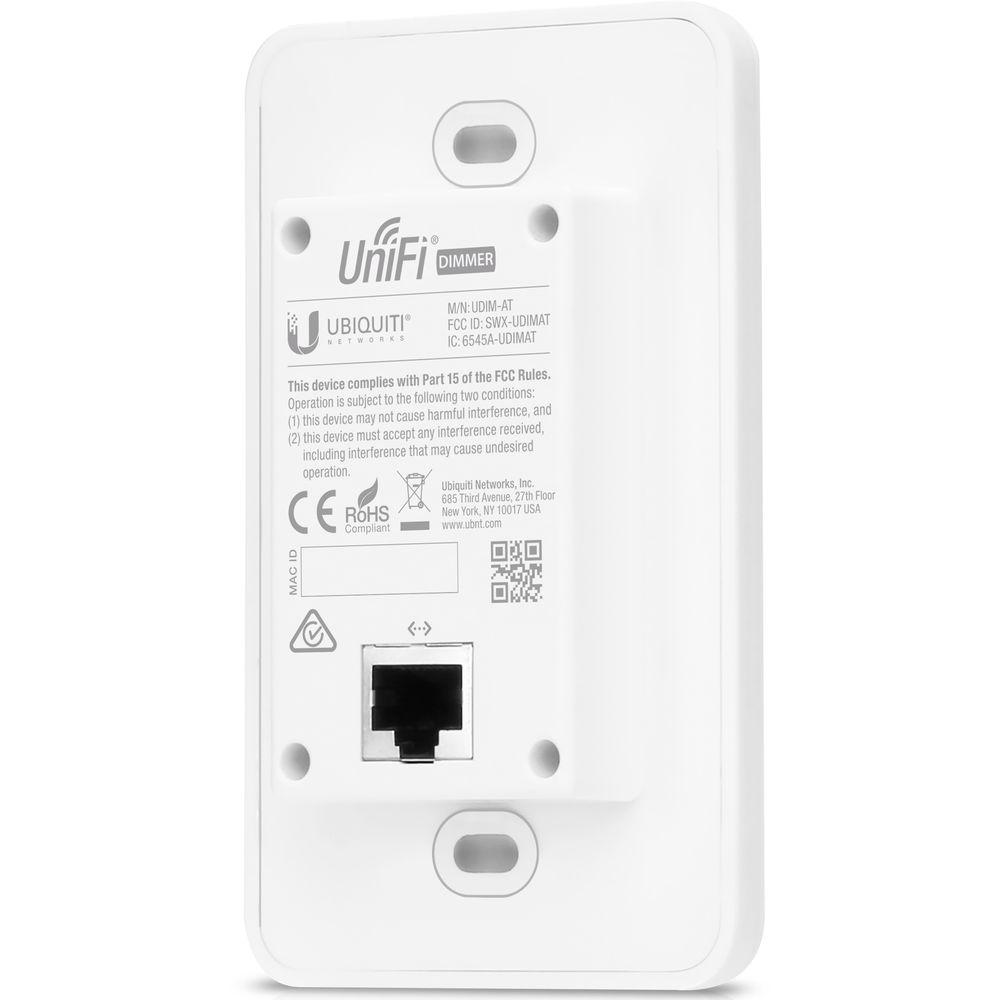

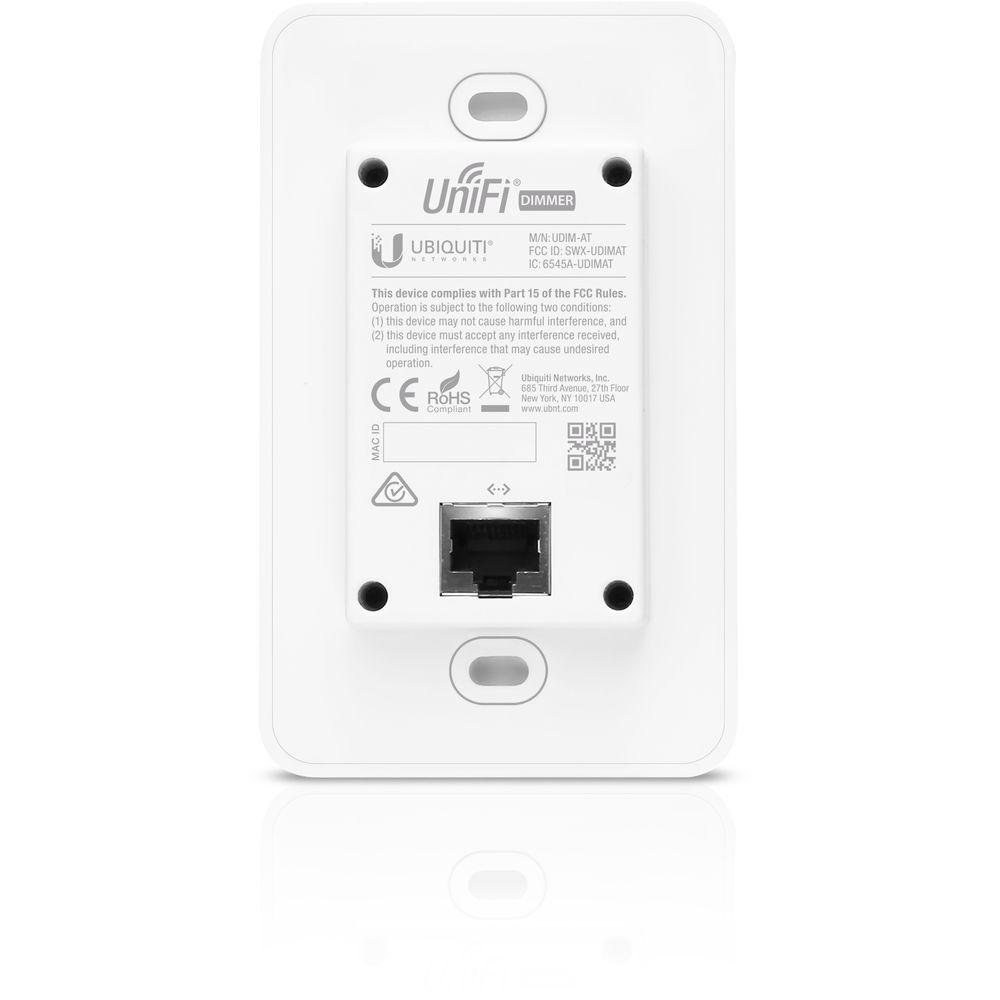

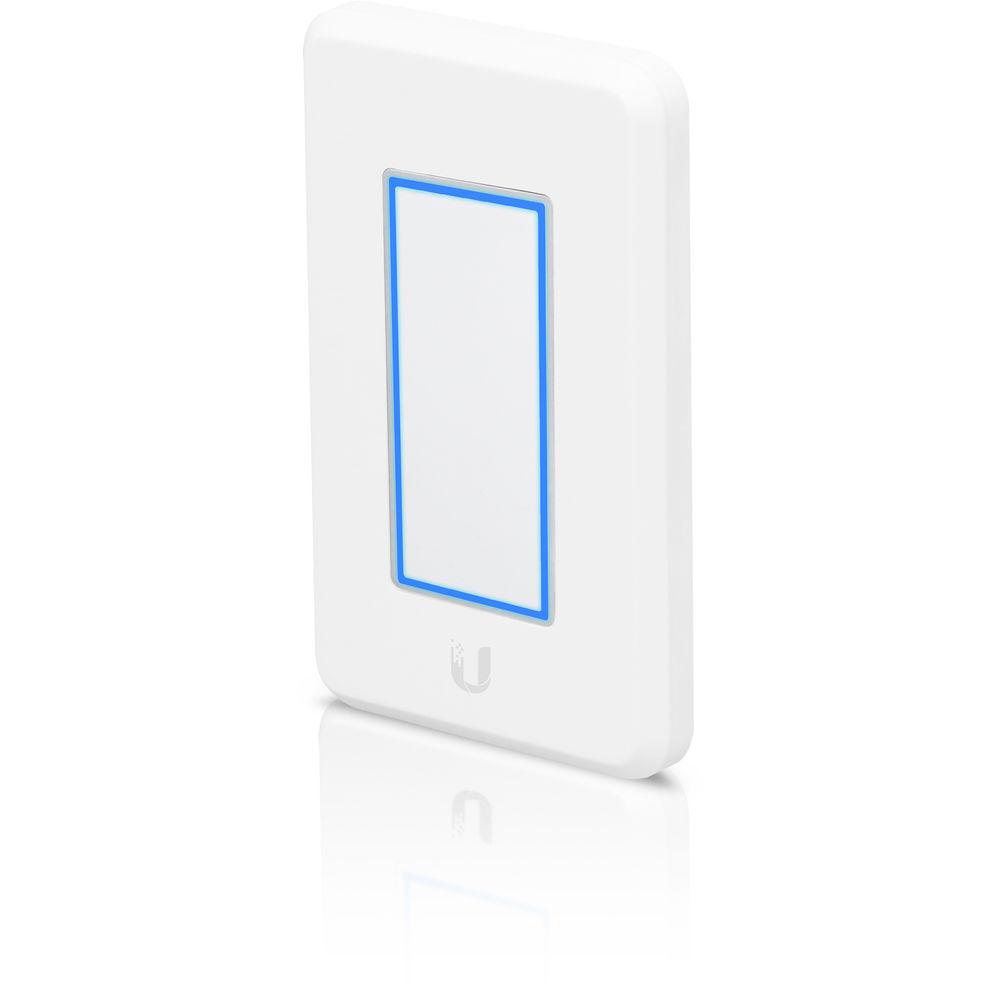

User Manual for Ubiquiti Networks UDIM-AT UniFi Dimmer Switch Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks UDIM-AT UniFi Dimmer Switch
- Product category: Dimmers & Switches Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Dimmers & Switches
 |
User manual for the Ubiquiti Networks UDIM-AT UniFi Dimmer Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|
Product description The UDIM-AT UniFi Dimmer Switch from Ubiquiti Networks is designed to be used in conjunction with UniFi LED panels. This dimmer switch is powered by PoE technology. It enables the user to directly control up to 128 LED panels (available separately). - Can control up to 128 UniFi LED panels (available separately)
- On/off control and 10-100% brightness adjustment of LED panels
- LED indicators for status
- CE, FCC, and IC certified
UPC: 817882023795 In the Box Ubiquiti Networks UDIM-AT UniFi Dimmer Switch 2 x Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UDIM-AT UniFi Dimmer Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UniFi LED Dimmer Specs | Compatibility | 128 UniFI LED panels (maximum) | | Networking Interface | 10/100M Ethernet port | | Management Interface | UniFi LED Controller
UniFi LED app for iOS and Android | | Reset Button | Yes | | Status LEDs | Yes | | Power Method | 802.3af PoE | | Power Supply | UniFi Switch (802.3af) | | Supported Voltage | 48 V | | Maximum Power Consumption | 5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90%, non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 2.8 x 4.53 x 0.98" / 71 x 115 x 25 mm | | Weight | 3.2 oz / 90 g | | | | Package Weight | 0.445 lb | | Box Dimensions (LxWxH) | 5.25 x 3.55 x 1.95" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
