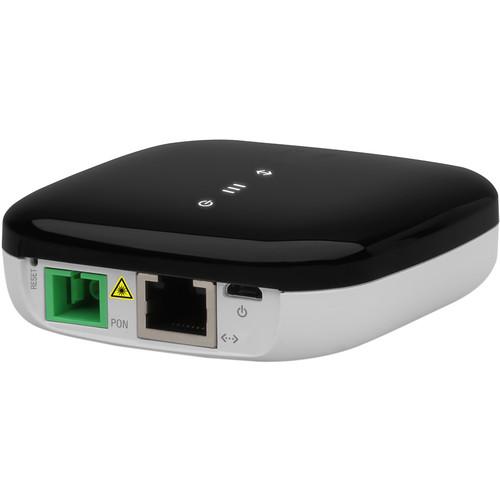

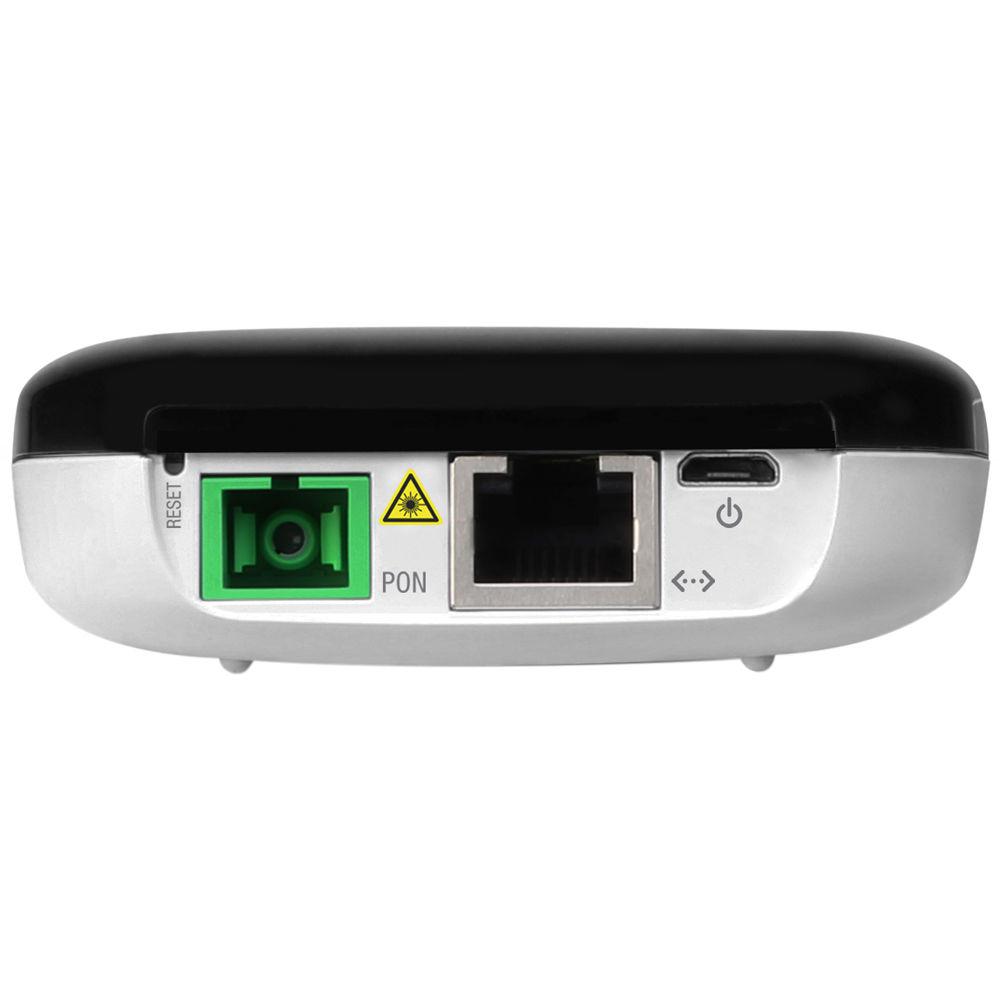

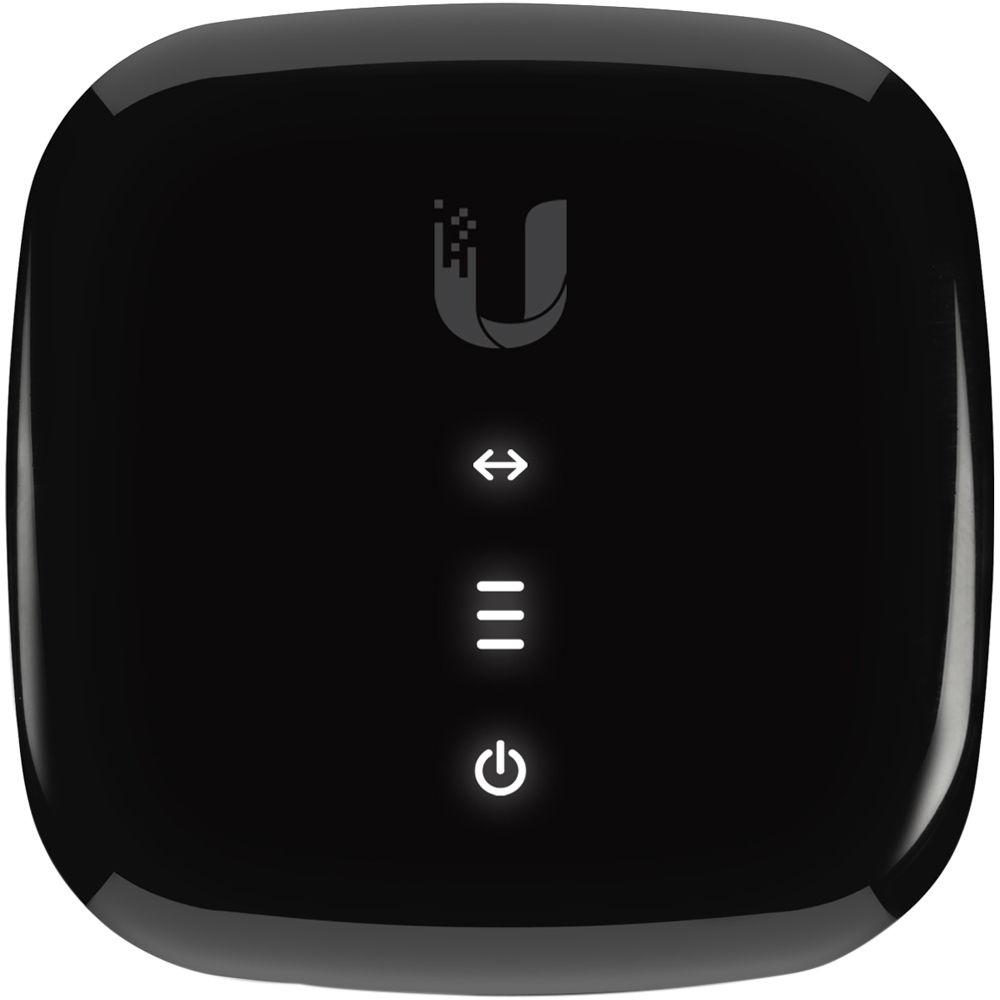

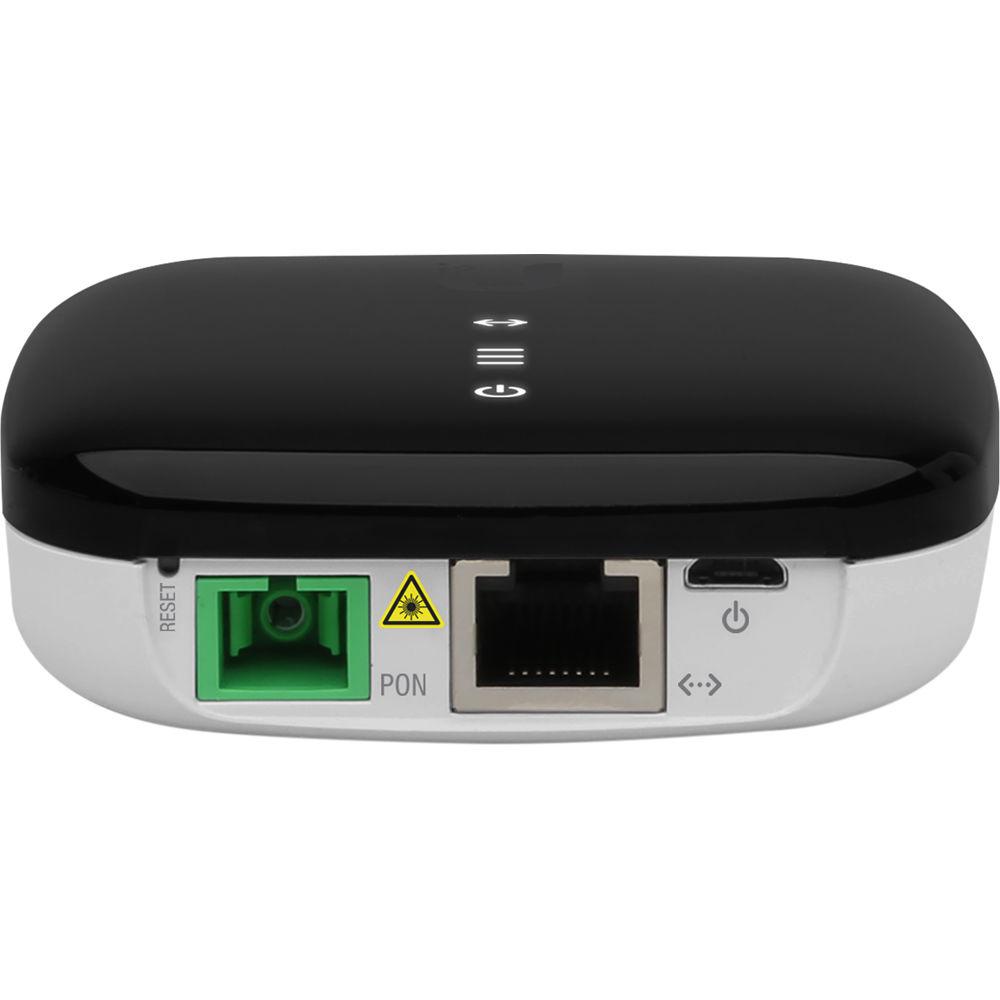

Product description This UF-Loco UFiber Gigabit Passive Optical Network (GPON) from Ubiquiti Networks lets you share a high-speed Fiber connection with Gigabit-enabled devices. The UF-Loco comes equipped with a single GPON port and a single Gigabit Ethernet port, as well as a digital LED display, making it easy to view the status of the connection. Additionally, this GPON device supports downstream data rates of up to 2.488 Gb/s and upstream data rates of up to 1.244 Gb/s as well as 1490 nm downstream and 1310 nm upstream wavelengths. Installation is simple, as the PoE-compatible GPON device can be mounted on a wall for easy access. -
- WAN: 1 x GPON port
- LAN: 1 x Gigabit Ethernet port
- GPON Speeds: 2.488 Gb/s downstream (RX), 1.244 Gb/s upstream (TX)
- Wavelengths: 1490 nm downstream (RX), 1310 nm upstream (TX)
- Max. Power Consumption: 3.5W
- Power Method: 24V Passive PoE or micro-USB power adapter
- Mounting: Wall-mountable (indoor)
UPC: 817882023559 In the Box Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit Micro-USB Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UF-LOCO Specs | Network Interfaces | Networking Interface Speeds
1 x GPON WAN, ITU G.984
2.488 Gb/s downstream
1.244 Gb/s upstream
1 x GbE LAN, 10/100/1000 Mb/s | | Management Interface | In-Band Ethernet / PON | | Power | Normal Optical Power Range
TX (Class B+): 1.5 to 5 dBm
RX: -8 to -28 dBm
Power Method
Micro-USB: 5 V / 1 A
24 V Passive PoE (Pins +4, 5; -7, 8)
Power Supply
Micro-USB Power Adapter: 5 V / 1 A
Max. Power Consumption
3.5 W
Supported Voltage Range
4.7 to 5.3 V | | Processor | MIPS-32, 240 MHz | | Memory | 128 MB DDR3 | | Buttons | 1 x Reset | | Temperature & Humidity | Operating Temperature
14 to 113°F / -10 to 45°C
Operating Humidity
10 to 90% non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 3.01 x 3.01 x 1.04" / 76.5 x 76.5 x 26.4 mm | | Weight | 2.72 oz / 77 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 4.0" |
