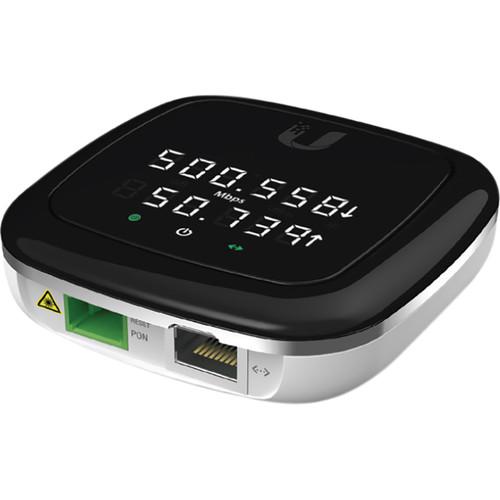

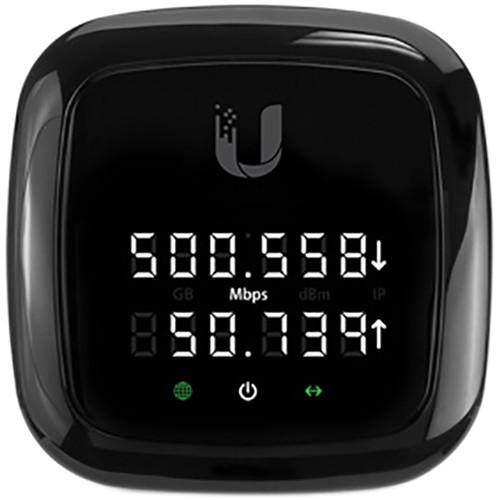

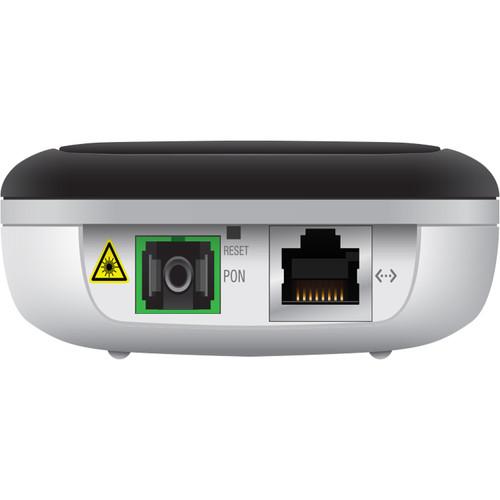

Product description This UF-Nano UFiber Gigabit Passive Optical Network (GPON) from Ubiquiti Networks lets you share a high-speed Fiber connection with Gigabit-enabled devices. The UF-Nano comes equipped with a single GPON port and a single Gigabit Ethernet port, as well as a digital LED display, making it easy to view the status of the connection. Additionally, this GPON device supports downstream data rates of up to 2.488 Gbps and upstream data rates of up to 1.244 Gbps as well as 1490 nm downstream and 1310 nm upstream wavelengths. Installation is simple, as the PoE-compatible GPON device can be mounted on a wall for easy access. - Connectivity

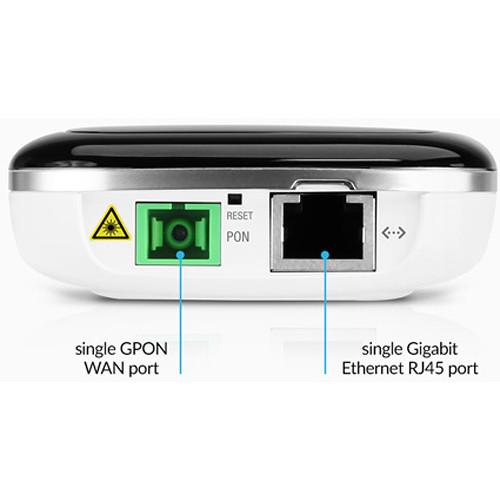

- • Single GPON WAN port
• Single Gigabit Ethernet port - GPON Speeds
- • 2.488 Gbps downstream
• 1.244 Gbps upstream - Wavelengths
- • 1490 nm downstream

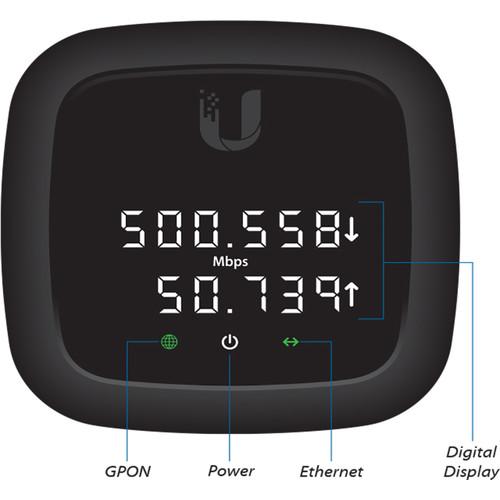

• 1310 nm upstream - Display

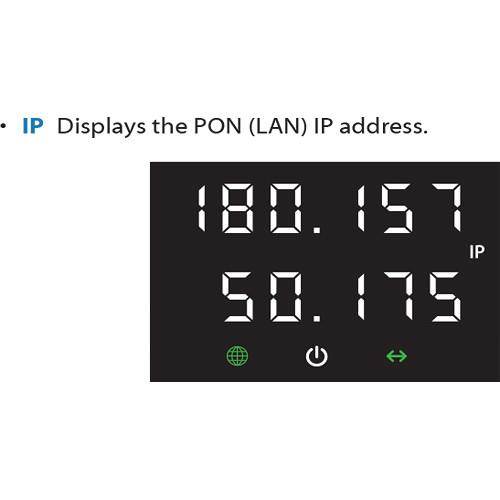

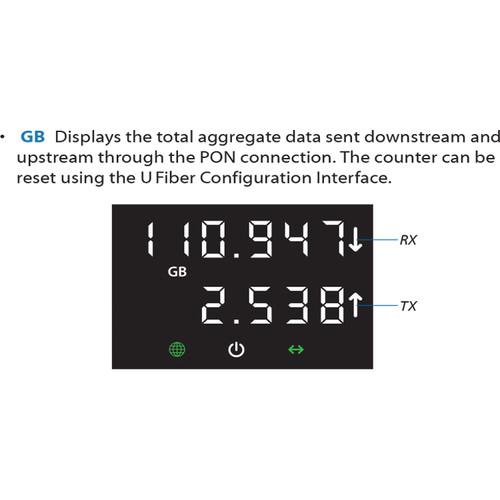

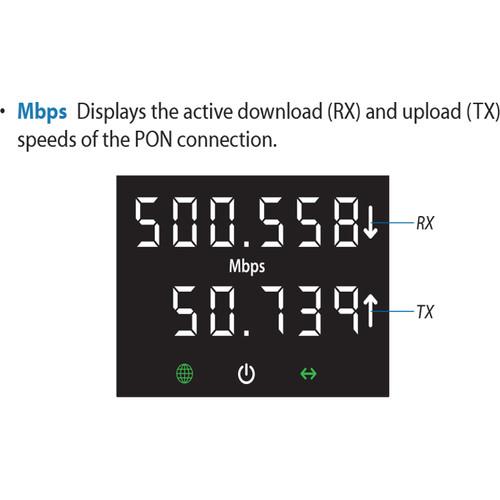

- • Digital LED for status reporting
- Power Method
- • 24 V Passive PoE

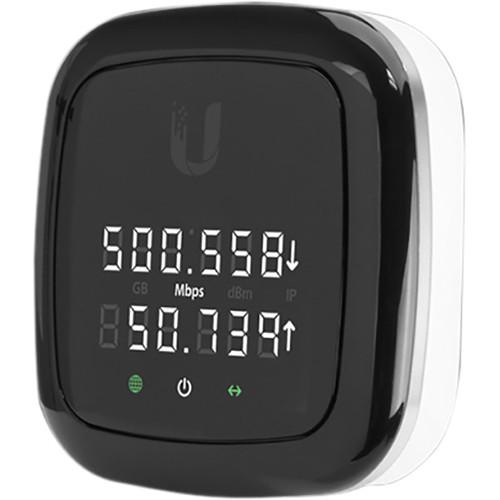

- Mounting
- • Wall-mountable
UPC: 810354025747 In the Box Ubiquiti Networks UF-Nano UFiber Gigabit Passive Optical Network Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UF-Nano UFiber Gigabit Passive Optical Network Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UF-NANO Specs | Network Interfaces | Networking Interface Speeds
1 x GPON WAN, ITU G.984
2.488 Gbps downstream
1.244 Gbps upstream

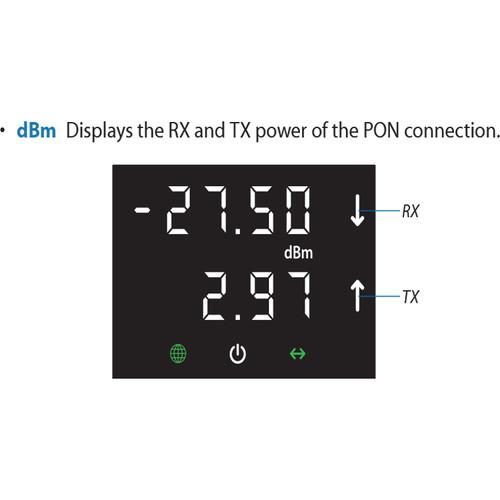

1 x GbE LAN, 10/100/1000 Mbps | | Management Interface | In-Band Ethernet / PON | | Power | Normal Optical Power Range
TX (Class B+): 1.5 to 5 dBm
RX: -8 to -28 dBm
Power Method
Passive PoE (Pins +4, 5; -7, 8)
Dying Gasp support
Power Supply
PoE Adapter: 24 V, 0.3 A (included)
Max. Power Consumption
7 W
Supported Voltage Range
20 to 28 V | | Processor | MIPS-32, 240 MHz | | Memory | 128 MB DDR3 | | Buttons | 1 x Display Information
1 x Reset | | Temperature & Humidity | Operating Temperature
14 to 113°F / -10 to 45°C
Operating Humidity
5 to 95% non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 3.03 x 3.03 x 1.10" / 77 x 77 x 28 mm | | Weight | 3.88 oz / 110 g | | | | Package Weight | 1.075 lb | | Box Dimensions (LxWxH) | 7.3 x 4.35 x 3.5" |
