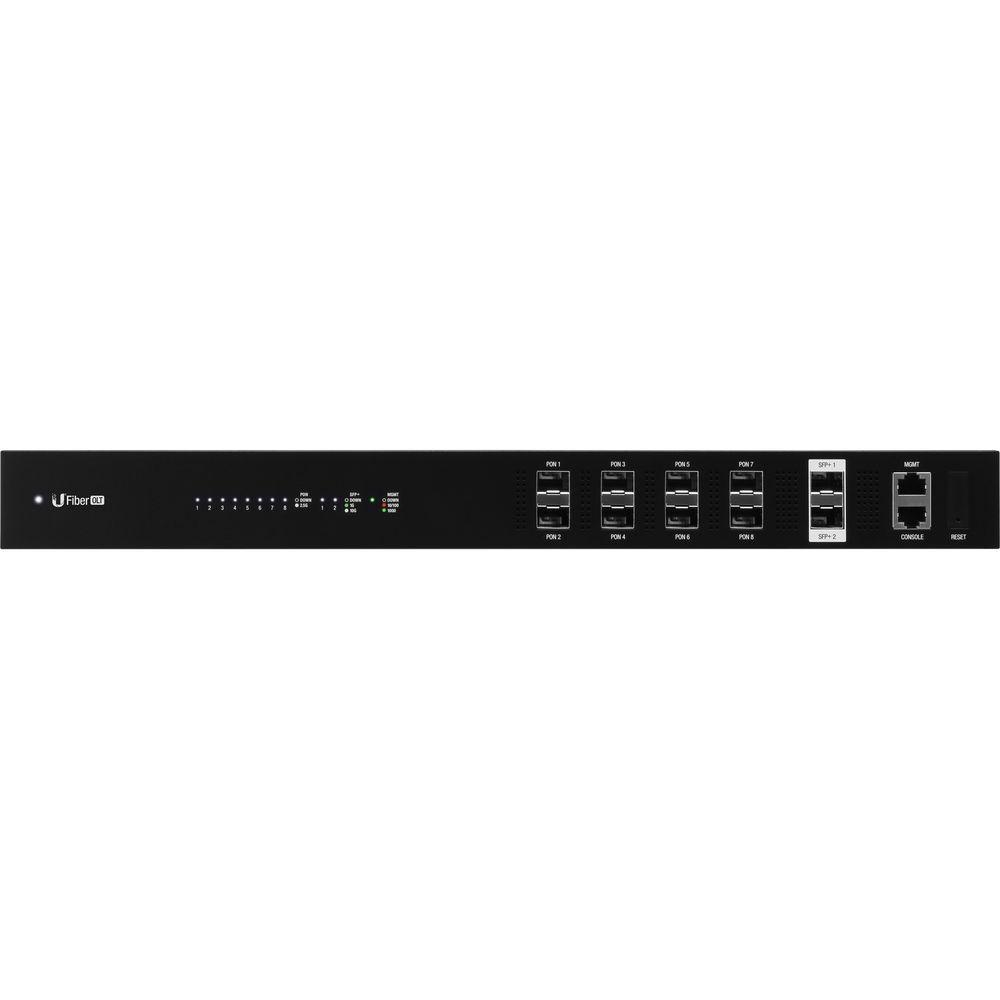

Product description With eight GPON SFP ports and two SFP+ ports, the UF-OLT 8-Port GPON Optical Line Terminal from Ubiquiti Networks offers enhanced connectivity with support for up to 1024 concurrent clients at distances of up to 20 km. Once configured, this line terminal device supports upstream data transfer rates of up to 2.488 Gb/s and downstream data transfer rates of up to 1.244 Gb/s. This Optical Line Terminal comes with Ubiquiti Networks own UFiber Controller Software. With this software, you can manage your network through a graphical UI for quick configuration and deployment of UFiber devices. - High-Performance GPON
- The UFiber OLT - a fiber solution that anyone can deploy offers Internet and telecom service provides a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gb/s downstream and 1.244 Gb/s upstream. The UFiber network is intelligently managed using the included UNMS (Ubiquiti Network Management System) controller. UFiber devices consist of the UFiber OLT (deployed at the provider premises) and the UFiber Nano Gconsumer premises equipment ONUs.
- UFiber Controller Software
- Ubiquiti Networks distinguishes itself with a library of powerful and intuitive management software that is included at no additional cost. The UNMS is a comprehensive management controller, featuring a graphical UI that is easy to learn and navigate. UNMS manages all of the registered UF-OLTs and all of their UF Nano clients.
Features
• Intuitive, graphical web UI
• Quick configuration and deployment of UFiber devices
• Centralized management of multiple GPON networks and sites
• Graphical reports for efficient monitoring and troubleshooting
• Linux-based for low-cost setup
• No licensing or usage fees - GPON Optical Line Terminal

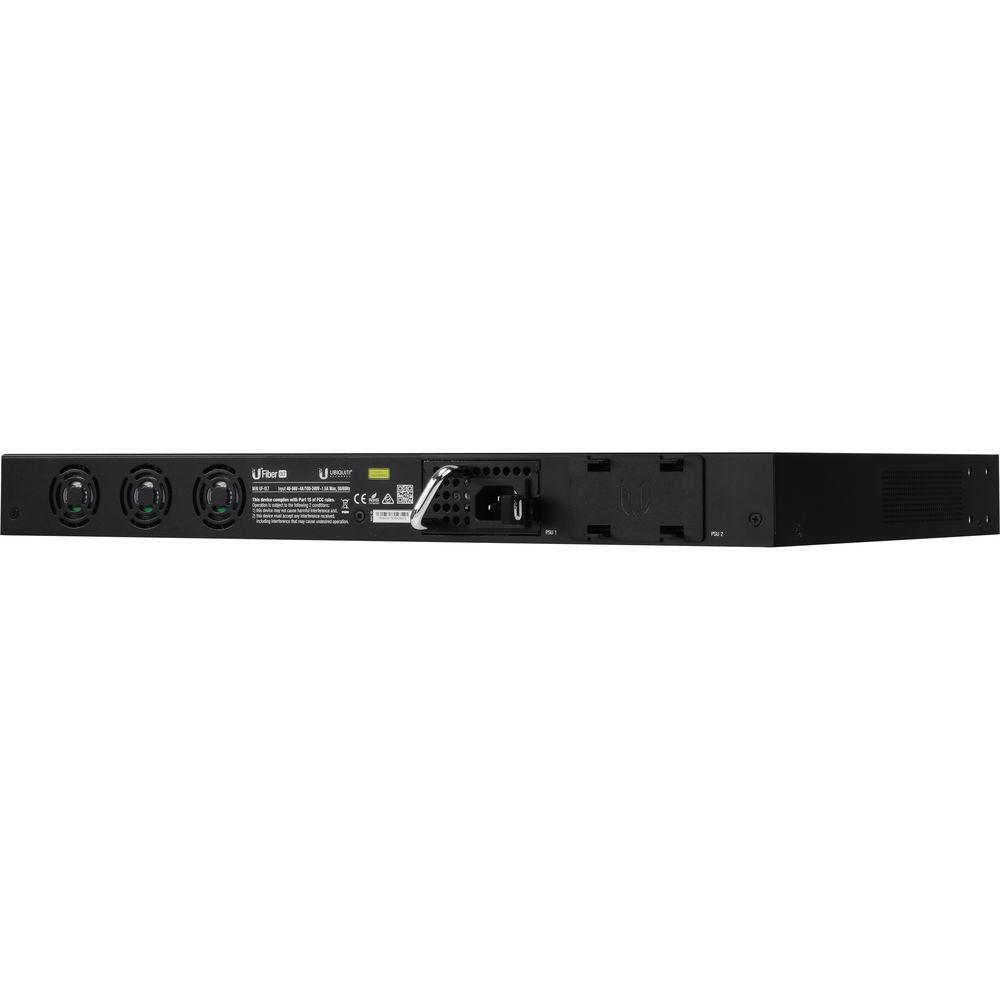

- The UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity. The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.
Features
• Eight GPON SFP ports, two SFP+ ports
• Concurrent Clients: 1024 ONUs
• GPON Range: Up to 20 km link
• GPON Speeds: 2.488 Gb/s upstream (TX), 1.244 Gb/s downstream (RX)
• Wavelengths: 1490 nm upstream (TX), 1310 nm downstream (RX)
• Max. Power Consumption: 40W
• Power Method: 54 VDC PSU module
• Mounting: 1 RU rack-mountable (optional) UPC: 810354026577 In the Box Ubiquiti Networks UF-OLT 8-Port GPON Optical Line Terminal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks UF-OLT 8-Port GPON Optical Line Terminal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersUbiquiti Networks UFiber OLT Specs | Interfaces | 8 x GPON OLT SFP
2 x 1G/10G SFP+ | | Concurrent Clients | 1024 registered ONUs/ONTs (128 per GPON port) | | Management Interface | 1 x Ethernet for out-of-band management
1 x RJ45 serial console port | | Data Transfer Rates | GPON Speeds
2.488 Gb/s upstream (TX)
1.244 Gb/s downstream (RX) | | Operating Wavelength | 1490 nm TX
1310 nm RX | | Power | Normal Optical Power Range
TX (Class B+): 1.5 to 5 dBm
RX: -8 to -28 dBm
Power Method
2 x PSU module bays
Power Supply
1 x 54 V, 100 W AC/DC PSU module (included)
Max. Power Consumption
40 W (excluding SFP modules) | | Range | Physical Reach
12.4 mi / 20 km
Logical Reach
37.3 mi / 60 km
Max. Differential Fiber Distance
12.4 mi / 20 km (B+) /40 km (C+) | | Operating Mode | OLT 2/3 Ethernet switch and GPON core | | Advanced QoS | Supports 8 priority queues per user port and traffic classification | | Processor | MIPS 1004kc 880 MHz dual core | | Memory | 512 MB DDR3
512 MB NAND | | Temperature & Humidity | Operating Temperature
14 to 113°F / -10 to 45°C
Operating Humidity
10 to 90% Non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 17.4 x 11.2 x 1.7" / 44.2 x 28.5 x 4.4 cm | | Weight | With Mount Brackets 9.91 lb / 4.495 kg
Without Mount Brackets
9.7 lb / 4.40 kg | | | | Package Weight | 13.45 lb | | Box Dimensions (LxWxH) | 23.0 x 15.0 x 3.78" |
