User Manual for Ubiquiti Networks ULED-AT-2 UniFi LED Panel Click to enlarge the picture
Contents of the user manual for the Ubiquiti Networks ULED-AT-2 UniFi LED Panel
- Product category: Light Bulbs Ubiquiti Networks
- Brand: Ubiquiti Networks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ubiquiti Networks Light Bulbs
 |
User manual for the Ubiquiti Networks ULED-AT-2 UniFi LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ubiquiti Networks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ubiquiti Networks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ubiquiti Networks product will considerably shorten its lifespan!
|

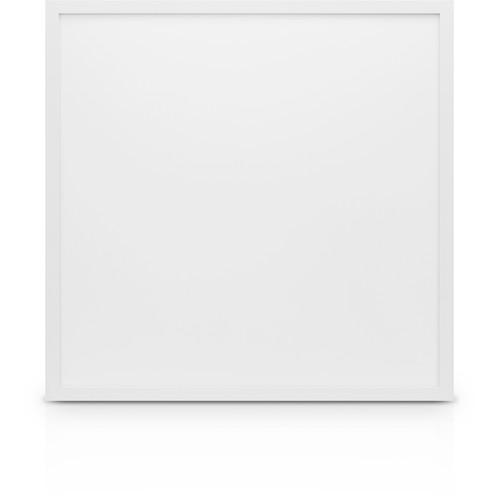

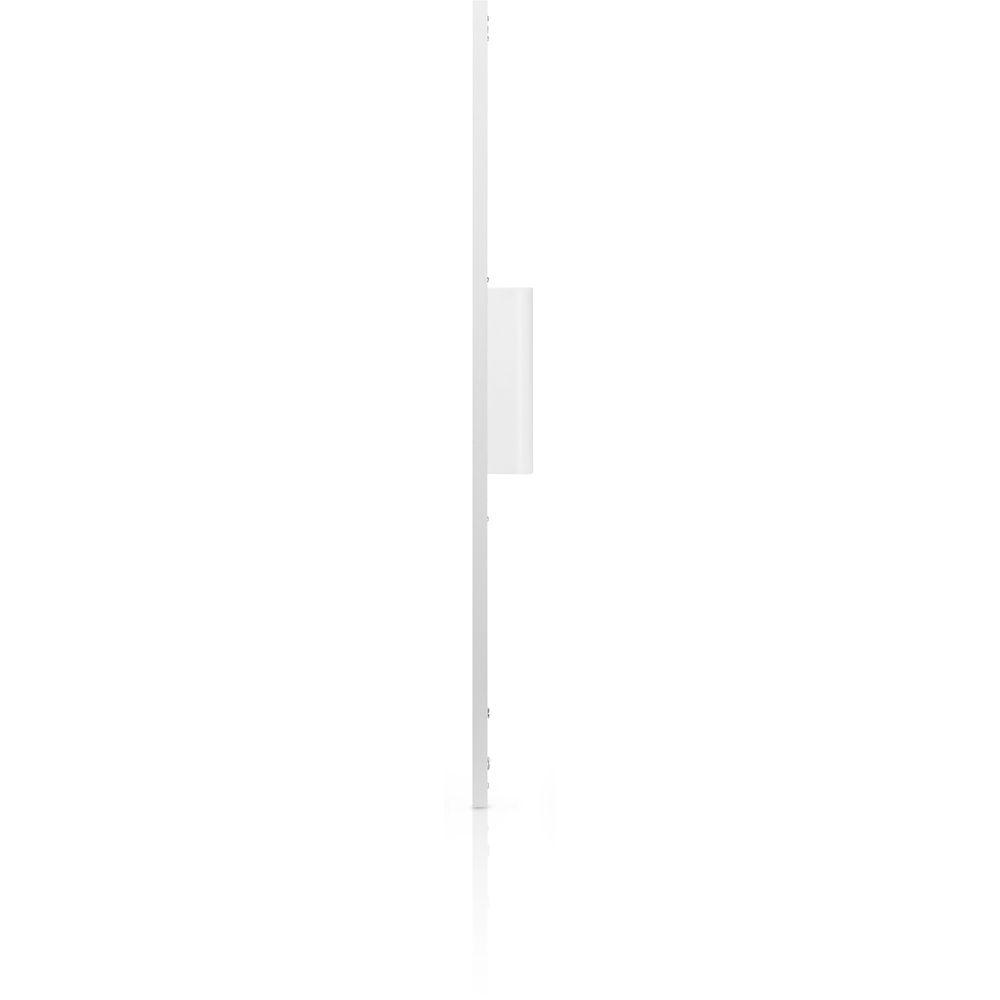

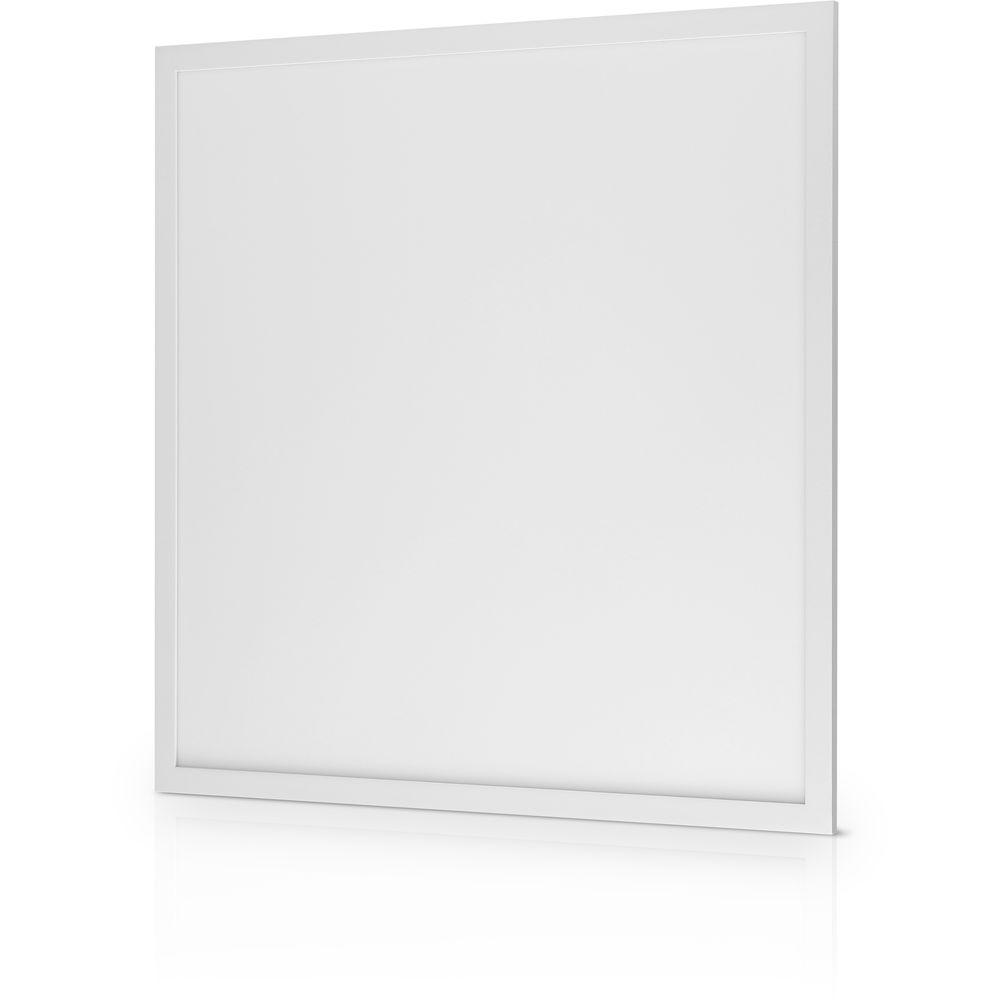

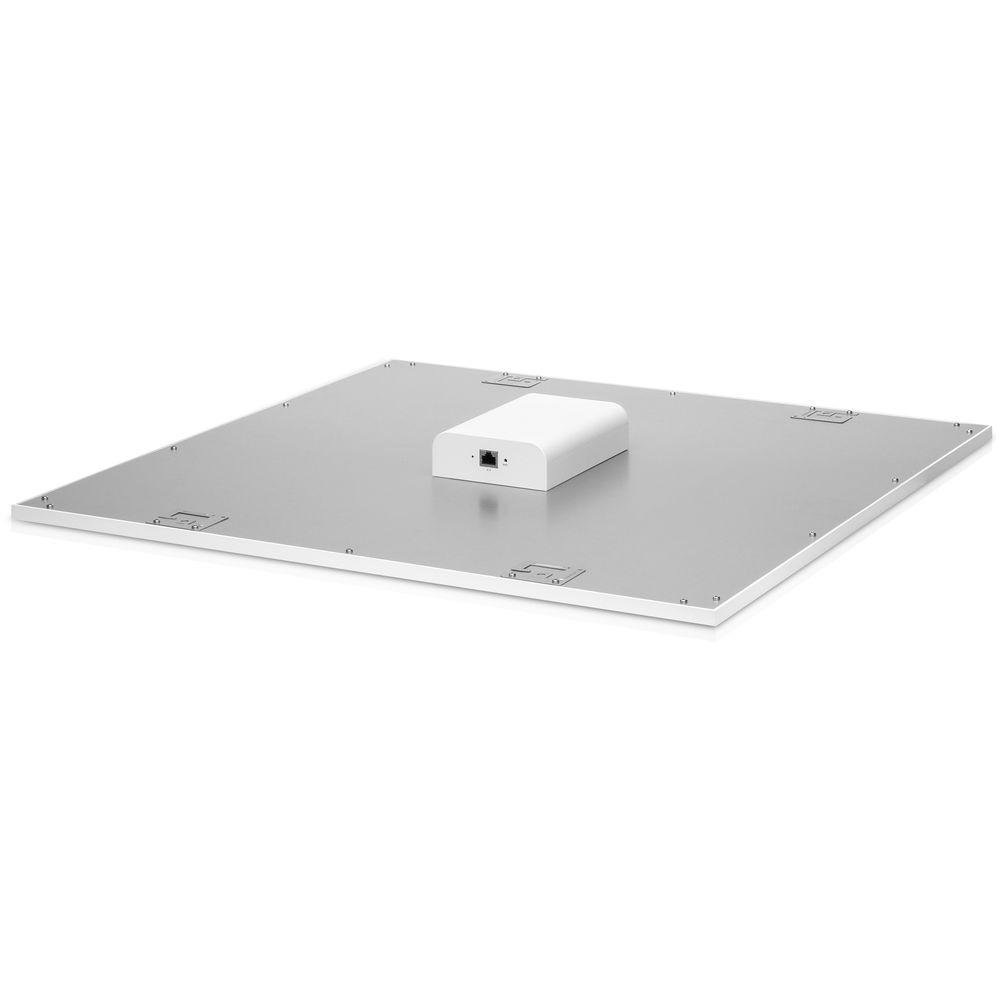

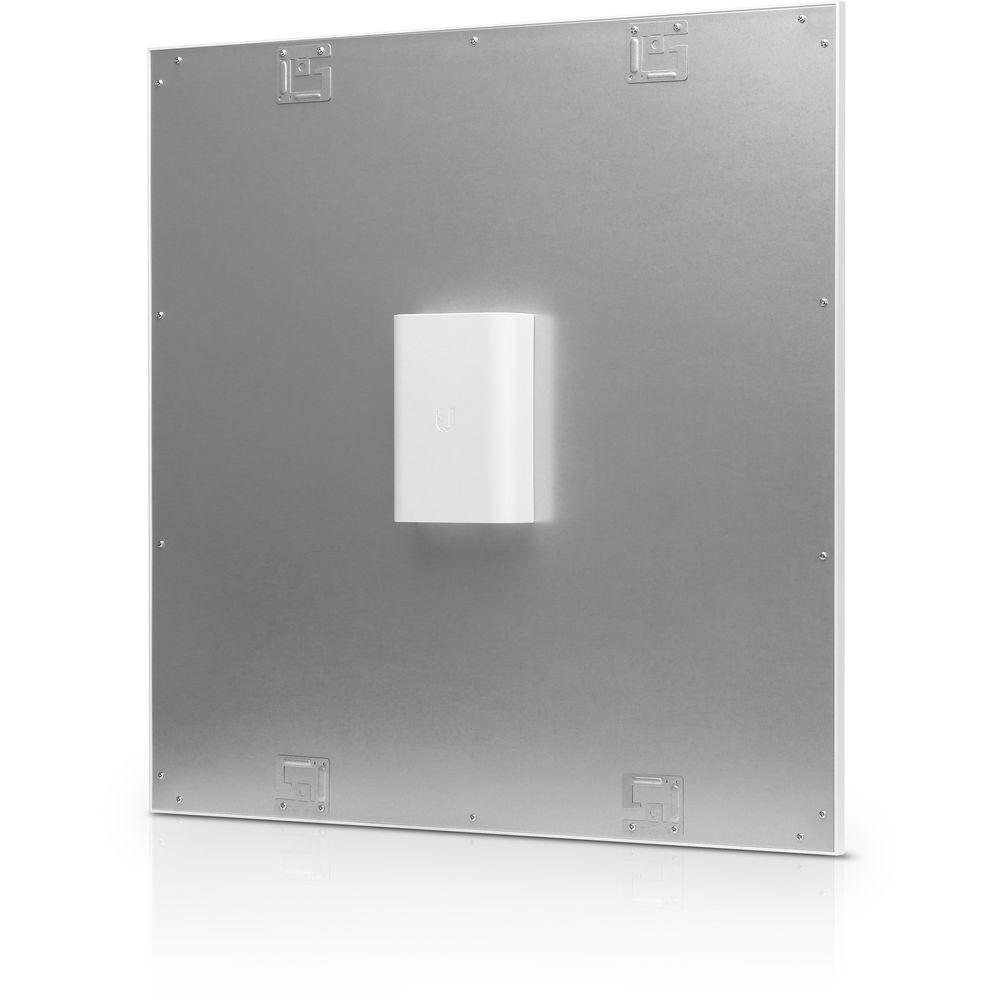

Product description Clean Up Your Utility Bill and Be More Energy Efficient Read More uytxuswqsuutvus This bundle includes two UniFi LED Panels from Ubiquiti Networks. - ULED-AT UniFi LED Panel The ULED-AT UniFi LED Panel from Ubiquiti Networks is an energy-efficient ceiling light with a light output of 2300 lumens and a 4000K natural white color temperature. You can control and create customized schedules for this LED panel via the UniFi dimmer switch (available separately), UniFi LED mobile app for iOS and Android, or UniFi LED controller.
This LED panel has a lifespan of 50,000 hours, ensuring that it lasts for many years to come. It utilizes PoE+ power, eliminating the need for extra power cables. Additionally, this device has Bluetooth 4.1 connectivity. This LED panel cannot be daisy chained. - Controllable via UniFi dimmer switch (available separately), UniFi LED mobile app for iOS and Android, or UniFi LED controller
- 100 lumens per watt luminous efficacy
- 4000K natural white color temperature
- >80 color rendering index
- LED indicators for status
- CE, FCC, and IC certified
In the Box Bundle Items 2 x ULED-AT UniFi LED Panel Table of Contents
|
Upload User Manual
Have you got an user manual for the Ubiquiti Networks ULED-AT-2 UniFi LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ULED-AT UniFi LED Panel
| Networking Interface | 10/100M Ethernet port | | Connectivity | Bluetooth 4.1 | | Reset Button | Yes | | Status LEDs | Yes | | Power Method | 802.3at PoE+ | | Supported Voltage | 42.5 to 57 VDC | | Maximum Power Consumption | 25.5 W | | Mounting | 2 x 2' / 0.6 x 0.6 m recessed drop ceiling grid | | Mobile App | UniFi LED app for iOS and Android | | Luminance | Maximum Initial Delivered Luminance: 2300 lumens | | Efficacy | 100 lumens per watt (based on power delivered to LED panel) | | Color Temperature | 4000K (natural white) | | Lifetime | Lifetime Rating: L80 > 50,000 hours | | Color Rendering Index | >80 | | Beam Angle | 114° | | Brightness Control | 10 to 100% dimming | | Environment | Dry indoor location | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90%, non-condensing | | Certifications | CE, FCC, IC | | Dimensions | 23.7 x 23.7 x 2.23" / 602 x 602 x 56.7 mm
LED Panel Thickness: 0.47" / 12 mm | | Weight | 9.9 lb / 4.5 kg |
